NF-WR-5 datasheet, PDF - EEWORLD Datasheet

NF-WR-5: DescriptionCABLE TERMINATED, FEMALE, RF CONNECTOR, CRIMP, RECEPTACLE; CategoryThe connector The connector; File Size571KB，14 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

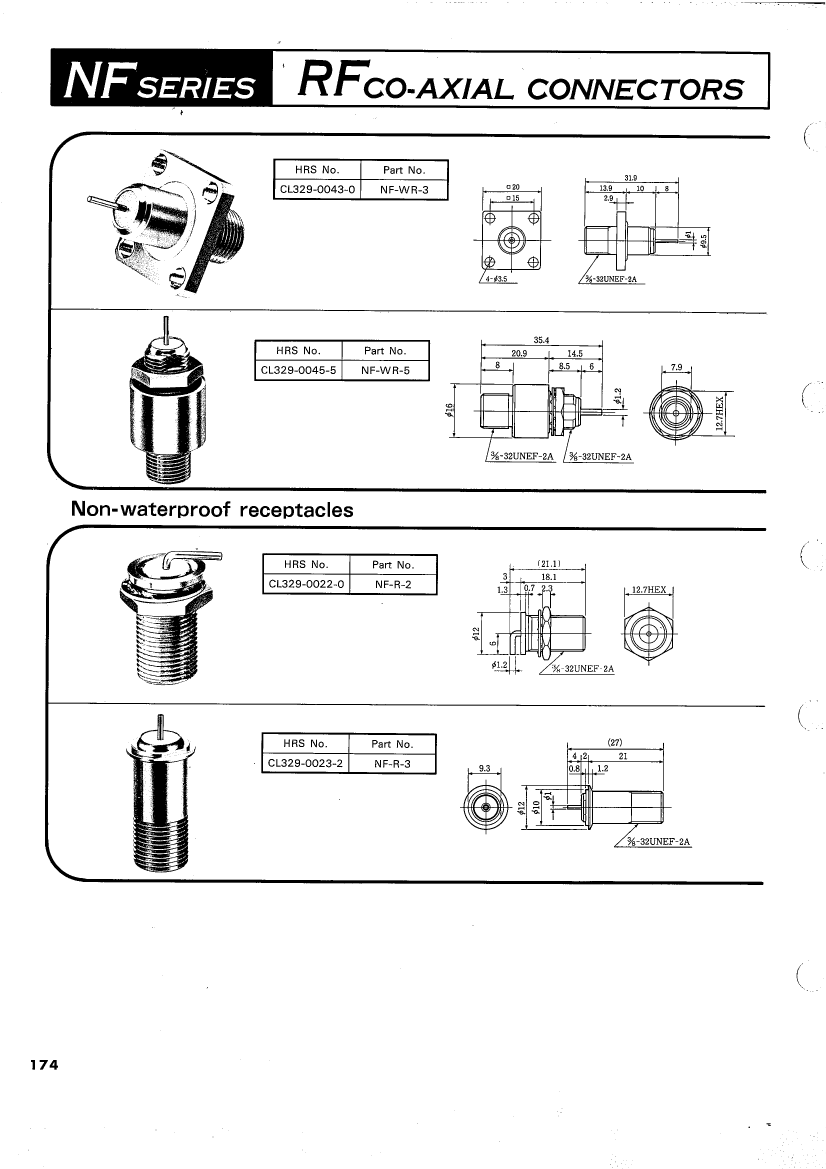

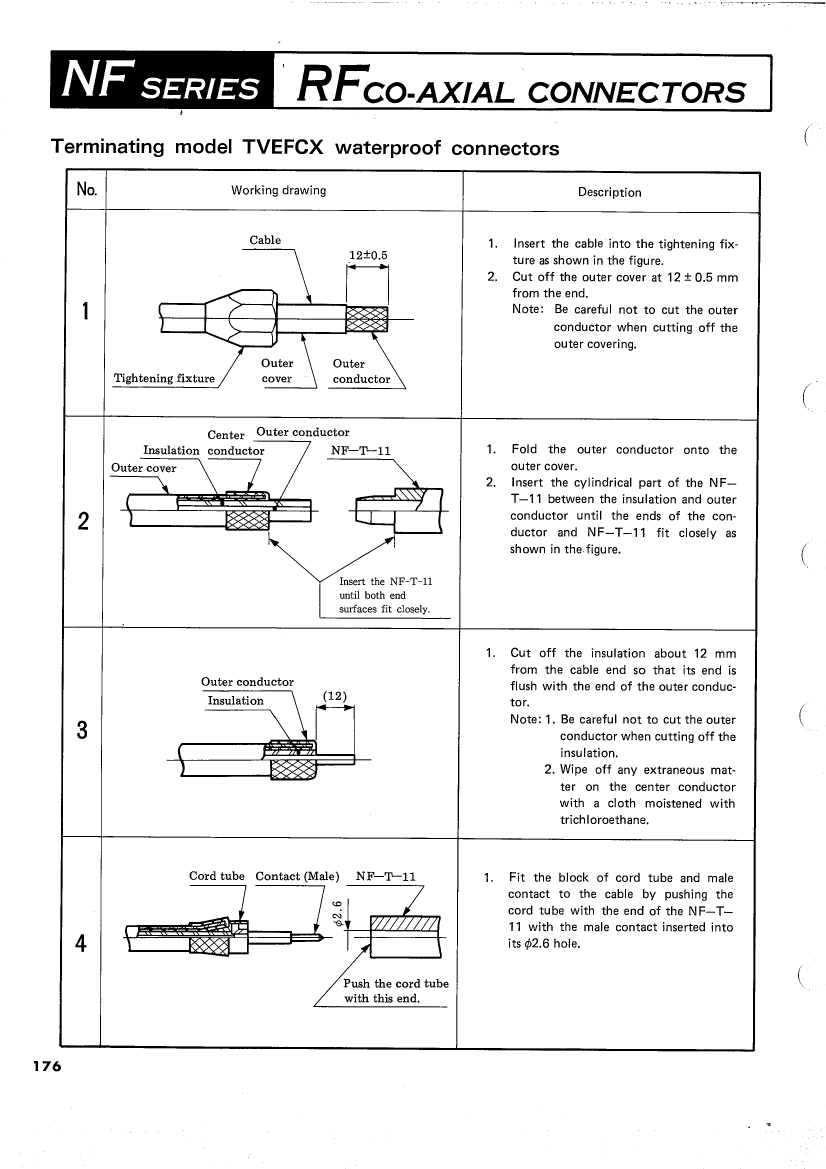

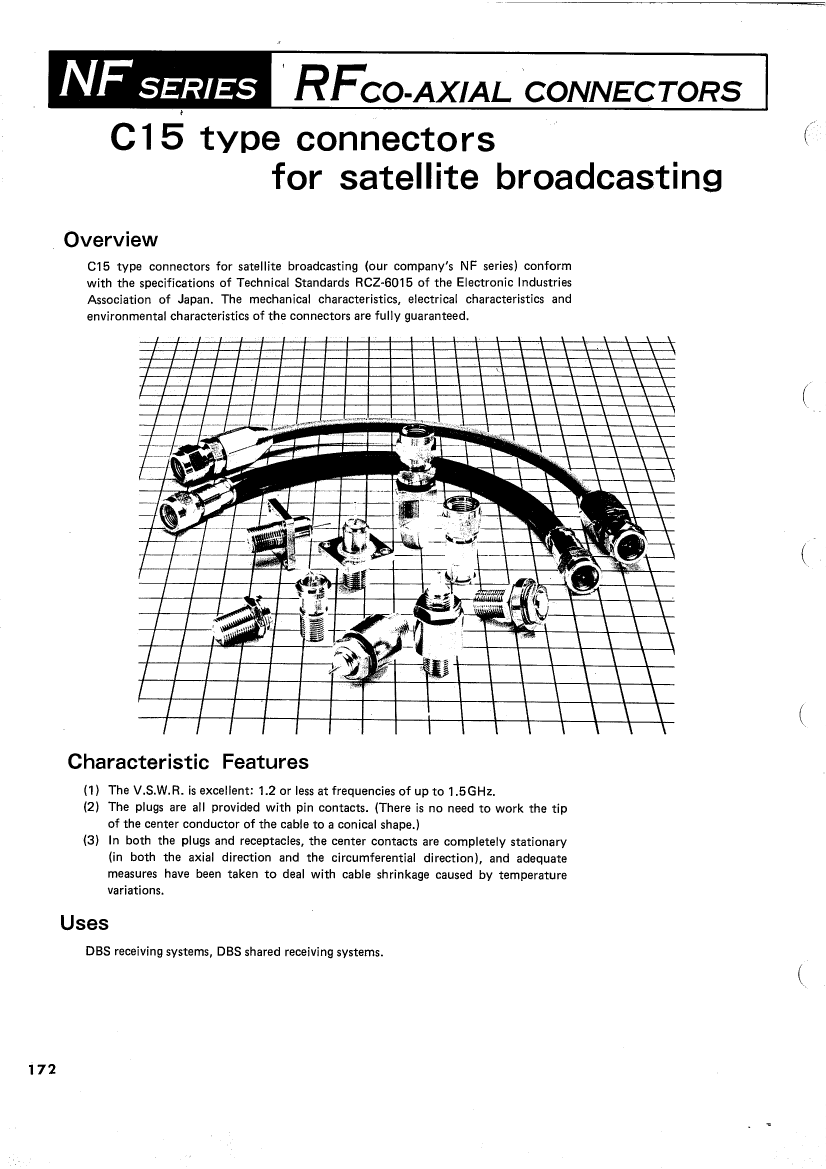

NF-WR-5 Overview

CABLE TERMINATED, FEMALE, RF CONNECTOR, CRIMP, RECEPTACLE

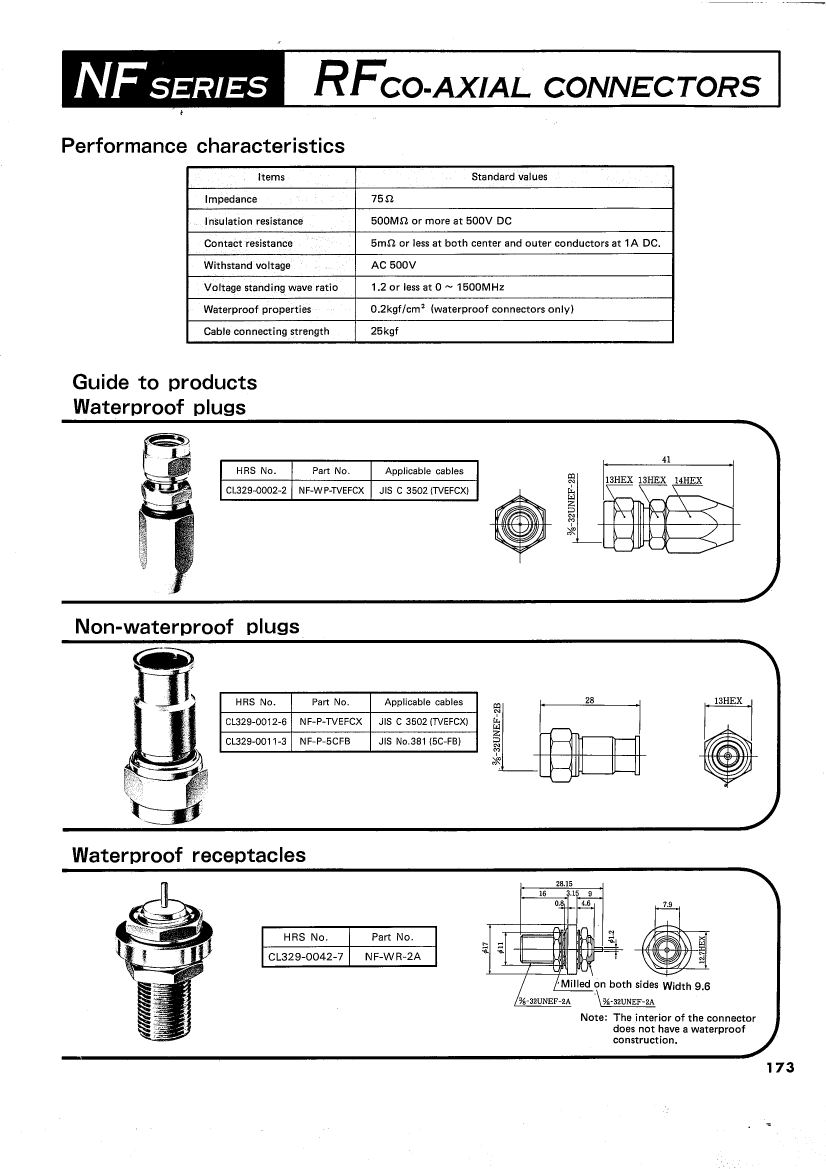

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	NF
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	1.5 GHz
Options	WATERPROOF
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.2
