CDH74NP-220LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CDH74NP-220LC

CDH74NP-220LC: DescriptionFixed Inductors 22uH 1.7A 15% 1KHz SMD PWR IND; CategoryPassive components inductor; File Size286KB，5 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDH74NP-220LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDH74NP-220LC	-	-	View	Buy Now

CDH74NP-220LC Overview

Fixed Inductors 22uH 1.7A 15% 1KHz SMD PWR IND

CDH74NP-220LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3229
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	15 weeks
uppercase and lowercase codes	3229
structure	Unshielded
core material	FERRITE
DC Resistance	0.13 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	5.2 mm
Package length	8 mm
Package form	SMT
Package width	7.3 mm
method of packing	TR
Maximum rated current	1.7 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	15%
Base Number Matches	1

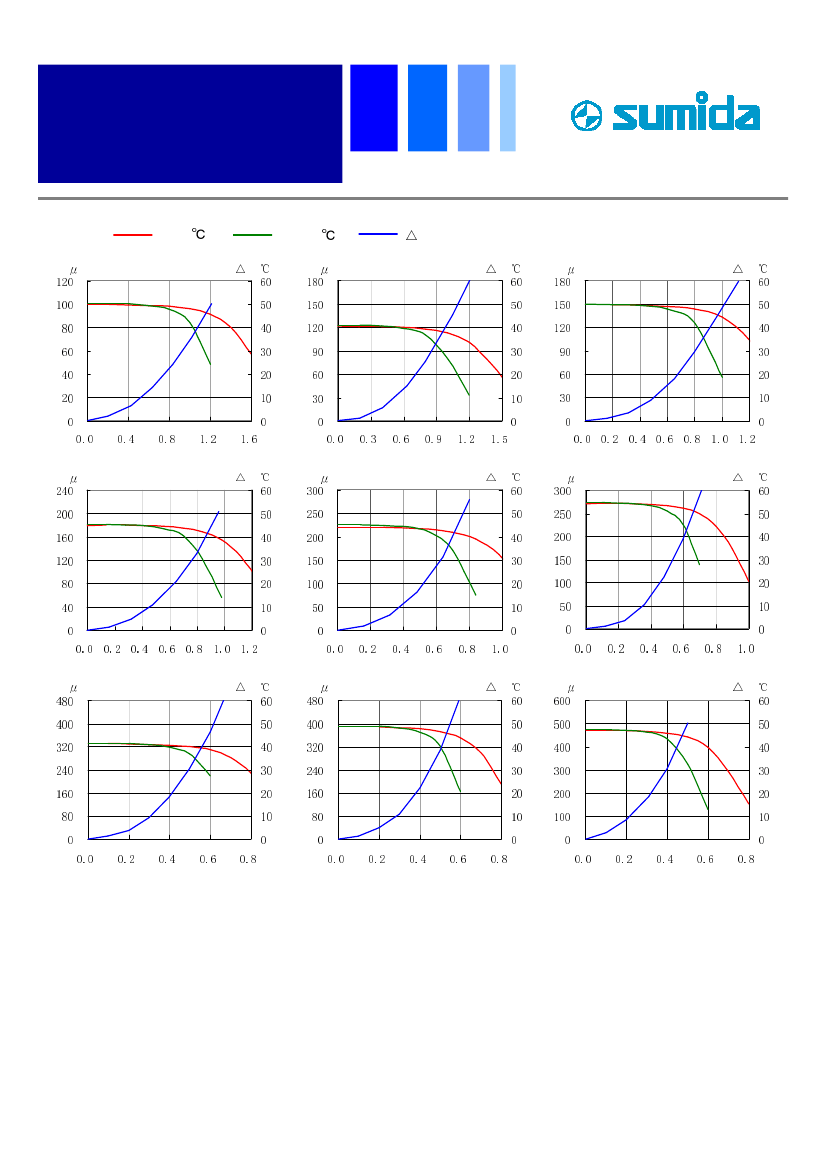

Preview

Download Datasheet

View All

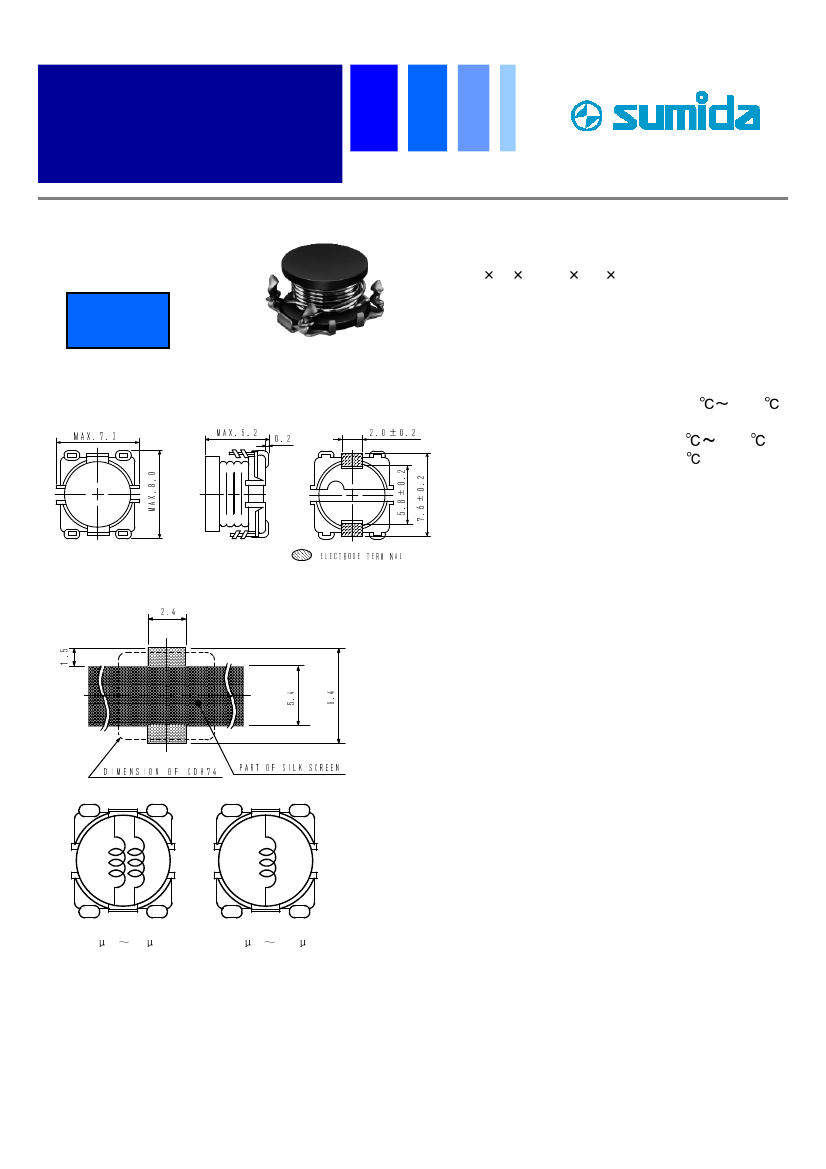

SMD Power Inductor

CDH74

Description

• Ferrite drum core construction.

• Magnetically unshielded.

• L W H: 8.0 7.3 5.2 mm Max.

• Product weight: 0.7g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40

+100

(including coil’s self temperature rise)

+100

• Storage temperature range: -40

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging.

• 12.9”diameter reel

• 1000pcs per reel

RoHS

Halogen

Free

Dimension - [mm]

2. 0± 0. 2

2 .0

2 .5 . XA M

Land pattern and Schematics - [mm]

4.2

Applications

• Ideally used in Notebook PC, Projector, LCD

TV, Game machine, STB etc as DC-DC

converter inductors.

μ ½μ

H 33

H 470

Page 1 of 5

Revised: 19-Dec-13

℃

℃ ½℃

× ×

. 5

6 .

± 8

0 ±

. 0

2 .

LANIMRET EDORTCELE

NEERCS KLIS FO TRAP

47HDC FO NOISNEMID

１

3.7.XAM

CDH74NP-220LC Related Products

	CDH74NP-220LC	CDH74NP-470KC	CDH74NP-391JC	CDH74NP-120LC	CDH74NP-820JC	CDH74NP-181JC	CDH74NP-271JC	CDH74NP-330KC	CDH74NP-150LC	CDH74NP-680KC
Description	Fixed Inductors 22uH 1.7A 15% 1KHz SMD PWR IND	Fixed Inductors 47uH 1.2A 10% 1KHz SMD PWR IND	Fixed Inductors SMD Power Inductor Unshielded		Fixed Inductors SMD Power Inductor Unshielded	Fixed Inductors 180uH 0.66A 5% 1KHz SMD PWR IND	Fixed Inductors 270uH 0.48A 5% 1KHz SMD PWR IND	Fixed Inductors 33uH 1.45A 10% 1KHz SMD PWR IND	Fixed Inductors 15uH 2.1A 15% 1KHz SMD PWR IND	Fixed Inductors 68uH 1A 10% 1KHz SMD PWR IND
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	3229	3229	3229	3229	3229	3229	3229	3229	3229	3229
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	3229	3229	3229	3229	3229	3229	3229	3229	3229	3229
structure	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.13 Ω	0.23 Ω	2.09 Ω	0.065 Ω	0.48 Ω	0.82 Ω	1.38 Ω	0.17 Ω	0.083 Ω	0.35 Ω
Nominal inductance(L)	22 µH	47 µH	390 µH	12 µH	82 µH	180 µH	270 µH	33 µH	15 µH	68 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Package length	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm
method of packing	TR	TR	TR	TR	TR	TR	TR	TR	TR	TR
Maximum rated current	1.7 A	1.2 A	0.38 A	2.45 A	0.92 A	0.66 A	0.48 A	1.45 A	2.1 A	1 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Tolerance	15%	10%	5%	15%	5%	5%	5%	10%	15%	10%
Base Number Matches	1	1	-	-	1	1	1	1	-	1
Maker	-	-	SUMIDA	SUMIDA	SUMIDA	-	-	SUMIDA	SUMIDA	SUMIDA
