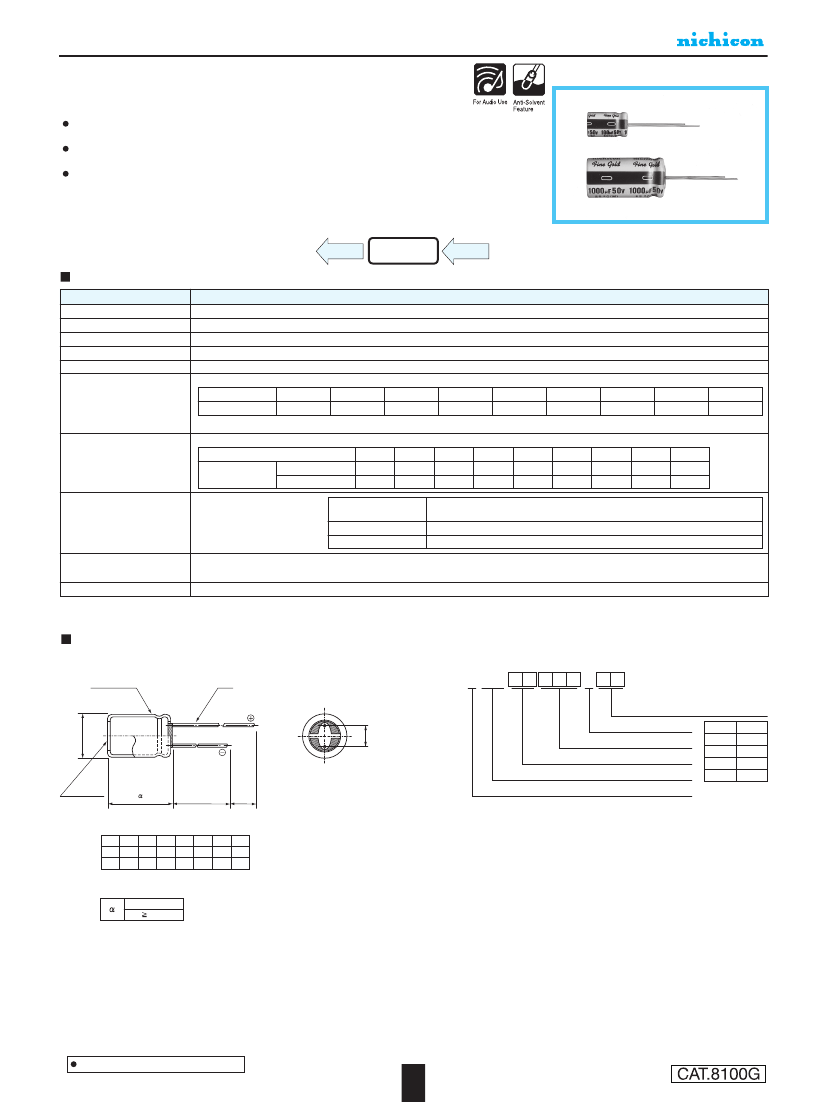

ALUMINUM ELECTROLYTIC CAPACITORS
UFG
High Grade Standard Type, For Audio Equipment
"Fine Gold" MUSE acoustic series suited for high grade
audio equipment, using state of the art etching techniques.
Rich sound in the bass register and clearer high end, most
suited for AV equipment like DVD.
Compliant to the RoHS directive (2011/65/EU).
UKZ
High Grade
UFG
High Grade
UFW
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Performance Characteristics
–40 to +85°C
6.3 to 100V
1 to 10000µF
± 20% at 120Hz, 20°C
After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.
Measurement frequency : 120Hz at 20°C
Rated voltage (V)
tan
δ
(MAX.)
Tangent of loss angle (tan
δ)
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
50
0.10
63
0.09
80
0.09
100
0.08
For capacitance of more than 1000µF add 0.02 for every increase of 1000µF.
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
6.3
4
8
10
3
6
16
2
4
25
2
4
35
2
3
50
2
3
63
2
3
80
2
3
100
2
3
Impedance ratio
ZT / Z20 (MAX.)
Z– 25°C / Z+20°C
Z– 40°C / Z+20°C
Endurance
The specifications listed at right
shall be met when the
capacitors are restored to 20°C
after the rated voltage is applied
for 1000 hours at 85°C.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial measurement for units of not more than 16V or
φ6.3
Within ±15% of the initial measurement for units of not less than 25V or above
φ6.3
150% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with black color letter on gold sleeve.
Radial Lead Type
Type numbering system (Example : 10V 47
µ
F)
1
2
3
4
5
6
7
8
9 10
11
φ
d
Sleeve (P.E.T.)
U F G 1 A 4 7 0 M DM
Configuration
φD
+
0.5 MAX.
P ±
0.5
Capacitance tolerance (±20%)
Rated capacitance (47µF)
Rated voltage (10V)
φD
5
6.3
8 · 10
12.5 to 18
Code
DM
EM
PM
HM
Pressure
relief vent
(φ6.3up)
Series name
L+
MAX.
15
MIN
4
MIN
Type
(mm)
φD
5 6.3 8 10 12.5 16 18
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5
φd
0.6 0.6 0.6 0.6 0.8 0.8 0.8
(L < 20) 1.5
(L 20) 2.0
•
Please refer to page 20 about the end seal configuration.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
