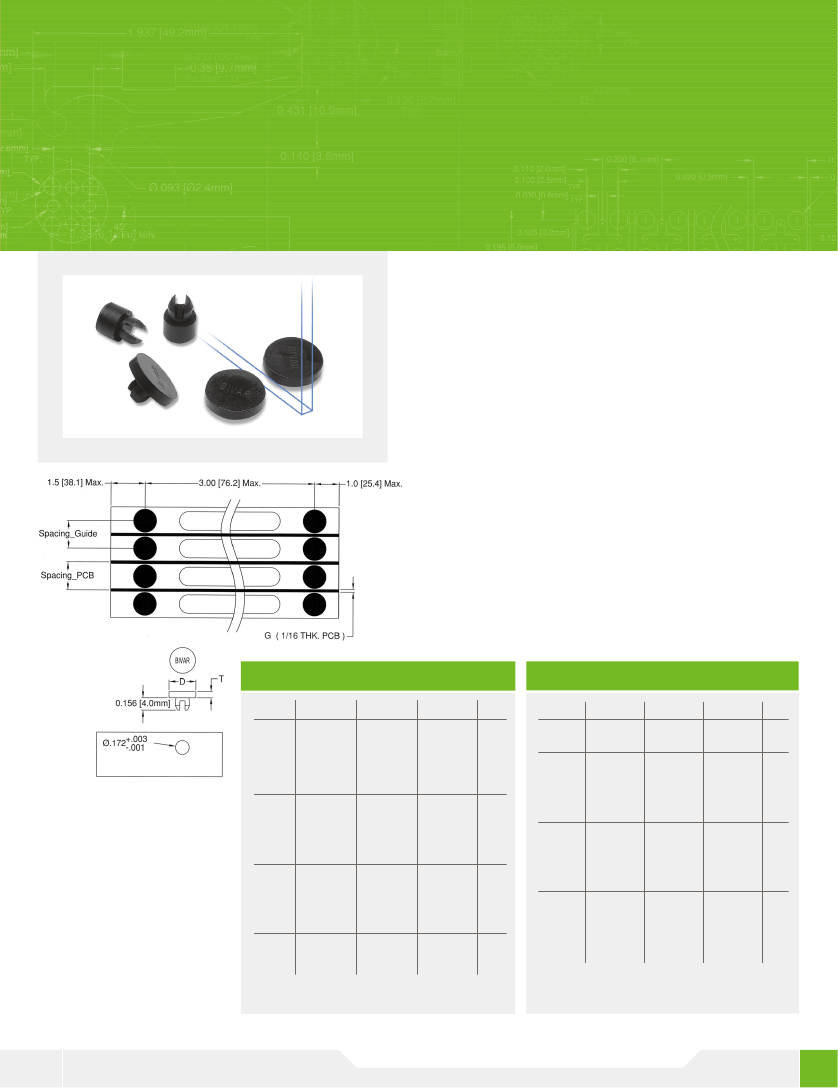

circ-o-gide

™

Snap-In Button-Style Card Guides

•

35 Standard configurations

Precision Molded for rigidity, strength and heat resistance from 94V-O UL rated materials

Improves PCB and system cooling

Supports any spacing, any length and any PCB thickness

CIRC-O-GIDEs provide the ultimate design flexibility and

installed reliability by eliminating the continuous length of

the conventional card guide. Retention is firm and there are

no special tools or fixtures required for installation.

Mounting Information:

Snap-in metal plates: 0.047" - 0.090" (1.2mm - 2.3mm) thick

Hole Size: 0.172" (4.4mm) diameter +0.003"

(0.08mm), - 0.001" (0.03mm), 11/64th drill

Material Specifications:

UL Rated 94V-O, Black, 10% Glass Filled 6 Nylon

per ASTM D4066 PA210G10

Oxygen Index: +28%

UL File #E84658

Application Notes:

Spacing equals the CIRC-O-GIDE™ diameter plus the channel

gap of 0.076" (1.9mm) for 1/16th PCBs, 0.102" (2.6mm)

for 3/32nd PCBs and 0.130" (3.3mm)for 1/8th PCBs.

Spacing = D+G

Circ-O-Gide

Part No.

312-078

312-109

312-125

312-156

312-187

400-078

400-109

400-125

400-156

400-187

500-078

500-109

500-125

500-156

500-187

600-078

600-109

600-125

PCB

Spacing*

.312 (7.9)

.400 (10.2)

.500 (12.7)

.600 (15.2)

±.005 (.13)

.078 (2.0)

.109 (2.8)

.125 (3.2)

.156 (4.0)

.187 (4.8)

.078 (2.0)

.109 (2.8)

.125 (3.2)

.156 (4.0)

.187 (4.8)

.078 (2.0)

.109 (2.8)

.125 (3.2)

.156 (4.0)

.187 (4.8)

.078 (2.0)

.109 (2.8)

.125 (3.2)

±.003 (.08)

.236 (6.0)

.324 (8.2)

.424 (10.8)

.524 (13.3)

Price

Code

Circ-O-Gide

Part No.

600-156

600-187

750-078

750-109

750-125

750-156

750-187

800-078

800-109

800-125

800-156

800-187

1000-078

1000-109

1000-125

1000-156

1000-187

PCB

Spacing*

.600 (15.2)

.750 (19.1)

.800 (20.3)

1.00 (25.4)

±.005 (.13)

.156 (4.0)

.187 (4.8)

.078 (2.0)

.109 (2.8)

.125 (3.2)

.156 (4.0)

.187 (4.8)

.078 (2.0)

.109 (2.8)

.125 (3.2)

.156 (4.0)

.187 (4.8)

.078 (2.0)

.109 (2.8)

.125 (3.2)

.156 (4.0)

.187 (4.8)

±.003 (.08)

.524 (13.3)

.674 (17.1)

.724 (18.4)

.924 (23.5)

Price

Code

Mounting Footprint

*Spacing for 1/16" (1.6) PCBs

cage code (FSCM)

32559

www.bivar.com
