Reed Sensors
Firecracker > 59060
59060 Stainless Steel M8 Threaded Barrel Sensor + 57060 Actuator
Description
The 59060 is a small stainless steel barrel sensor with an M8 x 1.25mm pitch
thread, 36mm (1.420”) long with a choice of normally open, normally open high
voltage, normally closed or change over contacts. It is capable of switching up to
265Vac/300Vdc at 10VA. It has a variety range of sensitivity, cable length and
connector options. It functions best with the 57060 actuator.
Note: The 57060 Actuator is sold separately.
Features
• Two-part magnetically operated
proximity sensor
• Stainless steel threaded barrel with
retaining nuts
• M8 thread
• Choice of normally open or normal
open high voltage contacts
• Customer defined sensitivity
options
• Choice of cable length and

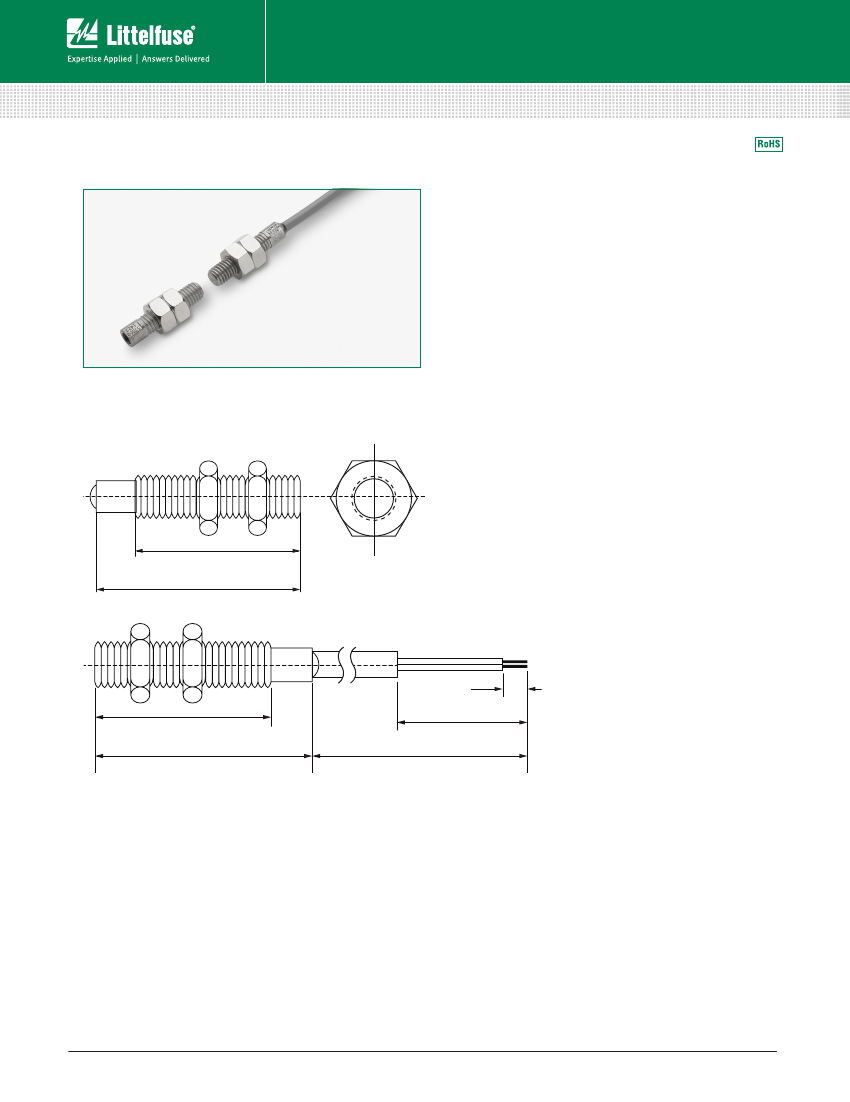

Dimensions
Dimensions in mm (inch)
NUTS M8x2
NUTS M8x2
M8mm PITCH
M8mm PITCH
Benefits
• Robust construction makes this
sensor well suited to harsh
industrial environments
• Simple installation and adjustment
using supplied retaining nuts
• No standby power requirement
• Operates through non-ferrous
materials such as wood, plastic or
aluminium
27
.5
(1.08)
(1.08)
27
.5
36.0
36.0
(1.42)
(1.42)
Applications
• Position and Limit Sensing
• Security Systems
• Industrial Process Control
• Linear Actuators
NUTS M8x2
NUTS M8x2
M8mm PITCH
M8mm PITCH
6.35 NOM.
NOM.
6.35
(.250)
(.250)
27
.5
27
.5
(1.08)
(1.08)
35.0 NOM.
35.0
(1.38)
NOM.
(1.38)
36.0
36.0
(1.42) Encapsulation excluded
300 (11.81) ±10.0 (0.393)
(1.42) Encapsulation excluded
300 (11.81) ±10.0 (0.393)
© 2017 Littelfuse
Revised: 01/13/17
Specifications are subject to change without notice.
littelfuse.com
Reed Sensors
Firecracker > 59060
59060 Stainless Steel M8 Threaded Barrel Sensor + 57060 Actuator
Electrical Ratings
Contact Type
Switch Type
Contact Rating
Voltage
4
1
Normally Open
1
VA/Watt - max.
Switching
2
Normally Open
HighVoltage
2
10
300
265
450
0.5
0.35
1.5
0.2
10
10
0.2
-20 to +105
-65 to +105
Change Over
3
5
175
120
200
0.25
1.0
1.5
0.2
10
9
0.3
-40 to +105
-65 to +105
Normally Closed
4
5
175
120
200
0.25
1.0
1.5
0.2
10
9
0.3
-40 to +105
-65 to +105
10
200
140
250
0.5
0.35
1.2
0.2
10
10
0.3
-40 to +105
-65 to +105
Breakdown
4
3
Vdc - max.
Vac - max.
Vdc - min.
Adc - max.
Aac - max.
Adc - max.
Ω - max.
Ω - min.
pF - typ.
°C
°C
Current
Switching
Carry
5
2
Resistance
Contact, Initial
Insulation
Contact
Operating
Storage
Capacitance
Temperature
Product Characteristics
Operate Time
Release Time
Shock
7
7
6
6
ms - max.
ms - max.
11ms 1⁄2 sine
50-2000 Hz
G - max.
G - max.
1.0
1.0
100
30
1.0
1.0
100
30
3.0
3.0
50
30
3.0
3.0
50
30
Vibration
Notes:
1. Contact rating - Product of the switching voltage and current should never exceed the wattage rating. Contact Littelfuse for additional load/life information.
2. When switching inductive and/or capacitive loads, the effects of transient voltages and/or currents should be considered. Refer to Application Notes AN108A and AN107 for details.
3. Breakdown Voltage - per MIL-STD-202, Method 301.
4. Electrical Load Life Expectancy - Contact Littelfuse with voltage, current values along with type of load.
5. This resistance value is for 11.81mm wire length. Resistance changes when wire lengthens.
6. Operate (including bounce)/Release Time - per EIA/NARM RS-421-A, diode suppressed coil (Coil II).
7. Shock and Vibration - per EIA/NARM RS-421-A and MIL-STD-202.
8. For custom modifications to the wire length or size, or adding a special connector, please contact Littelfuse.
Sensitivity Options (Using 57060 Actuator)
Select Option
Switch Type
Pull-In AT
Range
S
Activate
Distance - D
mm (inch)
Minimum
Pull-In AT
Range
T
Activate
Distance - D
mm (inch)
Minimum
Pull-In AT
Range
U
Activate
Distance - D
mm (inch)
Minimum
Pull-In AT
Range
V
Activate
Distance - D
mm (inch)
Minimum
1
2
3
4
Normally Open
High Voltage
Change Over
Normally Closed
12-18
--
15-20
15-20
12.0 (.472)
--
12.0 (.472)
12.0 (.472)
17-23
17-23
20-25
20-25
9.0 (.354)
9.0 (.354)
7.5 (.295)
7.5 (.295)
22-28
22-28
25-30
25-30
7.0 (.276)
7.0 (.276)
6.0 (.236)
6.0 (.236)
27-33
27-33
--
--
5.5 (.217)
5.5 (.217)
--
--
Note:
1. Pull-In AT Range: These AT values are the bare reed switch AT before modification.
2. The activation distance is average value on the final sensor assembly.
Schematics
Blue
Red
Black
Blue
Red
Blue
Red
Switch Type
1 and 2
3
4
Sensor
Actuator
D
© 2017 Littelfuse
Revised: 01/13/17
Specifications are subject to change without notice.
littelfuse.com
Firecracker > 59060
Reed Sensors
59060 Stainless Steel M8 Threaded Barrel Sensor + 57060 Actuator
Cable Length Options
Cable Type: 24 AWG 7/32 PVC 105°C DOUBLE INSULATED
Select Option
Cable Length
mm (inch)
Part Numbering System
Sensor:
59060 - X - X - XX - X
02
300 (11.81)
Series
Termination Specification
Termination Options
Select
Option
A
F
E
Description
(Two-wire versions illustrated)
Tinned leads (6.4±0.76)mm
Untinned leads (6.4±0.76)mm
JST type XHP 2.5mm pitch
Switch Type
1, 2, 3, or 4
Sensitivity
S, T, U, or V
Cable Length
02
Termination
A, F or E
,
Actuator:
57060 - 000
Series
Standard Actuator
000
Note: The 57060 Actuator is sold separately.
Packaging
Packaging Option
Bulk
Packaging Specification
Bulk
Quantity
500
Quantity & Packaging Code
N/A
Taping Width
N/A
© 2017 Littelfuse
Revised: 01/13/17
Specifications are subject to change without notice.
littelfuse.com
