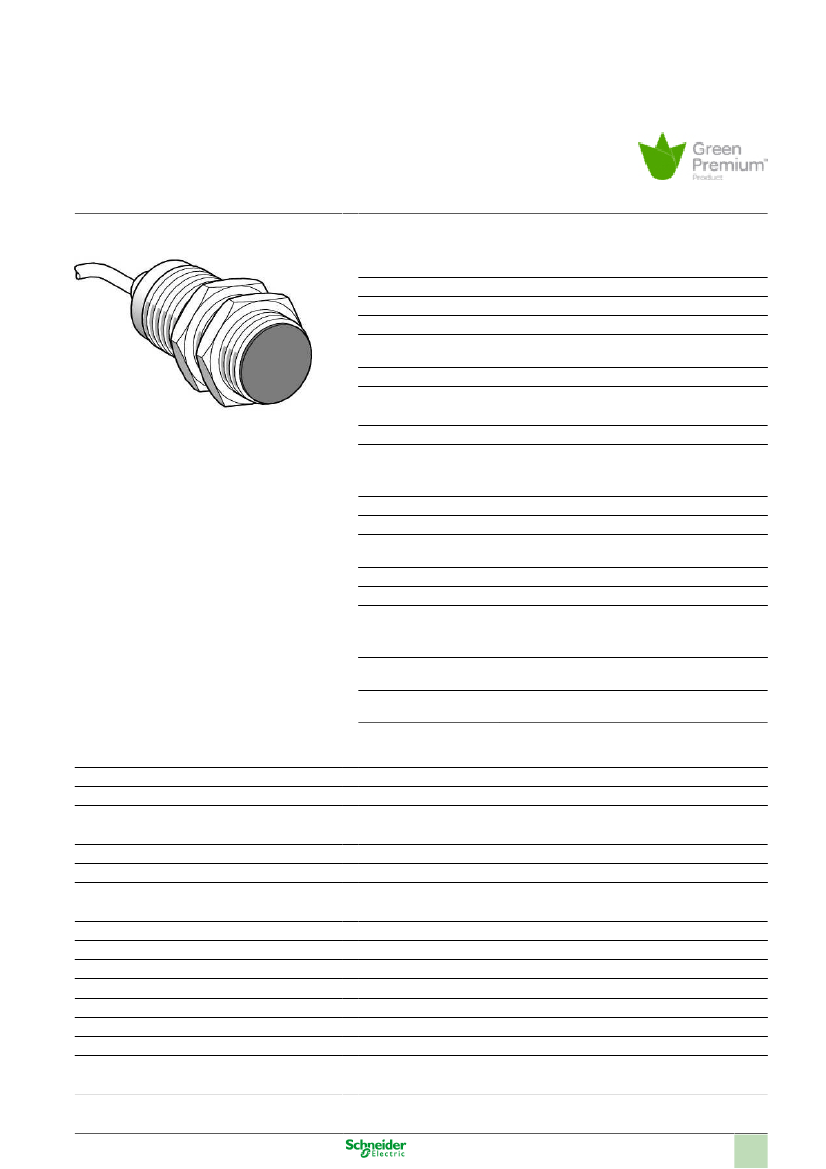

Product data sheet

Characteristics

XS630B1DAM12

inductive sensor XS6 M30 - L74mm - brass -

Sn15mm - 12..48VDC - M12

Product availability: Stock - Normally stocked in distribution facility

Main

Commercial Status

Range of product

Series name

Sensor type

Product specific

application

Sensor name

Sensor design

Size

Body type

Detector flush mounting

acceptance

Material

Type of output signal

Wiring technique

[Sn] nominal sensing

distance

Discrete output function

Output circuit type

Electrical connection

[Us] rated supply

voltage

Switching capacity in

IP degree of protection

Commercialised

OsiSense XS

General purpose

Inductive proximity sensor

XS6

Cylindrical M30

74 mm

Fixed

Flush mountable

Metal

Discrete

2-wire

0.59 in (15 mm)

1 NO

Male connector M12 4 pins

12...48 V DC with reverse polarity protection

<= 100 mA DC with overload and short-circuit

protection

IP69 K conforming to DIN 40050

IP67 conforming to IEC 60529

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

Complementary

ISO thread

Detection face

Front material

Enclosure material

Operating zone

Differential travel

Status LED

Supply voltage limits

Switching frequency

Voltage drop

Delay first up

Delay response

Delay recovery

Marking

Threaded length

Length

Product weight

M30 x 1.5

Frontal

PPS

Nickel plated brass

0...0.47 in (0...12 mm)

1...15% of Sr

1 LED (yellow) for output state

10...58 V DC

<= 500 Hz DC

<= 4 V, closed state

<= 10 ms

<= 0.3 ms

2.05 in (52 mm)

2.91 in (74 mm)

0.32 lb(US) (0.145 kg)

Feb 28, 2016
