E2B-S08LN04-MC-B1 datasheet, PDF

Datasheet> All Categories > The sensor> E2B-S08LN04-MC-B1

E2B-S08LN04-MC-B1: DescriptionProximity Sensors Double M8 Long M8 CN PNP NO; CategoryThe sensor; File Size6MB，23 Pages; ManufacturerOMRON; Websitehttps://www.omron.com

Download Datasheet Parametric View All

E2B-S08LN04-MC-B1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	E2B-S08LN04-MC-B1	-	-	View	Buy Now

E2B-S08LN04-MC-B1 Overview

Proximity Sensors Double M8 Long M8 CN PNP NO

E2B-S08LN04-MC-B1 Parametric

Parameter Name	Attribute value
Product Category	Proximity Sensors
Manufacturer	OMRON
RoHS	No
Sensing Method	Inductive
Sensing Distance	4 mm
Mounting Style	Panel
Output Configuration	PNP
Maximum Operating Temperature	+ 70 C
Minimum Operating Temperature	- 25 C
Barrel Size	M8
Description/Function	Sensors are ideal for detecting tool positions or line encoders
Maximum Frequency	1 kHz
Operating Supply Current	200 mA
Operating Supply Voltage	30 V
Factory Pack Quantity	1
Unit Weight	0.705479 oz

Preview

Download Datasheet

View All

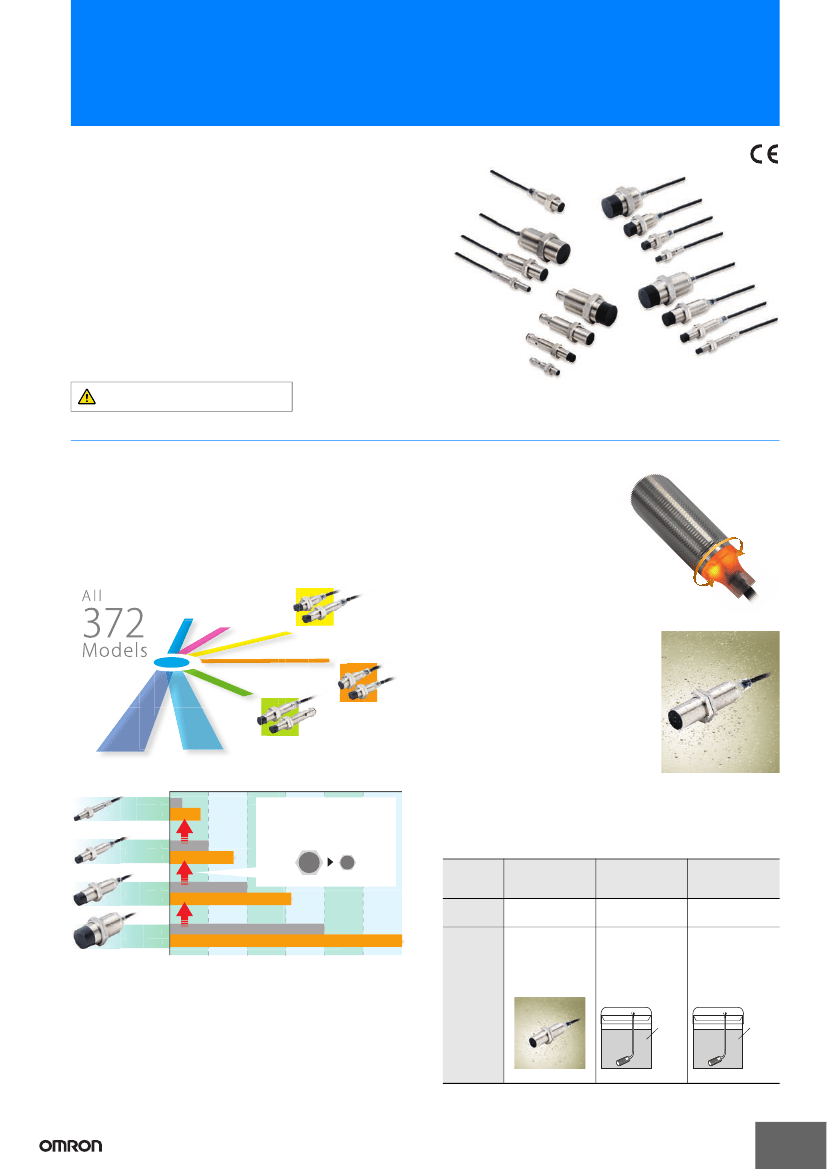

Cylindrical Proximity Sensor

E2B

Perfect fit

for standard environments

• Embody two seemingly contradictory characteristics: value-for-

money and high reliability

• All 372 Models

• Four different sizes: M8, M12, M18 and M30

• Single and double sensing distances, Shielded and unshielded

• A choice of short and long bodies, two connecting methods and four

output types

• Operating temperature: –25ºC to 70ºC

• Water resistance: IP67

• With an all-round 360º visible indicator

Refer to

Safety Precautions

on page 20.

For the most recent information on models that have been certified for

safety standards, refer to your OMRON website.

Features

Wide Variation

“Double Distance” Close at Hand

Perfect Fit to Your Application Needs

With no less than 372 models in the family.

You can choose the one that exactly meets your needs.

E2B series can save cost & your time via single source.

Short/

Long Bodies

Output configuration:

PNP/NPN Operation mode:

NO/NC

Long body for easy

adjustment after mounting

Reliable Performance

360-degree indication

Easy visibility for 360º even in

dark locations so you can mount

the sensor in any direction.

* The 360-degree indication is only for

Pre-wired Models of M12, M18, and

M30.

* The other models (Pre-wired Models

of M8 and all the Connector Models)

have 4 LEDs at 90-degree intervals,

which realize clear visibility from a

360-degree angle.

All

sib

Oil-mist environment resistant!

Shielded/

Unshielded

Pre-wired/

Conn ctors

Connectors

Shielded models for

better noise immunity

Connectors for easy maintenance

Wide range of size

Lineup of models from

M8 to M30

Sensing distance

Models available with standard distance(×1) and double distance (×2)

IP67

We have performed not only a specified

test for rating the degree of protection

(IP67) for catalogs, but also tests with oil mist which appears onsite.

Simulation tests has been performed with attachment of high

concentration of oil mist.

Degree of

Protection

Water

resistance

IP67

In oil-mist of solu-

ble cutting oil dilut-

ed, 250 hours, the

temperature of at-

mosphere is 23ºC

Oil

resistance

E2B

E2E

(M8/M12/M18/

M30 size)

IP67

IP69K *1

Small Dia E2E

(3 dia./4 dia./

6.5 dia/M4/M5)

IP67

×1

×2

“Double distance” saves space and

reduces costs

With the double distance, you can get

almost the same sensing distance with a

sensor that is one size smaller.

M18

M12

×1

×2

Single

distance

(×1)

×1

×2

Double

distance

(×2)

×1

×2

×1

×2

Sensing distances of unshielded models

Soaked in oil (solu- Soaked in insoluble

ble type and insolu- oil 250 hours, tem-

ble) 500 hours,

perature of oil 50ºC

temperature of oil

50ºC

10 cm

under

10 cm

under

*1. There are so many kinds of E2E, not all IP69K rated. In detailed part#,

please contact your OMRON representative.
