RGB Color Light Sensor
Surface - Mount
CLS15-22C/L213R/TR8
CLS15-22C/L213G/TR8
CLS15-22C/L213B/TR8
Features
‧
Surface-mount plastic package
‧
High sensitivity for Red, Green, and Blue light source
CLS15-22C/L213R/TR8 (λp= 620nm, Red)
CLS15-22C/L213G/TR8 (λp= 550nm, Green)
CLS15-22C/L213B/TR8 (λp= 470nm, Blue)
‧
Good stable analog output with temperature shift
‧
Size: 3.2mm (L)*2.7mm (W)*1.1mm (H)
‧
Operating temperature performance, -40
o
C to 85
o
C
‧
Active area: 1.8 mm
2
‧
RoHS compliant and Pb free package
Description
CLS15-22C/L213/TR8 series color sensor device is one channel Si photodiode sensitivity to Red, Green and Blue
region spectrum in miniature SMD package. Everlight color sensor series product is the good effective and low cost
solution to white color balance, color detection and color management applications.
Applications
‧
Color adjustment for LED back light system
‧
Color adjustment for LED projector
‧
Color detection
‧
White balance adjustment
‧
Consumer and mobile appliances
1
Copyright © 2012, Everlight All Rights Reserved. Release Date : 6.4.2013. Issue No: DLS-0000056
Rev.1
www.everlight.com
DATASHEET
Ambient Light Sensor
Surface – Mount
CLS15-22C/L213R/TR8
CLS15-22C/L213G/TR8
CLS15-22C/L213B/TR8

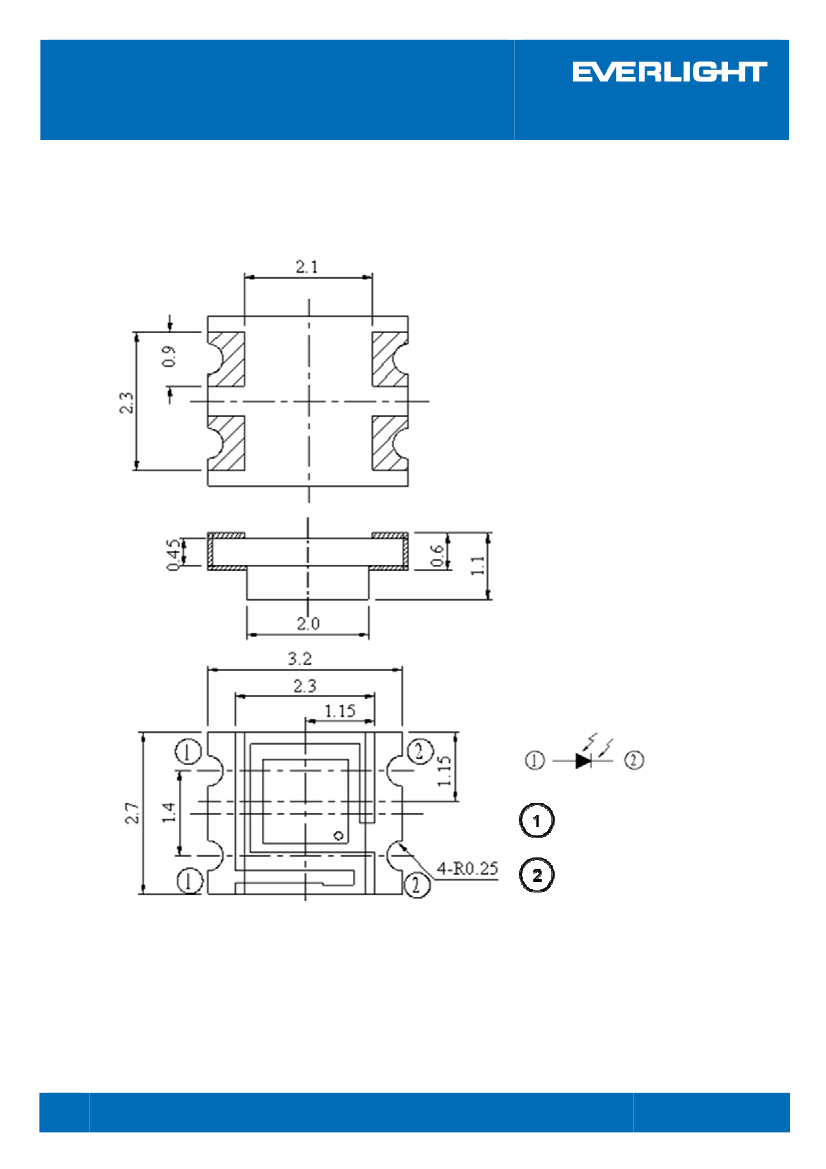

Package Dimensions
Anode
Cathode
Unit : mm
Tolerances :
±
0.1mm
2
Copyright © 2012, Everlight All Rights Reserved. Release Date : 6.4.2013. Issue No: DLS-0000056
Rev.1
www.everlight.com
DATASHEET
Ambient Light Sensor
Surface – Mount
CLS15-22C/L213R/TR8
CLS15-22C/L213G/TR8
CLS15-22C/L213B/TR8
Absolute Maximum Ratings
Parameter
Reverse Breakdown Voltage
Forward Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
[Note]
Symbol
V
BR
V
F
T
opr
T
stg
T
sol
Condition
I
R
= 100µA
I
F
= 10mA
--
--
--
Rating
35
0.5~1.3
-40 ~ +85
-40 ~ +85
260
Units
V
V
°
C
°
C
°
C
Note:
Soldering time 5 seconds
Electrical and Optical Characteristics (T
a
=25℃)
℃
Red Color Sensor : CLS15-22C/L213R/TR8
Parameter
Symbol
Condition
Peak Sensitivity
--
λ
P
Wavelength
Short-Circuit Current
I
SC
I
L1
Light Current
I
L2
Reverse Dark Current
Total Capacitance
I
D
Ct
E
v
=100Lux
V
R
=0V
[Note]
E
v
=100Lux
V
R
=5V
[Note]
E
v
=1000Lux
V
R
=5V
[Note]
E
v
=0
V
R
= 10 V
Ee=0mW /cm2
f=1MHz
VR=5V
Note:
White Fluorescent light (Color Temperature = 6500K) is used as light source.
3
Copyright © 2012, Everlight All Rights Reserved. Release Date : 6.4.2013. Issue No: DLS-0000056
≦
MIN.
--
--
--
--
--
--
TYP.
620
0.086
0.091
0.83
2
12
MAX.
--
--
--
--
10
--
Unit
nm
µA
µA
µA
nA
pF
Rev.1
www.everlight.com
DATASHEET
Ambient Light Sensor
Surface – Mount
CLS15-22C/L213R/TR8
CLS15-22C/L213G/TR8
CLS15-22C/L213B/TR8
Green Color Sensor: CLS15-22C/L213G/TR8
Parameter
Symbol
Condition
Peak Sensitivity
λ
P
--
Wavelength
Ev=100Lux
Short-Circuit Current
I
SC
V
R
=0V
[Note]
I
L1
Light Current
I
L2
Reverse Dark Current
Total Capacitance
I
D
Ct
Ev=100Lux
V
R
=5V
[Note]
Ev=1000Lux
V
R
=5V
[Note]
Ev=0 Lux
V
R
= 10 V
Ee=0mW /cm2
f=1MHz
VR=5V
MIN.
--
--
--
--
--
--
TYP.
550
0.075
0.082
0.72
2
12
MAX.
--
--
--
--
10
--
Unit
nm
µA
µA
µA
nA
pF
Note:
White Fluorescent light (Color Temperature = 6500K) is used as light source.
Blue Color Sensor: CLS15-22C/L213B/TR8
Parameter
Symbol
Condition
Peak Sensitivity
λ
P
--
Wavelength
Ev=100Lux
Short-Circuit Current
I
SC
V
R
=0V
[Note]
Ev=100Lux
I
L1
V
R
=5V
[Note]
Light Current
Ev=1000Lux
I
L2
V
R
=5V
[Note]
Ev=0 Lux
I
D
Reverse Dark Current
V
R
= 10 V
Ee=0mW /cm2
Ct
f=1MHz
Total Capacitance
VR=5V
MIN.
--
--
--
--
--
---
TYP.
470
0.042
0.046
0.39
2
12
MAX.
--
--
--
--
10
---
Unit
nm
µA
µA
µA
nA
pF
Note:
White Fluorescent light (Color Temperature = 6500K) is used as light source.
4
Copyright © 2012, Everlight All Rights Reserved. Release Date : 6.4.2013. Issue No: DLS-0000056
Rev.1
www.everlight.com
DATASHEET
Ambient Light Sensor
Surface – Mount
CLS15-22C/L213R/TR8
CLS15-22C/L213G/TR8
CLS15-22C/L213B/TR8

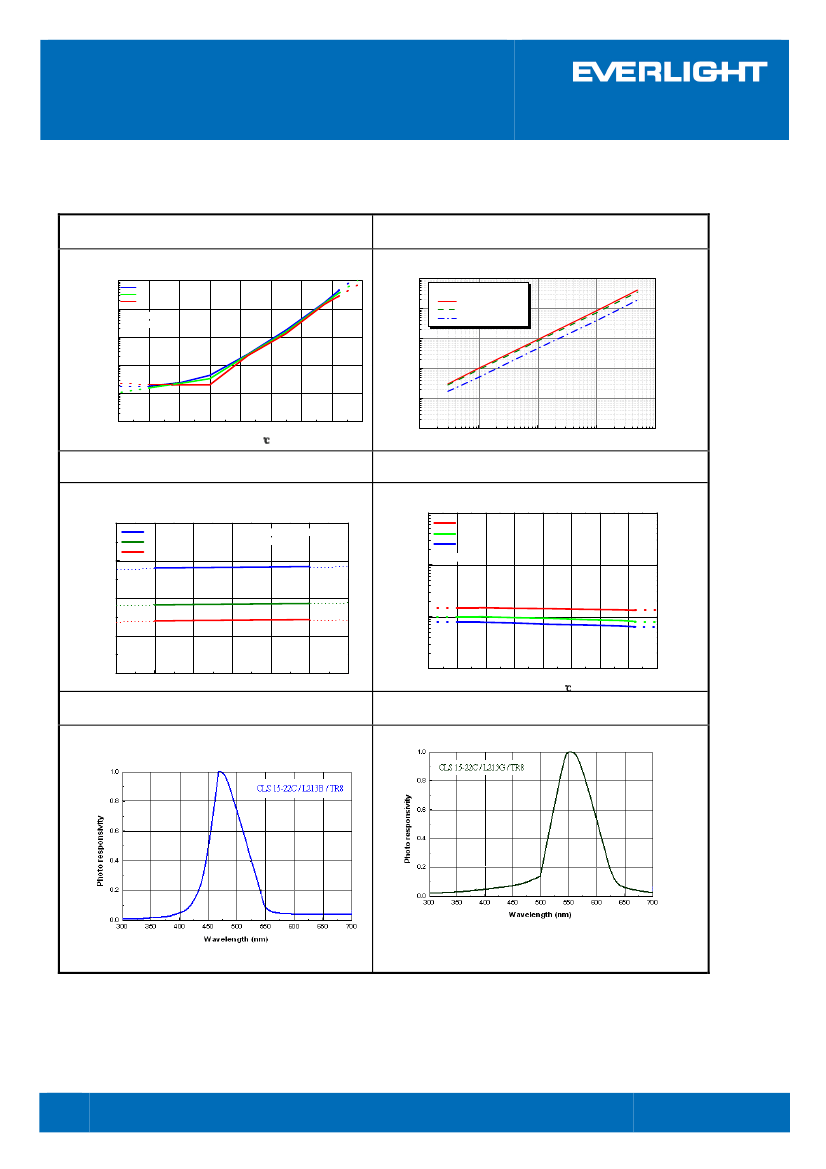

Typical Electro-Optical Characteristics Curves
Fig.1
(typ.)
1000
CLS15-22C/L123B/T R8
CLS15-22C/L123G/T R8
CLS15-22C/L123R/T R8
Dark Current vs. Temperature
Fig.2
Light current vs. Illuminance
(typ.)
10
V
R
=5V ; Ta=25 C
C LS 15-22C /L213R
C LS 15-22C /L213G
C LS 15-22C /L213B
o
Average dark current (nA)
100
1
10
Ouput Current (mA)
-20
0
20
40
60
80
100
VR = 10 V
EV = 0 LUX
0.1
1
0.01
0.1
1E -3
0.01
-60
-40
1E -4
Fig.3
(typ.)
0.20
Light current vs. Voltage
Average light current (uA)
Average light current (uA)
C LS 15-22C /L213R /TR 8
White Fluorescent light
C LS 15-22C /L213G/T R 8
Ev = 100Lux
C LS 15-22C /L213B/TR 8
0.15
0.10
0.05
0.00
1
2
3
4
Voltage (V)
Fig.5
(typ.)
Spectral Response
(Blue region)
Fig.6
Spectral Response
(Green region)
(typ.)
5
Copyright © 2012, Everlight All Rights Reserved. Release Date : 6.4.2013. Issue No: DLS-0000056
℃
℃
℃
℃
℃
Temperature (
)
1
10
100
1000
10000
Illum inance (Lux)
Fig.4
Light current vs. Temperature
(typ.)
10
CLS 15-22C/L213R/TR8
CLS 15-22C/L213G/TR8
CLS 15-22C/L213B/TR8
Ev = 100Lux
1
0.1
0.01
5
6
7
-60
-40
-20
0
20
40
)
60
80
100
Temperature (
Rev.1
www.everlight.com
