P992
Low Range Differential Pressure Sensor
Description

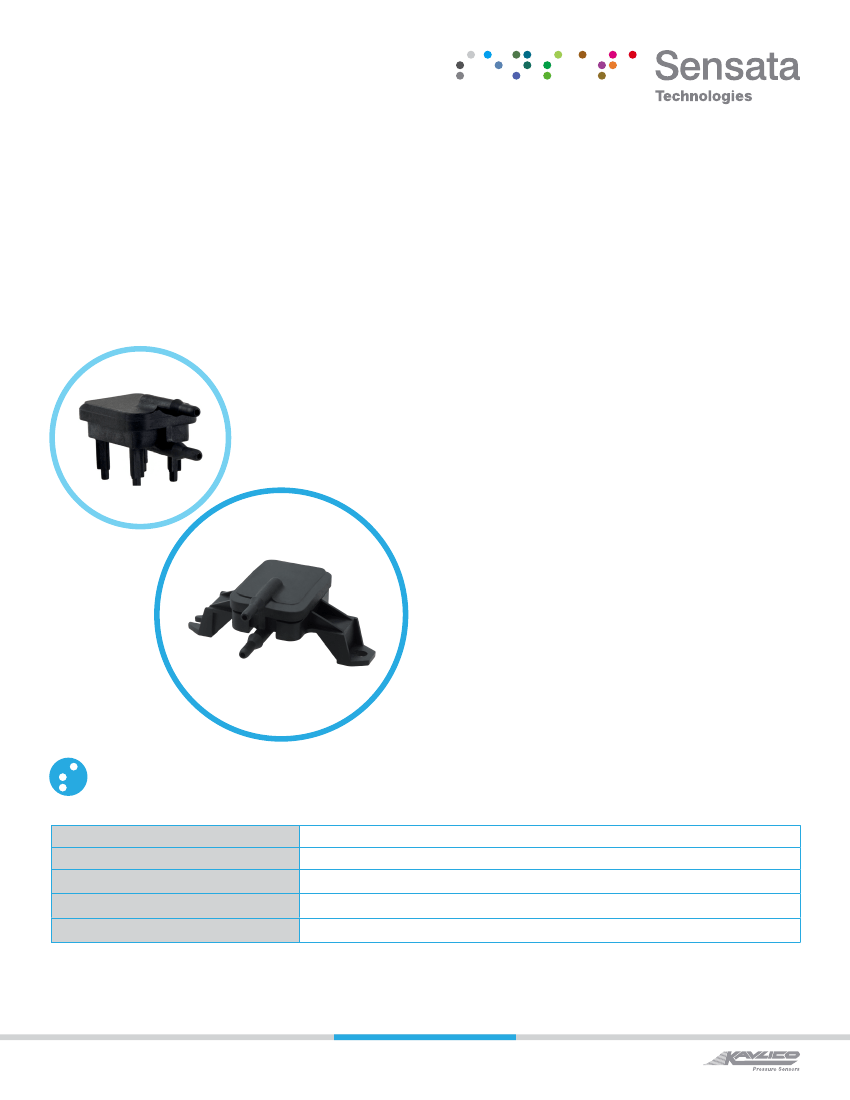

The P992 series of pressure sensors incorporates a silicon capacitive sensing element in a compact package.
Using a 5 VDC input, the sensors provide a 0.25 to 4.0 VDC output proportional to pressure. Internal temperature compensation provides an accurate,
easy to use device.
The innovative design eliminates mounting position effects found on other low pressure differential sensors currently available in the market. With a
10-year minimum shelf life and a lifetime of millions of cycles, Kavlico
®
’s ruggedly designed modules are made to last.
Features
• Rugged Package
• Backward Compatible Mounting Configurations
• Amplified Temperature Compensated Linear Output
• No Position Sensitivity
• EMI/RFI & ESD Protected
• Frequency Output Option (Consult Factory)
• Superior Output Signal Stability
Applications
• Variable Air Volume Systems (VAV)
• Filter Pressure Monitoring
• Duct Air Flow
• Modulated Furnace Controls
• Combustion Air Flow
• Gaseous Leak Detection
MAIN FEATURES
Pressure Ranges
Electrical Connection
Pressure Connection
Housing Material
Output Signal
1, 2, 5, 10, ±1, ±2, ±5 Inches of H2O
Options A & B: 3 solderable pins , tin plated. Option C: Lead wires, 24 AWG, 12” long
1/8” diameter tube fitting with barb for 3/16 ID tubing
PET 30% glass reinforced, flame retardant
0.25 VDC – 4 VDC
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
TECHNICAL SPECIFICATIONS
Pressure Ranges
From 0 to …
Proof Pressure
Burst pressure
Inch of H2O
PSI
PSI
1
1
1.5
2
1
1.5
5
1
1.5
10
1
1.5
±1
1
1.5
±2
1
1.5
±5
1
1.5
Physical
Operating Life Cycle
Vibration Resistance
Shock Resistance
Drop Test
Weight
Operating Temperature
Storage Temperature
Media
1. For more details see Ordering Options
min. 10 million full pressure cycles over the full range
1 G from 20 to 1200 Hz
10 G’s at 6 ms duration
1m onto concrete surface
≤
20 grams (without mating connector)
-10°C to + 60°C
- 40°C to + 95°C
*1
Air
Performance
Total Error Band
±2% of span Max. (±3% for 0 - 1” range) (10°C
≤
T
≤
40°C)
Electrical
Output Signal
Power Consumption
Operating Supply Signal
Overvoltage Protection
Short-circuit Proofness
Reverse Polarity Protection
Output Impedance
2. for min. 3 intervals at 5 minutes each
3. for min. 10 seconds on assigned pins
0.25 to 4 VDC Ratiometric
≤
20 mW
5 VDC ± 5%
min. 16 VDC
Yes
*2
Yes
*3
100
Ω
Max
Page 2
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

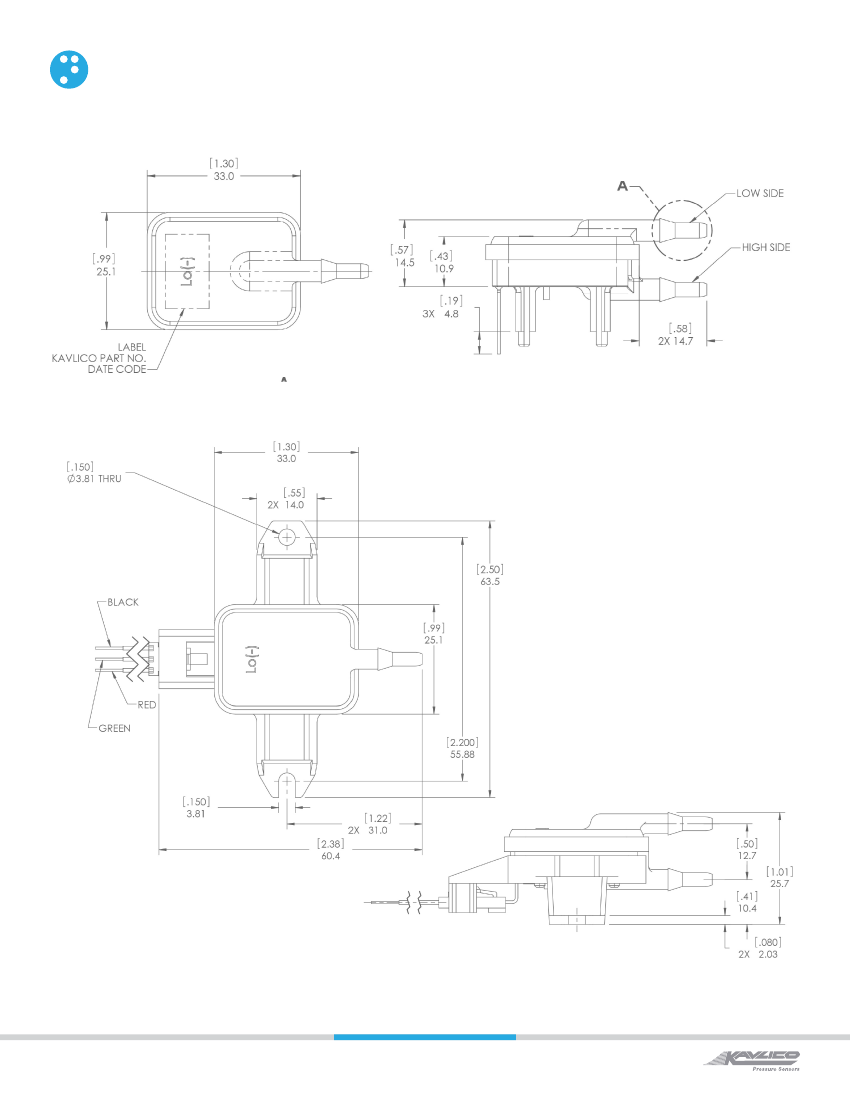

ORDERING OPTIONS
Example: P992-5B-A
P992 Pressure Sensor, ±5” H2O, with PCB Mounting Option.
Family
P992
P992
5B
A
Pressure Ranges
1:
0 - 1.0” H2O
1B:
± 1” H2O
2:
0 - 2.0” H2O
2B:
± 2” H2O
5:
0 - 5.0” H2O
5B:
± 5” H2O
10:
0 - 10” H2O
Reference
A:
4-leg PCB Mount
B:
3-leg PCB Mount
C:
2-leg PCB Mount with 12” lead wires
AGENCY APPROVALS & CERTIFICATIONS
2002/95/EC ROHS Directive
Page 4
Revised 3/8/18
