P1A family features a highly modular compact geometry. This modularity and extensive range of options offered
by the P1A family make the advantages of Ceramic Capacitive technology in low-pressure sensing now
available to the broadest spectrum of industrial applications. Besides the multiple standard configurations
available, customized adaptations can also be considered.
Kavlico’s P1A Ceramic Capacitive Pressure Sensor incorporates the latest generation sensing elements
with state-of-the-art ASICs. Designed to withstand harsh environments, it features superior EMI protection,
outstanding shock and vibration performance, impressive longevity and lifetime performance and high quality. It
is tested to parameters that match or exceed those of competing products on the market.
www.kavlico.com
Technical Specifications
Pressure Ranges
from 0 to …
from 0 to …
Proof pressure factor
Burst pressure factor
from -1 to …
Proof pressure
Burst pressure
bar (gage)
bar (absolute)
0.25
0.4
0.6
1
1.6
1.6
2.5
2.5
4x
6x
4
4
3x
5x
6
6
3x
5x
10
10
3x
4x
16
16
2x
3x
4x
6x
4x
6x
4x
6x
4x
6x
4x
6x
bar (gage)
bar (gage)
bar (gage)
0
-1 / +4
6
1
-1 / +4
6
from 0 to …
from 0 to …
Proof pressure factor
Proof pressure factor
PSI (gage)
PSI (absolute)
5
10
15
20
20
30
30
4x
6x
50
50
4x
6x
75
75
3x
5x
100
100
3x
5x
150
150
3x
4x
200
200
2x
3x
4x
6x
4x
6x
4x
6x
4x
6x
Physical
Operating Life Cycle
Vibration Resistance
Shock Resistance
Drop Test
Weight
Ingress Protection
Medium Temperature
Storage Temperature
Media
min. 10 million full pressure cycles over the full range
IEC 60068-2-64 (RANDOM) 20 PSD
100 g minimum according to DIN EN 60068-2-27
1 meter drop on concrete as per SAE J1455 / DIN EN 60068-2-3-1
≤
50 grams
IP 65 or IP67 - depending on electrical connector
-30°C to + 120°C (others on request)
-30°C to + 100°C (depending on internal and external seal ring capability) *
4
All class II fluids and gases compatible with stainless steel 304 (1.4301) and the
internal and external (optional) seal ring material
Environmental Temperature
-30°C to + 100°C (depending on internal and external seal ring capability) *
4
*4
For more details see How to Order
www.kavlico.com
Data Sheet P1A
2
Performance
Accuracy
*1
Non-linearity
*2
Non-repeatability
1-year stability
Temp. Coefficients - Zero
Temp. Coefficients - Span
*1
*2
≤
1 % of span
*3
0.2 % of span
*3
0.1 % of span
*3
0.2 % of span
*3
0.2 % of span / 10 K within temperature range 0°C to + 80°C.2 %
0.2 % of span / 10 K within temperature range 0°C to + 80°C.2 %
Including non-linearity, hysteresis, non-repeatability, zero point and full scale error (corresponds to error of measurement per IEC 61298-2). Adjusted in vertical mounting position with pressure port down.
BFSL according to IEC 61298-2 reference conditions to EN 61298-1
*3
Others on request
Electrical
0.5…4.5 VDC
ratiometric
5 VDC ± 5%
*5
≤
25 mW
min. 33 VDC
Yes
*6
500 VDC
Yes
*7
Output Signal
Operating Supply Signal
Power Consumption
Overvoltage Protection
Short-circuit Proofness
Insulation Voltage
Load
Response Time
*5
4…20 mA
9-30 VDC
*5
≤
600 mW
min. 33 VDC
not applicable
500 VDC
0…5 VDC
8-30 VDC
*5
≤
600 mW
min. 33 VDC
Yes
*6
500 VDC
Yes
*7
≥
4.7 kΩ
0…10 VDC
14-30 VDC
*5
≤
600 mW
min. 33 VDC
Yes
*6
500 VDC
Yes
*7
≥
4.7 kΩ
Reverse Polarity Protection
Yes
*7
≤
(Vsup-8 VDC)/(0.02 A) [Ω]
≥
4.7 kΩ
≤
5 ms max. to 63% of full scale pressure with step change on input
Unit shall be supplied by a power supply with double/reinforced insulation (SELV) and limited energy in accordance to
UL/EN/IEC 61010-1 or LPS in accordance to UL/EN/IEC 60950-1 or class 2 per UL1310/UL1585 (NEC or CEC). The power supply shall be approved for usage above 2000m if the pressure sensor is used in this enviroment.
For indoor and outdoor use, not exposed to direct sunlight.
*6
for min. 3 intervals at 5 minutes each
*7
for min. 10 seconds on assigned pins
Approvals & Certificates
Pressure equipment directive 97/23/EC
EMC directive 2004/108/EG,
IEC 61326 Emission (Group 1, Class B) and Immunity (industrial locations)
In Process
2011/65/EU ROHS Directive
CE Compliance
UL
ROHS
www.kavlico.com
Data Sheet P1A
3

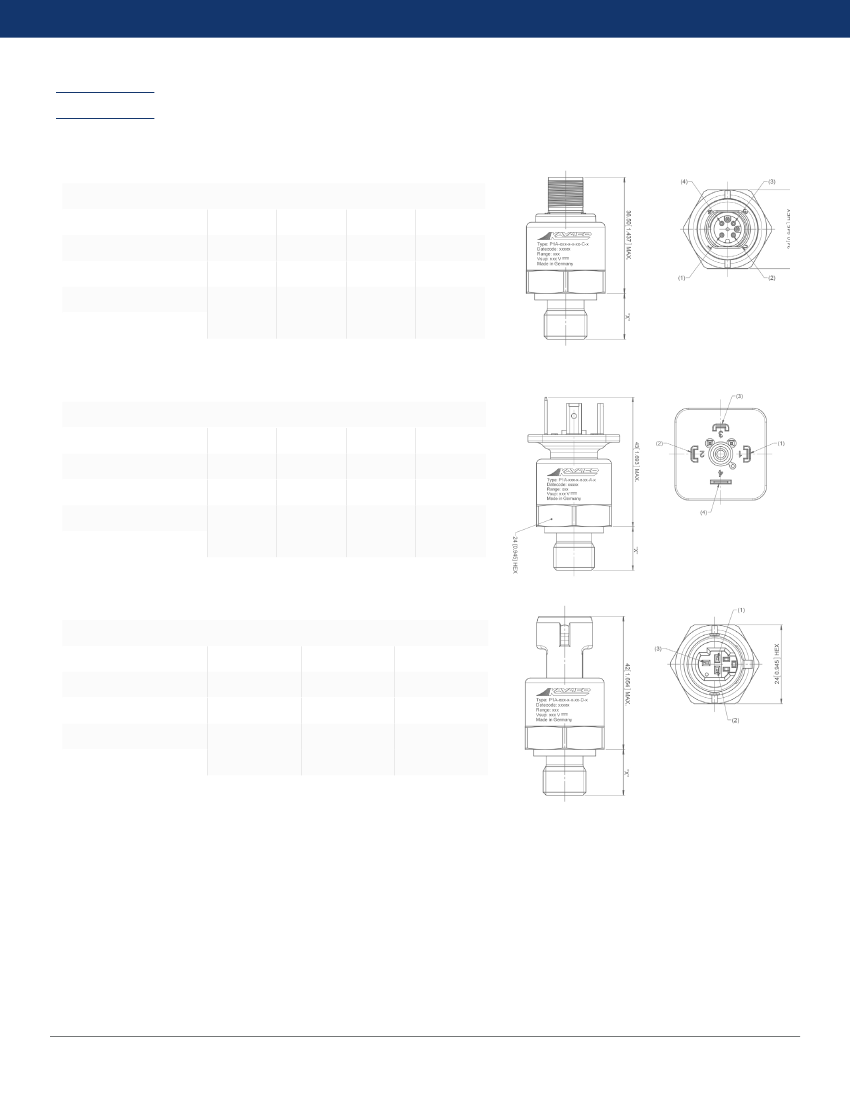

Dimensions
Pressure Sensor with Electrical Connection
Dimensions in mm [Inch]
M12 Pin Call Outs
Output
4-20 mA
0.5-4.5 VDC ratiometric
0-5 VDC
0-10 VDC
Vsup
...
Vout
GND
Pin 1
Vsup
Vsup
Pin 2
...
...
Pin 3
lout
Vout
Pin 4
...
GND
18 mm Pin Call Outs
Output
4-20 mA
0.5-4.5 VDC ratiometric
0-5 VDC
0-10 VDC
Vsup
Vout
GND
...
Pin 1
Vsup
Vsup
Pin 2
lout
Vout
Pin 3
...
GND
Pin 4
...
...
Packard (metri-pack 150) Pin Call Outs
Output
4-20 mA
0.5-4.5 VDC ratiometric
0-5 VDC
0-10 VDC
GND
Vsup
Vout
Pin 1
lout
GND
Pin 2
Vsup
Vsup
Pin 3
...
Vout
www.kavlico.com
Data Sheet P1A
4

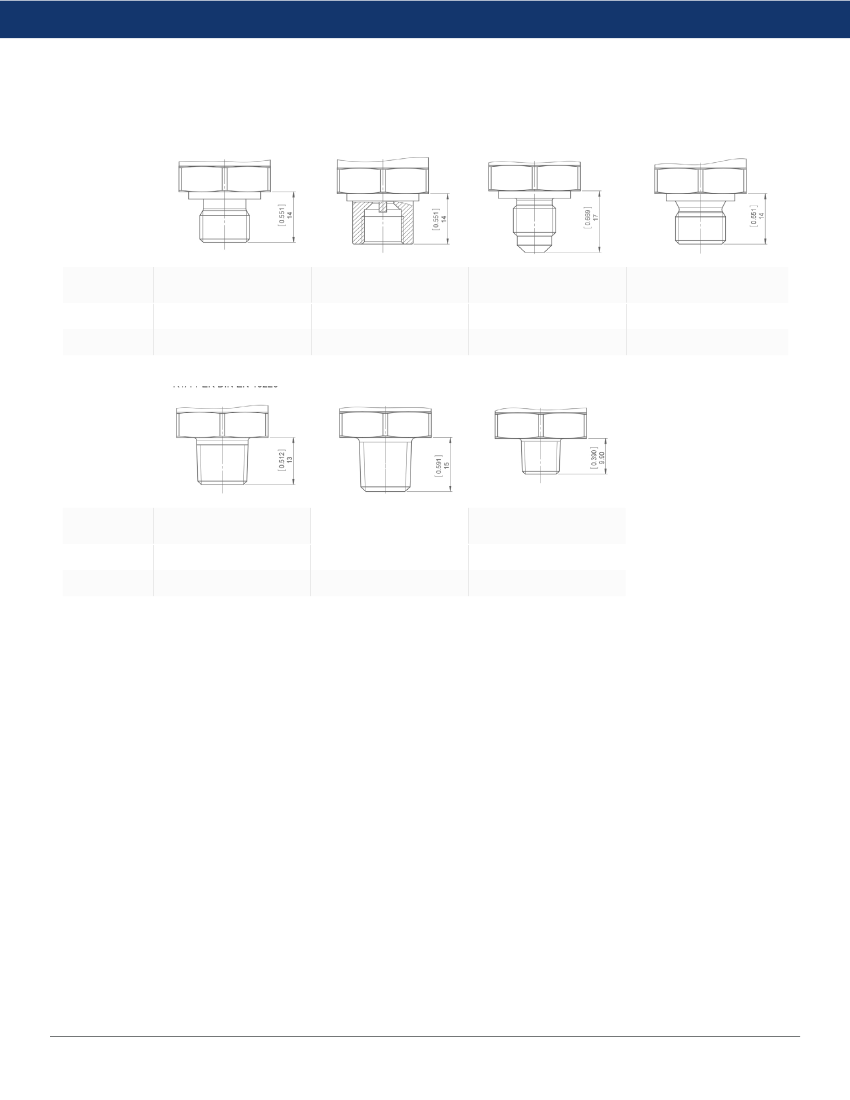

Pressure Connections and Recommended Installation Torque
Dimensions in mm [Inch]
Name
Thread
Torque
G1/4A DIN 3852-E
External
20 Nm
7/16-20 UNF-2B
SAE J1926-1
Internal
20 Nm
7/16-20 UNF-2A
SAE J1926-2
External
20 Nm
G1/4A DIN 3852-A
External
20 Nm
Name
Thread
Torque
1/4-19 BSPT
R1/4 PER DIN EN 10226
External
20 Nm
1/4-18 NPTF
External
20 Nm
1/8-27 NPTF
Internal
20 Nm
Note: Recommended torque may varify according to material and specific application.
