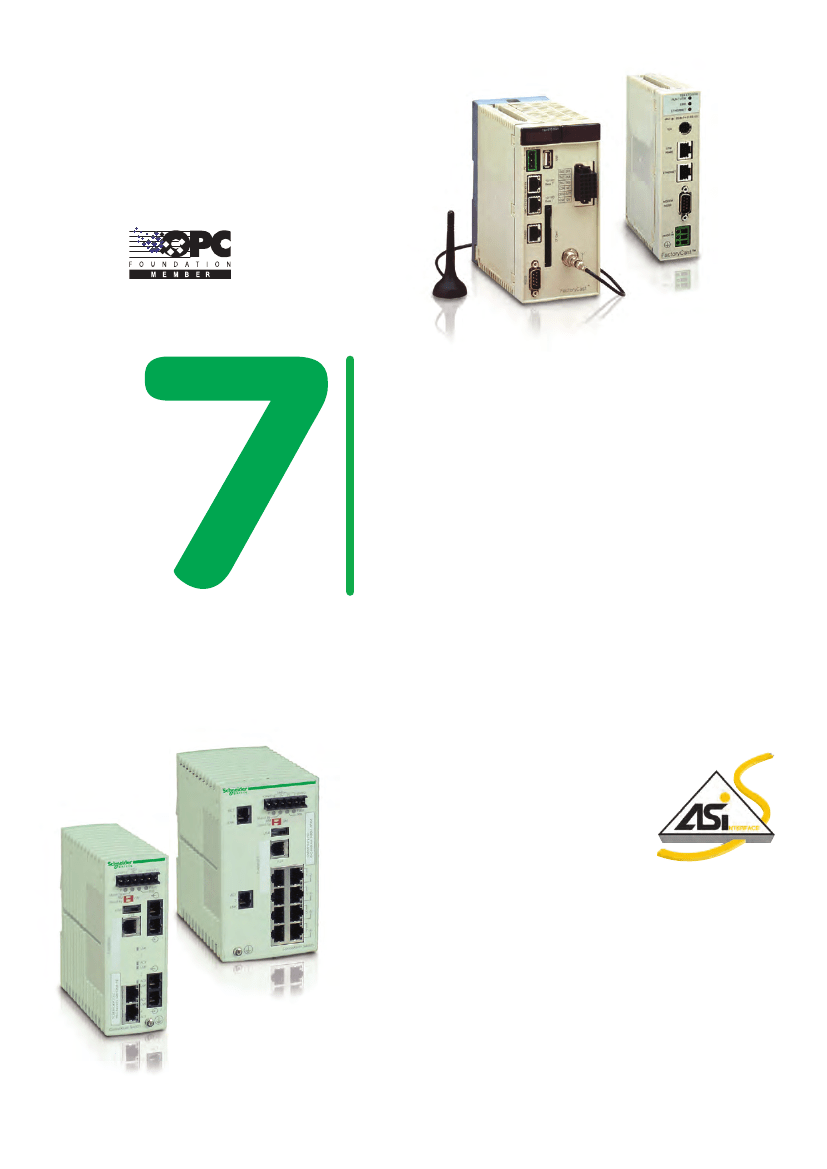

Modicon FactoryCast
Modicon FactoryCast PLC modules and the Modicon
FactoryCast Gateway combine the benefits of open
Web technologies with the reliability of industrial
control.
In the areas of distributed infrastructure, RTU
installations, industry, machinery and energy, the
Modicon FactoryCast ranges offer an ideal solution
for all your remote diagnostics and maintenance,
monitoring, control and programming needs.
Schneider Electric’s communication
solutions for industrial networks monitor
your control system applications to give
you precise control and maintenance data
in real time.
Remote intelligent modules or in-rack
modules for PLCs, standalone products
and devices - the Modicon FactoryCast,
AS-Interface and Modicon Connexium
ranges provide access to advanced
functions, flexible tools and services for
optimising communication between all
your automation products.
AS-Interface
AS-Interface is a quick expandable
cabling system which connects
all components in a control
system with just a single cable.
Intelligent, it features built-in
communication management.
Modicon Connexium
Designed for open industrial solutions, Modicon
Connexium products are the Ethernet-ready network
hubs, switches, transceivers, gateways and cables which
provide you with integrated Ethernet solutions to unite
everything in your installation, from device level all the
way to your corporate intranet. Modicon Connexium
boosts network performance and reliability.
Networks connectivity
and Web servers
WARNING
is a selection of
ent
This docum g products.
in
the top sell
ConneXium cabling system
Hub, Transceiver, IP 67 Switch
...............................................................................................
7/2
Switches
.......................................................................................................................
7/3 to 7/6
Gateways & Converters
...............................................................................................
7/7 to 7/8
Cables & Connectors
.............................................................................................................
7/9
AS-Interface cabling system
Modicon interfaces for generic products
.................................................
7/12 and 7/13
IP20 interfaces
IP67 interfaces
Dedicated components
....................................................................................
7/14 and 7/15
For control
For dialogue
Installation system
................................................................................................
7/16 to 7/18
Master modules, power supply units
Cables, repeaters
Accessories
Tools
.......................................................................................................................................
7/19
Adjustment and addressing terminals
Safety solutions
Safety monitors
Safety interfaces
see Chapter 8 “Machine safety”
Servers and Gateways
Data server software,
OPC Factory Server
.................................................................................................................
7/20
Embedded Web Servers,
FactoryCast and FactoryCast HMI
..........................................................................
7/21 and 7/22
Web Gateways for Remote control,
FactoryCast Gateway and FactoryCast HMI Gateway
..........................................................
7/23
Other versions:
please consult our Customer Care Centre.
7/1
ConneXium
Ethernet TCP/IP, Transparent Ready
Cabling system: ConneXium Hub, Transceiver
and Switch

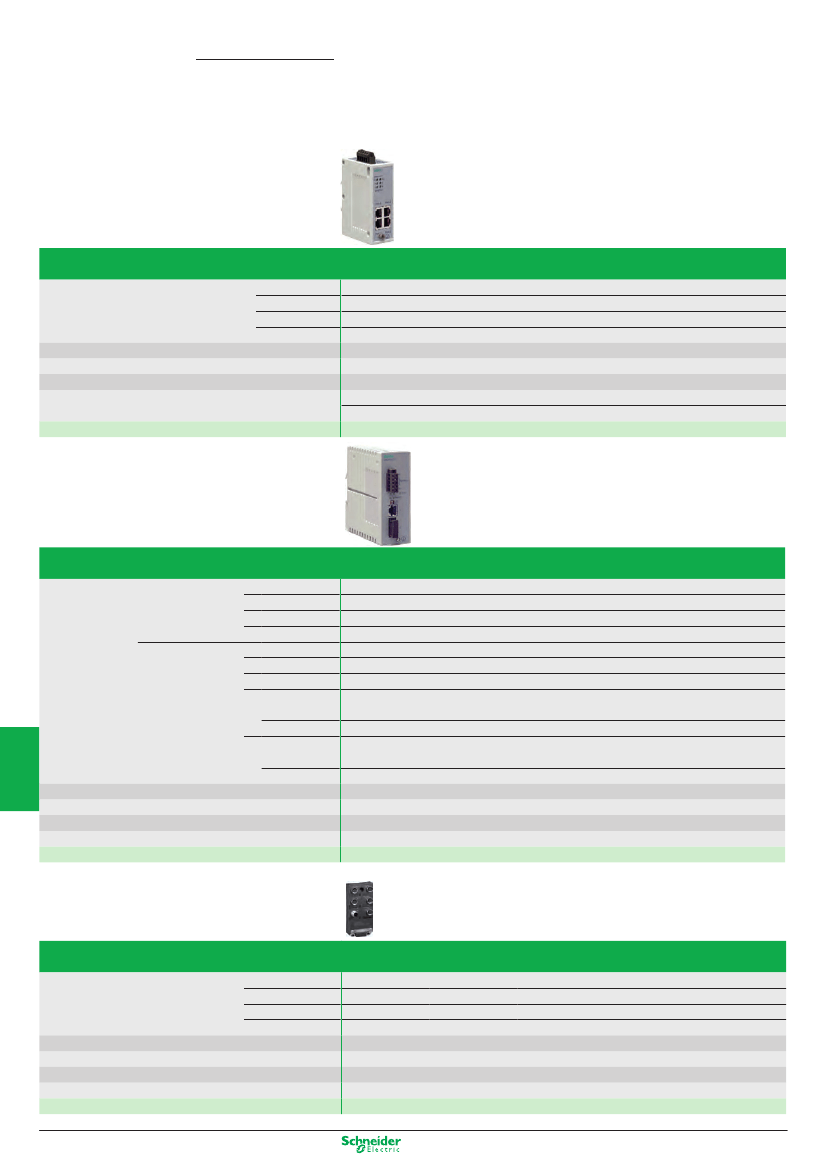

Hub
Interfaces
Copper cable ports
Number and type
Shielded connectors
Medium
Total length of pair
Power supply
Degree of protection
Dimensions
W x H x D
Conformity to standards
Reference
Voltage
4 x 10BASE-T ports
RJ45
Shielded twisted pair, category CAT 5E
100 m
24 V (18…32) DC, safety extra low voltage (SELV)
IP 30
40 x 125 x 80 mm
cUL 60950, UL 508 and CSA 142, UL 1604 and CSA 213 Class 1 Division 2,
e,
GL
FM 3810, FM 3611 Class 1 Division 2 , C-TICK
499 NEH 104 10
Transceiver
Interfaces
Copper cable ports
Number and type
Shielded connectors
Medium
Total length of pair
Fiber optic ports
Number and type
Connectors
Medium
Length of optical fiber
50/125 µm fiber
62.2/125 µm fiber
Attenuation analysis
3000 m (1)
3000 m (1)
8 dB:
11 dB:
24 V (18…32) DC, safety extra low voltage (SELV)
IP 20
47 x 135 x 111 mm
cUL 60950, UL 508 and CSA 142, UL 1604 and CSA 213 Class 1 Division 2,
e,
GL , C-TICK
1 x 100BASE-TX port
RJ45
Shielded twisted pair, category CAT 5E
100 m
1 x 100BASE-FX port
SC
Multimode optical fiber
7
Power supply
Degree of protection
Dimensions
W x H x D
Conformity to standards
Voltage
50/125 µm fiber
62.2/125 µm fiber
Reference
499 NTR 101 00
(1) Length dependent on the attenuation analysis and attenuation of the optical fiber (typical value: 2000 m).
IP 67 switch
Interfaces
Copper cable ports
Number and type
Shielded connectors
Medium
Total length of pair
Power supply
Degree of protection
Dimensions
W x H x D
Conformity to standards
Reference
Voltage
Twisted pair, unmanaged
5 x 10BASE-T/100BASE-TX ports
M12 (type D)
Shielded twisted pair, category CAT 5E
100 m with rated cable
24 VDC (18…32 VDC), safety extra low voltage (SELV)
IP 65/67
60 x 126 x 31 mm
cUL 508 and CSA 22.2 14 , C-TICK
TCS ESU 051 F0
Other versions:
please consult our Customer Care Centre.
7/2
ConneXium
Ethernet TCP/IP, Transparent Ready
Cabling system: ConneXium unmanaged switches

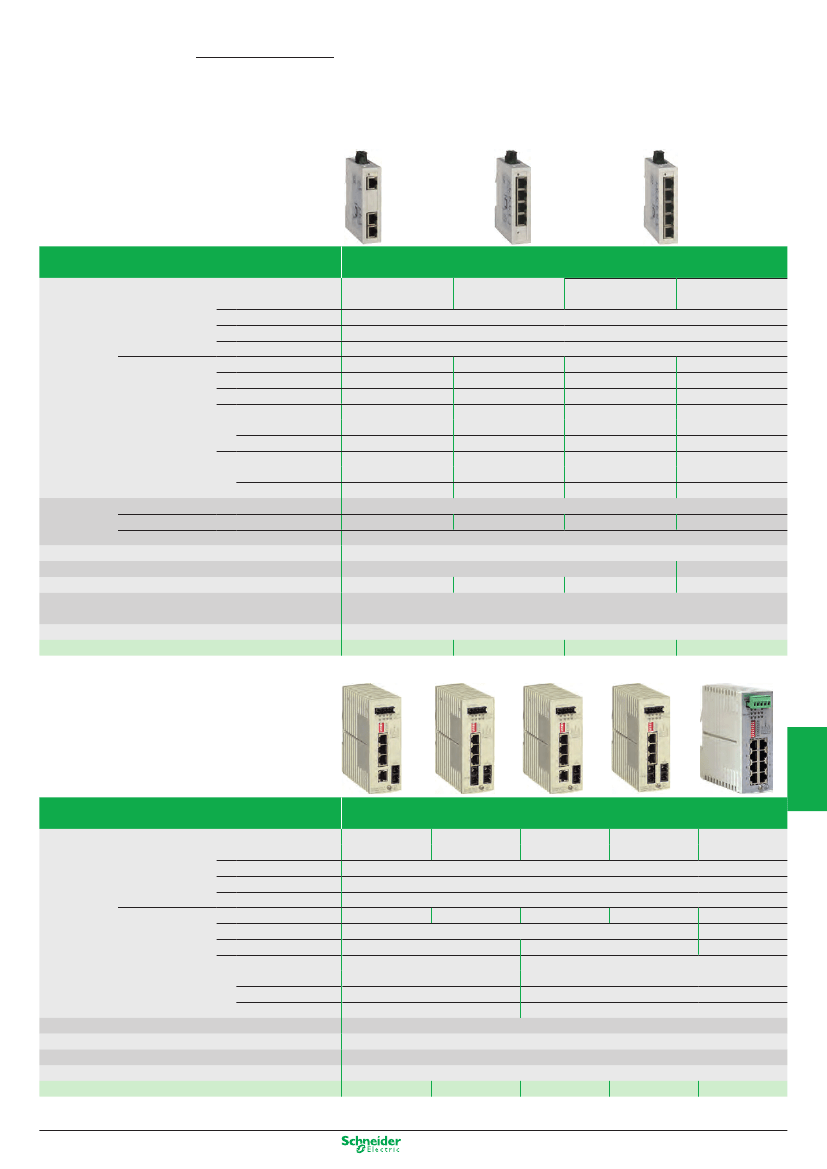

Switches
Interfaces
Copper cable ports
Number and type
Shielded connectors
Medium
Total length of pair
Fiber optic ports
Number and type
Connectors
Medium
Length of optical fiber
50/125 µm fiber
62,2/125 µm fiber
Attenuation analys
50/125 µm fiber
62,2/125 µm fiber
Power supply
Voltage, safety extra low voltage (SELV)
Power consumption
Connector
Degree of protection
Dimensionss
Weight
Conformity to standards
Alarm relay
Reference
WxHxD
Copper twisted pair, unmanaged
3 x 10BASE-T/ 100BASE-TX 4 x 10BASE-T/ 100BASE-TX
ports
Type RJ45
Shielded twisted pair, category CAT 5E
100 m
–
–
–
–
–
–
–
Max. 2,2 W
IP 30
25 x 114 x 79 mm
0,113 kg
0,120 kg
0,113 kg
UL 508 and CSA 22.2 N° 142
IEC/EN 61131-2, IEC 60825-1 class 1, CISPR 11A
–
TCS ESU 033FN0
TCS ESU 043F1N0
TCS ESU 053FN0
TCS ESU 083FN0
35 x 138 x 121 mm
0,246 kg
1 x 100BASE-FX ports
Duplex SC
Multimode optical fiber
5000 m (1)
4000 m (1)
8 dB
11 dB
Max. 3,9 W
–
–
–
–
–
–
–
Max. 2,2 W
–
–
–
–
–
–
–
Max. 4,1 W
ports
5 x 10BASE-T/ 100BASE-TX
ports
8 x 10BASE-T/ 100BASE-TX
ports
c
24 VDC (c 9,6…32 VDC)
3 way removable connector
(1) Length dependent on the attenuation analysis and attenuation of the fi ber optic (typical value: 2,000 m).
7
Switches
Interfaces
Copper cable ports
Number and type
Shielded connectors
Medium
Total length of pair
Fiber optic ports
Number and type
Connectors
Medium
Length of optical fiber
50/125 µm fiber
62.2/125 µm fiber
9/125 µm fiber
Power supply
Dimensions
Conformity to standards
References
Voltage
WxHxD
Degree of protection
5000 m (1)
4000 m (1)
–
IP 20
47 x 135 x 111 mm
cUL 60950, cUL 508 and CSA 142, UL 1604 and CSA 213 Class 1 Division 2,
e,
GL , C-TICK
499 NMS 251 01
499 NMS 251 02
499 NSS 251 01
499 NSS 251 02
499 NES 181 00
–
–
32 500 m (2)
–
–
–
Copper twisted pair and fibre optic, unmanaged
4 x 10BASE-T/
RJ45
Shielded twisted pair, category CAT 5E
100 m
1 x 100BASE-FX port
SC
Multimode optical fiber
Single mode optical fiber
2 x 100BASE-FX ports 1 x 100BASE-FX port
2 x 100BASE-FX ports
–
–
–
3 x 10BASE-T/
4 x 10BASE-T/
3 x 10BASE-T/
8 x 10BASE-T/
100BASE-TX ports 100BASE-TX ports 100BASE-TX ports 100BASE-TX ports 100BASE-TX ports
24 VDC (18…32), safety extra low voltage (SELV)
(1) Length
dependent on the attenuation analysis and attenuation of the fiber optic (typical value: 2,000 m).
(2) Length dependent on the attenuation analysis and attenuation of the fiber optic (typical value: 15,000 m).
Other versions:
please consult our Customer Care Centre.
7/3
ConneXium
Ethernet TCP/IP, Transparent Ready
Cabling system: ConneXium managed switches
Switches
Interfaces
Copper cable ports
Number and type
Medium
Total length of pair
Fiber optic ports
Number and type
Connectors
Medium
Length of optical fiber
50/125 µm fiber
9/125 µm fiber
Power supply
Degree of protection
Dimensions
W x H x D
Conformity to standards
References
Voltage

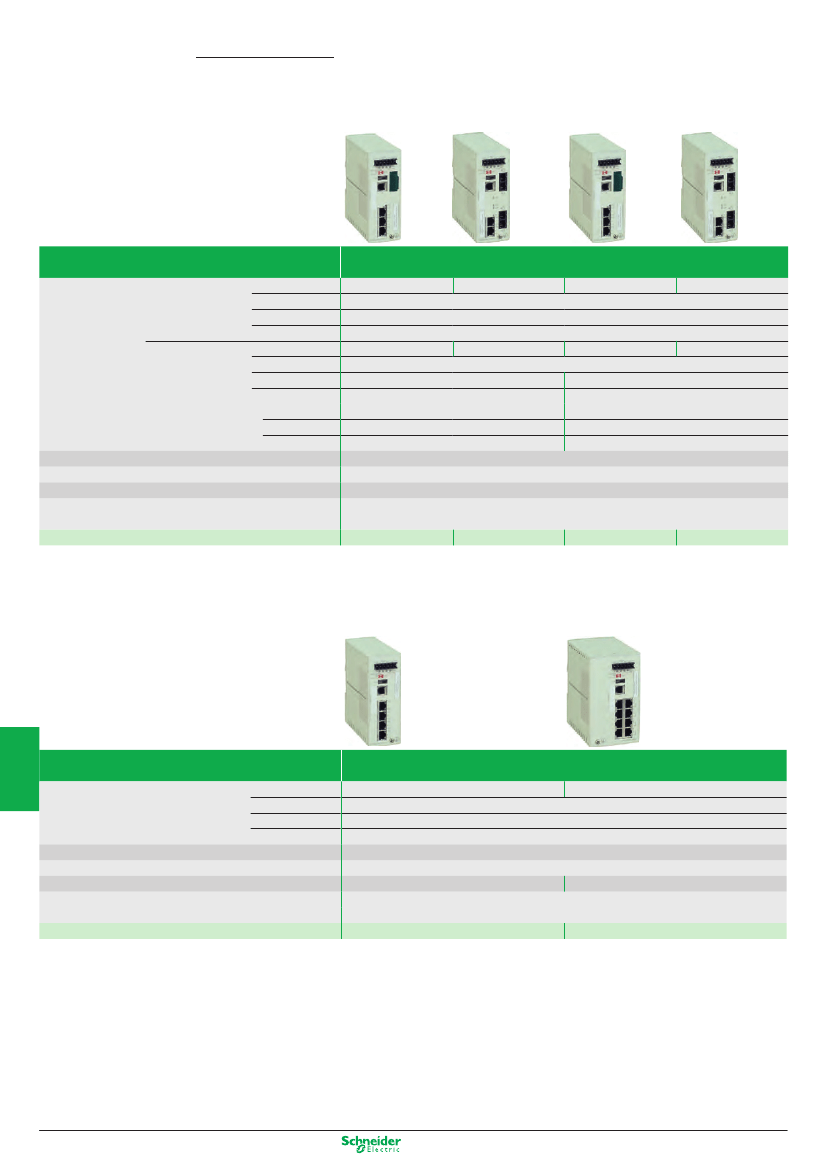

Operation
Copper twisted pair and fiber optic, managed
3 x 10/100BASE-TX ports 2 x 10/100BASE-TX ports 3 x 10/100BASE-TX ports 2 x 10/100BASE-TX ports
Shielded twisted pair, category CAT 5E
100 m
1 x 100BASE-FX port
Duplex SC
Multimode optical fiber
5,000 m (1)
–
IP 20
47 x 131 x 111 mm
IEC 61131-2, IEC 61850-3, UL 508, UL 1604 Class 1 Division 2, CSA C22.2 14 (cUL),
CSA C22.2 213 Class 1 Division 2 (cUL),
e,
GL , C-TICK
TCSESM043F1CU0
TCSESM043F2CU0
TCSESM043F1CS0
TCSESM043F2CS0
Single mode optical fiber
–
–
32,500 m (2)
2 x 100BASE-FX ports
1 x 100BASE-FX port
2 x 100BASE-FX ports
Shielded connectors
RJ45
62.2/125 µm fiber 4,000 m (1)
9.6...60 VDC/18…30 VAC, safety extra low voltage (SELV)
(1) Length dependent on the attenuation analysis and attenuation of the fiber optic (typical value: 2,000 m).
(2) Length dependent on the attenuation analysis and attenuation of the fiber optic (typical value: 15,000 m).
7
Switches
Interfaces
Copper cable ports
Number and type
Shielded connectors
Medium
Total length of pair
Power supply
Degree of protection
Dimensions
W x H x D
Conformity to standards
References
Voltage
Operation
Copper twisted pair, managed
4 x 10/100BASE-TX ports
RJ45
Shielded twisted pair, category CAT 5E
100 m
9.6...60 VDC/18…30 VAC, safety extra low voltage (SELV)
IP 20
47 x 131 x 111 mm
74 x 131 x 111 mm
IEC 61131-2, IEC 61850-3, UL 508, UL 1604 Class 1 Division 2, CSA C22.2 14 (cUL),
CSA C22.2 213 Class 1 Division 2 (cUL),
e,
GL , C-TICK
TCSESM043F23F0
TCSESM083F23F0
8 x 10/100BASE-TX ports
Other versions:
please consult our Customer Care Centre.
7/4
