3F01-160 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The sensor> 3F01-160

Preview

3F01-160: DescriptionHeavy Duty Power Connectors PP15/45 HOUSING ONLY RED; CategoryThe sensor; File Size203KB，1 Pages; ManufacturerWhite-Rodgers (Emerson)

Download Datasheet Parametric Compare View All

3F01-160 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3F01-160	-	-	View	Buy Now

3F01-160 Overview

Heavy Duty Power Connectors PP15/45 HOUSING ONLY RED

3F01-160 Parametric

Parameter Name	Attribute value
Product Category	Thermostats
Manufacturer	White-Rodgers (Emerson)
RoHS	Details
Function	Close on Rise
Temperature Range	+ 32 C to + 71 C
Current Rating	5 A, 10 A, 21.6 A, 25 A
Voltage Rating	120 VAC, 240 VAC, 277 VAC
Product	Snap Disc Control Thermostats
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

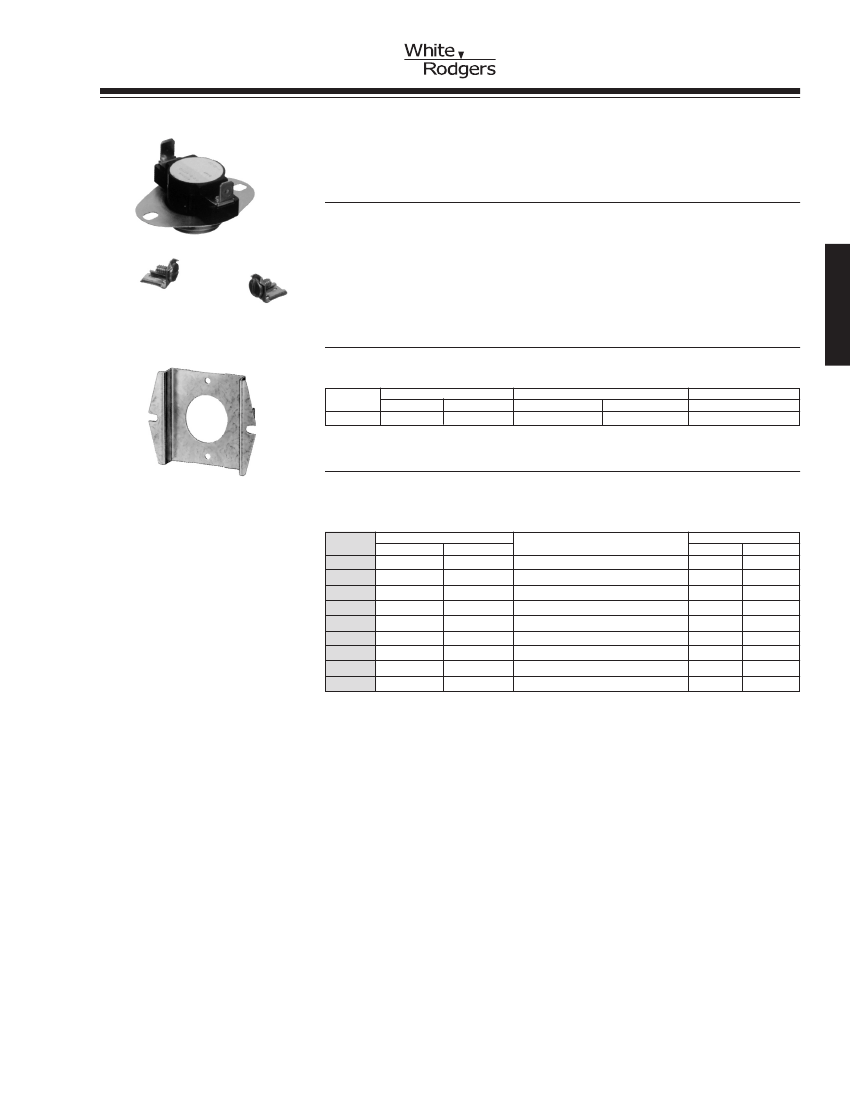

SNAP DISC

CONTROLS

SNAP DISC FAN CONTROLS

For Regulation of Fan or Blower Control

FEATURES

• Designed for quick on-job replacement.

• Easy to remember type numbers — “L” for Limit — “F” for Fan.

• Last three numbers indicate cut-out temperatures on limits and cut-in temperatures

on fan controls.

• Mounting holes match standard ¾” snap discs.

• Tab-to-screw terminal adapters furnished.

3F01-140

SPECIFICATIONS

Maximum ambient . . . . . . . . . . . . . . . . . . 350°F

ELECTRICAL RATINGS

Model

3F01, 3F02

Motor Rating (Full Load)

120VAC

240VAC

0.0A

5.0A

Resistive (Non-Inductive)

120/240VAC

277VAC

25.0A

2.6A

Pilot Duty

120/240/277VAC

25 VA

PARTS AND ACCESSORIES

F6-1798 (1 per pack)

• F6-798 Adapter plates (Order separately) — per pack

FAN CONTROLS

Model

Number

3F01-110

3F01-120

3F01-130

3F01-140

3F01-150

3F01-160

3F01-180

3F01-200

Fixed Temperature Settings

Cut-in

Cut-out

0°F (43°C)

20°F (49°C)

30°F (54°C)

40°F (60°C)

50°F (66°C)

60°F (7°C)

80°F (82°C)

200°F (93°C)

90°F (32°C)

0°F (43°C)

5°F (32°C)

20°F (32°C)

30°F (32°C)

40°F (32°C)

60°F (32°C)

80°F (32°C)

Switch

Action

Close on Rise

Therm-O-Disc

Style

Type

60T2

60044

60046

60047

60049

60050

60064

60065

60066

60067

3F01-350

350°F (77°C) 320°F (32°C)

www.white-rodgers.com

9

FURNACE

3F01-160 Related Products

	3F01-160	3F01-110	3F01-350
Description	Heavy Duty Power Connectors PP15/45 HOUSING ONLY RED	Headers u0026 Wire Housings STANDARD PRESSURE 24-20 AWG gold	Thermostats 350F in 320F Cut-out Close on Rise
Product Category	Thermostats	Thermostats	Thermostats
Manufacturer	White-Rodgers (Emerson)	White-Rodgers (Emerson)	White-Rodgers (Emerson)
RoHS	Details	Details	Details
Function	Close on Rise	Close on Rise	Close on Rise
Temperature Range	+ 32 C to + 71 C	+ 32 C to + 43 C	+ 32 C to + 177 C
Current Rating	5 A, 10 A, 21.6 A, 25 A	5 A, 10 A, 21.6 A, 25 A	5 A, 10 A, 21.6 A, 25 A
Voltage Rating	120 VAC, 240 VAC, 277 VAC	120 VAC, 240 VAC, 277 VAC	120 VAC, 240 VAC, 277 VAC
Product	Snap Disc Control Thermostats	Snap Disc Control Thermostats	Snap Disc Control Thermostats
Factory Pack Quantity	1	1	1
Packaging	Bulk	-	Bulk
