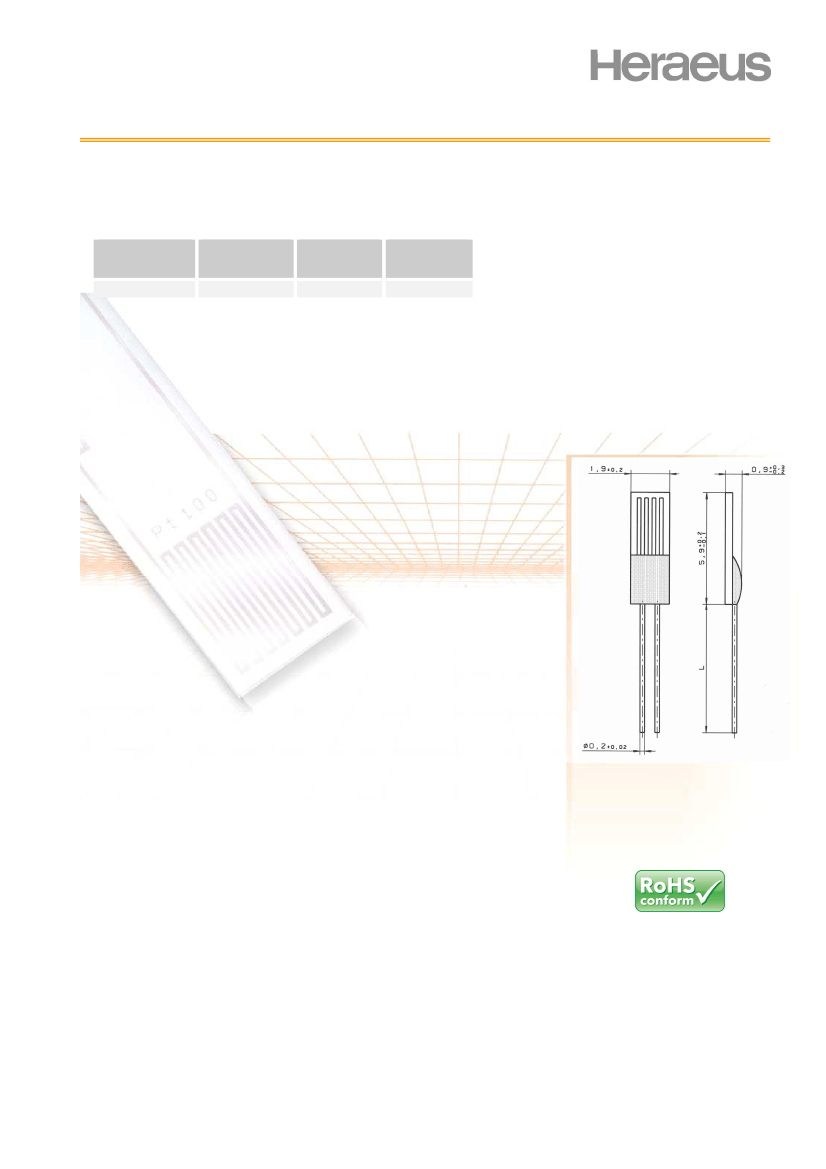

Platinum Resistance Temperature Detector
M 620
M series PRTDs are designed for large volume applications where long term stability, interchangeability and accuracy over
a large temperature range are vital. Due to the high resistance values of 1000
Ω
and 2000
Ω
the signal gain is excellent.
Typical applications are found in Automotive, White goods, HVAC, Medical and Industrial equipment.
Nominal
Resistance R0
Tolerance
DIN EN 60751
1996-07
Tolerance
DIN EN 60751
2009-05
Order Number
Plastic Bag
2000 Ohm at 0°C
Class B
F 0.3
32 208 541
The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.
Spezification
DIN EN 60751 (according to IEC 751)
-70°C to +500°C (continuous operation)
(temporary use to 550°C possible)
Tolerance Class B: -70°C to +500°C
Temperature range
Temperature coefficient
Leads
TCR = 3850 ppm/K
Pt clad Ni- wire
Recommend connection technology:
Welding, Crimping and Brazing
10mm ±1mm
max. R
0
-drift 0.04% after 1000h at 500 °C
at least 40g acceleration at 10 to 2000 Hz,
depends on installation
at least 100g acceleration with 8ms half sine
wave , depends on installation
unhoused for dry environments only
> 100 MΩ at 20°C; > 2 MΩ at 500°C
0.3 K/mW at 0°C
water current (v= 0.4m/s):
air stream (v= 2m/s):
t
0.5
= 0.08s
t
0.9
= 0.25s
t
0.5
= 3.7s
t
0.9
= 11.5s
Lead lengths (L)
Longterm stability
Vibration resistance
Shock resistance
Environmental conditions
Insulation resistance
Self heating
Response time
Measuring current
2000Ω: 0.1 to 0,3mA
(self heating has to be considered)
Other tolerances, values of resistance and wire
lengths are available on request.
Note
We reserve the right to make alterations and technical data printed. All technical data serves as a guideline and does not guarantee
particular properties to any products.
Heraeus Sensor Technology USA
1901 Route 130
North Brunswick, NJ 08902
Phone 732-940-4400
Email info.hst-us@heraeus.com
www.hst-us.com
Name of document: 30910022 Index D
Status: 07/2015
