DDCM

Differential pressure switches

FEMA differential pressure monitors are suitable for

monitoring and controlling differential pressures,

flow monitoring and automatic control of filter

systems. A double chamber system with stainless

steel bellows or Perbunan diaphragm detects the

difference between the two applied pressures.

The desired switching pressure is continuously

adjustable within the ranges mentioned

in the product summary.

All differential pressure monitors can also

be used in the vacuum range.

The switching differential is not adjustable.

DDCM252

SIL 2 according IEC 61508-2

Technical data

Pressure connection

Internal thread G 1/4

Switching device

Robust housing (200) made of seawater

resistant die cast aluminium GD Al Si 12.

Protection class

IP 54, in vertical position.

Pressure sensor materials

DDCM014–16:

Pressure bellows of 1.4571

Sensor housing of 1.4305.

DDCM252–6002:

Perbunan diaphragm.

Aluminium sensor housing.

Mounting position

vertically upright.

Ambient temperature at switching device

–25…+70 °C

Max. medium temperature

The maximum medium temperature at

the pressure sensor must not exceed the

permitted ambient temperature at the

switching device. Temperatures may reach

85°C for short periods). Higher medium

temperatures are possible provided the above

limit values for the switching device are

ensured by suitable measures (e.g. siphon).

Mounting

Directly on the pressure line or on a flat

surface with two 4 mm Ø screws.

Note the connection of pressurized lines:

P (+) = high pressure

S (–) = low pressure

Switching pressure

Adjustable from outside with screw driver.

Type

Setting range

(differential

pressure

Switching

Max.**

Materials in Dimen-

differential

permissible contact with sioned

(mean values) pressure

medium

drawing

page 25 + 26

mbar

bar

0,5

1,5

bar

Aluminium

+ Perbunan

1 + 20

Stainless steel

1.4305 +

1.4571

1 + 21

* without graduation (only ± scale) set according to pressure gauge

** also loadable on one side

For more differential pressure monitors, see the HCD and DPS series, page 71 and 72.

For accessories, see VKD… and MAU8…, on pages 152 and 153.

Calibration

The

DDCM

series are calibrated for falling pressure.

This means that the adjustable pressure on the scale

corresponds to the switching point at falling pressure.

The reset point is higher by the amount of the switching

differential. (See also page 23, 1. Callibration at lower

switching point).

Switching

capacity

Normal

The differential pressure switch (e.g. DDCM1)

monitors differential pressure through the pump.

250 VAC 250 VDC 24 VDC

(ohm) (ind) (ohm) (ohm)

The system shuts down if values fall below an

adjustable switching threshold. Pump monitoring

8A 5A

0.3 A

does not depend on the static pressure in the

system.

DDCM

see page 67

Protection Class:

IP 54/65

Accessories

Solenoid valves

Switching differential

Not adjustable. For values see Product

Summary.

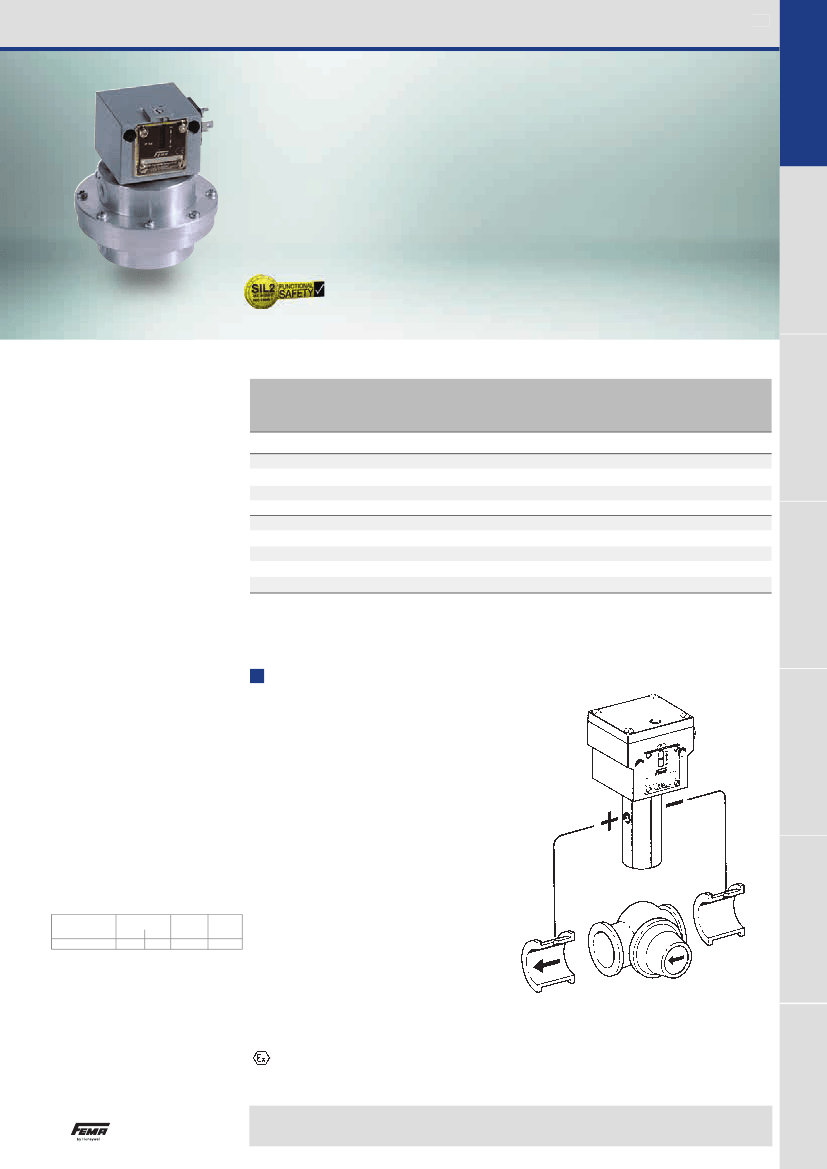

Pump monitoring application example

Flow monitors

Temperature sensors

Switching differential not adjustable

DDCM252*

4…25 mbar

DDCM662*

10…60 mbar

DDCM1602*

20…160 mbar

DDCM6002*

100…600 mbar

DDCM014

–0.1…0.4 bar

0.15

DDCM1

0.2…1.6 bar

0.13

DDCM4*

1…4 bar

0.20

DDCM6

0.5…6 bar

0.20

DDCM16

3…16 bar

0.60

Thermostats

Pressure transmitters

Pressure switches

Mechanical pressure switches

Liquids and gases

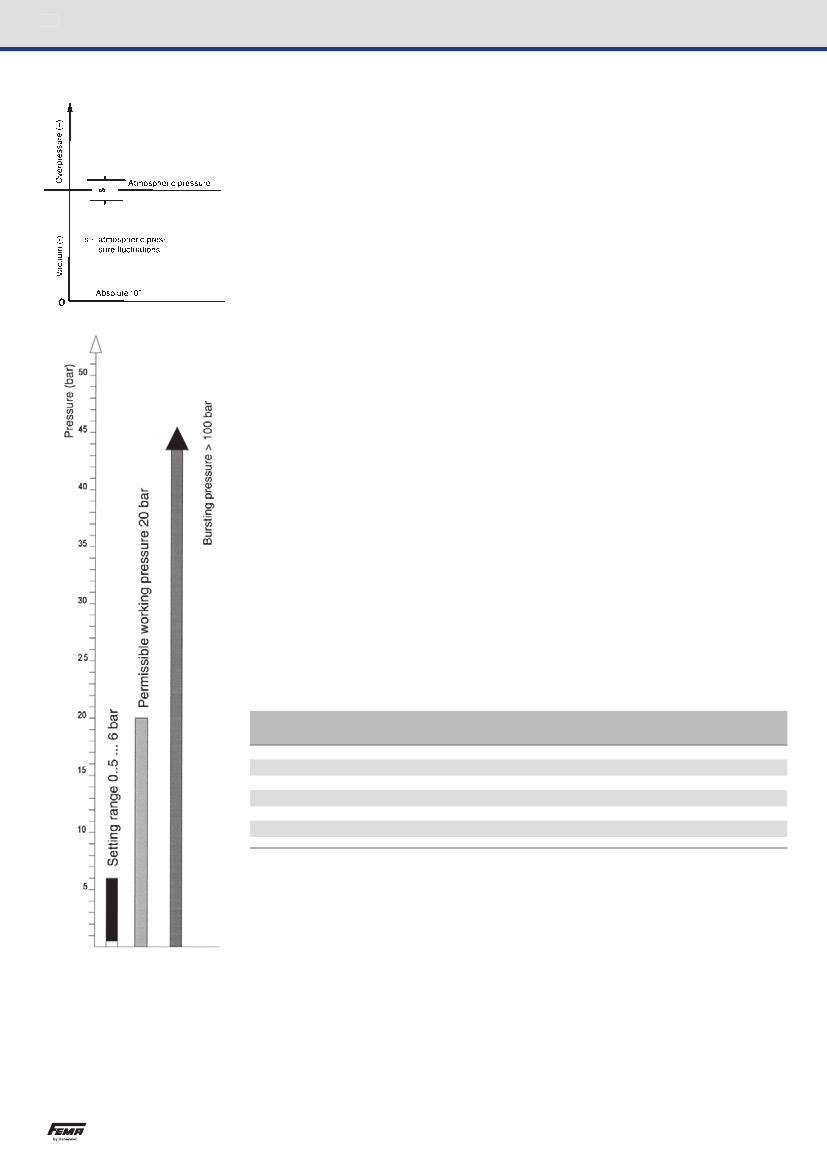

Definitions

Maximum pressure monitoring

RSP = SP – xd

Switching differential

Pressure transmitters

Accessories

Solenoid valves

Flow monitors

Temperature sensors

Thermostats

The switching differential (hysteresis) is the difference in pressure between the

switching point (SP)

and the

reset point (RSP)

of a pressure switch. Switching differential tolerances occur due to

tolerances in the microswitches, springs and pressure bellows. Therefore the data in the product

summaries always refers to average values. In the case of limiter functions the switching differential

has no significance, as one is only interested in the switching point at which cutoff occurs, not the

reset point. For a

controller function,

i. e. in the case of pressure switches used to switch a burner,

pump etc.

on and off,

a pressure switch with an

adjustable switching differential

should be

chosen. The switching frequency of the burner or pump can be varied by changing the switching

differential.

Adjustable switching differential/ calibration

In the case of pressure switches with adjustable switching differential, the hysteresis can be set within

the specified limits. The switching point (SP)

and

reset point (RSP) are precisely definable. When

setting the pressure switch, the switching differential situation and the type of factory calibration must

be taken into account. Some pressure switches (e.g. minimum pressure monitors of the DCM series)

are calibrated under "falling" pressure, i.e. switching under falling pressure takes place at the scale

value with the switching differential being above it. The device switches back at scale value +

switching differential. If the pressure switch is calibrated under rising pressure, switching takes place

at the scale value and the device switches back at scale value - switching differential (see direction of

action). The calibration method is indicated in the data sheets.

Minimum pressure monitoring

RSP = SP + xd

Direction of action

In principle, any pressure switch can be used for both maximum pressure and minimum pressure

monitoring. This excludes pressure limiters, whose direction of action (maximum or minimum) is

predefined. The only thing to remember is that the scale reading may deviate by the amount of the

switching differential. See example at bottom left: The scale value is 2.8 bar.

Maximum pressure monitoring

With rising pressure,

switching takes place once the preset switching pressure is reached (SP).

The reset point (RSP) is lower by the amount of the switching differential.

Minimum pressure monitoring

With falling pressure,

switching takes place once the preset switching pressure is reached (SP).

The reset point (RSP) is higher by the amount of the switching differential.

Direction of action in vacuum range

It is particularly important to define the direction of action in the vacuum range.

Rising does not mean a rising vacuum, but rising pressure (as viewed from absolute "0"). "Falling"

pressure means a rising vacuum.

For example: Vacuum switch set to -0.6 bar falling means: Switching (SP) takes place under falling

pressure (rising vacuum) at -0.6 bar. The reset point is higher by the amount of the switching

differential (e.g. at -0.55 bar).

Setting a pressure switch

To define the switching point of a pressure switch exactly, it is necessary to determine the direction of

action in addition to the pressure. "Rising" means that switching takes place at the set value when the

pressure rises.

The reset point is then lower by the amount of the switching differential. "Falling" means exactly the

opposite.

Please note when specifying the setting of a pressure switch:

In addition to the switching point it is also necessary to specify the direction of action (falling or rising).

Example for selection of a pressure switch:

A pump is to be turned on at 2.8 bar and off again at 4.2 bar.

Chosen type: DCMV6 according to data sheet DCM. Setting: Scale pointer to 2.8 bar (lower switching

point). Switching differential to 1.4 bar (set according to pressure gauge).

Cutoff point: 2.8 bar +1.4 bar = 4.2 bar.

Pressure switches

Mechanical pressure switches

Definitions

Mechanical pressure switches

General description

Operating mode

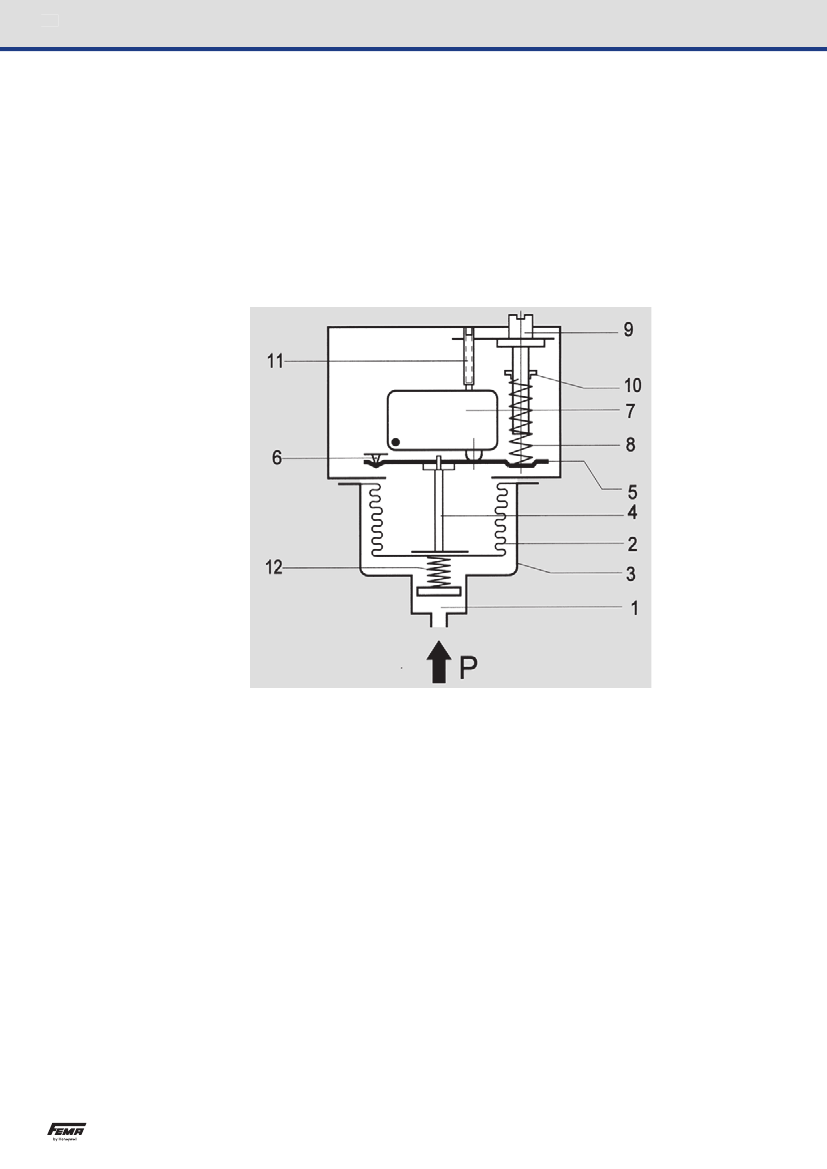

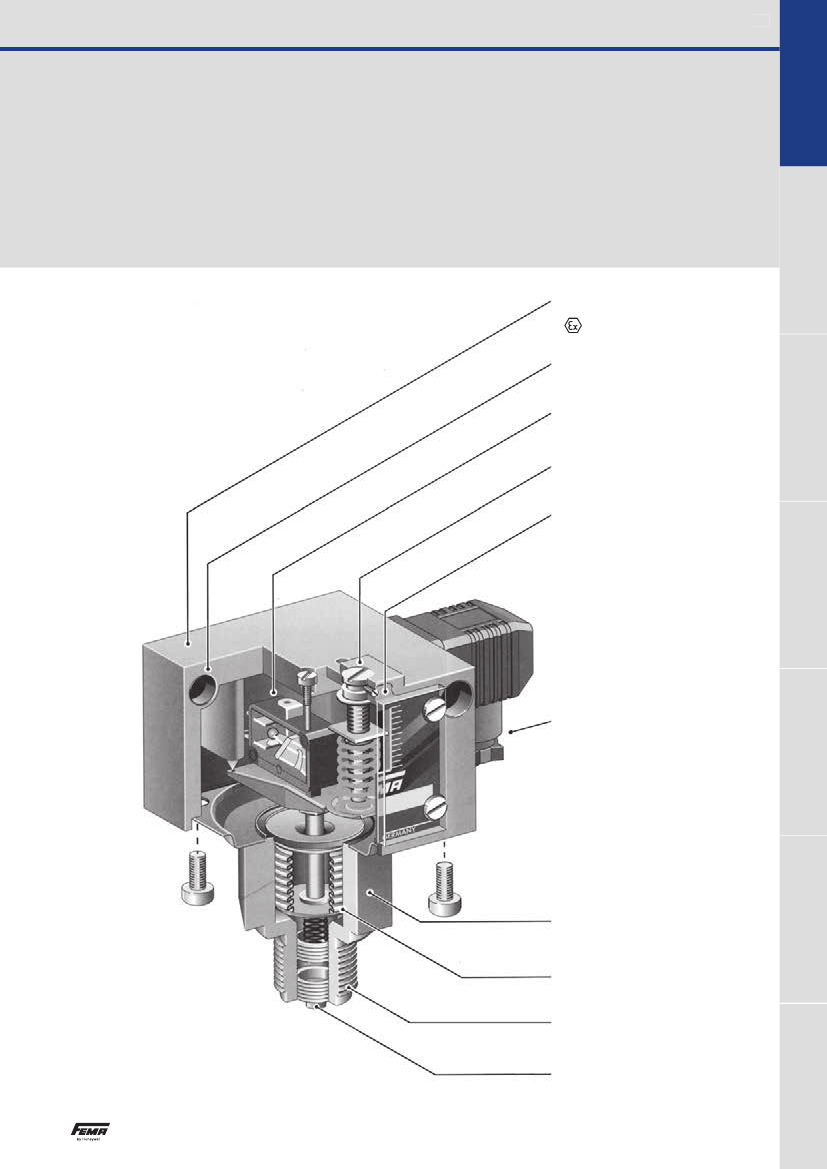

The pressure prevailing in the sensor housing (1) acts on the measuring bellows (2). Changes in

pressure lead to movements of the measuring bellows (2) which are transmitted via a thrust pin

(4) to the connecting bridge (5). The connecting bridge is frictionlessly mounted on hardened points

(6). When the pressure rises the connecting bridge (5) moves upwards and operates the microswitch

(7). A counter-force is provided by the spring (8), whose pre-tension can be modified by the adjusting

screw (9) (switching point adjustment). Turning the setting spindle (9) moves the running nut (10) and

modifies the pre-tension of the spring (8). The screw (11) is used to calibrate the microswitch in the

factory. The counter pressure spring (12) ensures stable switching behaviour, even at low setting values.

Pressure connection

Measuring bellows

Sensor housing

Thrust pin

Connecting bridge

Pivot points

Microswitch or other

switching elements

Setting spring

Setting spindle (switching

point adjustment)

Running nut (switching point

indicator)

Microswitch calibration

screw (factory calibration)

Counter pressure spring

Pressure sensors

Apart from a few exceptions in the low-pressure range, all pressure sensors have measuring bellows,

some made of copper alloy, but the majority of high-quality stainless steel. Measured on the basis of

permitted values, the measuring bellows are exposed to a minimal load and perform only a small lifting

movement. This results in a long service life with little switching point drift and high operating reliability.

Furthermore, the stroke of the bellows is limited by an internal stop so that the forces resulting from

the overpressure cannot be transmitted to the switching device. The parts of the sensor in contact with

the medium are welded together without filler metals. The sensors contain no seals. Copper bellows,

which are used only for low pressure ranges, are soldered to the sensor housing. The sensor housing

and all parts of the sensor in contact with the medium can also be made entirely from stainless steel

1.4571 (DNS series). Precise material data can be found in the individual data sheets.

Pressure connection

The pressure connection on all pressure switches is executed in accordance with DIN 16288 (pressure

gauge connection G 1/2A). If desired, the connection can also be made with a G 1/4 internal thread in

accordance with ISO 228 Part 1.

Maximum screw-in depth on the G 1/4 internal thread = 9 mm.

Centring pin

In the case of connection to the G 1/2 external thread with seal in the thread (i.e. without the usual

stationary seal on the pressure gauge connection), the accompanying centring pin is not needed.

Differential pressure switches have 2 pressure connections (max. and min.), each of which are to be

connected to a G 1/4 internal thread.
