XUK1APANM12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> XUK1APANM12

XUK1APANM12: CategoryThe sensor; File Size67KB，2 Pages; ManufacturerSCHNEIDER ELECTRIC

Download Datasheet Parametric View All

XUK1APANM12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XUK1APANM12	-	-	View	Buy Now

XUK1APANM12 Parametric

Parameter Name	Attribute value
Product Category	Photoelectric Sensors
Manufacturer	SCHNEIDER ELECTRIC
Sensing Method	Retroreflective
Sensing Distance	10 m
Light Source	LED (Yellow)
Connection Method	M12 Connector
Output Configuration	PNP
Maximum Operating Temperature	+ 55 C
Minimum Operating Temperature	- 25 C
Body Style	Rectangular
Features	Hinged cover
Height	18 mm
Length	50 mm
Operating Supply Voltage	24 V
Factory Pack Quantity	1
Width	18 mm

Preview

Download Datasheet

View All

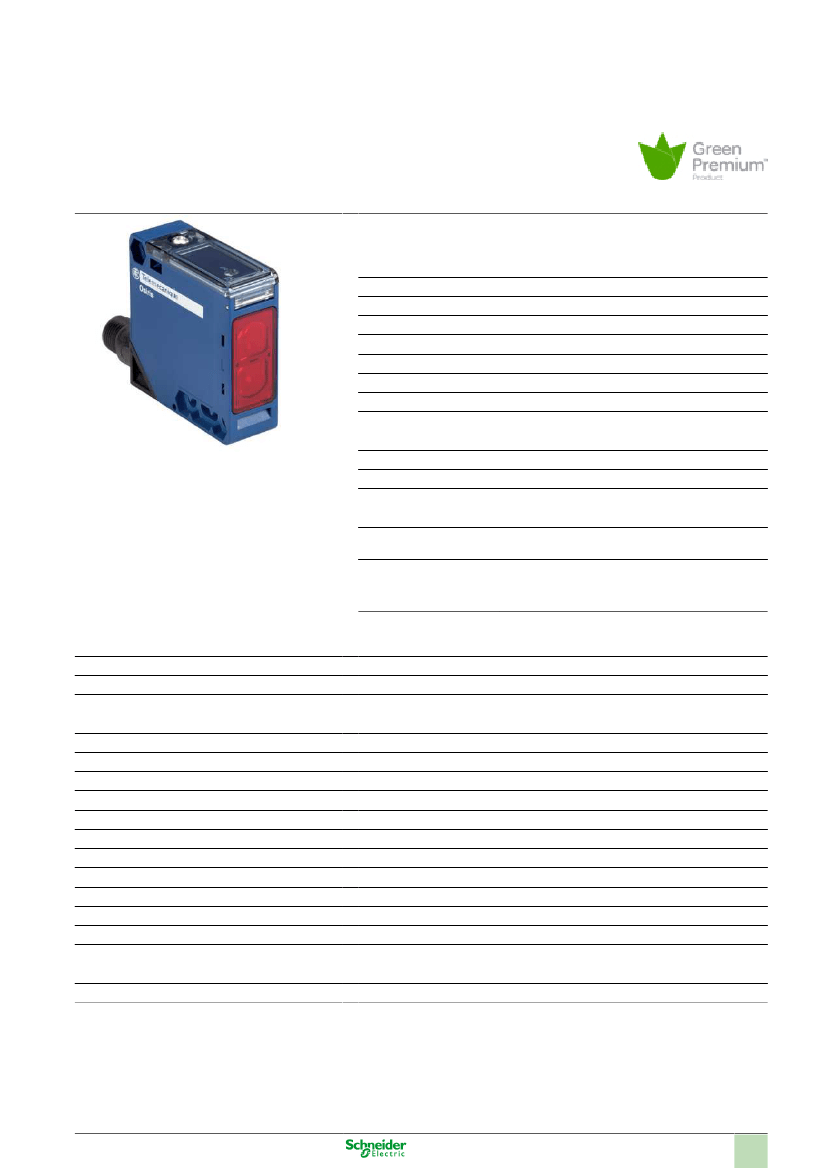

Product data sheet

Characteristics

XUK1APANM12

photo-electric sensor - XUK - reflex - Sn 7m -

12..24VDC - M12

Product availability: Stock - Normally stocked in distribution facility

Main

Commercial Status

Range of product

Series name

Electronic sensor type

Sensor name

Sensor design

Detection system

Material

Type of output signal

Supply circuit type

Wiring technique

Discrete output type

Discrete output function

Electrical connection

Product specific

application

Emission

[Sn] nominal sensing

distance

Commercialised

OsiSense XU

General purpose single mode

Photo-electric sensor

XUK

Compact 50 x 50

Reflex

Discrete

3-wire

PNP

1 NO

1 male connector M12, 4 pins

Infrared reflex

22.97 ft (7 m) reflex need reflector XUZC50

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

Plastic

Complementary

Enclosure material

Lens material

Maximum sensing distance

Output type

Status LED

[Us] rated supply voltage

Switching capacity in mA

Switching frequency

Voltage drop

Current consumption

Delay first up

Delay response

Delay recovery

Setting-up

Depth

Height

Width

Product weight

PBT

PMMA

32.81 ft (10 m) reflex

Solid state

1 LED (yellow) for output state

12...24 V DC

<= 100 mA (overload and short-circuit protection)

<= 250 Hz

<= 1.5 V (closed state)

<= 35 mA (no-load)

< 15 ms

< 2 ms

Without sensitivity adjustment

1.97 in (50 mm)

0.71 in (18 mm)

0.15 lb(US) (0.07 kg)
