GLASS WIRE WOUND
SENSOR TYPE GX

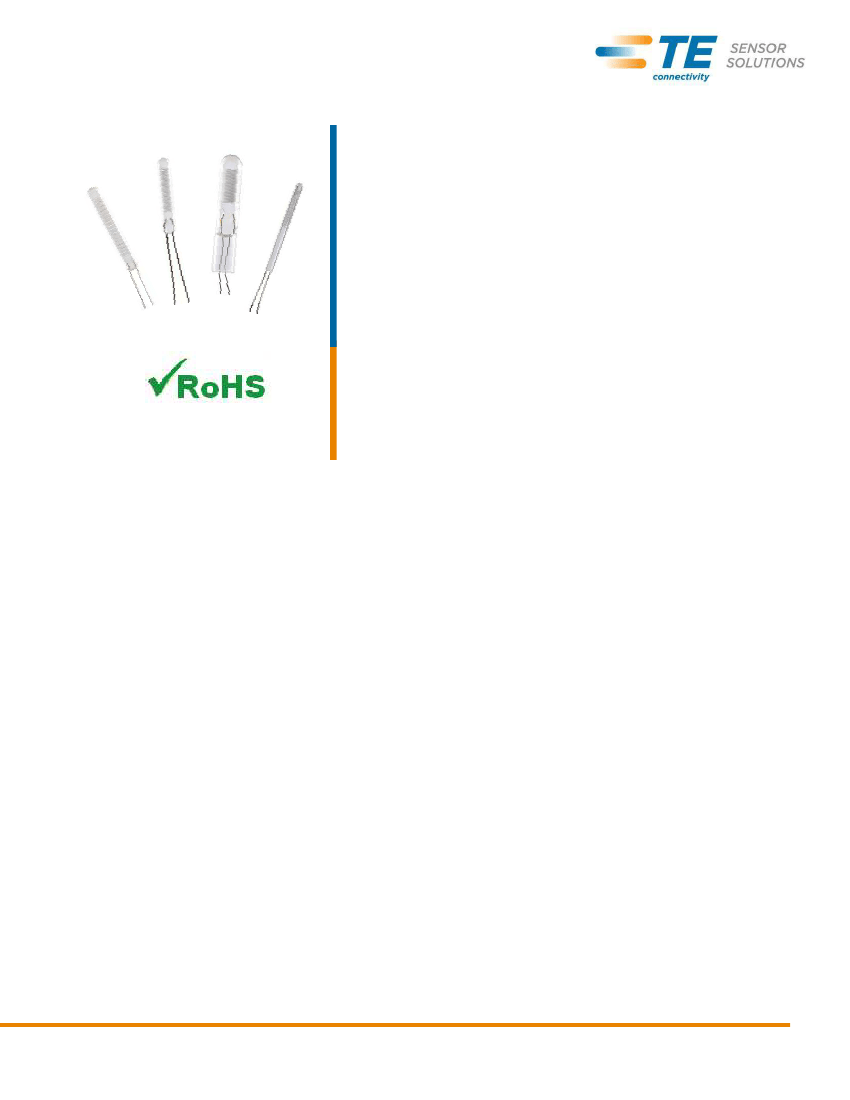

RTD Temperature Sensor
SPECIFICATIONS
Temperature sensor
Large temperature range
From -200°C to +400°C
No hysteresis
High vibrations resistant
Resistant to external forces and pressures
Small dimensions
High temperature stability
Short response time
One or two platinum bands layout are wounded on a glass tube
and are protected from environment by a glass layer
SENSOR SOLUTIONS
///GLASS WIRE WOUND SENSOR TYPE GX
09/2015
Page 1
GLASS WIRE WOUND SENSOR TYPE GX
RTD Temperature Sensor
FEATURES
Nominal value: 100
at 0°C
Tolerance according to IEC 60751: class W 0.3,
W 0.15 and W 0.1
Temperature coefficient
= 3850 ppm/K
Closer tolerances in restricted temperature range
Connection wires: Platinum coated nickel
The lead wires connection is pull up force
resistant
Housing advise: To be used preferably in dry
environment
Options: - Lead wires length
- Extension cable
APPLICATIONS
Environments subject to high vibrations
Cryogenics
Accurate temperature measurement with high
temperature gradient
Limited mounting space required
Food industry
H.V.A.C.
PERFORMANCE SPECIFICATIONS
Type
Desi-
Reference
gnation
Nominal
reference
(Ohm at 0°C)
L WL D AL1 AL2
(Dimensions in mm)
A
Self-
heating
in air
(K/mW)
Response time (s)
Air
v = 1 m/s
t0,5 t0,9
8
4
8
8
4
12
8
4
8
4
12
8
4
8
4
30
12
30
30
12
45
30
12
30
12
45
30
12
30
12
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
2Pt100
1Pt100
1Pt100
1Pt100
1Pt100
2Pt100
1Pt100
1Pt100
1Pt100
1Pt100
GX 518
GX 1013
GX 1018
GX 1218
GX 1513
GX 1528
GX 518
GX 1013
GX 1218
GX 1513
GX 1528
GX 518
GX 1013
GX 1218
GX 1513
Water
v = 0,4 m/s
t0,5
t0,9
Tolerance Class W 0.3 = ± (0.3+0.005 ItI) From -196°C to + 400°C
32 205 108
100
5 3 1,8 10
- 0,20
0,36
0,14
0,35
32 205 113
100
10 6 1,3 10
- 0,20
0,39
0,4
1,30
32 205 118
100
10 6 1.8 10
- 0,20
0.36
0.14
0.35
34 015 120
100
12 3 1.8 6
- 0,20
0.36
0.14
0.35
SB0921
100
15 6 1.3 10
- 0,20
0.39
0.4
1.3
32 205 228
100
15 7 2,8 10 12 0,25
0,20
0,3
1,0
Tolerance Class W 0.15 = ± (0.15+0.002 ItI) From -100°C to + 250°C
32 205 074
100
5 3 1,8 10
- 0,20
0,36
0,14
0,35
32 205 458
100
10 6 1,3 10
- 0,20
0,39
0,4
1,30
34 015 121
100
12 3 1.8 6
- 0,20
0.36
0.14
0.35
SB0920
100
15 6 1.3 10
- 0,20
0.39
0.4
1.3
32 205 241
100
15 7 2,8 10 12 0,25
0,20
0,3
1,0
Tolerance Class W 0.1 = ± (0.1+0.0017 ItI) From 0°C to + 150°C
32 205 101
100
5 3 1,8 10
- 0,20
0,36
0,14
0,35
32 205 463
100
10 6 1.3 10
- 0.20
0.39
0.4
1.3
34 015 123
100
12 3 1.8 6
- 0,20
0.36
0.14
0.35
SB0919
100
15 6 1.3 10
- 0,20
0.39
0.4
1.3
SENSOR SOLUTIONS
/// GLASS WIRE WOUND SENSOR
09/2015TYPE GX
Page 2
GLASS WIRE WOUND SENSOR TYPE GX
RTD Temperature Sensor
VALUES FOR PT100
°C
-200
-150
-100
-50
0
50
100
Ohms
18.52
39.72
60.26
80.31
100
119.40
138.51
Ohms/°C
0.432
0.417
0.405
0.397
0.391
0.385
0.379
°C
150
200
250
300
350
400
Ohms
157.33
175.86
194.10
212.05
229.72
247.09
Ohms/°C
0.374
0.368
0.362
0.356
0.350
0.345

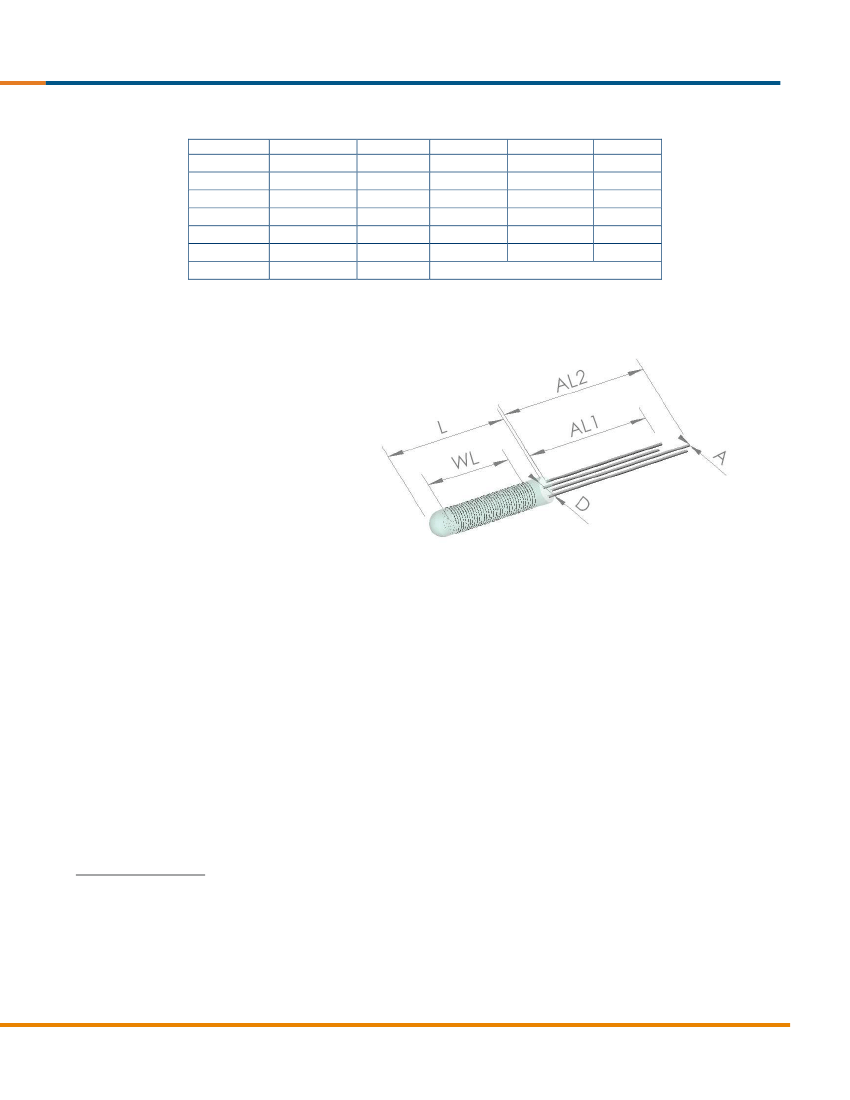

BLOCK DIAGRAM
DIMENSIONAL TOLERANCES:
L
D
AL
A
(length of body)
(diameter of body)
(connection wire length)
(connection wire diameter)
=
1mm
= +0,1;-0,3mm
=
2mm
=
0,02 mm
ORDERING INFORMATION
NORTH AMERICA
Measurement Specialties, Inc.,
a TE Connectivity Company
910 Turnpike Road
Shrewsbury, MA 01545
United States
+1 508-842-0516
+1 508-842-0342
temperature.cs.amer@meas-spec.com
EUROPE
Measurement Specialties (Europe), Ltd.,
a TE Connectivity Company
48, rue de Frégy
77610 Fontenay Trésigny
France
Tel: +33(0) 1 64 42 52 52
Fax: +33(0) 1 64 42 63 17
sales.ftny.fr@meas-spec.com
ASIA
Measurement Specialties (China), Ltd.,
a TE Connectivity Company
No. 24 Langshan Road
Shenzhen High-Tech Park (North)
Nanshan District, Shenzhen 518057
China
Tel: +86 755 3330 5088
Fax: +86 755 3330 5099
temperature.cs.asia@meas-spec.com
TE.com/sensorsolutions
Measurement Specialties, Inc., a TE Connectivity company.
Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein
might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes
no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard
Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse
of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
© 2015
TE Connectivity Ltd. family of companies
All Rights Reserved.
SENSOR SOLUTIONS
/// GLASS WIRE WOUND SENSOR
09/2015TYPE GX
Page 3
