AMBA340219 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> AMBA340219

AMBA340219: DescriptionBoard Mount Motion u0026 Position Sensors MOTION SENSOR H TYPE 190CM DETECT DIST; CategoryThe sensor Sensor/transducer; File Size148KB，10 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

AMBA340219 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AMBA340219	-	-	View	Buy Now

AMBA340219 Overview

Board Mount Motion u0026 Position Sensors MOTION SENSOR H TYPE 190CM DETECT DIST

AMBA340219 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	22.5 mm
body height	20 mm
Body length or diameter	19.5 mm
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package Shape/Form	RECTANGULAR
Sensor/Transducer Type	MOTION SENSOR
Maximum supply voltage	27 V
Minimum supply voltage	5.5 V
Base Number Matches	1

Preview

Download Datasheet

View All

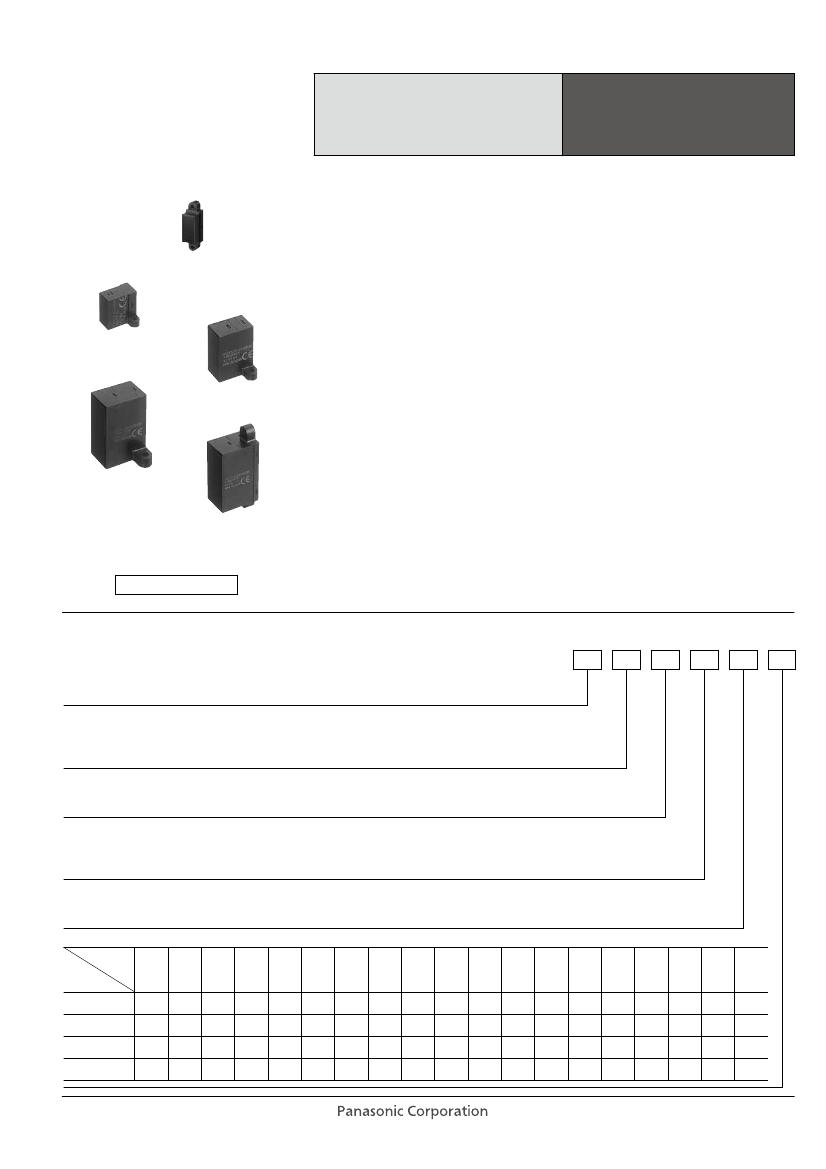

MA Motion Sensor (AMA1, AMBA1, 2, 3)

Active inﬂared

(area reﬂective)

human detection sensor

MA MOTION

SENSOR

APPLICATIONS

1. Water-based product market

• Automatic lighting of wash basin units

• Toilets

• Automatic water ﬂow from faucets

2. Stores and ﬁnancial instructions

• Automatic doors

• Automatic lighting

• Cash dispensing machines

• Automatic teller machines

• Visitor detecting sensors

3. Amusement market

• Automatic lighting for game display

4. Medical ﬁeld

• Non-contact switch

FEATURES

1. Now even more miniature.

The new thin type cuts 35% from the

thickness of the previous short type.

Device installing is now easier than ever.

2. Certain detection unaffected by the

reﬂectance of the object

The sensor can provide stable

detection that is not affected by the

condition (color or material of the

clothing) or parts (skin, hair, etc.) of the

object being monitored. (Reﬂectance

18% to 90%). Excellent performance

even when the detection surface is dirty.

3. Only connecting DC power supply

for operating

Built-in oscillation circuit type obviates

the hitherto existing need for start signal

input.

4. Use in adjacent positions is

possible

These sensors can be located in

adjacent positions, because the timing of

the external trigger signals can be

adjusted so that the beam frequency of

each adjacent sensor will not interfere

with the other.

Thin short type

(Mounting direction: V type)

Short type

(Mounting direction: H type)

Middle type

(Mounting direction: H type)

Long type

(Mounting direction: H type)

Long type

(Mounting direction: V type)

RoHS compliant

ORDERING INFORMATION

A: Thin short type MA Motion sensor

BA: MA Motion sensor

Detection distance type (shape)

1: Short type

2: Middle type

3: Long type

Triggering function

1: External triggering type

4: Built-in oscillation circuit type (Internal trigger)

Classification by output method & mounting direction

0: NPN open collector/H type

5: NPN open collector/V type

6: PNP open collector/V type

Operating voltage

2: Free-ranging power type (5.5 to 27V DC)

9: 5V DC type (4.5 to 5.5V DC)

Rated detection distance

Part No.

Type

Thin short type

Short type

Middle type

Long type

—

(Middle type

does not

need 08)

inch

(Short type

does not

need 10)

(Long type

does not

need 20)

—

1.969

3.937

5.906

—

1.969 2.362 2.756 3.150 3.543 3.937

—

7.874 11.811 15.748 19.685 23.622 27.559 31.496

—

100

110

120

130

140

150

160

170

180

190

200

—

11.811 15.748 19.685 23.622 27.559 31.496 35.433 39.37 43.307 47.244 51.181 55.118 59.055 62.992 66.929 70.866 74.803 78.74

ASCTB241E 201407-T1
