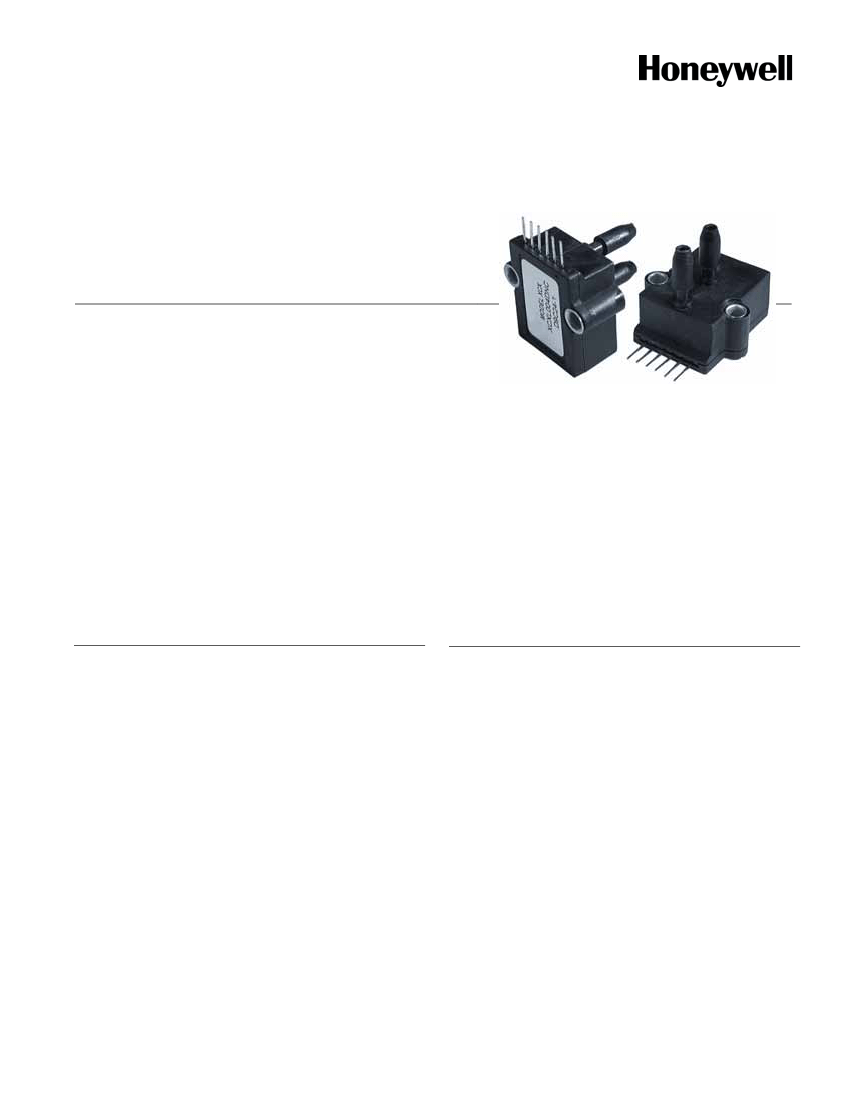

XCX/XCXL Series
Compensated Silicon Pressure
Sensors
DESCRIPTION
The XCX/XCXL Series integrates silicon micromachined
sensing technology, temperature compensation, and
calibration in an improved performance industry standard
package.
A unique stress isolating design protects against torque
induced.
These products are available in High Grade (H) which are
calibrated for full scale span to ±1.0% over compensated
temperature range or in Commercial Grade (C) which are
calibrated for full scale span to ±2% over compensated
temperature range.
FEATURES
•
•
•
Pressure ranges from 4 in H
2
O, 10 in H
2
O and 1 psi through
240 psi
Calibrated offset
High Grade (H) listings for high performance sensing
solutions or Commercial Grade (C) listings for lower
performance sensing solutions
•
•
•
Temperature Compensated over 0 °C to 70 °C
[32 °F to 158 °F]
Gage, differential, and absolute pressure
Ratiometric mV output
•
•
•
POTENTIAL APPLICATIONS
Medical
Applications requiring small size
Applications requiring vacuum, positive pressure or both
Additional stability and long term accuracy improvements are
gained through simplified compensation techniques, which
eliminate temperature dependent thermal compensation
XCX/XCXL Series
ELECTRICAL SPECIFICATIONS (At 12 Vdc Excitation at 25 °C [77
°F].)
(1)
Characteristic
Excitation voltage
Null
Temperature error on offset
(2)
0
°C
to 50
°C
[32
°F
to 122
°F]
(4 in H
2
O)
Temperature error on offset
(2)
0
°C
to 70
°C
[32
°F
to 158
°F]
(all except 4 in H
2
O)
Temperature error on span
(2)
0
°C
to 50
°C
[32
°F
to 122
°F]
(4 in H
2
O)
Temperature error on span
(2)
0
°C
to 70
°C
[32
°F
to 158
°F]
(all except 4 in H
2
O)
(3)
Linearity, hysteresis error
Repeatability
Input resistance
Output resistance
Compensated temperature range
Storage temperature range
Relative humidity (non-condensing)
Common mode pressure
Shock (duration 11 ms any axis)
Weight
XCX/XCXL C Grade
Min.
Typ.
Max.
3.0
12.0
16.0
1.0
−
−
−
−
1.0
XCX/XCXL H Grade
Min.
Typ.
Max.
3.0
12.0
16.0
±0.5
±1.0
−
−
−
0.5
Unit
Vdc
mV
mV
−
−
1.0
−
−
0.5
mV
−
−
2.0
−
−
1.0
% span
−
−
−
−
−
0 [32]
-40 [-40]
0
−
−
−
−
0.5
0.1
15
3.0
25 [77]
−
−
−
2
2.0
1.0
−
−
−
70 [158]
125 [257]
95
50
10
−
−
−
−
−
−
0 [32]
-40 [-40]
0
−
−
−
−
0.3
0.1
15
3.0
25 [77]
−
−
−
−
2
1.0
0.5
−
−
−
70 [158]
125 [257]
95
50
10
−
% span
% span
% span
kΩ
kΩ
°C
[°F]
°C
[°F]
% RH
psig
g
g
Notes:
1. All parameters are measured at 12 Vdc excitation, pressure specs obtained with pressure applied to the front of the sensor.
2. Shift is relative to 25 °C [77 °F].
3. Measured at ½ full scale rated pressure using BFSL.
DIFFERENTIAL AND GAGE OUTPUT (At 12 Vdc Excitation at 25 °C [77
°F].)
Full Scale
Pressure
4 in H
2
O
10 in H
2
O
0.3 psi
1 psi
5 psi
15 psi
30 psi
60 psi
100 psi
150 psi
240 psi
XCX C Grade
Output Full Scale Span (mV)
Min.
Typ.
Max.
38
40
42
19
20
21
19
20
21
17
18
19
57
60
63
85
90
95
85
90
95
85
90
95
95
100
105
85
90
95
95
100
105
XCX H Grade
Output Full Scale Span (mV)
Min.
Typ.
Max.
−
−
−
19.8
20.0
20.2
19.8
20.0
20.2
17.8
18.0
18.2
59
60
61
89
90
91
89
90
91
89
90
91
99
100
101
89
90
91
99
100
101
Max. Overpressure
(psi)
5
5
5
5
15
45
90
180
200
300
300
2
www.honeywell.com/sensing
Compensated Silicon Pressure Sensors
ABSOLUTE OUTPUT (At 12 Vdc Excitation at 25 °C [77
°F].)
FS Pressure
5 psi
15 psi
30 psi
60 psi
100 psi
XCX Output, Full Scale Span (mV)
Min.
Typ.
Max.
57
60
63
85
90
95
85
90
95
85
90
95
95
100
105
Max. Overpressure
(psi)
15
45
90
180
200

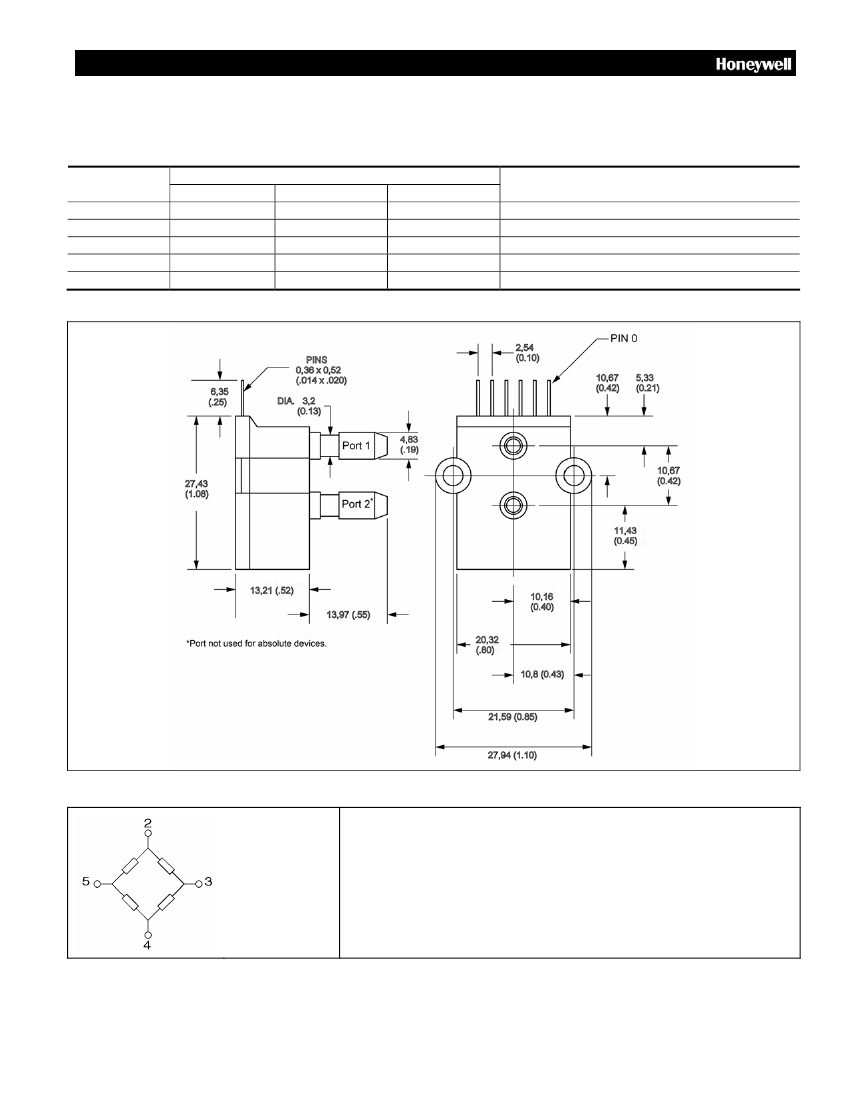

MOUNTING DIMENSIONS (For reference only: mm (in).)
EQUIVALENT CIRCUIT
Pinout
1. N/C
2. +V Excitation
3. - Output signal
4. _V Excitation
5. - Output signal
6. N/C
MEDIA COMPATIBILITY: Clean, dry gases only.
P1 Port:
Front side of silicon diaphragm, silicone gel passivation, glass-filled
nylon alumina.
P2 Port:
Silicon diaphragm, glass-filled nylon and alumina ceramic.
Honeywell Sensing and Control
3

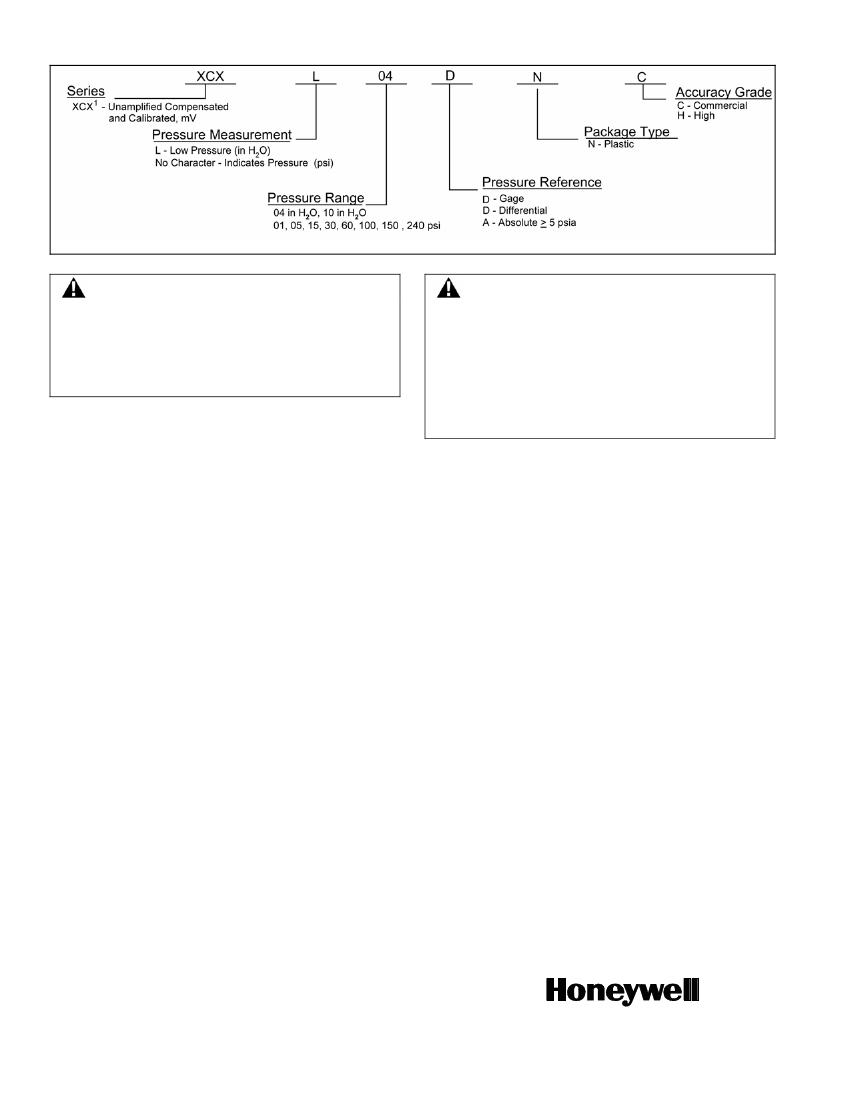

ORDER GUIDE
Note 1. Gage and Differential use “D” suffix. Product is the same. Not all combinations are available.
