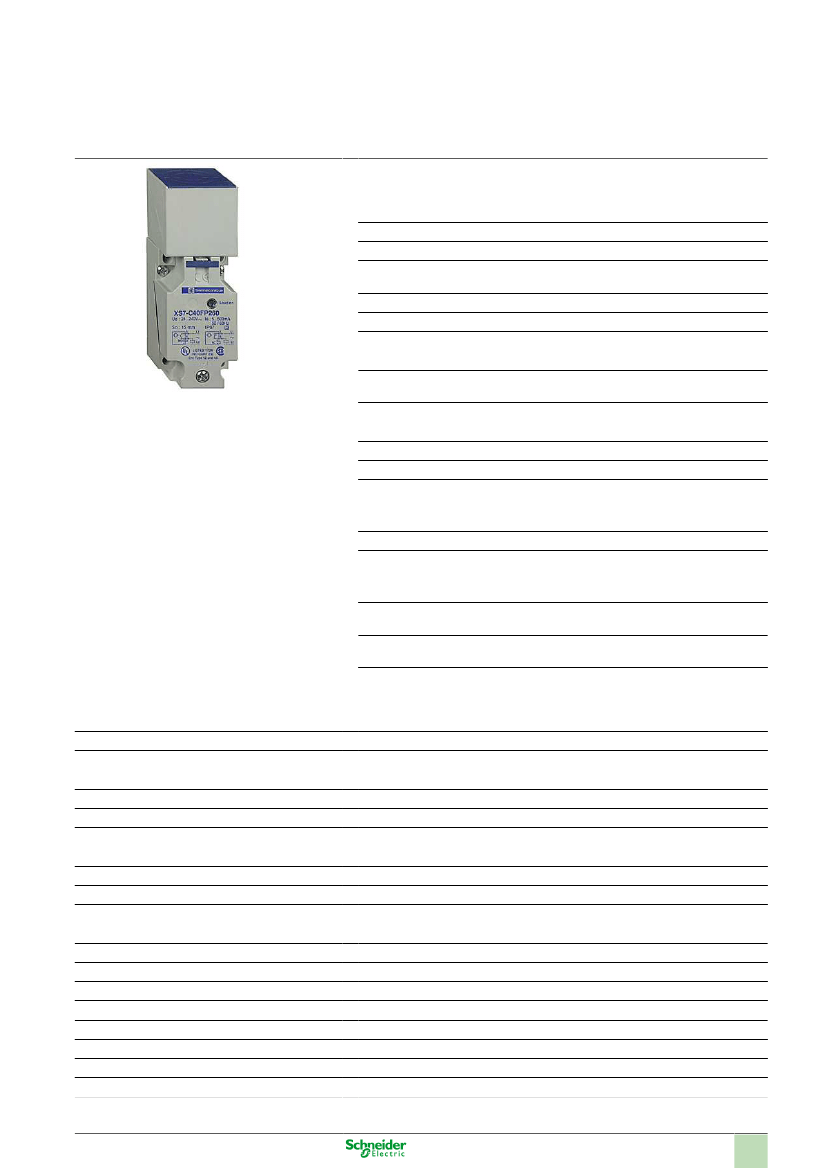

Product data sheet
Characteristics
XS7C40FP260
inductive sensor XS7 40x40x117 - plastic -
Sn15mm - 24..240VAC - terminals
Main
Range of product
Series name
Sensor type
Product specific appli-
cation
Sensor name
Sensor design
Size
Body type
Detector flush mounting
acceptance
Material
Enclosure material
Type of output signal
Wiring technique
[Sd] sensing range
[Sn] nominal sensing
distance
Discrete output function
Output circuit type
Electrical connection
[Us] rated supply volt-
age
Switching capacity in
mA
IP degree of protection
OsiSense XS
General purpose
Inductive proximity sensor
-
XS7
Form 40 x 40 x 117
117 mm
Fixed
Flush mountable
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Plastic
Plastic
Discrete
2-wire
> 8...15 mm
15 mm
1 NO or 1 NC programmable
AC
Screw-clamp terminals, clamping capacity: 2 x 1.5
mm²
24...240 V AC 50/60 Hz
5...500 mA
IP67 conforming to IEC 60529
Complementary
Detection face
Operating zone
Differential travel
Repeat accuracy
Cable entry
Status LED
Supply voltage limits
Residual current
Switching frequency
Voltage drop
Delay first up
Delay response
Delay recovery
Marking
Height
Width
CAD overall height
CAD overall depth
Product weight
5 positions turret head
0...12 mm
3...20% of Sr
<= 3% of Sr
1 entry tapped for Pg 13.5 cable gland
1 LED yellow for output state
20...264 V AC
<= 1.5 mA for open state
<= 25 Hz
<= 5.5 V at closed state
<= 120 ms
<= 30 ms
<= 20 ms
CE
117 mm
40 mm
117 mm
41 mm
0.22 kg
Aug 2, 2011
