Remote Mount
Typical Applications
Industrial
Oxygen Concentrators
Respirators
Sleep Apnea
Transportation
Instrumentation
Pneumatic Controls
Robotics

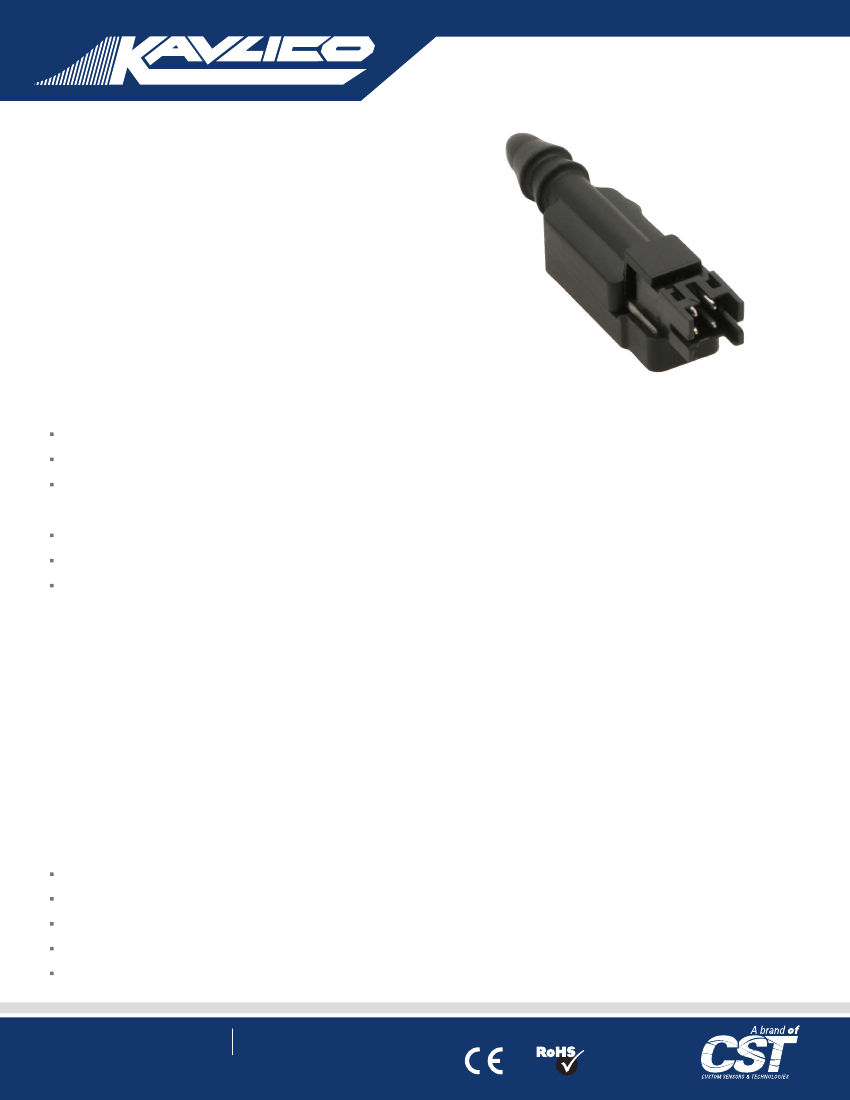

P6000
Miniature Pressure Sensors
Description
The P6000 series pressure sensors
incorporate a silicon, piezo resistive sensing
element in a compact package.
Using a 5Vdc input, the sensors provide a 0.5
to 4.5Vdc output, proportional to pressure.
Internal temperature compensation provides
an accurate, easy to use device.
The innovative remote mounting capability
and customization features allow system
designers to decouple their pressure
sensing from PCB’s.
Standard Full Scale Pressure Ranges
0-200 and 0-500 mBarG (Gage)
0-1, 0-2, 0-3.5, 0-5 and 0-7 BarG (Gage) or BarA
(Absolute)
0-2.5 and 0-5 PSIG (Gage)
0-15, 0-30, 0-50, 0-75, and 0-100 PSIG (Gage) or
PSIA (Absolute)
Features
Rugged, Miniature Package
Amplified, Temperature Compensated Linear Output
Remote Mounting Option
EMI/RFI & ESD Protected
Custom Packaging and Pressure Ranges
Potsdamer Str. 14, 32423 Minden, Germany
Tel: +49 571 3859-0 - Fax: +49 571 3859-119
Email: info@kavlico.de
235 E. Main St., Suite 102A, Northville, MI 48167, USA
Tel: +1 (248) 465-0815 - Fax: +1 (248) 465-0810
Email: pressure.sensors@kavlico.com
www.kavlico.com
Technical Specifications
Note: Performance Specifications with 5.0 ± 0.25 Vdc supply at 25°C
How to Order
Use this diagram, working top to bottom and left to right to construct your model
number. An example is shown below. Custom OEM options are also available.
Pressure Ranges:
Proof Pressure:
Burst Pressure:
Supply Voltage:
Supply Current:
Nominal Output Voltage
(Ratiometricity):
Voltage Ratiometricity:
Total Error Band*:
Accuracy:
Output Impedance:
Response Time:
Operating Temperature:
Storage Temperature:
Service Life:
Vibration:
MechanicalShock:
Weight:
Electrical Termination:
- Option A:
- Option B:
0 - 2.5 and 0 - 5 PSIG
0 - 15, 0 - 30, 0 - 50, 0 - 75, and 0 - 100 PSIA or PSIG
0 - 200 and 0 - 500 mBarG
0-1, 0-2, 0-3.5, 0-5 and 0-7 BarG or BarA
2X Max. Pressure
3X Max. Pressure
5.0 ± 0.25 Vdc
< 5mA
0.5 to 4.5 Vdc
±1.5% of Span Max.
±2% of Span above 2.5 PSI and 200 mBar (0°C to 85°C)
±3% of Span for 2.5 PSI and 200 mBar (0°C to 85°C)
< 0.5% of Span
< 100
Ω
< 10ms to 63% of Final Output Voltage
with step change in Input Pressure
0°C to 85°C
-30°C to +100°C
10 Million Full Pressure Cycles (Minimum)
10g’s Peak-to-Peak Sine (5 to 2,000 Hz)
50g’s, 1/2 Sine Wave
< 1.3 grams
P6000 Remote Mount Miniature Pressure Transducer
Pressure Range
2.5
5
15
30
50
75
100
0.2B
0.5B
1B
2B
3.5B
5B
7B
0 - 2.5 PSIG
0 - 5 PSIG
0 - 15 PSIG or PSIA
0 - 30 PSIG or PSIA
0 - 50 PSIG or PSIA
0 - 75 PSIG or PSIA
0 - 100 PSIG or PSIA
0 - 200 mBarG
0 - 500 mBarG
0 - 1 BarG or BarA
0 - 2 BarG or BarA
0 - 3.5 BarG or BarA
0 - 5 BarG or BarA
0 - 7 BarG or BarA
Pressure Reference
A
Absolute
G
Gage
Electrical Termination
A
Pin Header
B
Pin Header with Mating Connector 12” Lead Wires
P6000 - 30 - G - A
Pin Header
Pin Header with Mating Connector
with Lead wires 12” long
Preferred Mounting Position:
No Position Sensitivity
Barb for 3/16 ID tubing
Pressure Connection:
5K
Ω
Min. resistance between transducer
Output Load:
output and ground, in parallel with 0.2 mF
Max. capacitance
16 Vdc
Over-Voltage Protection:
Reverse Polarity Protection:
-6 Vdc
Example: P6000 - 30 - G - A
Description: P6000 Pressure Sensor, 0 - 30 PSI, Gage,
Pin Header with no Mating Connector
Before installation and operation, ensure that the appropriate pressure sensor has
been selected in terms of pressure range, design and specific measuring conditions.
Non-compliance can result in serious injury and/or damage to the equipment.
Call us at +1 (619) 710-2068 to customize this product
to meet your application-specific needs!
Don’t see what you want?
