The 24PC Series Miniature Surface Mount Technology (SMT) Low Pressure Sensors are small, cost effective devices
intended for use with wet/wet differential sensing. Based on the long established reliability and accuracy of the 24PC
Miniature Pressure Sensor single in-line package, the SMT version’s smaller configuration reduces the footprint area on the
printed circuit board (PCB), thereby reducing overall PCB size and cost. The sensor is capable of being board mounted
with other common SMT devices, helping to eliminate secondary board mounting operations and improving manufacturing
productivity.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provide a milliVolt output signal that is
proportional to the input pressure.
The low power 24PC sensors are designed to measure pressures from ±1 psi to ±15 psi and have an operating
temperature range of -40 ºC to 85 ºC [-40 ºF to 185 ºF]. The 24PC sensors have the flexibility to be excited with constant
current or constant voltage. When driven by constant current, the pressure sensor’s terminal voltage will rise with
increasing temperature. The rise in voltage not only temperature compensates the span but also provides an indication of
the sensor’s temperature.
These sensors can accommodate a variety of wet and dry media that are compatible with polyphthalamide (PPA) plastics
and media seals specified in the Nomenclature and Order Guide (see Figure 2). The 24PC sensors are RoHS compliant.
They are designed and manufactured according to ISO 9001 standards.
What makes our sensors better?
•
Wet/Wet capability (i.e., liquids on both ports)
•
Media compatible with many liquids and gases
•
Variety of port configurations gives the customer flexibility in
making pneumatic connections
•
Small size reduces PCB layout

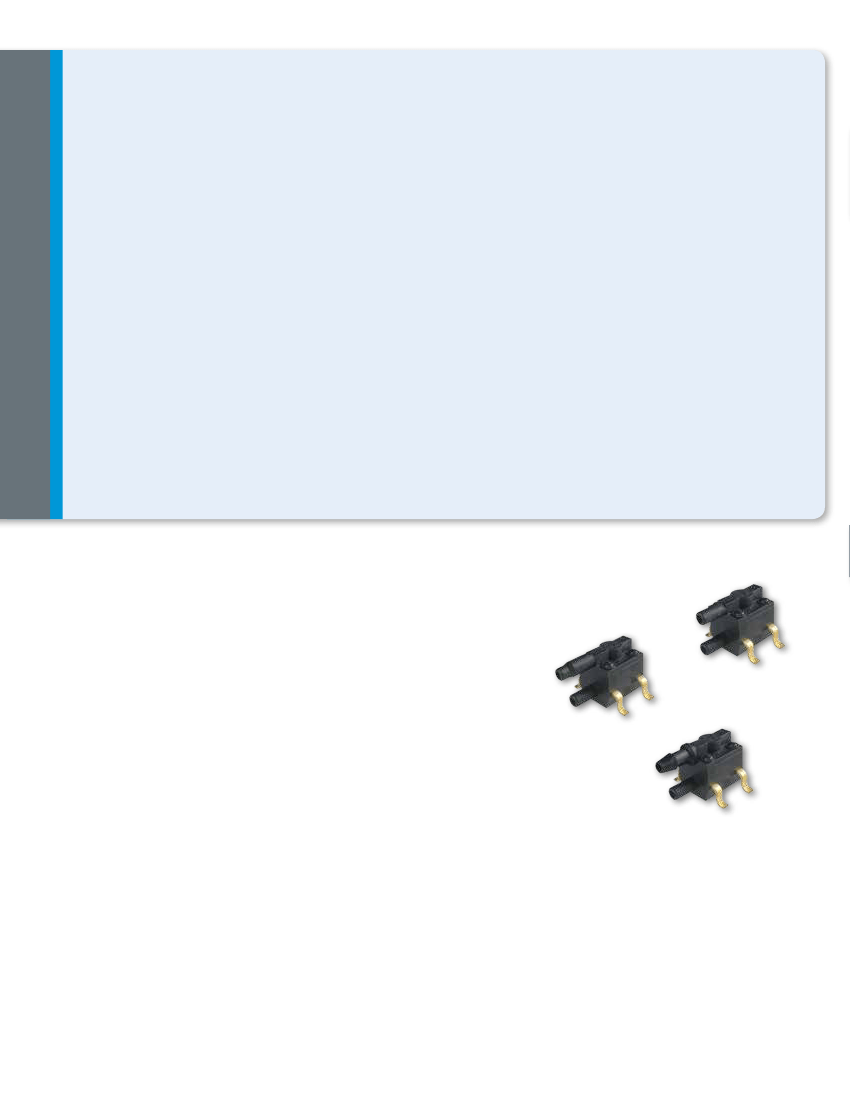

24PCXXSMTA
24PCXXSMT
24PCXXSMTC
WET/WET CapabiliTy • MEDia COMpaibiliTy • MaNy pORTiNG OpTiONS
2
sensing.honeywell.com
Features
and Benefits
Allows differential liquid sensing with one sensor.
One sensor does the work of two!
TrUe weT/weT differenTiAl MediA SenSing
Provides liquid sensing in differential applications
wide oPerATing TeMPerATUre rAnge of -40 ºC To 85 ºC
[-40 ºf To 185 ºf]
Allows use in wide variety of applications
VArieTy of PreSSUre rAngeS froM 1 PSi, 5 PSi, 15 PSi
Provide flexibility in customers’ pneumatic designs
differenTiAl And gAge PreSSUre MeASUreMenT TyPeS in
one PACkAge
Provides application flexibility
Frees up PCB space. Reduces costs.
CoMPACT SMT Profile
Doesn’t take up a lot of board space in size-critical applications
3,18 MM [0.125 in] diAMeTer PiCk UP feATUre
Allows use in pick and place machines
MAXiMUM PeAk TeMPerATUre of 260 °C [500 °f] for
10 S MAX.
Allows reflow soldering using standard industry solder profiles
AlSo AVAilAble in SiP, diP, And flow-ThroUgh PACkAgeS
Provides added design flexibility
sensing.honeywell.com
3
Potential Applications
MediCAl
reSPirATorS And VenTilATorS
May be used to measure the correct amount of air going to the patient while in
surgery or recovery
oXygen ConSerVerS And ConCenTrATorS
May be used to measure the sieve bed pressure to help optimize system
performance
nebUlizerS
May be used to measure the amount of air going into a patient’s lungs to help
ensure proper therapy
indUSTriAl
wATer ConTrol VAlVeS
May be used to monitor the water consumption in homes and buildings
irrigATion eQUiPMenT
May be used to control the water pressure and flow being delivered
filTer MoniToring
May be used to detect when the filters are clogged and need to be replaced
PreSSUre VAlVeS
May be used to measure and control pressure in industrial processes
Air CoMPreSSorS
May be used to control the pressure being delivered to the end user equipment
SofT drink diSPenSing
May be used to ensure the correct amount of beverage is dispensed into the bottle
breAThAlizerS
May be used to measure the exhalation pressure to ensure proper breath analysis
4
sensing.honeywell.com
24PC Series, Uncompensated/Unamplified
Table 1. Absolute Maximum ratings
1
Characteristic
Supply voltage
Supply resistance voltage
Output resistance
Time response
2
1
2
Min.
2.5
4
4
–
Typ.
10
5
5
–
Max.
12
6
6
1
Unit
Vdc
kOhm
kOhm
ms
note
–
–
–
2
Absolute maximum ratings are the extreme limits the device will withstand without damage.
Time required for the output to increase from 10% to 90% of span in response to a step change in input pressure from the specified min. to max. operating
