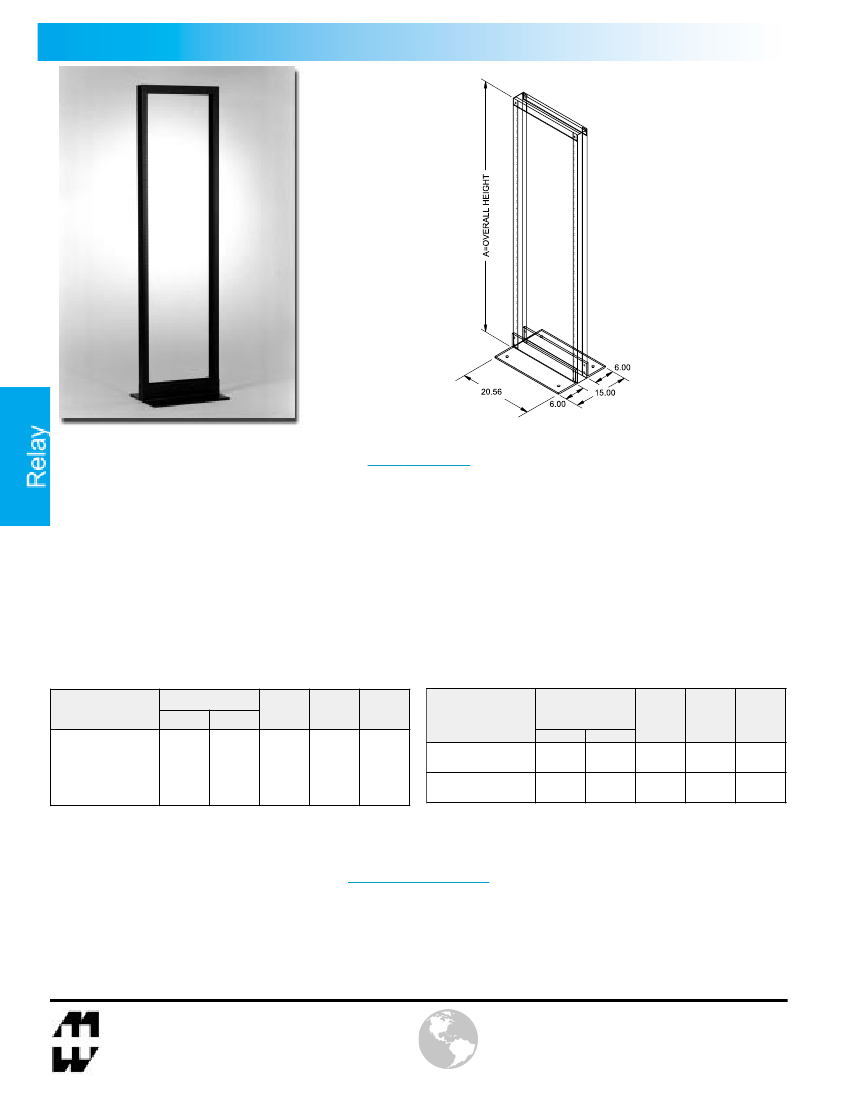

Heavy Duty - Welded (DNRR Series)
FEATURES
•
Suitable for many 19” or 23” rack mount applications, providing complete access to equipment
•
Nothing to assemble
•
10-gauge steel - welded construction
•
Provides an economical option to an enclosed rack
•
Engineered for use as a solid, single, freestanding unit
•
Choice of front flange or both flanges - drilled & tapped
•
Universal EIA hole spacing (5/8 - 5/8 - 1/2 inch)
•
Weight load tested (DNRR84HDW) to 1,530 pounds
•
Tough textured black powder finish paint
Tapped - Front Flange Only
Par t Number
DNRR42HDW
DNRR63HDW
DNRR70HDW
DNRR77HDW
DNRR84HDW
Panel Height
I nches
42
63
70
77
84
Units
24
36
40
44
48
Overall Panel
Hole
Height Width
Thread
(I nches) (I nches)
48.13
19
10-32
69.13
19
10-32
76.13
19
10-32
83.13
19
10-32
90.13
19
10-32
Tapped - Front & Rear Flange
Par t Number
Panel Height
Units
44
48
44
48
I nches
DNRR77HDWB
77
DNRR84HDWB
84
DNRR2377HDWB
77
DNRR2384HDWB
84
Overall Panel
Hole
Height Width
Thread
(I nches) (I nches)
83.13
90.13
83.13
90.13
19
19
23
23
10-32
10-32
12-24
12-24
ACCESSORIES
•
Rack panels
Page 82
•
Ventilated rack panels
Page 84
•
Panel mount doors & chassis
Page 86
•
Shelves & slides
Page 87
•
Drawers
Page 93
•
Cable management
Page 94
•
Rack mount outlet strips
Page 102
•
Hardware
Page 119
16
©
Hammond Manufacturing Co. Ltd.
394 Edinburgh Rd. North
Guelph, Ontario N1H 1E5 CANADA
Phone: 519-822-2960 Fax: 519-822-0715
ww
w.h
am
mo
ndm
fg.c
om
Hammond Manufacturing Co. Inc.
256 Sonwil Dr.
Cheektowaga, NY 14225
USA
Phone: 716-651-0086 Fax: 716-651-0726
Heavy Duty - Accessories

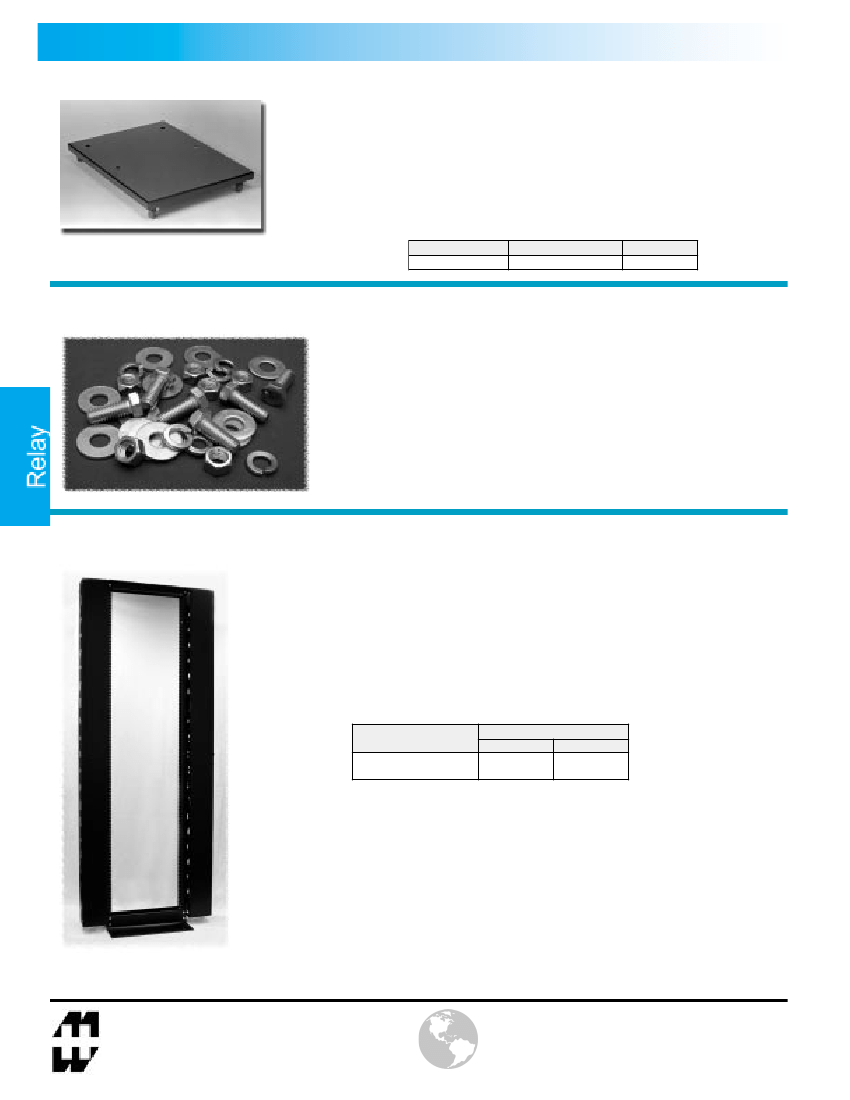

HEAVY DUTY DOLLY
•
For use only with “heavy duty” relay racks (pages 16 & 17)
•
10 gauge folded and welded steel
•
Rack mounting holes are offset to counter act equipment weight on rear of
rack (ie..dolly is photographed from the rear)
•
Complete with quantity four - 2” diameter casters
•
Caster manufacturer’s specified capacity of 600 lbs.
•
Finished in textured black powder paint
Pa r t Nu mb e r
1424T
Wheel Di amet er
2 Inches
Capacity
6 0 0 l b s.
GANGING KIT
•
For use only with “Heavy Duty Welded” relay racks
•
Kit contains enough hardware to join two relay racks
•
Used to join relay racks side by side
•
No drilling required
•
Connects through supplied 6 holes (2 in top, middle & bottom) of frame
•
Part Number
RRALJK
VERTICAL WIRE MANAGER
•
For use only with “heavy duty” & aluminum relay racks
•
Used to organize bundles of connecting wire
•
Manufactured in 16 Ga. steel
•
Mounts to either side of open relay rack (includes mounting hardware)
•
Front of units include a hinged door secured with magnets
•
Finished in rugged black textured powder paint
•
Two units shown here, with a heavy duty - open relay rack
•
Can be used with top wire management accessories on the next page
(except aluminum relay racks)
Pa r t Nu mb e r
RRCM44UD
RRCM48UD
Pa n e l He i g h t
Inches
Units
77
44
84
48
18
©
Hammond Manufacturing Co. Ltd.
394 Edinburgh Rd. North
Guelph, Ontario N1H 1E5 CANADA
Phone: 519-822-2960 Fax: 519-822-0715
ww
w.h
am
mo
ndm
fg.c
om
Hammond Manufacturing Co. Inc.
256 Sonwil Dr.
Cheektowaga, NY 14225
USA
Phone: 716-651-0086 Fax: 716-651-0726
Heavy Duty - Accessories

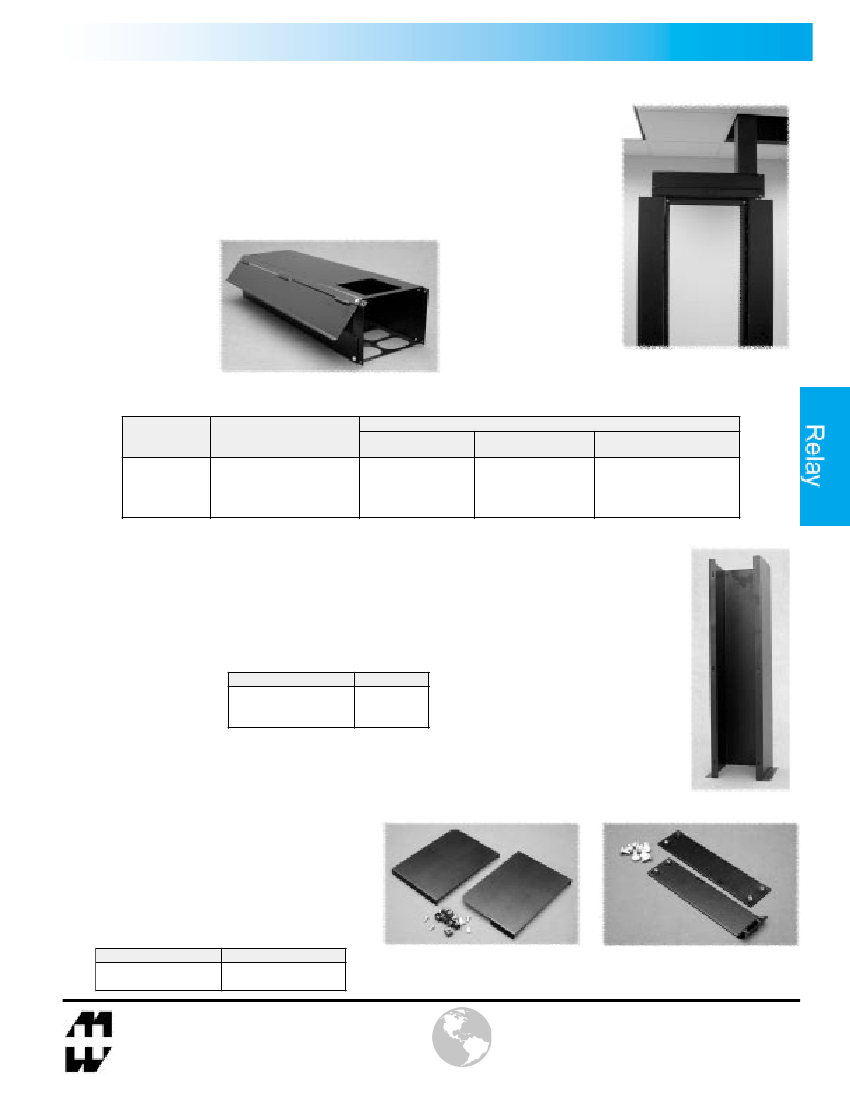

TOP WIRE MANAGEMENT
•
For use only with “heavy duty” relay racks
•
16 gauge steel construction
•
Usable with an infinite combination and number of ganged or single relay racks
•
Top of cable manager contains square knockouts (one shown knocked out in photo
below) for use with optional chimneys
•
Hinged access door with magnetic catches to keep wires neat and easy access
•
Use either joining kits or end panels (see below) in any combination to fit your needs
•
Finished in textured black powder paint
Top Horizontal Manager
Pa r t Nu mb e r
RR19TMS
RR19TMD
RR19TMDD
RR19TMDT
Descr iption
1 R a ck - S i n g l e 2 6 . 5 " L o n g
1 R a ck - D o u bl e 3 2 . 5 " L o n g
2 R a ck - D o u bl e 5 3 " L o n g
2 Ra ck - Tr i p l e 5 9 " L o n g
Number of Rel ay
Racks Used
1
1
2
2
Application
N u m b e r o f Ve r t i c a l
Manager s Used
1
2
2
3
L o c a t i o n o f Ve r t i c a l
Manager s
Lef t or Ri ght
Lef t and Ri ght
Lef t and Ri ght , No Cent er
Lef t , Ri ght and Cent er
Chimney
•
For use only with “heavy duty” relay racks & top manager
•
16 gauge steel construction
•
Mounts to square knockouts in top manager
•
For routing wire bundles up & out of the top manager (above) - through the ceiling
•
Finished in textured black powder paint
Pa r t Nu mb e r
RRCH20
RRCH24
RRCH30
Height
20"
24"
30"
End Plates & Joining Kit
•
For use only with “heavy duty” relay racks &
top manager
•
16 gauge steel construction
•
Mounts to ends of top manager (above)
•
Use end plates to close the ends of top managers
•
Use the joining kit to join multiple top managers
•
Finished in textured black powder paint
Pa r t Nu mb e r
RRTMEP
RRTMJK
Descr iption
En d Pl a t e ( Pa i r )
Joi ni ng Ki t
End Plates
ww
w.h
am
mo
ndm
fg.c
om
Joining Kit
Hammond Manufacturing Co. Inc.
256 Sonwil Dr.
Cheektowaga, NY 14225
USA
Phone: 716-651-0086 Fax: 716-651-0726
©
Hammond Manufacturing Co. Ltd.
394 Edinburgh Rd. North
Guelph, Ontario N1H 1E5 CANADA
Phone: 519-822-2960 Fax: 519-822-0715
19
Heavy Duty - Accessories

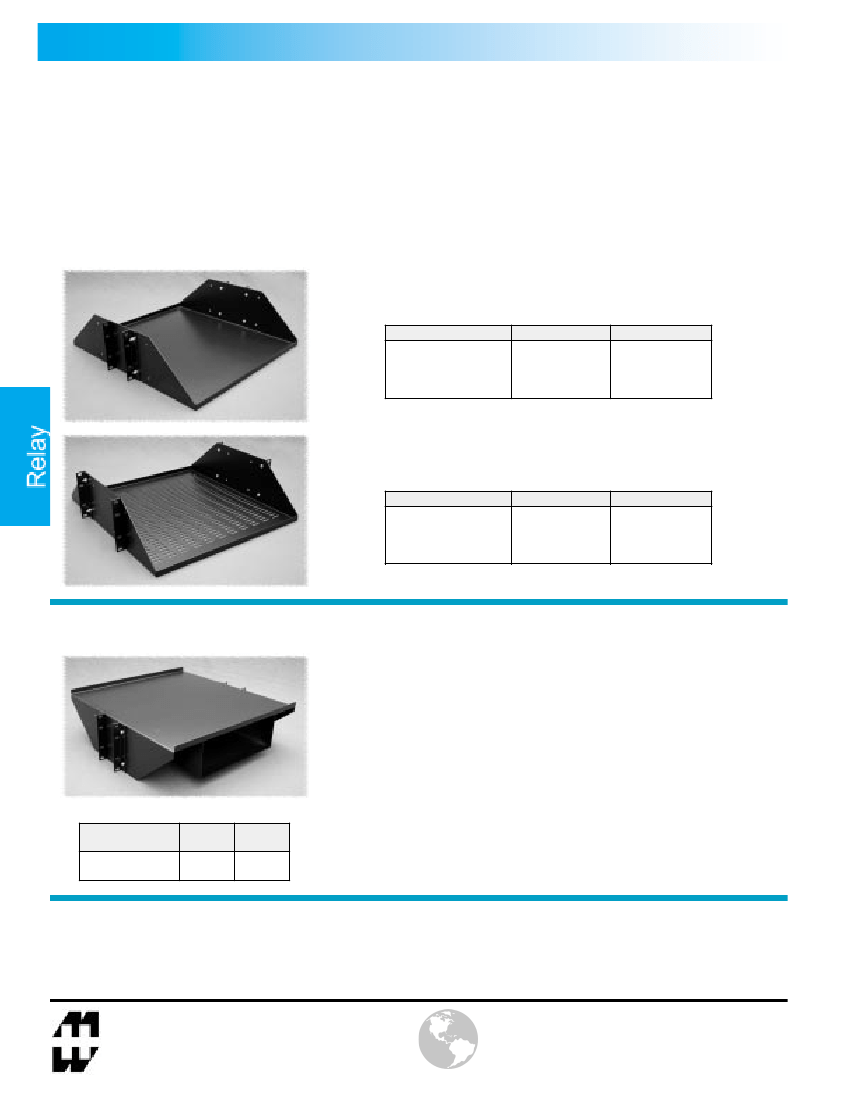

HEAVY DUTY SHELF - DUAL CHANNEL MOUNT
•
For use only with relay racks (DNRR series) - tapped front & rear
•
Permits front and rear access to modems on open relay racks
•
Side brackets allow mounting to either 3" OR 8" deep channel (see photos)
•
The vented unit is shown assembled for 8" deep channel, the unvented unit is shown assembled for 3" deep channel
•
Uses 5.25" (3U) of vertical panel space
•
Choice of 19" or 24" deep (19" deep shown)
•
The vented version provides a sturdy shelf without obstructing upward heat movement
•
14-gauge steel construction with a rugged black powder paint finish
•
Weight load tested (DNRMU2324BK1) to 300 pounds
•
Requires mounting hardware
Unvented
Pa r t Nu mb e r
DNRMU19BK1
DNRMU1924BK1
DNRMU23BK1
DNRMU2324BK1
Wi dt h ( I nches)
19
19
19
19
23
23
Depth (Inches)
19
19
24
24
19
24
Vented
Pa r t Nu mb e r
DNRMV19BK1
DNRMV1924BK1
DNRMV23BK1
DNRMV2324BK1
Wi dt h ( I nches)
19
19
19
19
23
23
Depth (Inches)
19
19
24
24
19
24
MONITOR SHELF - DUAL CHANNEL MOUNT
•
For use only with relay racks (DNRR series) - tapped front & rear
•
Mounts to panel rails using 5.25" (3U) of vertical panel space
•
Side brackets allow mounting to either 3" OR 8" deep channel. Unit in
photo is shown assembled for 3" deep channel
•
Uses 5.25" (3U) of vertical panel space
•
Overall 19" deep
•
Front & rear lip to reduce chance of monitor being pushed off of shelf
•
Available in either 19" or 23" rack panel width
•
Includes an accessory compartment welded to the front, bottom of the
shelf
•
14 Ga. steel construction
•
Finished in rugged black textured powder paint
•
Weight load tested (DNRMM23BK1) to 300 pounds
•
Requires mounting hardware
Pa r t Nu mb e r
DNRMM19BK1
DNRMM23BK1
Wi dt h
Depth
(Inches) (Inches)
19
19
19
19
23
19
DON’T FORGET TO CHECK OUT OUR UNIVERSAL
ACCESSORY SECTION FOR PANEL MOUNT SHELVES
PAGE 87
