PART

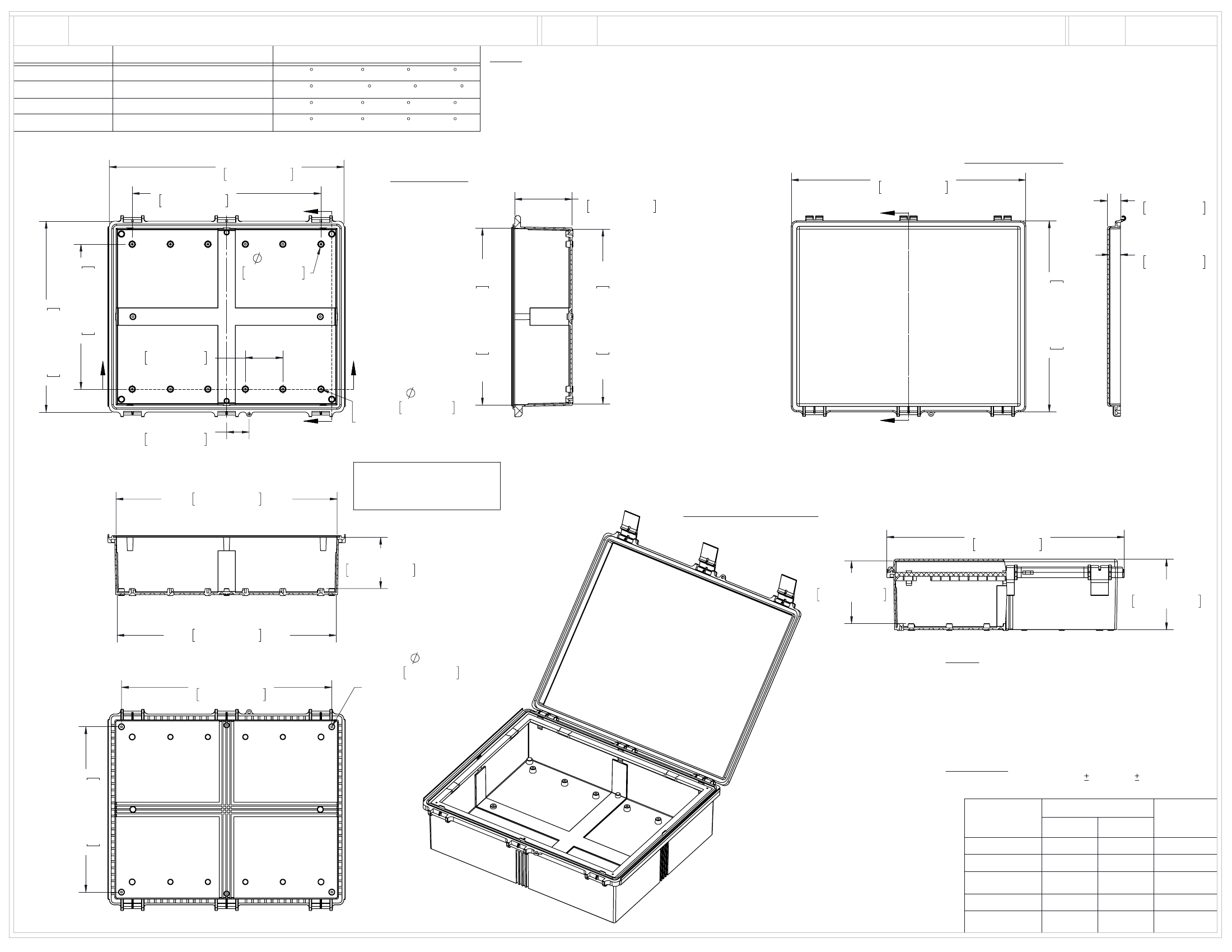

NBF SERIES PLASTIC NEMA BOX
NAME
MATERIAL
FLAMMABILITY RATING
CONTINUOUS OPERATING TEMP.
-40 C ~ +60 C / -40 F ~ 140 F
UL94-HB
ABS
-40 C ~ +130 C / -40 F ~ 266 F
UL94-V0 UV STABLILIZED
CLEAR PC
-40 C ~ +85 C / -40 F ~ 185 F
UL94-5VA
ABS / PC BLEND
UL94-5VA + UV (f1)
-40 C ~ +75 C / -40 F ~ 167 F
PBT / PC BLEND
20.945in
532.00mm
B
PART
No.
NBF-32036 & NBF-32136 & NBF-32236 & NBF-32336 & NBF-32436
REVISION
DATE
7/8/2010
FINISH:
BODY_______________________ LIGHT GRAY
COVER______________________ LIGHT GRAY OR CLEAR
LATCHES & HINGES___________ PLASTIC
WALL MOUNTING BRACKETS__ STAINLESS STEEL
& HARDWARE
16.860in
428.25mm
BODY
5.118in
130.00mm
20.945in
532.00mm
C
COVER
1.181in
30.00mm
1.024in
26.00mm
17.047in
433.00mm
15.787in
401.00mm
INSIDE WIDTH MAX.
A
3.346in
85.00mm
TYP.
A
2.008in
51.00mm
19.744in
501.50mm
INSIDE LENGTH MAX.
B
.165in
4.20mm
FOR M5 x 10mm LG.
SELF-TAPPING SCREWS
( ABS VERSIONS ONLY )
M5 THREADED INSERTS
ON ALL OTHER VERSIONS
USE M5 x 8mm LG.
MACHINE SCREWS.
15.621in
396.78mm
INSIDE WIDTH MIN.
17.047in
433.00mm
12.943in
328.75mm
.591in
15.00mm
TYP.
SECTION B-B
C
SECTION C-C
ASSEMBLY
21.201in
538.50mm
5.591in
142.00mm
6.299in
160.00mm
4.567in
116.00mm
SECTION A-A
19.578in
497.28mm
INSIDE LENGTH MIN.
18.780in
477.00mm
.165in
4.20mm
FOR M5 x 10mm LG.
SELF-TAPPING SCREWS
4 PLCS.
NOTES:
1) UNIT COMES COMPLETE WITH
(4) WALL MOUNTING BRACKETS &
(4) M4 x 10mm LG. SELF-TAPPING SCREWS.
(NOT SHOWN)
2) BOXES DESIGNED TO MEET THESE STANDARDS:
NEMA 1,2,4,4X, AND IEC529-IP65 REQUIREMENTS.
TOLERANCE:
ALL DIMENSIONS HAVE 0.039in [ 1mm]
TOLERANCE UNLESS OTHERWISE SPECIFIED.
14.764in
375.00mm
BODY COVER
INDOOR
NBF-32036
ABS
ABS
NBF-32136 ABS / PC ABS / PC INDOOR
CLEAR
INDOOR
NBF-32236 ABS / PC
PC
NBF-32336 PBT / PC PBT / PC OUTDOOR
NBF-32436 PBT / PC CLEAR OUTDOOR
PC
PART NO.
MATERIAL
USE
