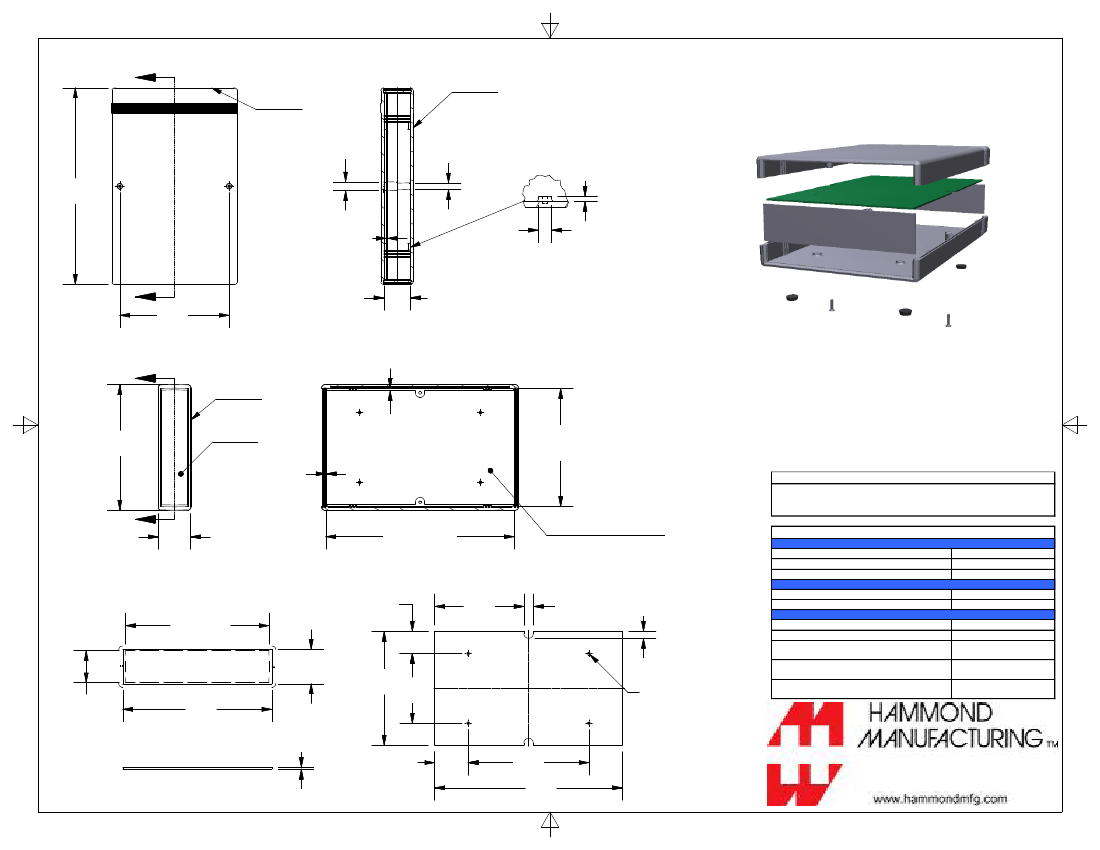

Bottom View of Assembly
A
Front Face
SECTION A-A
(Side View Inside Assembly)
Top Cover
n
10.96
[.432]
(Bottom Boss
n
)
n
8.34
[.328]
(Top Boss
n
)
Detail View of Boss
(Located on Top and Bottom Cover)
3.10
[.122]
249.70
[9.831]
B
P.C. Board
n
8.40
B
[.331]
A
138.96
[5.471]
33.70
[1.327]
(Inner Box Height)
End View of Assembly
B
Top Cover
SECTION B-B
(Inside of Bottom Cover)
159.25
[6.270]
End Panel
2.75
[.108]
(PCB dist from inner wall)
150.21
[5.914]
(Inner Box Width)
.50
[.020]
(PCB dist from
end panel)
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Solid models of this enclosure available in STEP or IGES.
Contact Factory
mjm@hammondmfg.com
NOTE
Purchased Assembly includes top and bottom cover, front and end aluminum
panels (alloy 5052-H32, SPV coating on one side), 2 cover screws, and 4
rubber feet.
B
40.90
[1.610]
239.35
[9.423]
(Inner Box Length)
P.C. Board Aligned on Bosses
1598F Instrument Case
FLAME RETARDANT ABS (UL94-VO)
1598FBK
Black Enclosure w ith Aluminum Pane ls
1598FGY
Grey Enclosure w ith Alum inum Pane ls
1598RFBK
Bla ck EMI/RFI Shie lde d
NON-FLAME RETARDANT GPABS (UL94-HB)
1598FSGY
Grey Enclosure w ith Alum inum Pane ls
1598FSGYPBK
Gre y Enclosure w ith Bla ck Plastic Pa nels
ACCESSORIES
1598PLFBK
Bla ck Plastic Pa nels
1421T2
Rubber Fee t (Pkg 24)
For 1598 FR-ABS
1591MS100
Cover Screws (Pk g 100) [M3 - 0.5 x 10mm]
For 1598 GPABS
1591TS100
Cover Screws (Pk g 100) [#4 x 5/8" (15.9mm)]
For Both Models
1598ATS100
PCB Screws (Pk g 100) [#6 x 1/4" (6.4mm)]
Front/Rear Panel
(Dashed Line Indicates Viewing Area)
A
146.15
[5.754]
(Viewing Area)
35.00
[1.378]
32.70
[1.287]
(Viewing Area)
Maximum P.C. Board Size
28.11
[1.107]
113.22
[4.457]
11.92
[.469]
8.83
[.348]
A
144.71
[5.697] 88.50
[3.484]
P.C. Board
(Not Supplied)
n
3.51 X 4
151.38
[5.960]
1.65
[.065]
42.48
[1.672]
153.40
[6.039]
238.35
[9.384]
2
[.138]
1598F
1
