273RBK Overview

Enclosures, Boxes, u0026 Cases 6.88 x 4.88 x 2.51 BLACK

273RBK Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Factory Pack Quantity	1
Unit Weight	8.031881 oz

Preview

Download Datasheet

View All

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

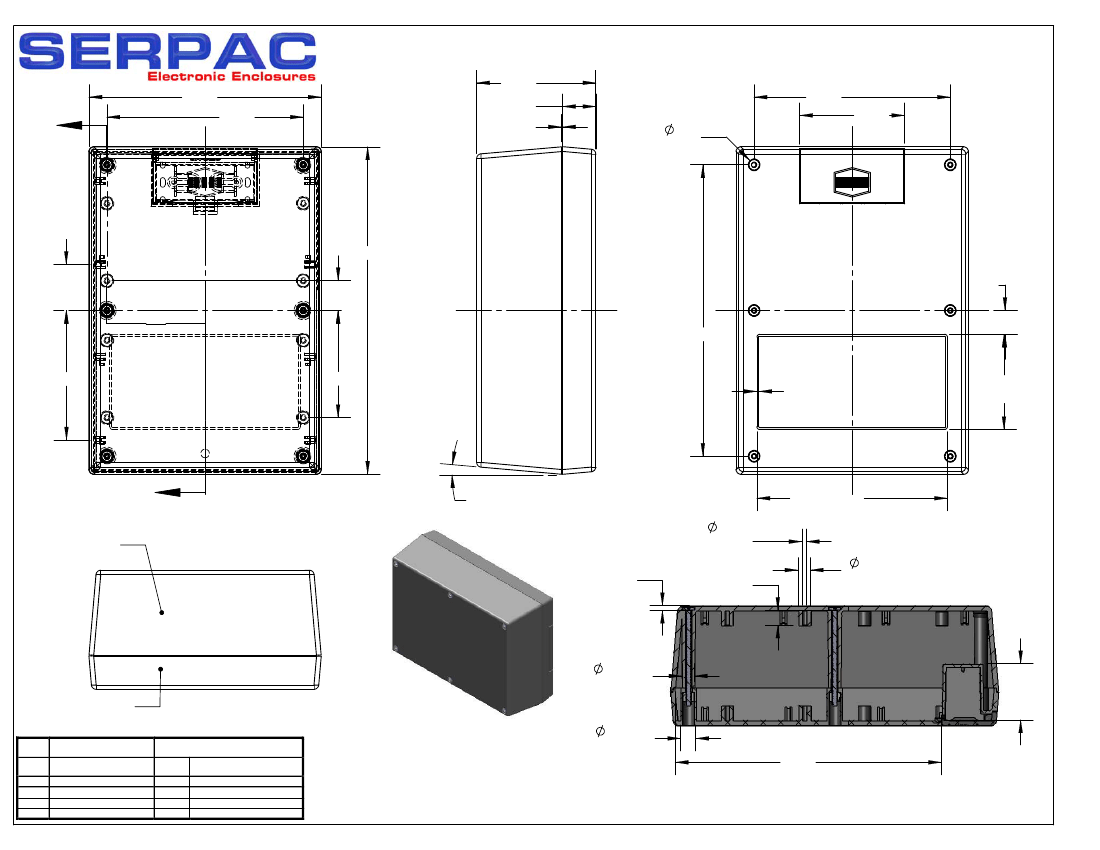

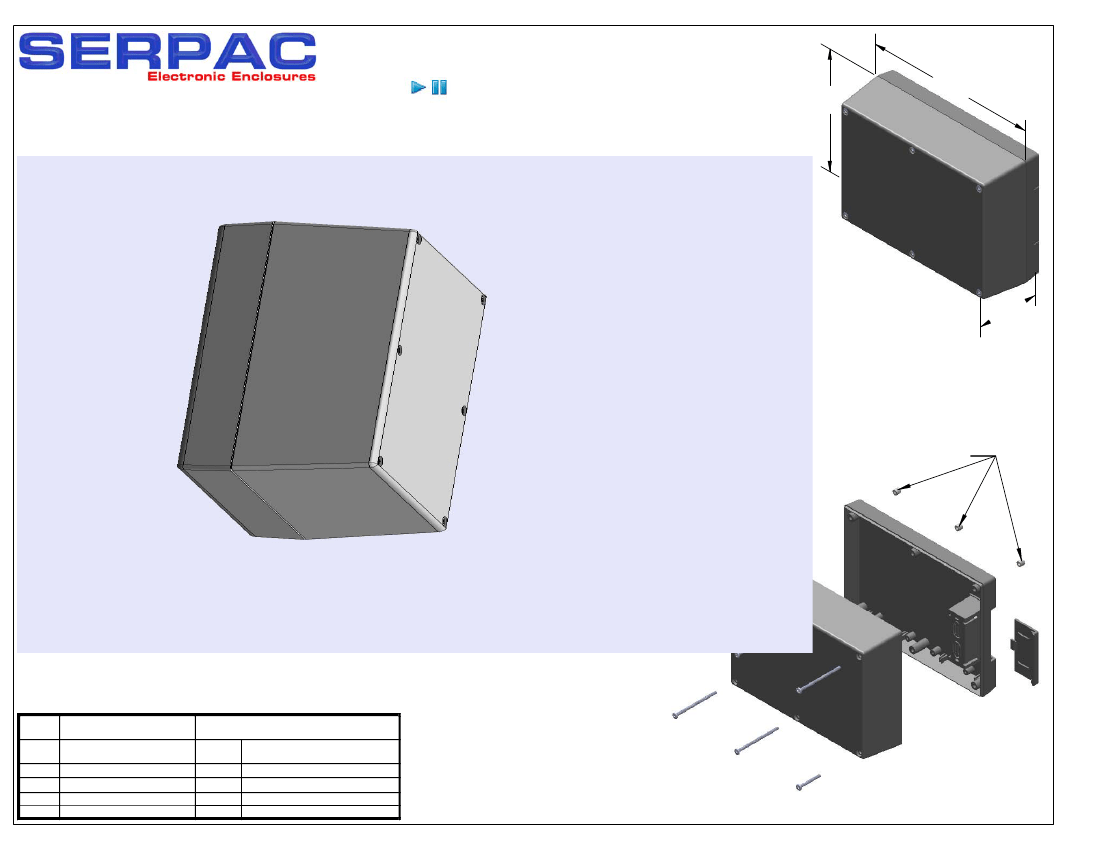

273R

(3D exploded)

4.88

W

6.88

L

2.50

H

Threaded inserts only

have to be assembled

the first time.

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

PART

NO.

7-3R

27

1025

6019

6102

DESCRIPTION

(Included)

TOP

BOTTOM

Battery Cover

4-40 Screws (6)

Threaded Inserts (6)

ACCSESSORIES

(Optional)

PART

NO.

50

379

479

DESCRIPTION

Non-skid Feet

Prototype grid board (bottom)

Prototype clad board (bottom)

Notes:

Enclosure weight .51 lbs / 233 gm

1) Enclosure meets or exceeds IP40 and NEMA 1

2) Circuit Board drawings can be download at:

TOP:

http://www.serpac.com/Accessories/CircuitBoard/drawings/X73_CB.pdf

BOTTOM:

ALL DIMENSIONS ARE ± .010"

8/05/10

http://www.serpac.com/Accessories/CircuitBoard/drawings/379-479-cbg.pdf

2009 Wright Ave. La Verne, CA

(1 of 2)

91750

3) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com
