PHPF - SERIES
ASSEMBLY INSTRUCTIONS FOR
HINGED FLAT DOOR PANEL
BUL10367
REV.
A
PAGE 1 OF 1
6
6
1
1
2
A
B
2
4
3
3
DETAIL A
4
5
2
1
DETAIL B

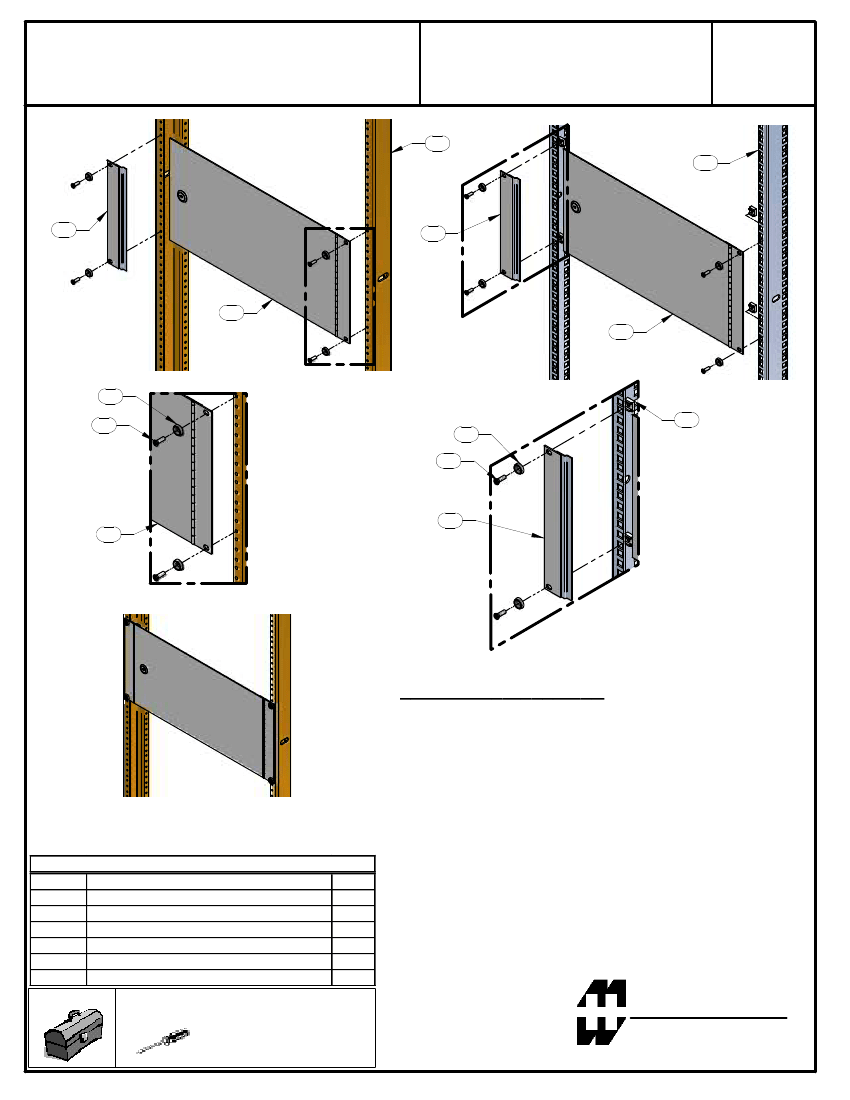

ASSEMBLY INSTRUCTIONS:
A) Select the height at which to mount the hinged flat door panel
(items 1 & 2) on the combination rails (item 6).
B) If mounting rails have square cutouts insert 2 cage nuts (item 5)
per rail at desired height for the door panel. This can be done
using a cage nut insertion tool. (Detail B)
C) Start with the doorstop assembly (item 1). Line up the
mounting slots of the doorstop assembly with the holes on the
combination rail (item 6). Secure with screws and washers
(items 3 & 4) purchased for the combination rails (items 6).
(Detail A & B)
D) Once the doorstop assembly is secure. Mount and fasten the
hinged door panel (item 2) by following instruction in step C.
COMPLETE ASSEMBLY
PARTS LIST
ITEM No.
DESCRIPTION
DOOR STOP ASSEMBLY
1
HINGED DOOR PANEL
2
SCREWS (NOT INCLUDED)
3
WASHERS (NOT INCLUDED)
4
CAGE NUTS (NOT INCLUDED)
5
COMBINATION RAILS (NOT INCLUDED)
6
TOOL BOX
#2 Phillips Head
Screw Driver
QTY
1
1
4
4
4
2
HAMMOND
MANUFACTURING
ELECTRONICS GROUP
TM
visit our website @
www.hammondmfg.com
