PJ744P2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> PJ744P2

PJ744P2: DescriptionElectrical Enclosures 4/4X Polyester 7x4x4 30.5Pushbutton 2Hole; CategoryTopical application Mechanical and electrical/engineering/automation; File Size193KB，3 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

PJ744P2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PJ744P2	-	-	View	Buy Now

PJ744P2 Overview

Electrical Enclosures 4/4X Polyester 7x4x4 30.5Pushbutton 2Hole

PJ744P2 Parametric

Parameter Name	Attribute value
Product Category	Electrical Enclosures
Manufacturer	Hammond
RoHS	Details
Product	Enclosures
Type	2 Button
Color	Gray
Length	7 in
Width	4 in
Height	4 in
IP Rating	IP66
NEMA Rating	1, 2, 4, 4X, 12, 13
Dimensions	7 in L x 4 in W x 4 in H
Height - in	4
Height - mm	101.6
Length - in	7
Length - mm	177.8
Factory Pack Quantity	1
Width - in	4
Width - mm	101.6
Unit Weight	4 lbs

Preview

Download Datasheet

View All

11/2/2017

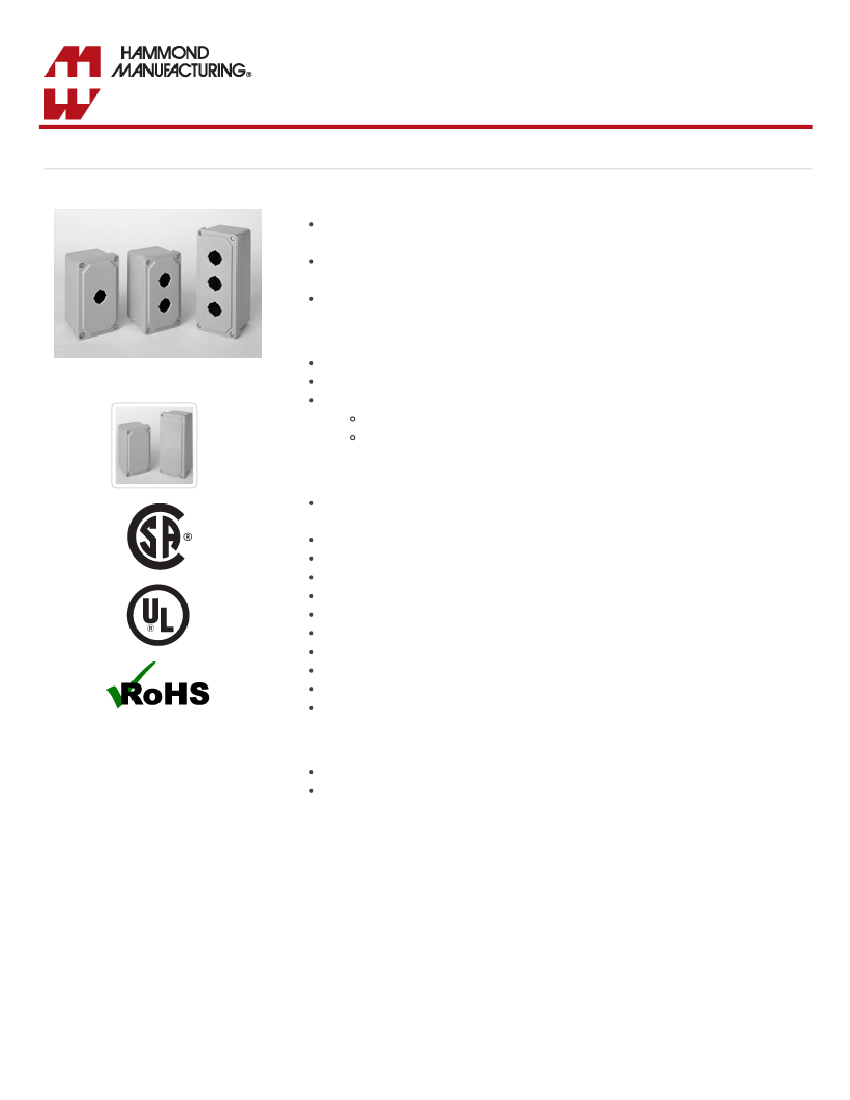

Type 4, 4X Polyester Pushbutton Enclosure (PJPB Series) - Hammond Mfg.

Quality Products. Service Excellence.

Type 4, 4X Polyester Pushbutton Enclosure

PJPB Series

Application

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control

housings, electrical junction boxes or terminal wiring enclosures.

Provides outstanding insulation and protection where equipment may be hosed down or

be very wet.

Ideal in applications with high temperatures or highly corrosive environments.

Standards

UL 508A Type 1, 2, 3, 4, 4X, 12 and 13

CSA Type 1, 2, 3, 4, 4X, 12 and 13

Complies with

NEMA Type 1, 2, 3, 4, 4X, 12 and 13

IEC 60529, IP66

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or

drilled.

Standard JIC sizes under 18" x 16".

Threaded brass inserts are provided for optional inner panel.

Cover is fastened with captive stainless steel screws in threaded brass inserts.

Captive oil resistant gasket provides a positive seal.

Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included).

Enhanced UV inhibitors protect against outdoor weathering.

Solid cover series available with and without mounting feet.

Operating temperatures between 130°C and -40°C (266°F to -40°F).

Impact index of 6.78J (5 ft/lb).

For corrosion resistance information, please refer to table in Technical Information.

Finish

Fiberglass polyester material has a gray finish.

Optional aluminum inner panel natural finish.

https://www.hammfg.com/electrical/products/operator/pjpb

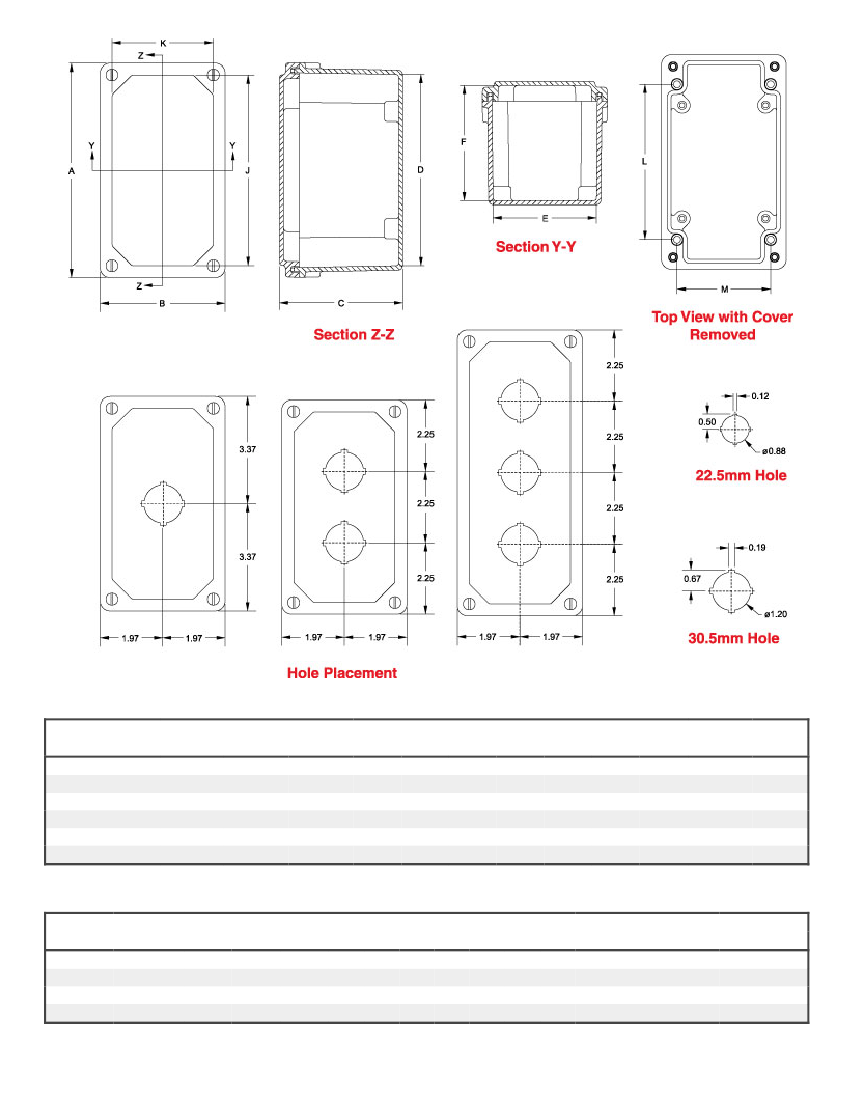

1/3

PJ744P2 Related Products

	PJ744P2	PJ744P222	PJ744	PJ944P223	PJ744FS	PJP94	PJ744P221	PJP74	PJ944P3	PJ744P1
Description	Electrical Enclosures 4/4X Polyester 7x4x4 30.5Pushbutton 2Hole	Electrical Enclosures NEMA4X Polyester 7 x 4 x 4"	Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 16B 2 LVR LCKING	Cable Mounting u0026 Accessories NEMA Cable Gland PG9 .158-.252" .61" Dia.	Electrical Enclosures 4/4X Polyester 7x4x4 PushbuttonSolidCover	Electrical Enclosures PANEL FOR PJ944	Cable Mounting u0026 Accessories NEMA Cable Gland PG9 .158-.252" .61" Dia.	Enclosures, Boxes, u0026 Cases Aluminum Inner Panel For PJ744/PJ744FS	Electrical Enclosures 4/4X Polyester 9x4x4 30.5Pushbutton 3Hole
Product Category	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Enclosures, Boxes, & Cases	Electrical Enclosures	Electrical Enclosures
Manufacturer	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond
Product	Enclosures	Enclosures	Cases	Enclosures	Cases	Cases	Enclosures	Cases	Enclosures	Enclosures
Factory Pack Quantity	1	1	1	1	1	1	1	1	1	1
Unit Weight	4 lbs	4 lbs	5 lbs	4 lbs	4 lbs	1 lb	4 lbs	1 lb	4 lbs	4 lbs
RoHS	Details	Details	Details	Details	Details	-	Details	Details	Details	Details
Type	2 Button	2 Button	-	3 Button	-	-	1 Button	-	3 Button	1 Button
Color	Gray	Gray	-	Gray	Gray	-	Gray	-	Gray	Gray
Length	7 in	7 in	7 in	9 in	7 in	-	7 in	-	9 in	7 in
Width	4 in	4 in	4 in	4 in	4 in	-	4 in	-	4 in	4 in
Height	4 in	4 in	4 in	4 in	4 in	-	4 in	-	4 in	4 in
IP Rating	IP66	IP66	-	IP66	IP66	-	IP66	-	IP66	IP66
NEMA Rating	1, 2, 4, 4X, 12, 13	1, 2, 4, 4X, 12, 13	-	1, 2, 4, 4X, 12, 13	4, 4X	-	1, 2, 4, 4X, 12, 13	-	1, 2, 4, 4X, 12, 13	1, 2, 4, 4X, 12, 13
Dimensions	7 in L x 4 in W x 4 in H	7 in L x 4 in W x 4 in H	7 in L x 4 in W x 4 in H	9 in L x 4 in W x 4 in H	7 in L x 4 in W x 4 in H	-	7 in L x 4 in W x 4 in H	-	9 in L x 4 in W x 4 in H	7 in L x 4 in W x 4 in H
Height - in	4	4	4	4	4	-	4	-	4	4
Height - mm	101.6	101.6	101.6	101.6	101.6	-	101.6	-	101.6	101.6
Length - in	7	7	7	9	7	-	7	-	9	7
Length - mm	177.8	177.8	177.8	228.6	177.8	-	177.8	-	228.6	177.8
Width - in	4	4	4	4	4	-	4	-	4	4
Width - mm	101.6	101.6	101.6	101.6	101.6	-	101.6	-	101.6	101.6
