NOTES:
UNLESS OTHERWISE SPECIFIED
1. CORNERS DRAWN SHARP TO BE R.005 MAXIMUM.
2. EXTERIOR SURFACE TEXTURE TO BE LIGHT EDM FINISH.
EQUIVELANT TO MT-11010.
3. INTERIOR SURFACE TEXTURE TO BE: NONE.
4. ALL INSIDE RADII .010R. UNLESS OTHERWISE SPECIFIED.
5. ALL EXTERNAL DIMENSIONS AFFECTED BY THE DRAFT APPLY AT
THE LARGE END OF THE FEATURE, AND ALL INTERNAL FEATURES
AFFECTED BY THE DRAFT APPLY AT THE SMALL END OF THE FEATURE
UNLESS OTHERWISE SPECIFIED.
6. 1 DEGREE DRAFT IN THE DIRECTION OF PULL IS PERMISSIBLE
UNLESS OTHERWISED SPECIFIED.
7. THIS ENCLOSURE IS A PRESS FIT ASSEMBLY. FOR PERMANENT
CLOSURE: A DROP OF ADHESIVE OR ULTRASONIC WELDING IS REQUIRED.
8. MOUNTING SCREWS FOR THE PCB ARE SOLD SEPERATELY.
9. MATERIAL / COLOR:
ABS PLASTIC IS STANDARD IN BLACK OR WHITE.
CUSTOM MATERIALS AND COLORS ARE AVAILABLE UPON REQUEST FOR QUOTE.
10. PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND
VERIFICATION OF IT'S FIT ARE THE SOLE RESPONSIBILITY OF OEM.
REV. DRAWN BY
A
B
C
D
E
F
1.0
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
R CRUZ
R CRUZ
ECO No
DR XXX
R E V I S I O N
DESCRIPTION
PRELIMINARY RELEASE
CHANGE TITLE AND PN
ADD LARGER CONFIGURATION
REDUCE THE LENGTH OF ASSY POST
UPDATE NAME
UPDATE TO AS BUILT
RELEASED
DATE
06-Apr-11
25-Jan-12
15-Oct-12
30-Nov-12
25-Jan-13
07-Jun-13
25-Jun-13
APPROVED
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
11. THIS DRAWING IS BASED ON A SOLID MODEL, AND IS FURTHER DEFINED BY THE SOLID MODEL FILE.
12. ALLOWABLE FLASH: 0.010 MAX.
13. ALL EJECTOR PIN MARKS TO BE WITHIN 0.010" OF FLUSH, PROTRUDING OR BELOW FLUSH.

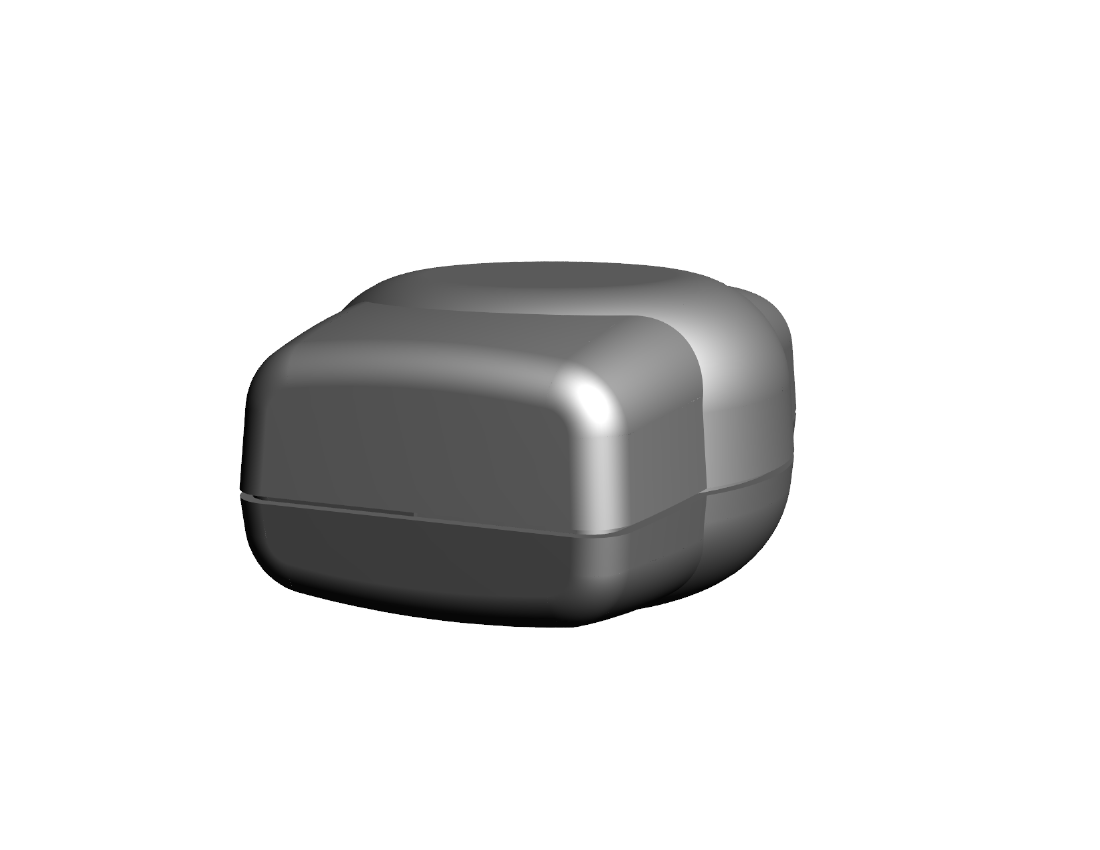

191508M ASSEMBLY
- 191510 COVER
- 191508 BASE
SCALE 1.000

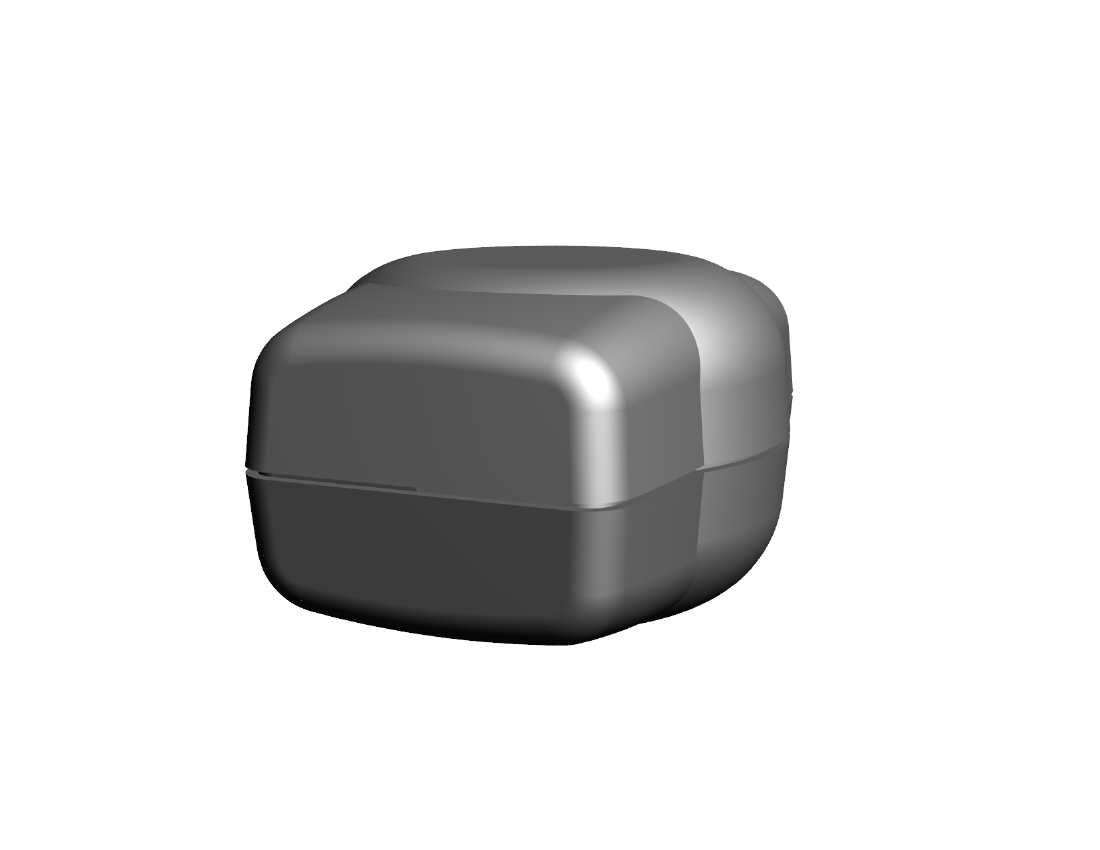

191508S ASSEMBLY
- 191508 COVER
191508
- 191508 BASE
191508
SCALE 1.000
191510
191510
6
5
4
3
2
1
2-32 ROUND SHANK x .187" SCREW
TYPE A - FEMALE USB CONNECTOR
RJ45 FEMALE CONNECTOR
190508 PCB - REFERENCE
191510 CASE - STANDARD
191508 CASE - STANDARD
191508(x) CONFIGURATIONS
-S
-M
COVER
1
BASE
1
1
COVER
1
BASE
-T
1
1
4
1
1
2
2
2

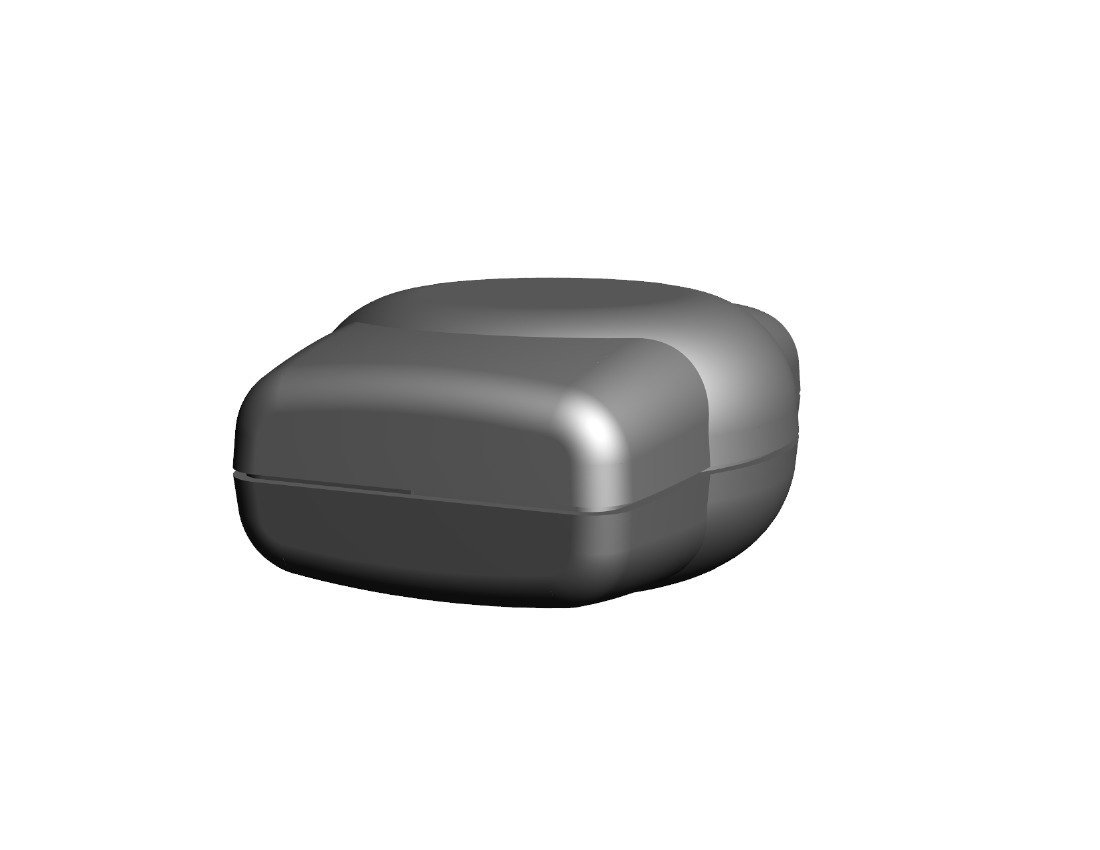

191508T ASSEMBLY
- 191510 COVER
- 191510 BASE
SCALE 1.000

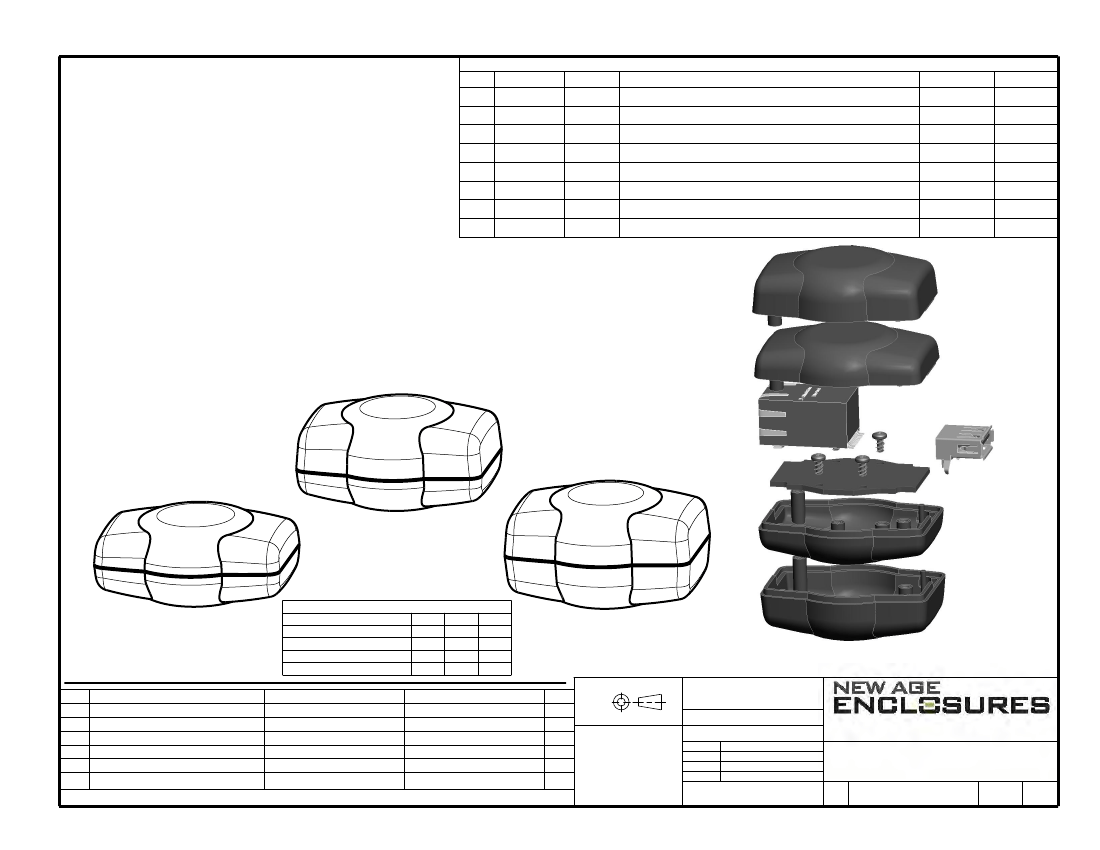

EXPLODED VIEW
SCALE 0.900
THIRD ANGLE PROJECTION
ZINK PLATED
REFERENCE ONLY
REFERENCE ONLY
.062" THICK
ABS
ABS
MMC 90056A075
CUSTOMER SUPPLIED
CUSTOMER SUPPLIED
CUSTOMER SUPPLIED
BLACK or WHITE
BLACK or WHITE
TOLERANCES: UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN U.S. INCHES.
X.XX = .015 X.XXXX = .001
X.XXX = .010
X.X° = 1°
DO NOT SCALE DRAWING
NOTICE: THE INFORMATION AND DATA
CONTAINED HEREIN IS CONSIDERED
PROPRIETARY TO ALLTEC INTEGRATED
MFG INC & SHALL REMAIN THE EXCLUSIVE
PROPERTY OF ALLTEC INTEGRATED MFG INC
THE HOLDER WILL ASSUME CUSTODY AND
CONTROL THAT THIS DOCUMENT WILL
NOT BE COPIED, REPRODUCED, OR
DISCLOSED WITHOUT THE EXPRESS WRITTEN
CONSENT OF ALLTEC INTEGRATED MFG INC
POSSESSION OF THIS DOCUMENT DOES
NOT CONSTITUTE A GRANT TO
MANUFACTURE ANY ITEMS.
© 2012
NEW AGE ENCLOSURES
Customer's Part No:
APPROVAL
CHECK
ENG.
SCALE
DRAWN BY
BY
DATE
191508
4330 Santa Fe Road
ph. (805) 595-1310
www.newageenclosures.com
San Luis Obispo, CA. 93401
fax (805) 595-1024
ITEM
DESCRIPTION
MATERIAL
COLOR
QTY.
AS NOTED
06-Apr-11
STANDARD - E.E.HOUSING
PXX-191508X-XXX
SIZE
BILL OF MATERIALS
M BOYER
A
DRAWING NAME
SHEET
REV.DOC
191508_R1_0
1 OF 6
1.0
