11/26/2017
Type 4, 4X Stainless Steel Pushbutton Enclosures (1435SS Series) - Hammond Mfg.
Quality Products. Service Excellence.
Type 4, 4X Stainless Steel Pushbutton Enclosures
1435SS Series
Application
Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
Provides protection from dirt, dust, oil and large amounts of water from any angle, or
where highly corrosive conditions exist.
Standards
UL 508A Type 4 and 4X
CSA Type 4 and 4X
Complies with
NEMA Type 3R, 4 and 4X
JIC Standard EGP-1-1967
IEC 60529, IP66
Appropriate components are required to maintain these standards.
Construction
Formed 14 gauge stainless steel except A and B which are 16 gauge.
304 or 316 SS.
Smooth continuously welded seams.
Welded brackets provide for enclosure mounting.
Captive stainless steel cover screws thread into sealed wells.
Larger enclosures provide internally hinged removable covers, designed to hold the cover
open during wiring.
Oil resistant gasket and adhesive.
A bonding stud is provided on the door and a grounding stud is provided on the
enclosure.
Finish
Natural stainless steel with a smooth brushed finish.
Accessories
Hole Plugs
Ground Wire Kits
https://www.hammfg.com/electrical/products/operator/1435ss
1/4
11/26/2017
Type 4, 4X Stainless Steel Pushbutton Enclosures (1435SS Series) - Hammond Mfg.
https://www.hammfg.com/electrical/products/operator/1435ss
2/4
11/26/2017
Type 4, 4X Stainless Steel Pushbutton Enclosures (1435SS Series) - Hammond Mfg.
https://www.hammfg.com/electrical/products/operator/1435ss
3/4
11/26/2017
Type 4, 4X Stainless Steel Pushbutton Enclosures (1435SS Series) - Hammond Mfg.
Part No.
304 S.S.
22.5mm
1435MSSA¹
1435MSSB¹
1435MSSC¹
1435MSSD¹
1435MSSH
1435MSSK
1435MSSO
¹ Not hinged
304 S.S.
30.5mm
1435SSA¹
1435SSB¹
1435SSC¹
1435SSD¹
1435SSH
1435SSK
1435SSO
316 S.S.
22.5mm
1435MS16A¹
1435MS16B¹
1435MS16C¹
1435MS16D¹
1435MS16H
1435MS16K
1435MS16O
316 S.S.
30.5mm
1435S16A¹
1435S16B¹
1435S16C¹
1435S16D¹
1435S16H
1435S16K
1435S16O
No.
Of
Holes
1
2
3
4
6
9
12
A
3.50
5.75
8.00
10.25
9.50
9.50
11.75
B
3.25
3.25
3.25
3.25
6.25
8.50
8.50
C
2.75
2.75
2.75
2.75
3.00
3.00
3.00
D
2.38
2.38
2.38
2.38
5.38
7.63
7.63
E
4.00
6.25
8.50
10.75
10.00
10.00
12.25
F
2.21
2.21
2.21
2.21
5.21
7.46
7.46
G
2.75
5.00
7.25
9.50
8.75
8.75
11.00

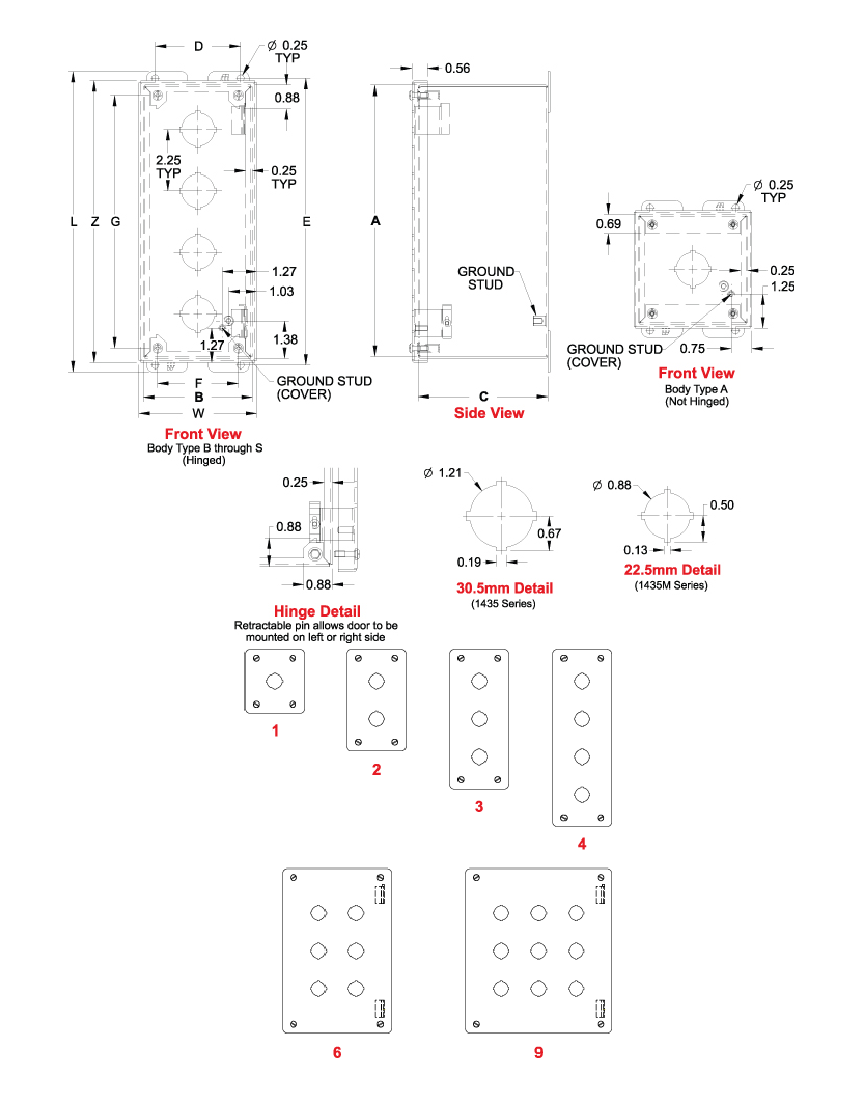

Overall Dimensions
L
4.50
6.75
9.00
11.25
10.50
10.50
12.75
W
3.56
3.56
3.56
3.56
6.56
8.81
8.81
Z
3.81
6.06
8.31
10.56
9.81
9.81
12.06
Data subject to change without notice
© 2017. Hammond Manufacturing Ltd. All rights reserved.
https://www.hammfg.com/electrical/products/operator/1435ss
4/4
