NOTES:
UNLESS OTHERWISE SPECIFIED
REV. DRAWN BY
A
B
C
D
E
F
1.0
M BOYER
M BOYER
R CRUZ
M BOYER
M BOYER
R CRUZ
R CRUZ
ECO No
DR XXX
R E V I S I O N
DESCRIPTION
PRELIMINARY RELEASE
REVISE PART NUMBER AND REVISE PER MEETING
ADD BELT CLIP INFORMATION
REVISE BELT CLIP
REVISE PER MEETING NOV 18 2013
UPDATE CONFIGURATION TABLE
DATE
17-May-13
25-Jun-13
18-Oct-13
11-Nov-13
19-Nov-13
27-May-14
12-Jun-14
APPROVED
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
1. CORNERS DRAWN SHARP TO BE R.005 MAXIMUM.
2. EXTERIOR SURFACE TEXTURE TO BE LIGHT EDM FINISH.
EQUIVALENT TO MT-11006.
3. INTERIOR SURFACE TEXTURE TO BE: NONE.
4. ALL INSIDE RADII .010R. UNLESS OTHERWISE SPECIFIED.
5. ALL EXTERNAL DIMENSIONS AFFECTED BY THE DRAFT APPLY AT THE
LARGE END OF THE FEATURE, AND ALL INTERNAL FEATURES AFFECTED
BY THE DRAFT APPLY AT THE SMALL END OF THE FEATURE UNLESS
OTHERWISE SPECIFIED.
6. 1 DEGREE DRAFT IN THE DIRECTION OF PULL IS PERMISSIBLE UNLESS
OTHERWISED SPECIFIED.
7. MATERIAL / COLOR:
ABS PLASTIC IS STANDARD IN BLACK OR WHITE.
CUSTOM MATERIALS AND COLORS ARE AVAILABLE UPON REQUEST FOR QUOTE.
8. PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND VERIFICATION
OF ITS FIT ARE THE SOLE RESPONSIBILITY OF EACH OWNER.
9. STANDARD OR CUSTOM LABEL RECESSES ARE AVAILABLE FOR QUOTE.
10. ASSEMBLY SCREWS FOR THE ENCLOSURE INCLUDED.
11. THIS DRAWING IS BASED ON A SOLID MODEL, AND IS FURTHER DEFINED
BY THE SOLID MODEL FILE.
0319
UPDATE TO AS BUILT AND RELEASE
2
4
10
8
SCALE 0.750
1

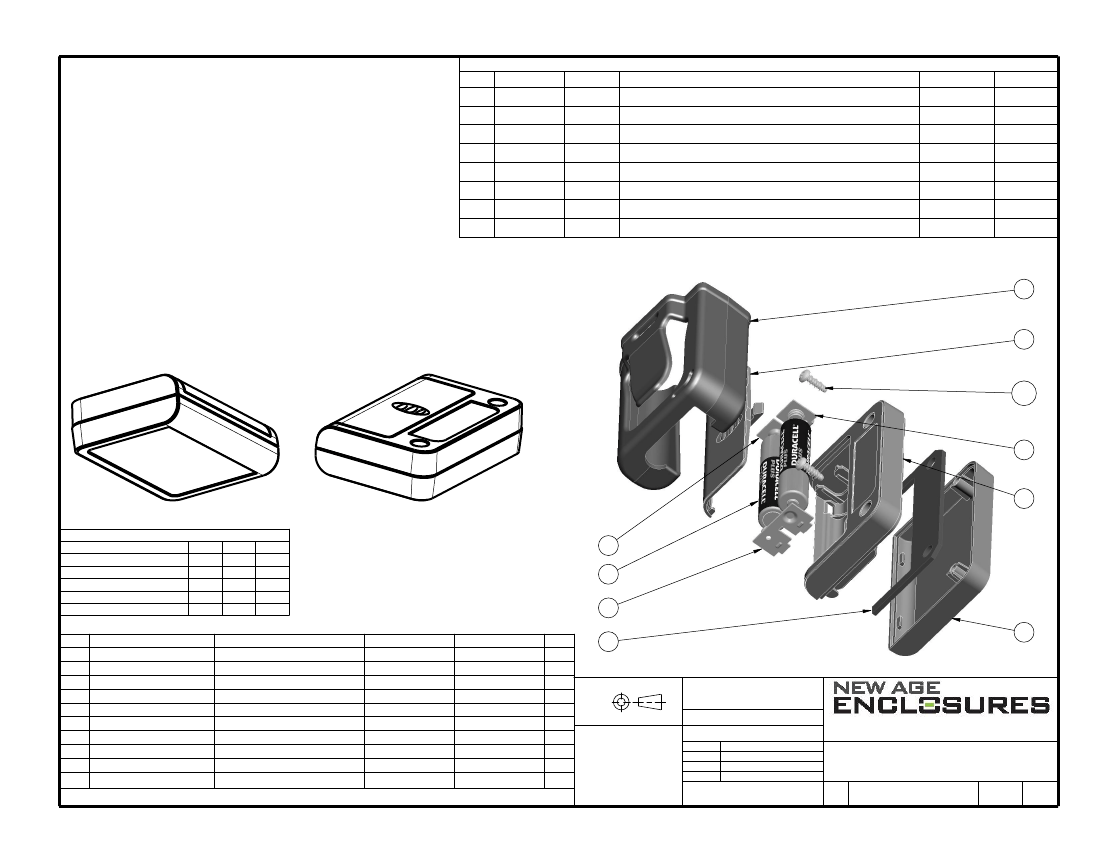

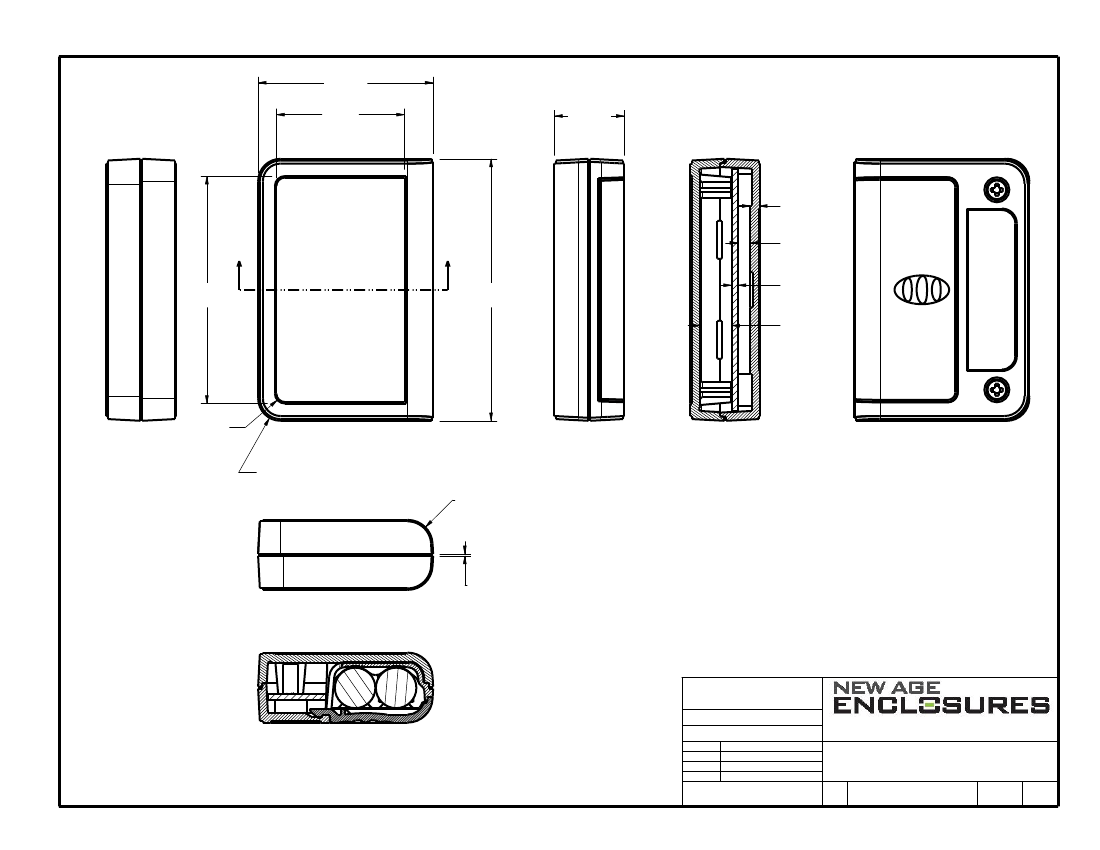

261707(x) CONFIGURATIONS
-Blank -BC
261707 COVER
1
261707 BASE
1
261707 HATCH
1
261707 BELT CLIP
1
#4 HiLo SCREW .375"
2
10
9
8
7
6
5
4
3
2
1
NO4_HI-LO
AAA-SINGL-CONTACT-POS
AAA-SINGL-CONTACT-NEG
AAA-DBL-CONTACT
AAA-BATTERY
261707-PCB
261707-HATCH
261707-COVER
261707-BELT-CLIP
261707-BASE
-K
1
1
1
1
2
SCREW - HiLo #4
ACC-AAAPOS-5226
ACC-AAANEG-5204
ACC-AAADBL-5214L
AAA BATTERY
No4 HiLo x 3/8"
SOLD SEPERATELY
SOLD SEPERATELY
SOLD SEPERATELY
REFERENCE
.062" THICK
ABS
ABS
ABS
ABS
ZINC PLATED
NICKEL PLATED
NICKEL PLATED
NICKEL PLATED
CUSTOMER SUPPLIED
CUSTOMER SUPPLIED
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
2
1
1
1
2
1
1
1
1
1
9
6
7
5
SCALE 0.750
3
THIRD ANGLE PROJECTION
TOLERANCES: UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN U.S. INCHES.
261707 PCB - REFERENCE
261707 HATCH - STANDARD

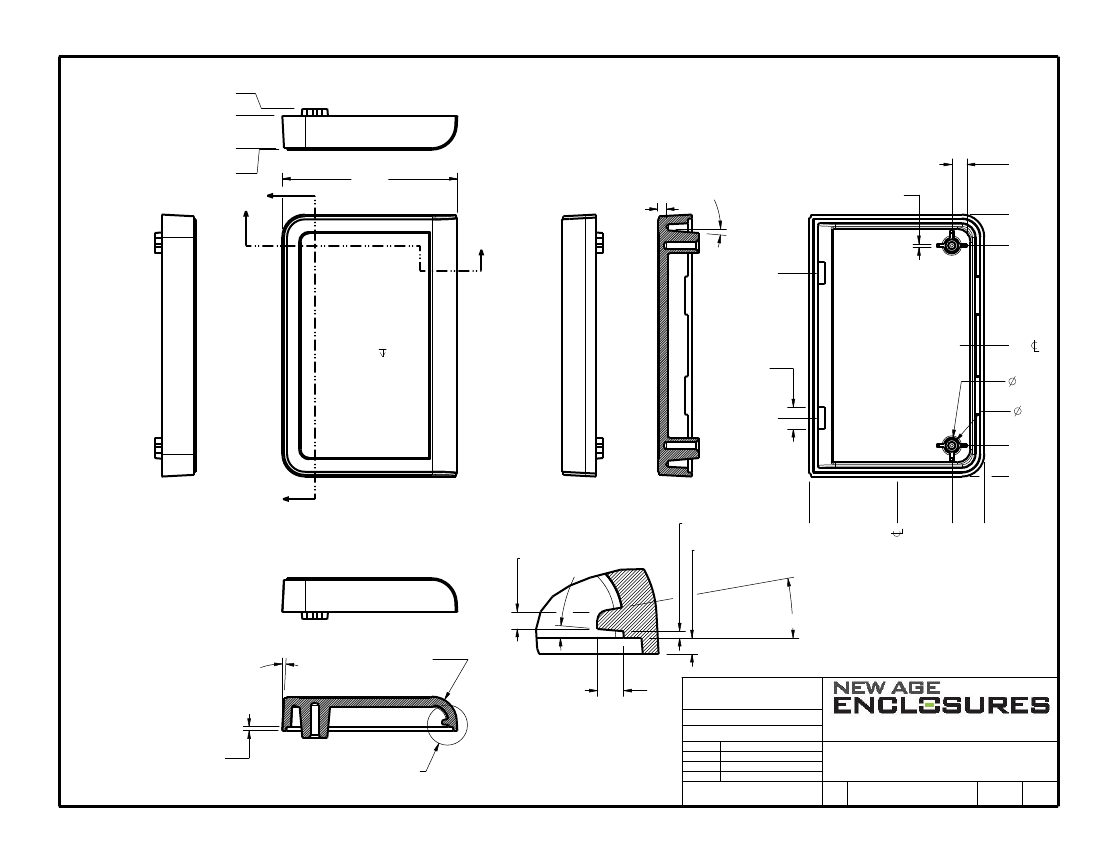

261707 COVER - STANDARD
261707 BELT CLIP
261707 BASE - STANDARD
DO NOT SCALE DRAWING
NOTICE: THE INFORMATION AND DATA
CONTAINED HEREIN IS CONSIDERED
PROPRIETARY TO ALLTEC INTEGRATED
MFG INC & SHALL REMAIN THE EXCLUSIVE
PROPERTY OF ALLTEC INTEGRATED MFG INC
THE HOLDER WILL ASSUME CUSTODY AND
CONTROL THAT THIS DOCUMENT WILL
NOT BE COPIED, REPRODUCED, OR
DISCLOSED WITHOUT THE EXPRESS WRITTEN
CONSENT OF ALLTEC INTEGRATED MFG INC
POSSESSION OF THIS DOCUMENT DOES
NOT CONSTITUTE A GRANT TO
MANUFACTURE ANY ITEMS.
© 2014
NEW AGE ENCLOSURES
Customer's Part No:
APPROVAL
CHECK
ENG.
SCALE
DRAWN BY
BY
DATE
X.XX = .015 X.XXXX = .001
X.XXX = .010
X.X° = 1°
261707
4330 Santa Fe Road
ph. (805) 595-1310
www.newageenclosures.com
San Luis Obispo, CA. 93401
fax (805) 595-1024
ITEM
FILE
NAME
DESCRIPTION
MATERIAL
COLOR
QTY.
AS NOTED
SIZE

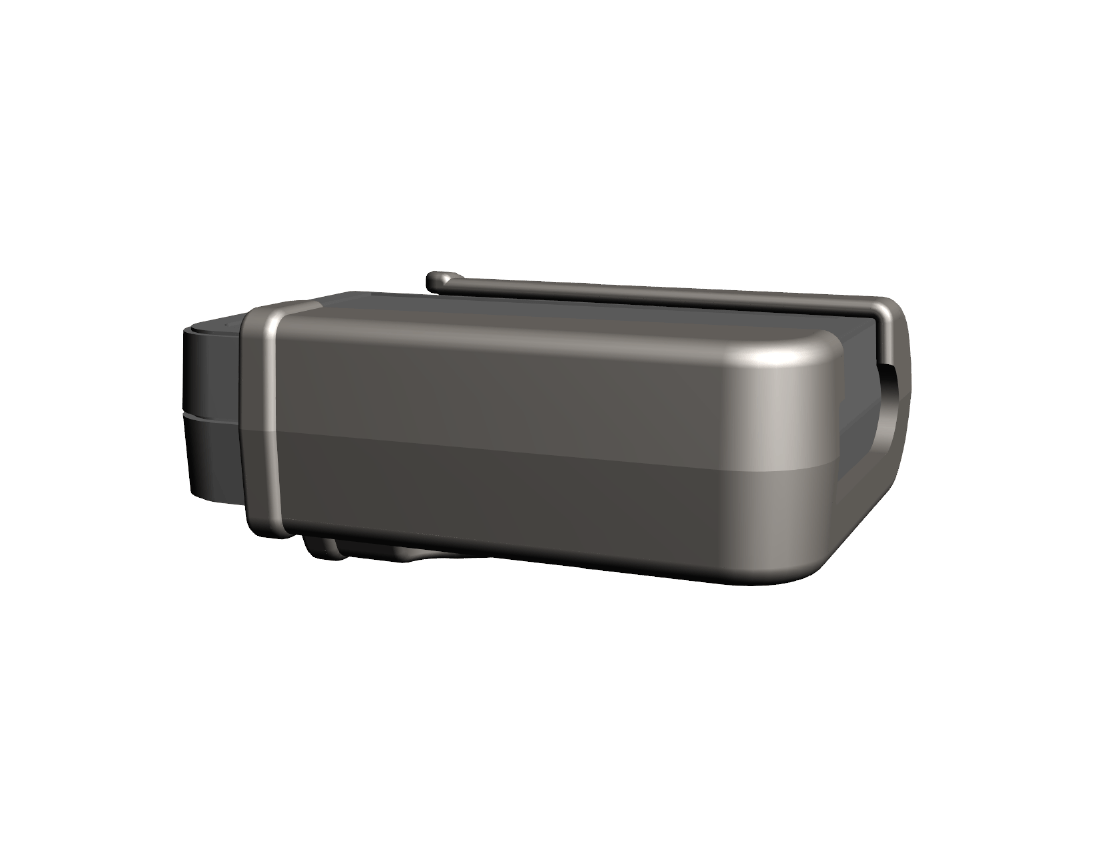

STANDARD - AAA FOB
SXX-261707-XXX
A
DRAWING NAME
SHEET
REV.DOC
BILL OF MATERIALS
M BOYER
17-May-13
261707_R1_0
1 OF 8
1.0
