1457C802E

Description
D-Sub Contacts SOCKET CONTACT 24-20 gold over copper
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size915KB,1 Pages
ManufacturerHammond
Websitehttp://www.hammondmfg.com
Download Datasheet Parametric Compare View All

1457C802E Online Shopping

Suppliers Part Number Price MOQ In stock
1457C802E - - View Buy Now

1457C802E Overview

D-Sub Contacts SOCKET CONTACT 24-20 gold over copper

1457C802E Parametric

Parameter NameAttribute value
Product CategoryEnclosures, Boxes, & Cases
ManufacturerHammond
RoHSDetails
ProductCases
TypeBench Top
MaterialAluminum
ColorTransparent
Length3.2 in
Width2.4 in
Height1.3 in
IP RatingIP65
Cover ColorTransparent
Dimensions3.2 in L x 2.4 in W x 1.3 in H
FeaturesDesigned to House P.C. Boards or for Equipment Interfacing
Height - in1.3
Height - mm33.02
Length - in3.2
Length - mm81.28
Factory Pack Quantity1
Width - in2.4
Width - mm60.96
Unit Weight3.840040 oz

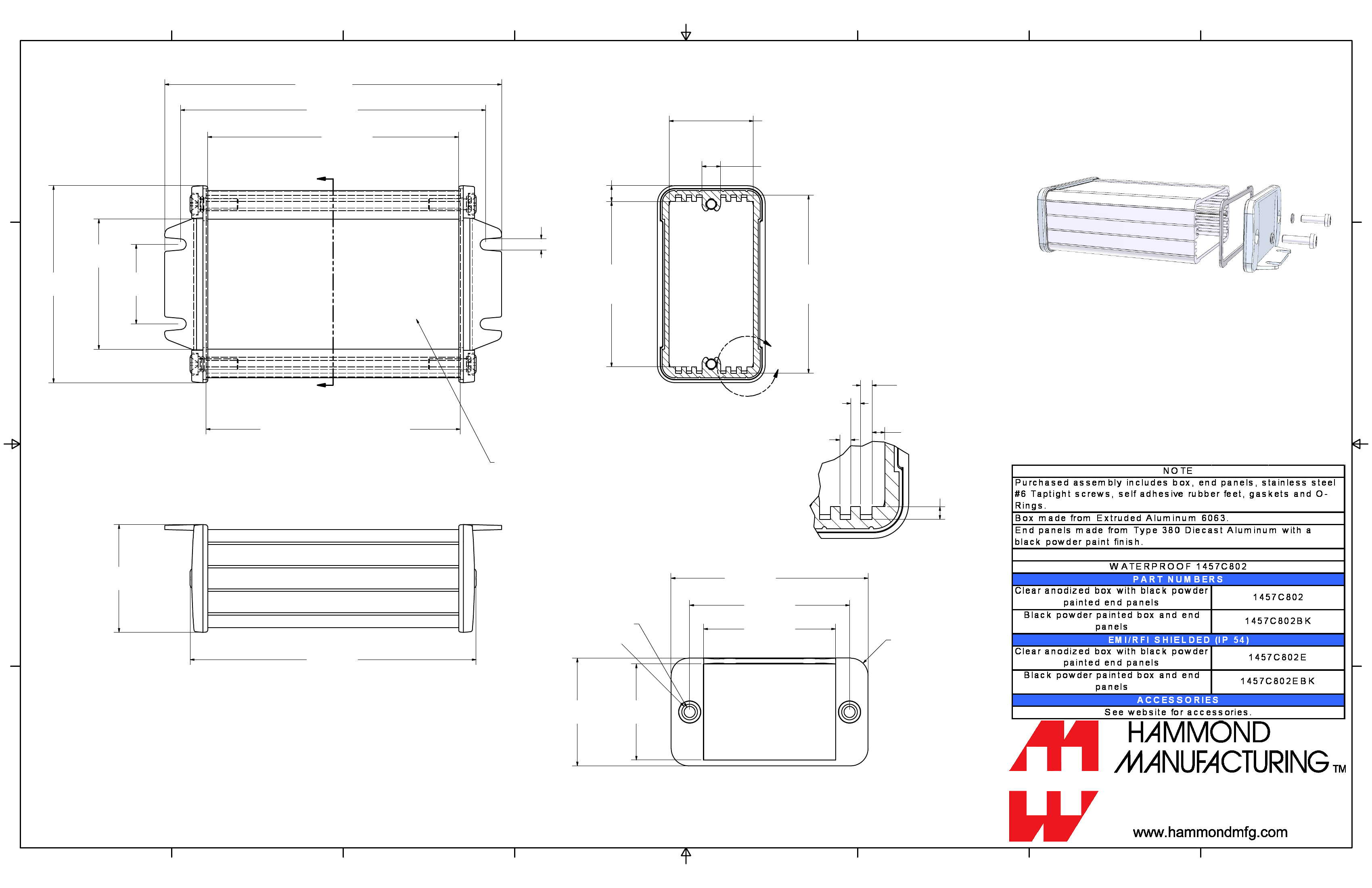

8
7
6
5
4
3
2
1
D
106.00 mm
[4.173 in]
96.00 mm
[3.780 in]
79.00 mm
[3.110 in]
[
1.041
5.00 mm
[0.197 in]
3.49 mm 4X
[0.137 in]
26.45
+0.00
mm
- 0.18
+0.000
- 0.007
in
]
D
G
5.85 mm
[0.230 in]
41.00 mm
[1.614 in]
62.00 mm
[2.441 in]
25.00 mm
[0.984 in]
[
2.047
52.00
+0.00
mm
- 0.18
+0.000
- 0.007
in
]
[
2.205
J
56.00
+0.00
mm
- 0.18
+0.000
- 0.007
in
]
C
1.85
+0.00
mm
- 0.18
+0.000
- 0.007
C
[
3.150
80.00
+0.54
mm
- 0.50
+0.02
- 0.02
G
in
]
SECTION G-G
1.50 mm
[0.059 in]
+0.00
- 0.18
[
0.073
in
]
PROTECTION TO IP 65
Enclosures
can be Factory Modified ( Milling, Drilling, Printing etc. )
Contact
Factory
mjm@hammondmfg.com for quotes
Solid
models of this enclosure available in STEP or IGES.
Inside Face to Face Dimension
.75mm (.030") Deep Recess For Labels/Keypads etc.
[
0.068
1.72
mm
in
+0.000
- 0.007
]
2.00 mm
[0.079 in]
ASSEMBLY - VIEW FROM TOP
2.00 mm
[0.079 in]
B
33.90 mm
[1.335 in]
n
3.50 mm
x
8.00 mm
v n
7.00 mm
x
2.00 mm 2X
n
5.00 mm
x
0.60 mm 2X
DETAIL J
62.00 mm
[2.441 in]
50.31 mm
[1.981 in]
41.52 mm
[1.635 in]
B
90.00 mm
[3.543 in]
R5.49 mm 2X
[0.216 in]
33.93 mm 30.23 mm
[1.336 in] [1.190 in]
Fits 80mm (3.149") X 55mm (2.165") PCB
Note: Aluminum extrusion has a tolerance of -/+ .02"
A
END PANEL - VIEW FROM OUTSIDE
A
1457C802
3
2
1
8
7
6
5
4

1457C802E Related Products

1457C802E 1457C802BK 1457C802EBK 1457C802
Description D-Sub Contacts SOCKET CONTACT 24-20 gold over copper Multi-Conductor Cables 20AWG 4C UNSHLD 100ft SPOOL SLATE D-Sub MIL Spec Connectors
Product Category Enclosures, Boxes, & Cases Enclosures, Boxes, & Cases Enclosures, Boxes, & Cases Enclosures, Boxes, & Cases
Manufacturer Hammond Hammond Hammond Hammond
RoHS Details Details Details Details
Product Cases Cases Cases Cases
Type Bench Top Bench Top Bench Top, Shielded Bench Top
Material Aluminum Aluminum Aluminum Aluminum
Color Transparent Black Black Transparent
Length 3.2 in 3.15 in 3.15 in 3.15 in
Width 2.4 in 2.4 in 2.32 in 2.4 in
Height 1.3 in 1.21 in 1.21 in 1.21 in
IP Rating IP65 IP65 IP65 IP65
Cover Color Transparent Black Black Transparent
Dimensions 3.2 in L x 2.4 in W x 1.3 in H 3.15 in L x 2.4 in W x 1.21 in H 3.15 in L x 2.32 in W x 1.21 in H 3.15 in L x 2.4 in W x 1.21 in H
Features Designed to House P.C. Boards or for Equipment Interfacing Designed to House P.C. Boards or for Equipment Interfacing Designed to House P.C. Boards or for Equipment Interfacing Designed to House P.C. Boards or for Equipment Interfacing
Height - in 1.3 1.21 1.21 1.21
Height - mm 33.02 30.734 30.734 30.734
Length - in 3.2 3.15 3.15 3.15
Length - mm 81.28 80.01 80.01 80.01
Factory Pack Quantity 1 1 1 1
Width - in 2.4 2.4 2.32 2.4
Width - mm 60.96 60.96 58.928 60.96
Unit Weight 3.840040 oz 3.200033 oz 4.000041 oz 4.000041 oz
