PTQ-11059: CategoryTopical application Mechanical and electrical/engineering/automation; File Size145KB，1 Pages; ManufacturerBud Industries

Download Datasheet Parametric View All

PTQ-11059 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PTQ-11059	-	-	View	Buy Now

PTQ-11059 Parametric

Parameter Name	Attribute value
Product Category	Electrical Enclosures
Manufacturer	Bud Industries
RoHS	Details
Product	Commercial Enclosures
Type	Hinged Cover
Material	Polycarbonate
Color	Gray
Length	300 mm
Width	199.9 mm
Height	150 mm
IP Rating	IP66
NEMA Rating	4X
Ventilation	Sealed
Dimensions	300 mm L x 199.9 mm W x 150 mm H
Features	High impact resistance
Factory Pack Quantity	1
Unit Weight	2.570 lbs

Preview

Download Datasheet

View All

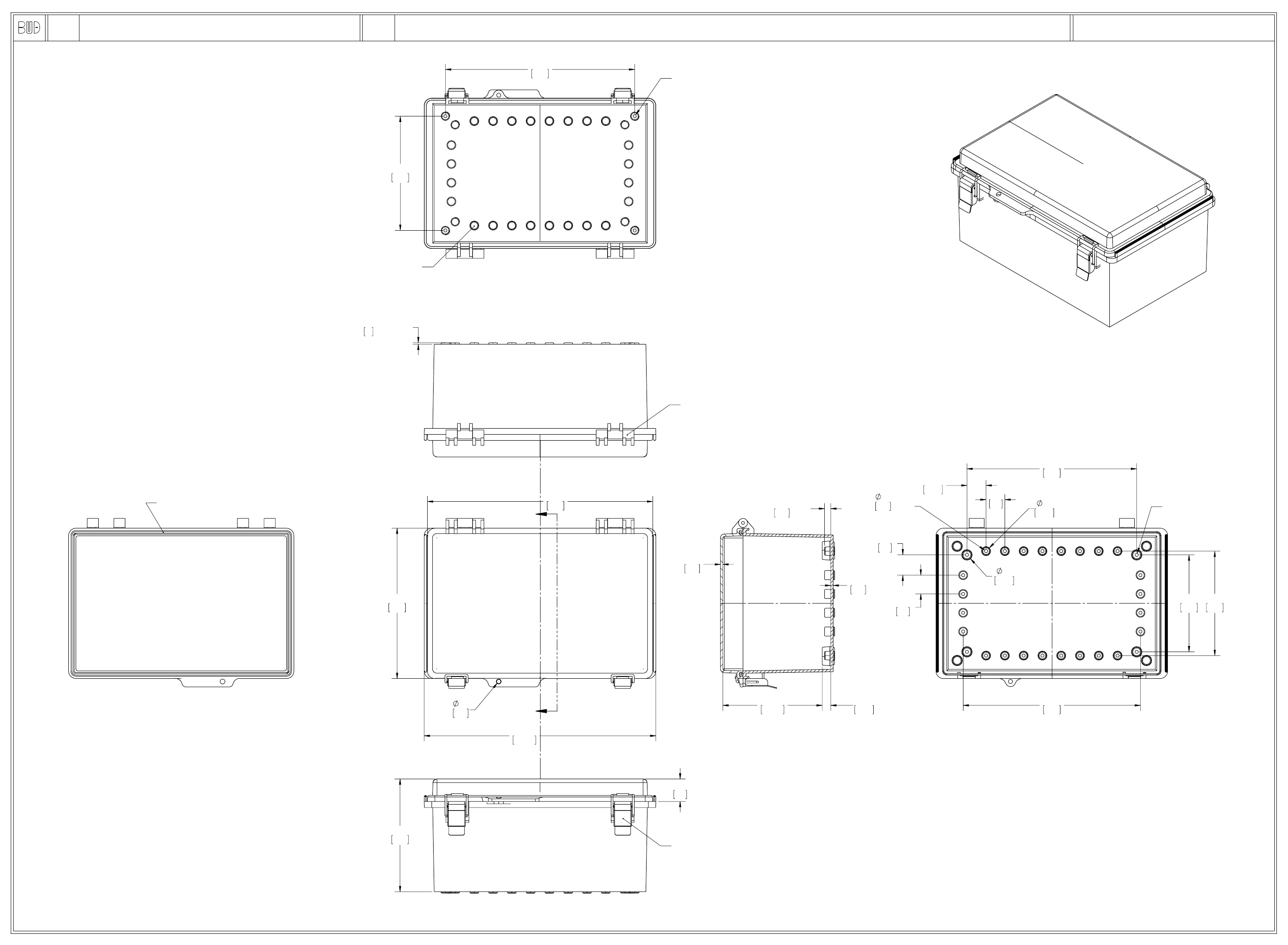

PART

NAME

PTQ SERIES ENCLOSURE

PART

No.

PTQ-11059 & PTQ-11059-C

9.92

252

REVISION

DATE

12-2-15

M5 THREADED INSERT (4X)

5.98

152

PADS (28X)

BOTTOM OF BODY

.08 PADS TYP.

2

HINGE (2X)

CONTINUOUS GASKET

A

11.81

300

.33 (24X)

8.3

.17 (24X)

4.2

x .28[7] DEEP

1.06

27

1.00

25.5

8.90

226

.98

25

.47 (24X)

11.9

M5 THREADED INSERT (4X)

.13

3.2

.13

3.2

.98

25

.55 (8X)

13.9

5.08

129

5.47

139

7.87

200

INSIDE VIEW OF COVER

.22

5.5

A

12.14

308.4

5.21

132.2

SECTION A-A

.45 (8X)

11.4

9.29

236

INSIDE VIEW OF BODY

1.18

30

NOTES:

1- MATERIAL: BODY - POLYCARBONATE 10% FIBERGLASS REINFORCED

COVER - POLYCARBONATE

UL508 /NEMA TYPE 4X WITH IP-67 TUV RATING & UL-94V0 RATING

2- FINISH: BODY - LIGHT GRAY

COVER - LIGHT GRAY OR CLEAR (-C)

3- ALL HOLE DIAMETERS HAVE +/- .005(0.13) TOLERANCE

ALL OTHER DIMENSIONS HAVE +/- 0.03(0.76) TOLERANCE UNLESS OTHERWISE SPECIFIED

5.91

150

LATCH (2X)

4- CONTINUOUS GASKET IN COVER

5- SUPPLIED WITH FOUR M5 x 10mm LG. TRUSS HEAD MACHINE SCREWS

6- DIMENSIONS ARE INCH [MM]

7- DRAWING FOR REFERENCE

8- OPTIONAL ACCESSORIES:

INTERNAL STEEL PANEL - #PTX-11059

INTERNAL PLASTIC PANEL - #PTX-11059-P

MOUNTING BRACKET KIT (STAINLESS STEEL) - #NBX-10922
