Printed-circuit board connector - MCDN 1,5/16-G1-3,81
P26THR - 1749667
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 16, Pitch: 3.81 mm, Color:
black, Contact surface: Tin, Mounting: THR soldering, The pin length is 2.6 mm. User information and design
recommendations on Through Hole Reflow Technology can be found at: "Downloads"

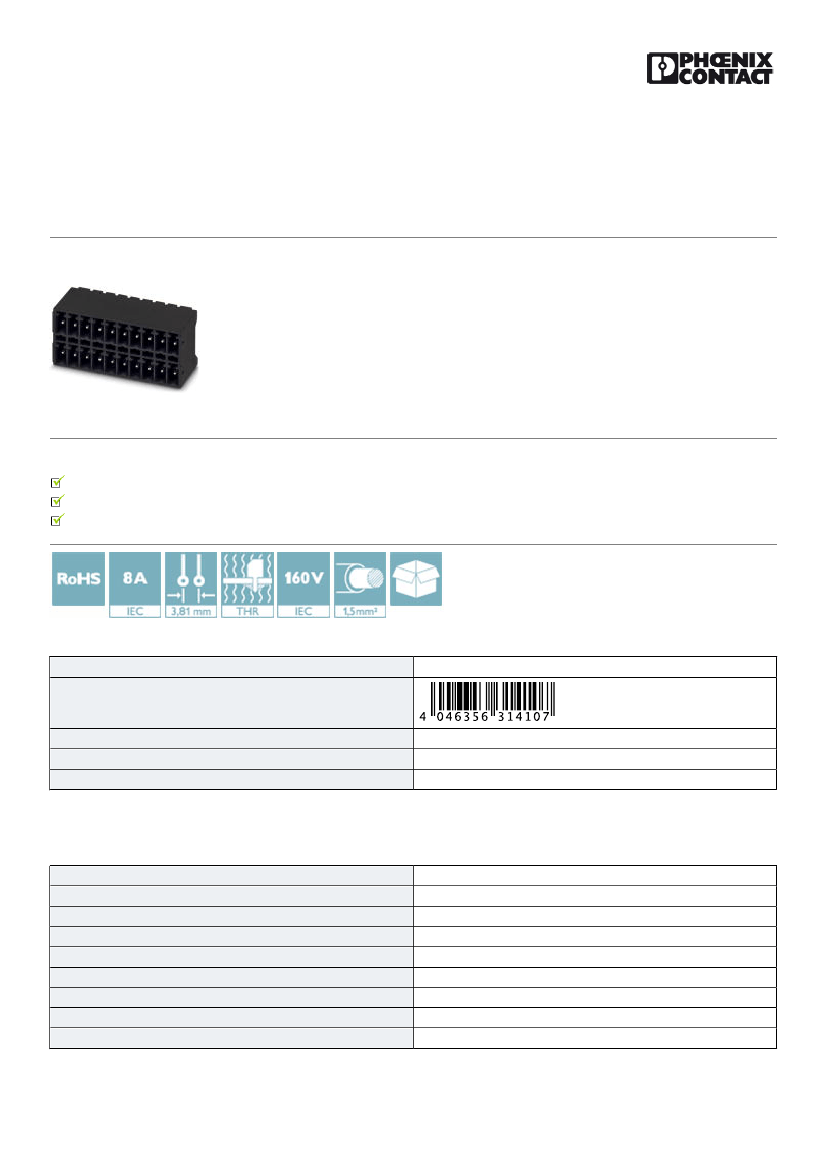

The figure shows a 10-pos. version
with 20 contacts
Why buy this product
Designed for integration into the SMT soldering process
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Conductor connection on several levels enables higher contact density
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356314107
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Width
Constructional height
Height
Length of the solder pin
Pin dimensions
Pin spacing
13.3 mm
3.81 mm
57.15 mm
62.05 mm
15.2 mm
17.8 mm
2.6 mm
0,8 x 0,8
3.50 mm
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1749667
Printed-circuit board connector - MCDN 1,5/16-G1-3,81
P26THR - 1749667
Technical data
Dimensions
Hole diameter
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
MCDN 1,5/..-G1-THR
IIIa
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
250 V
EN-VDE
8A
8 A (per position)
LCP
V0
black
16
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

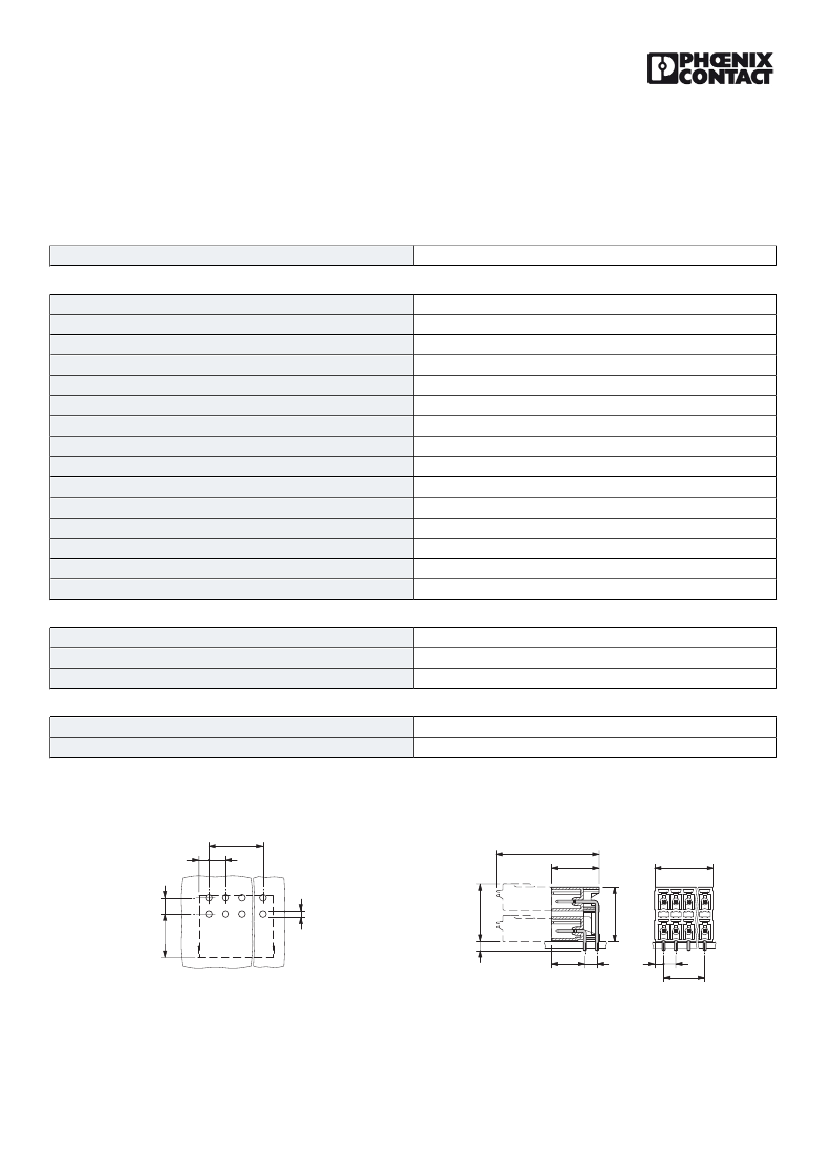

Drawings
Drilling diagram
a
2,45
3,81
Dimensional drawing
29,6
13,3
a+4,9
3,5
1,4
9,3
15,2
16
2,6
9,3
3,5
2,45
3,81
a
*) ≤ 8-pos. = 1.3 / > 8-pos. = 1.4
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1749667
Printed-circuit board connector - MCDN 1,5/16-G1-3,81
P26THR - 1749667
Approvals
Approvals
Approvals
VDE Gutachten mit Fertigungsüberwachung / cULus Recognized / IECEE CB Scheme / EAC
Ex Approvals
Approval details
VDE Gutachten mit Fertigungsüberwachung
Search.aspx 40011723
Nominal current IN
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-
8A
160 V
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20110128
Nominal current IN
Nominal voltage UN
B
8A
150 V
D
8A
150 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ DE1-56063-B1B2
8A
160 V
EAC B.01742
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
