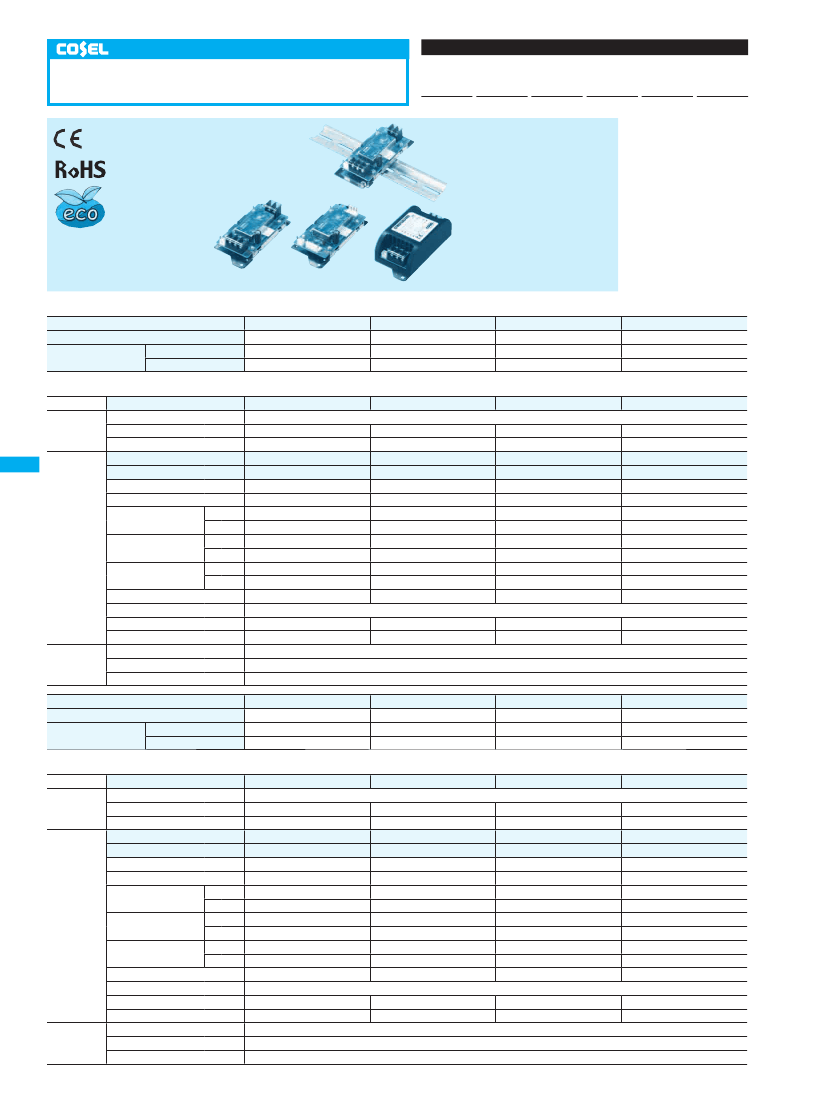

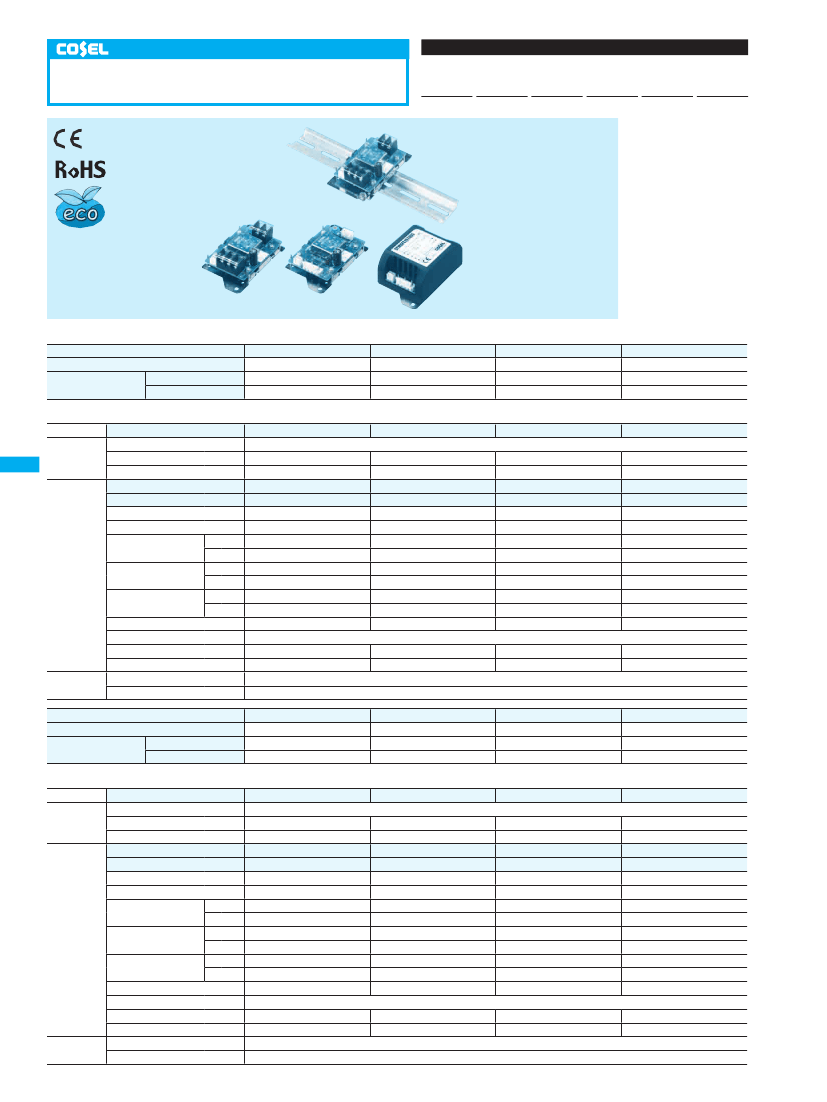

DC-DC Converters PCB Mount Value-added Type
Ordering information
STMGFS15
STMGF S
1
2
3
15
4
24
5
05
6
-O
DIN rail installation type
(Option : -N2)
Standard type
Connector type
(Option : -J)
Connector with case cover
(Option : -JN1)
1
Series name
2
Single output
3
Output wattage
4
Input voltage
5
Output voltage
6
Optional
G : Capacitor between
Input and Output is removed.
R : with Remote ON/OFF
(Positive logic control)
J : Input/Output Connector
JN1 : Connector with case cover
N2 : With DIN rail installation type
JN3 : Connector with cover(plastic)
and DIN rail installation type
V : Output voltage setting
potentiometer externally
*When
the option is set
specifications may vary.
*Please
remove short piece on CN4 to enable remote ON/OFF function.
MODEL
MAX OUTPUT WATTAGE[W]
VOLTAGE[V]
DC OUTPUT
CURRENT[A]]
*1
STMGFS15243R3
13.2
3.3
4
STMGFS152405
15
5
3
STMGFS152412
15.6
12
1.3
STMGFS152415
15
15
1
SPECIFICATIONS
STMG
MODEL
VOLTAGE[V]
*2
INPUT
CURRENT[A]
*2
EFFICIENCY[%]
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
0 to +60C
RIPPLE[mVp-p]
*3
-20 to +60C
0 to +60C
RIPPLE NOISE[mVp-p]
OUTPUT
*3
-20 to +60C
0 to +60C
TEMPERATURE REGULATION[mV]
-20 to +60C
*4
DRIFT[mV]
START-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE
OUTPUT VOLTAGE SETTING[V]
*5
PROTECTION
OVERCURRENT PROTECTION
CIRCUIT AND
REMOTE ON/OFF
OTHERS
MODEL
MAX OUTPUT WATTAGE[W]
VOLTAGE[V]
DC OUTPUT
CURRENT[A]]
STMGFS15243R3
STMGFS152405
DC9 - 36
0.63typ
0.71typ
87typ
88typ
3.3
5
4
3
13.2max
20max
60max
60max
75max
75max
100max
100max
120max
120max
200max
200max
50max
50max
80max
80max
20max
20max
30max (Minimum input, Io=100%)
2.97 - 3.63
4.50 - 5.50
3.29 - 3.41
4.97 - 5.14
Works over 105% of rating and recovers automatically
Provided (Negative logic L:ON, H:OFF)
STMGFS15483R3
13.2
3.3
4
STMGFS154805
15
5
3
STMGFS152412
0.73typ
89typ
12
1.3
48max
100max
100max
120max
150max
200max
150max
240max
48max
10.80 - 13.20
11.85 - 12.25
STMGFS152415
0.70typ
89typ
15
1
60max
120max
100max
120max
150max
200max
180max
290max
60max
13.50 - 16.50
14.83 - 15.33
*1
STMGFS154812
15.6
12
1.3
STMGFS154815
15
15
1
SPECIFICATIONS
MODEL
VOLTAGE[V]
*2
INPUT
CURRENT[A]
*2
EFFICIENCY[%]
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
0 to +60C
RIPPLE[mVp-p]
*3
-20 to +60C
0 to +60C
RIPPLE NOISE[mVp-p]
OUTPUT
*3
-20 to +60C
0 to +60C
TEMPERATURE REGULATION[mV]
-20 to +60C
*4
DRIFT[mV]
START-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE
OUTPUT VOLTAGE SETTING[V]
*5
PROTECTION
OVERCURRENT PROTECTION
CIRCUIT AND
REMOTE ON/OFF
OTHERS
STMGFS15483R3
STMGFS154805
DC18 - 76
0.32typ
0.36typ
87typ
88typ
3.3
5
4
3
13.2max
20max
60max
60max
75max
75max
100max
100max
120max
120max
200max
200max
50max
50max
80max
80max
20max
20max
30max (Minimum input, Io=100%)
2.97 - 3.63
4.50 - 5.50
3.29 - 3.41
4.97 - 5.14
Works over 105% of rating and recovers automatically
Provided (Negative logic L:ON, H:OFF)
STMGFS154812
0.37typ
88typ
12
1.3
48max
100max
100max
120max
150max
200max
150max
240max
48max
10.80 - 13.20
11.85 - 12.25
STMGFS154815
0.35typ
89typ
15
1
60max
120max
100max
120max
150max
200max
180max
290max
60max
13.50 - 16.50
14.83 - 15.33
STMG-2
STMGFS15
GENERAL SPECIFICATIONS
INPUT-RC-OUTPUT
ISOLATION
INPUT-RC-FG
OUTPUT-FG
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
SAFETY
OTHERS
*1
*2
*3
*4
*5
*
DC1,500V 1minute, Cutoff current = 10mA, DC500V 1,000MW min (20±15C)
DC1,000V 1minute, Cutoff current = 10mA, DC500V 1,000MW min (20±15C)
DC1,000V 1minute, Cutoff current = 10mA, DC500V 1,000MW min (20±15C)
-20 to +75C, 20 to 95%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each along X, Y and Z axis
UL60950-1, C-UL, EN60950-1 Complies
52×27×93mm [2.05×1.06×3.66 inches] (WXHXD) / 110g max (When the option is set, refer to the page STMG-6)
Convection/Forced air
OPERATING TEMP.,HUMID.AND ALTITUDE
-20 to +70C, 20 to 95%RH (Non condensing) (Required Derating), 3,000m (10,000feet) max
ENVIRONMENT
AGENCY APPROVALS
CASE SIZE/WEIGHT
COOLING METHOD
STMGFW15xx05/STMGFW15xx12/STMGFW15xx15 is available as single output, +10V/+24V/+30V
Rated input 12V, 24V or 48V DC lo=100%
Measured by 100MHz oscilloscpe or Ripple-Noise meter (Equivalent to KIKUSUI-GIKEN : RM103).
Drift is the DC output accuracy for eight hours period after a half-hour warm-up at 25C.
Rated input voltage (DC24V, DC48V), rated output wattage, ambient temperature at 25C.
Parailel operation with other model is not possible.

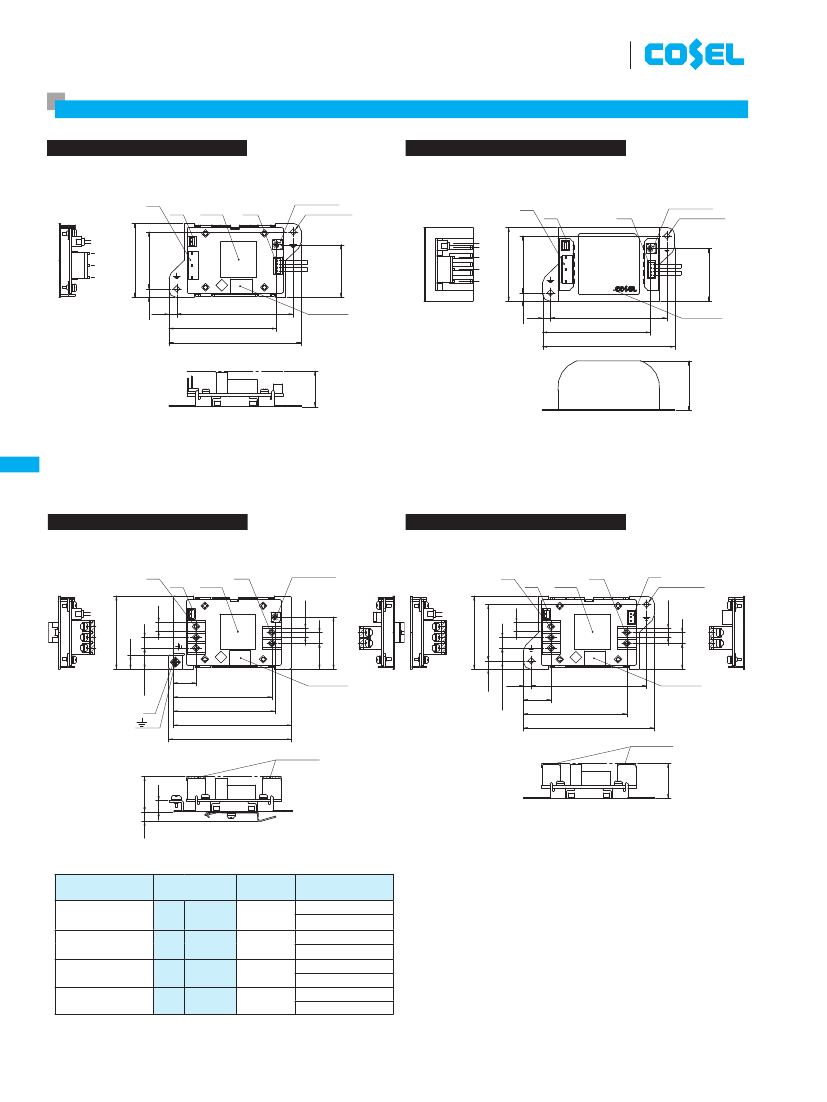

External view
Standard type
*
External view of option G, R are the same as standard model.
External view of other type options, please refer to the page STMG-6.
TB1
M3
TB2
M3
Voltage Adjust
2-f4.5
[f0.177]
Mounting Hole
[0.24]
STMG
CN4
Point A
37.1
±1.5
[0.73]
18.4
±1.5
7.6
[0.24]
15.1
±1.5
[0.59]
5.5
[0.22]
19.6
±1.5
[0.77]
82
±0.5
[3.23]
73.5
±1.5
[2.89]
Name Plate
6
75.8
±1.5
[2.98]
93
[3.66]
Terminal cover
I/O Connector
Remote ON/OFF
CN4
B2B-XH
Mating
Connector
XHP-2
Terminal
Chain : SXH-001T-P0.6
Loose : BXH-001T-P0.6
(Mfr.:J.S.T.)
*
Tolerance ±1
*
Dimensions in mm, [ ]=inches
*
Weight : 110g max
*
PCB material / thickness : FR-4 / 1.6mm
*
Mounting plate : Iron (surface finishing : nickel plating) t=1.0 [0.04]
*
Terminal block screw tightning torque M3 : 0.8N-m (8.5kgf-cm) max
*
CN4 has been installed short piece as factory setting (Except option R).
When remoto ON/OFF is used, please remove the installed short piece.
[1.06] max
27max
[1.46]
RC(-)
RC(+)
-Vin
+Vin
FG
6.2
[0.24]
6.2
[2.05]
40
±0.5
[1.57]
7.6
[0.3]
52
[0.3]
2
1
-Vout
+Vout
STMG-3
DC-DC Converters PCB Mount Value-added Type
