1600198: DescriptionCircular Metric Connectors RC-12S2N8AQ0EN; CategoryThe connector; File Size65KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

1600198 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1600198	-	-	View	Buy Now

1600198 Overview

Circular Metric Connectors RC-12S2N8AQ0EN

1600198 Parametric

Parameter Name	Attribute value
Product Category	Circular Metric Connectors
Manufacturer	PHOENIX CONTACT
Factory Pack Quantity	1
Unit Weight	3.658968 oz

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/hq/products/1600198

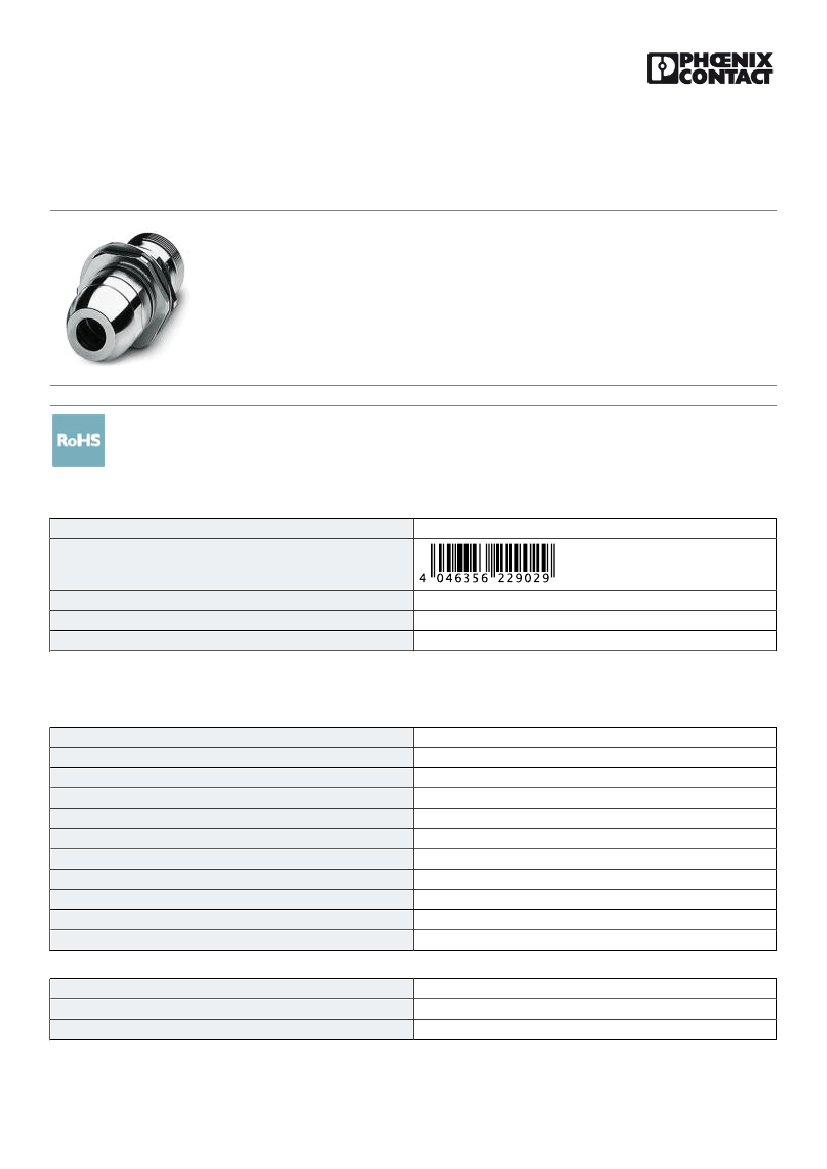

Rear panel feed-through - RC-12S2N8AQ0EN - 1600198

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Feed-through of rear wall, straight, shielded: yes, Screw locking, M23, Number of positions: 12, Type of

contact: Socket, Crimp connection, Axial O-ring, Central fixing, Panel thickness min.: 0.8 mm, Panel thickness

max.: 6.5 mm, Cable diameter: 3 mm ... 10.5 mm

Key Commercial Data

Packing unit

GTIN

Custom tariff number

Note

4046356229029

85366990

Made to Order (non-returnable)

10 STK

Technical data

Data of the insulating body

Note

Coding

Contact connection method

Type of contacts

Number of positions

Contact diameter of power contacts

Nominal current per power contact at 25°C

Nominal voltage, power contact

Rated surge voltage

Overvoltage category

Degree of pollution

Order information: Order crimp contacts Ø 1 mm separately

N

Crimp connection

Socket

12

1 mm

8A

150 V

1.5 kV

II

3

Housing data

Housing material

Type of locking

Degree of protection (when plugged in)

Metal

Screw locking

IP67

11/14/2016 Page 1 / 3
