EL8186
Data Sheet
March 9, 2006
FN7455.5
Micropower Single Supply Rail-to-Rail
Input-Output Op Amp
The EL8186 is a micropower operational amplifier optimized
for single supply operation at 5V and can operate down to
2.4V.
The EL8186 draws minimal supply current while meeting
excellent DC-accuracy noise and output drive specifications.
Competing devices seriously degrade these parameters to
achieve micropower supply current. Offset current, voltage
and current noise, slew rate, and gain-bandwidth product are
all two to ten times better than on previous micropower op
amps.
The EL8186 can be operated from one lithium cell or two
Ni-Cd batteries. The input range includes both positive and
negative rail. The output swings to both rails.
Features
• 55µA supply current
• 400µV typical offset voltage
• 500pA input bias current
• 400kHz gain-bandwidth product
• 1MHz -3dB bandwidth
• 0.13V/µs slew rate
• Single supply operation down to 2.4V
• Rail-to-rail input and output
• Output sources and sinks 26mA load current
• Pb-Free plus anneal available (RoHS compliant)
Applications
• Battery- or solar-powered systems
• 4mA to 25mA current loops
• Handheld consumer products
• Medical devices
• Thermocouple amplifiers
• Photodiode pre amps
• pH probe amplifiers
Ordering Information
PART NUMBER
PART
(BRAND)
MARKING
EL8186IW-T7
EL8186IW-T7A
EL8186IWZ-T7
(Note)
BBJA
BBJA
BBRA
TAPE &
REEL
PACKAGE
PKG.
DWG. #
7”
6-Pin SOT-23 MDP0038
(3K pcs)
7”
6-Pin SOT-23 MDP0038
(250 pcs)
7”
6-Pin SOT-23 MDP0038
(3K pcs)
(Pb-free)
7”
6-Pin SOT-23 MDP0038
(250 pcs)
(Pb-free)
-
7”
13”
8-Pin SO
(Pb-free)
8-Pin SO
(Pb-free)
8-Pin SO
(Pb-free)
MDP0027
MDP0027
EL8186IWZ-T7A BBRA
(Note)
EL8186ISZ
(Note)
EL8186ISZ-T7
(Note)
EL8186ISZ-T13
(Note)
8186ISZ
8186ISZ
8186ISZ
Pinouts
EL8186
(6-PIN SOT-23)
TOP VIEW
OUT 1
6 VS+
+ -
5 ENABLE
4 IN-
MDP0027
VS- 2
IN+ 3
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100% matte
tin plate termination finish, which are RoHS compliant and compatible
with both SnPb and Pb-free soldering operations. Intersil Pb-free
products are MSL classified at Pb-free peak reflow temperatures that
meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
EL8186
(8-PIN SO)
TOP VIEW
NC 1
IN- 2
IN+ 3
VS- 4
-
+
8 ENABLE
7 VS+
6 VOUT
5 NC
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2004, 2005, 2006. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
EL8186
Absolute Maximum Ratings
(T
A
= 25°C)
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5V
Differential Input Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mA
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to V
S
+ 0.5V
Output Short-Circuit Duration . . . . . . . . . . . . . . . . . . . . . . .Indefinite
Ambient Operating Temperature Range . . . . . . . . . .-40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . . . . . . .-65°C to +150°C
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
IMPORTANT NOTE: All parameters having Min/Max specifications are guaranteed. Typical values are for information purposes only. Unless otherwise noted, all tests
are at the specified temperature and are pulsed tests, therefore: T
J
= T
C
= T
A
Electrical Specifications
PARAMETER
V
OS
∆V
OS
---------------
-
∆T
I
OS
I
B
e
N
V
S
= 5V, 0V, V
CM
= 0.1V, V
O
= 1.4V, T
A
= 25°C unless otherwise specified.
CONDITIONS
MIN
TYP
0.4
1
0.4
0.5
f = 0.1Hz to 10Hz
f
O
= 1kHz
f
O
= 1kHz
Guaranteed by CMRR test
V
CM
= 0V to 5V
V
S
= 2.4V to 5V
V
O
= 0.5V to 4.5V, R
L
= 100kΩ
V
O
= 0.5V to 4.5V, R
L
= 1kΩ
0
90
90
200
110
110
500
25
3
130
4.994
4.8
0.09
f
O
= 100kHz
Unity gain, C
LOAD
= 27pF, R
F
= 100
40
4.997
4.88
0.13
400
1
55
3
R
L
= 10Ω
R
L
= 10Ω
18
17
31
26
2.2
2.4
2
0.8
V
EN
= 5V
V
EN
= 0V
0.25
-0.5
0.7
0
2
+0.5
75
10
0.17
6
200
1
25
0.1
5
2
3
MAX
1
UNIT
mV
µV/°C
nA
nA
µV
PP
nV/√Hz
pA/√Hz
V
dB
dB
V/mV
V/mV
mV
mV
V
V
V/µs
kHz
MHz
µA
µA
mA
mA
V
V
V
µA
µA
DESCRIPTION
Input Offset Voltage
Input Offset Drift vs Temperature
Input Offset Current
Input Bias Current
Input Noise Voltage Peak-to-Peak
Input Noise Voltage Density
i
N
CMIR
CMRR
PSRR
A
VOL
Input Noise Current Density
Input Voltage Range
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Large Signal Voltage Gain
V
OUT
Maximum Output Voltage Swing
Output low, R
L
= 100kΩ
Output low, R
L
= 1kΩ
Output high, R
L
= 100kΩ
Output high, R
L
= 1kΩ
SR
GBW
BW
I
S,ON
I
S,OFF
I
O
+
I
O
-
V
S
V
INH
V
INL
I
ENH
I
ENL
Slew Rate
Gain Bandwidth Product
-3dB Bandwidth
Supply Current, Enabled
Supply Current, Disabled
Short Circuit Output Current
Short Circuit Output Current
Minimum Supply Voltage
Enable Pin High Level
Enable Pin Low Level
Enable Pin Input Current
Enable Pin Input Current
2
FN7455.5
March 9, 2006
EL8186
Typical Performance Curves
6
V
S
=±1.25V
GAIN (dB)
45
40
3
35
30
GAIN (dB)
0
V
S
=±2.5V
-3
A
V
=1
C
L
=27pF
R
F
=100Ω
R
G
=OPEN
10K
V
S
=±1.0V
25
20
A
V
=100
15 R
L
=10kΩ
C
L
=2.7pF
10 R /R =99.02
F G
R
F
=221kΩ
5
R
G
=2.23kΩ
0
100
1K
V
S
=±2.5V
V
S
=±1.25V
V
S
=±1.0V
-6
-9
1K
100K
1M
FREQUENCY (Hz)
10M
10K
FREQUENCY (Hz)
100K
1M

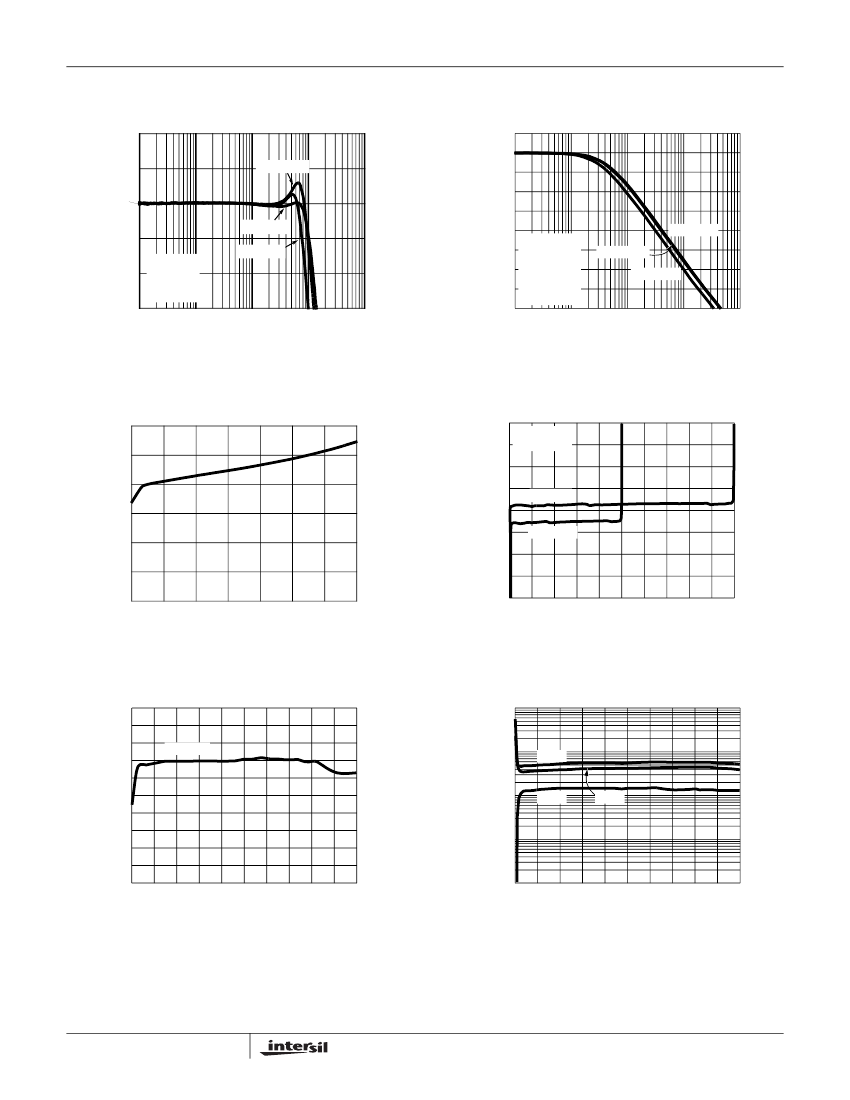

FIGURE 1. UNITY GAIN FREQUENCY RESPONSE vs
SUPPLY VOLTAGE
FIGURE 2. FREQUENCY RESPONSE vs SUPPLY VOLTAGE
60
50
40
30
20
10
0
INPUT OFFSET VOLTAGE (µV)
200
V
CM
=V
DD
/2
150 A
V
=-1
100
50
0
-50
-100
-150
-200
0
1
2
3
4
5
V
DD
=2.5V
V
DD
=5V
SUPPLY CURRENT (µA)
2
2.5
3
3.5
4
4.5
5
5.5
SUPPLY VOLTAGE (V)
OUTPUT VOLTAGE (V)
FIGURE 3. SUPPLY CURRENT vs SUPPLY VOLTAGE
FIGURE 4. INPUT OFFSET VOLTAGE vs OUTPUT VOLTAGE
-20
V
OS
, µV
INPUT BIAS, OFFSET CURRENTS (pA)
0
INPUT OFFSET VOLTAGE (µV)
10K
1K
I
B
+
-40
100
I
OS
I
B
-
-60
-80
10
-100
0
1
2
3
4
5
1
0
1
2
3
4
5
COMMON-MODE INPUT VOLTAGE (V)
COMMON-MODE INPUT VOLTAGE (V)
FIGURE 5. INPUT OFFSET VOLTAGE vs COMMON-MODE
INPUT VOLTAGE
FIGURE 6. INPUT BIAS + OFFSET CURRENTS vs COMMON-
MODE INPUT VOLTAGE
3
FN7455.5
March 9, 2006
EL8186
Typical Performance Curves
100
80
PHASE
60
GAIN (dB)
40
0
20
0
-20
10
GAIN
-50
-100
100
1K
10K
100K
-150
1M
-40
-80
(Continued)
200
150
100
PHASE (°)
50
40
0
PHASE (°)
GAIN (dB)
120
80
80
40
0
-40
-80
1
10
100
1K
10K
100K
1M
-120
10M
FREQUENCY (Hz)
FREQUENCY (Hz)
FIGURE 7. A
VOL
vs FREQUENCY @ 1kΩ LOAD
FIGURE 8. A
VOL
vs FREQUENCY @ 100kΩ LOAD
120
110
100
90
80
PSRR (dB)
70
60
50
40
30
20
10
0
1
10
100
1K
10K
100K
1M
PSRR-
PSRR+
CMRR (dB)
120
110
100
90
80
70
60
50
40
30
20
10
0
1
10
100
1K
10K
100K
1M
FREQUENCY (Hz)
FREQUENCY (Hz)

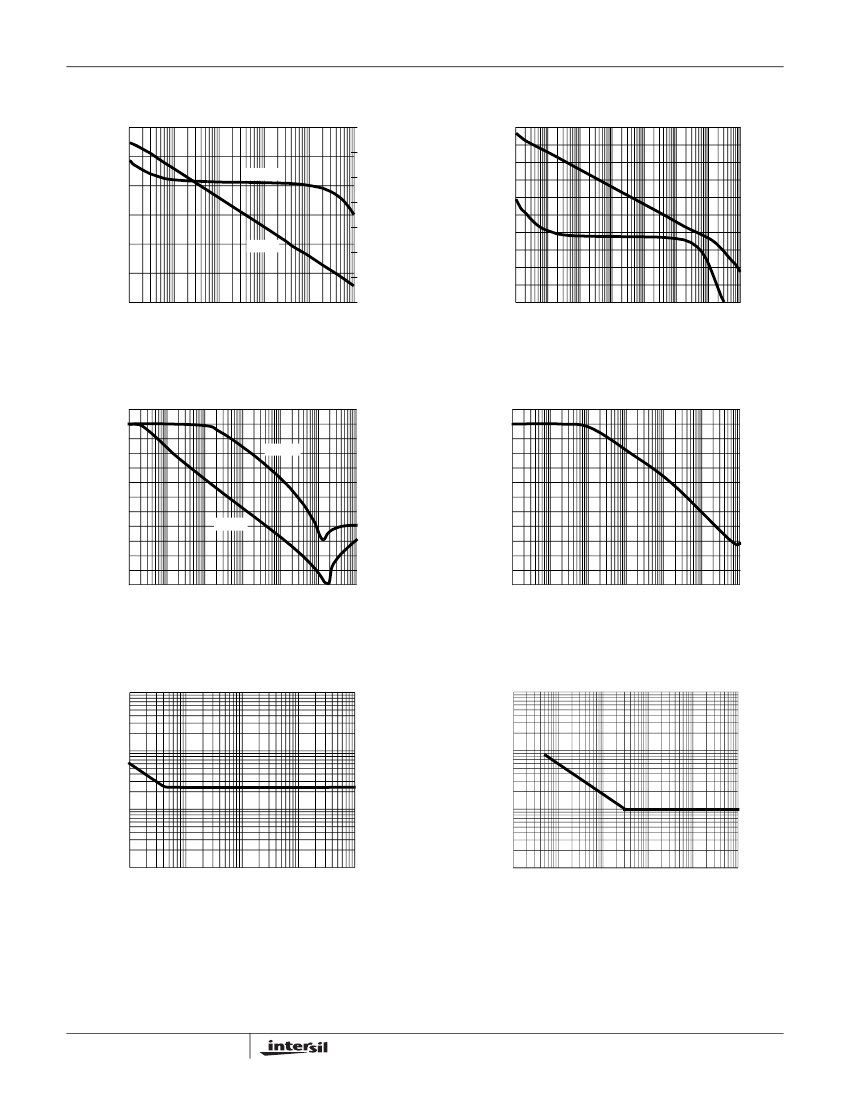

FIGURE 9. PSRR vs FREQUENCY
FIGURE 10. CMRR vs FREQUENCY
1K
CURRENT NOISE (pA/√Hz)
100
1K
FREQUENCY (Hz)
10K
100K
VOLTAGE NOISE (nV/√Hz)
10.00
100
1.00
10
0.10
1
10
0.01
1
10
100
1K
10K
100K
FREQUENCY (Hz)
FIGURE 11. VOLTAGE NOISE vs FREQUENCY
FIGURE 12. CURRENT NOISE vs FREQUENCY
4
FN7455.5
March 9, 2006
EL8186
Typical Performance Curves
(Continued)
VOLTAGE NOISE (200nV/DIV)
1µV
P-P
TIME (1s/DIV)

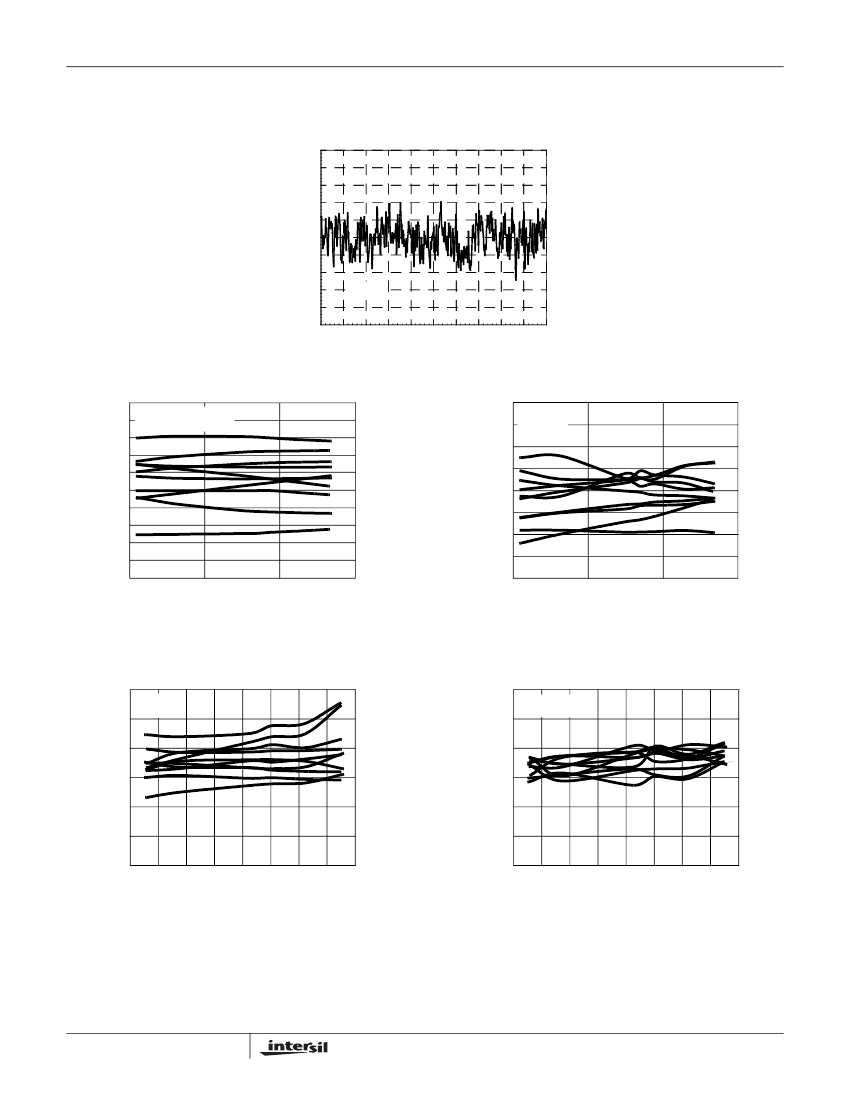

FIGURE 13. 0.1Hz TO 10Hz INPUT VOLTAGE NOISE
500
INPUT OFFSET VOLTAGE (µV)
400
300
200
100
0
-100
-200
-300
-400
-500
-50
0
50
100
PSRR (dB)
SOT23-6 PACKAGE
10 SAMPLES
130
125
120
115
110
105
100
95
90
-50
0
50
TEMPERATURE (°C)
100
SOT23-6
PACKAGE
TEMPERATURE (°C)
FIGURE 14. V
OS
vs TEMPERATURE
FIGURE 15. PSRR vs TEMPERATURE
120
115
110
105
100
95
90
-60
SOT23-6
PACKAGE
130
SOT23-6
PACKAGE
125
OPEN LOOP GAIN (dB)
-40
-20
0
20
40
60
80
100
120
115
110
105
100
-60
CMRR (dB)
-40
-20
0
20
40
60
80
100
TEMPERATURE (°C)
TEMPERATURE (°C)
FIGURE 16. CMRR vs TEMPERATURE
FIGURE 17. A
VOL
vs TEMPERATURE
5
FN7455.5
March 9, 2006
