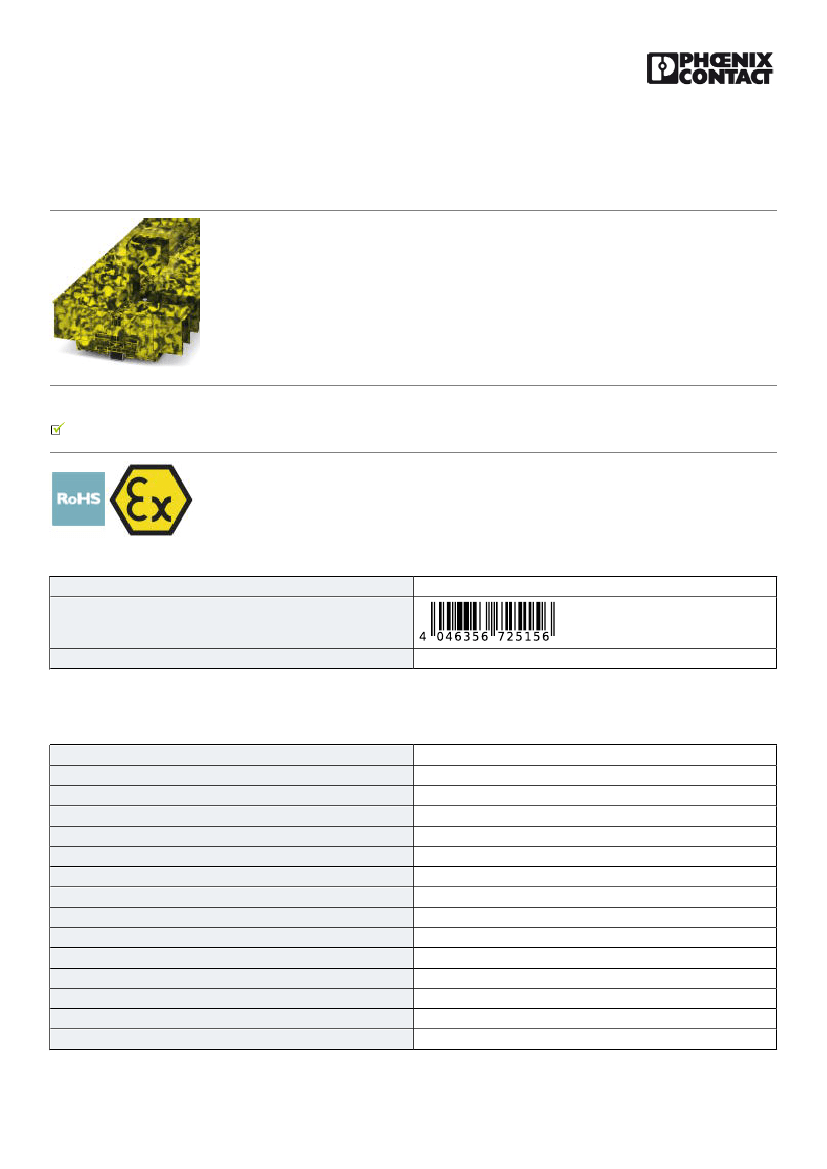

Bolt connection terminal block - RBO 12-FE-HC - 3247988
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bolt connection terminal block, nom. voltage: 1500 V, nominal current: 415 A, connection method: Bolt
connection, number of connections: 2, number of positions: 1, width: 49 mm, color: black/yellow, mounting
type: NS 35/7,5, NS 35/15, direct screw connection
Your advantages
Tested for railway applications
Key Commercial Data
Packing unit
GTIN
GTIN
4046356725156
5 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
1
2
1
240 mm²
black/yellow
PA
V0
Railway industry
Machine building
Plant engineering
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
8 kV
3
III
I
10/30/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3247988
Bolt connection terminal block - RBO 12-FE-HC - 3247988
Technical data
General
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Note regarding shock protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
13.78 W
415 A (with 240 mm² conductor cross section)
415 A
1500 V
No
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Touch proofness is effective only if the ring cable lug is insulated with a
shrink sleeve and does not extend beyond the cover.
Test passed
12 kV
Test passed
2.7 kV
Test passed
Test passed
NS 35
20 N
Test passed
≤ 3.2 mV
Test passed
Test passed
240 mm²
28.8 kA
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
1.857 (m/s ) /Hz
0,8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
10/30/2018 Page 2 / 5
2 2
https://www.phoenixcontact.com/pi/products/3247988
Bolt connection terminal block - RBO 12-FE-HC - 3247988
Technical data
General
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
X-, Y- and Z-axis (pos. and neg.)
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Pitch
49 mm
265 mm
83.3 mm
90.8 mm
49 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Connection bolts
Bolt connection
IEC 60947-7-1
10 mm²
240 mm²
8
500
DIN 46234
10 mm²
240 mm²
13 mm
38 mm
12 mm
M12
14 Nm
10/30/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3247988
Bolt connection terminal block - RBO 12-FE-HC - 3247988
Technical data
Connection data
Tightening torque max
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Screw thread
Tightening torque, min
Tightening torque max
30 Nm
DIN 46235
25 mm²
240 mm²
13 mm
42 mm
12 mm
M12
14 Nm
30 Nm
M12
14 Nm
30 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CSA
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

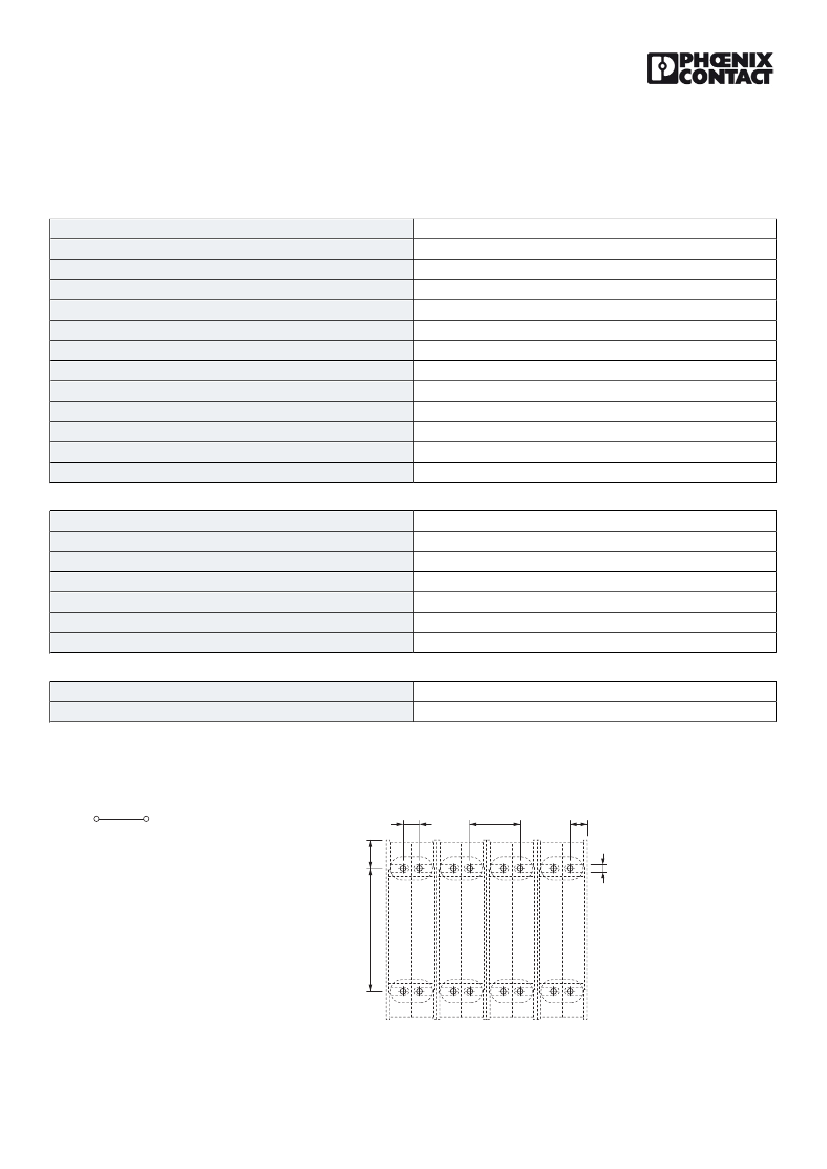

Drawings
Circuit diagram
21,3
Dimensional drawing
49
14
107,8
28
Ø 6,4
10/30/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3247988
Bolt connection terminal block - RBO 12-FE-HC - 3247988
Approvals
Approvals
Approvals
CSA / UL Recognized
Ex Approvals
IECEx / ATEX
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
C
1000 V
420 A
8-600
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
1000 V
420 A
8-600
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
600 V
420 A
8-600
C
600 V
420 A
8-600
FILE E 60425
