Part Number

Search

348822-2

Description
16 WAY DIAGNOSTIC CONN BLACK
CategoryThe connector    The connector
File Size226KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

348822-2 Online Shopping

Suppliers Part Number Price MOQ In stock
348822-2 - - View Buy Now

348822-2 Overview

16 WAY DIAGNOSTIC CONN BLACK

348822-2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Factory Lead Time13 weeks 2 days
Body/casing typePLUG
Connector typeRECTANGULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number348822
OptionsGENERAL PURPOSE
Base Number Matches1
4

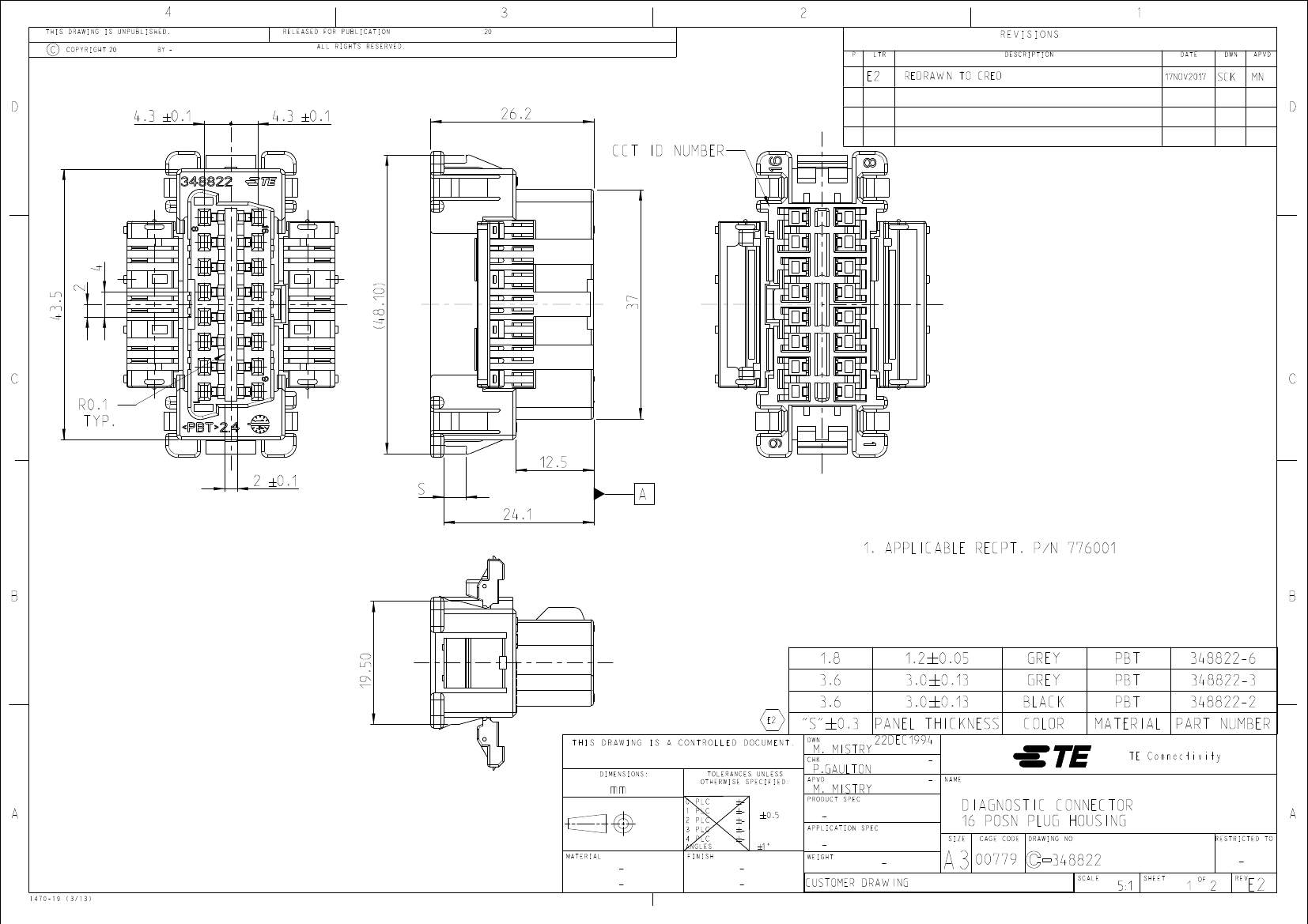

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
20
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
20
COPYRIGHT
BY -
E2
REDRAWN TO CREO
17NOV2017
SCK
MN
D
4.3
#
0.1
4.3
#
0.1
26.2
CCT ID NUMBER
D
4
(48.10)
43.5
2
C
37
C
R0.1
TYP.
12.5
S
24.1
A
1. APPLICABLE RECPT. P/N 776001
B
B
2
#
0.1
19.50
1.8
3.6
E2
1.2 # 0.05
3.0 # 0.13
3.0 # 0.13
GREY
BLACK
COLOR
GREY
PBT
PBT
MATERIAL
PBT
348822-6
348822-3
PART NUMBER
348822-2
DWN
THIS DRAWING IS A CONTROLLED DOCUMENT.
CHK
DIMENSIONS:
"S" # 0.3 PANEL THICKNESS
M. MISTRY
P.GAULTON
22DEC1994
-
-
NAME
3.6
TE Connectivity
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
MATERIAL
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
-
-
-
-
-
PRODUCT SPEC
M. MISTRY
APPLICATION SPEC
-
1470-19 (3/13)
-
-
FINISH
-
-
WEIGHT
-
-
CUSTOMER DRAWING
A3
00779
SIZE
DIAGNOSTIC CONNECTOR
16 POSN PLUG HOUSING
CAGE CODE DRAWING NO
A
RESTRICTED TO
348822
SCALE
5:1
SHEET
1
OF
2
REV
-
E2
