ND432021

Description
POW-R-BLOK Dual SCR Isolated Module (210 Amperes / Up to 2000 Volts)
CategoryAnalog mixed-signal IC    Trigger device
File Size132KB,4 Pages
ManufacturerPOWEREX
Websitehttp://www.pwrx.com/Home.aspx
Environmental Compliance
Download Datasheet Parametric Compare View All

ND432021 Overview

POW-R-BLOK Dual SCR Isolated Module (210 Amperes / Up to 2000 Volts)

ND432021 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPOWEREX
package instructionFLANGE MOUNT, R-XUFM-X7
Contacts7
Reach Compliance Codeunknown
Other featuresUL RECOGNIZED
Shell connectionISOLATED
ConfigurationSERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current150 mA
Maximum DC gate trigger voltage3 V
Quick connection description2G-2K
Description of screw terminalsA-K-AK
JESD-30 codeR-XUFM-X7
Maximum leakage current50 mA
On-state non-repetitive peak current11190 A
Number of components2
Number of terminals7
Maximum on-state current210000 A
Maximum operating temperature130 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current330 A
Off-state repetitive peak voltage2000 V
Repeated peak reverse voltage2000 V
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR
Base Number Matches1
ND43__21
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com

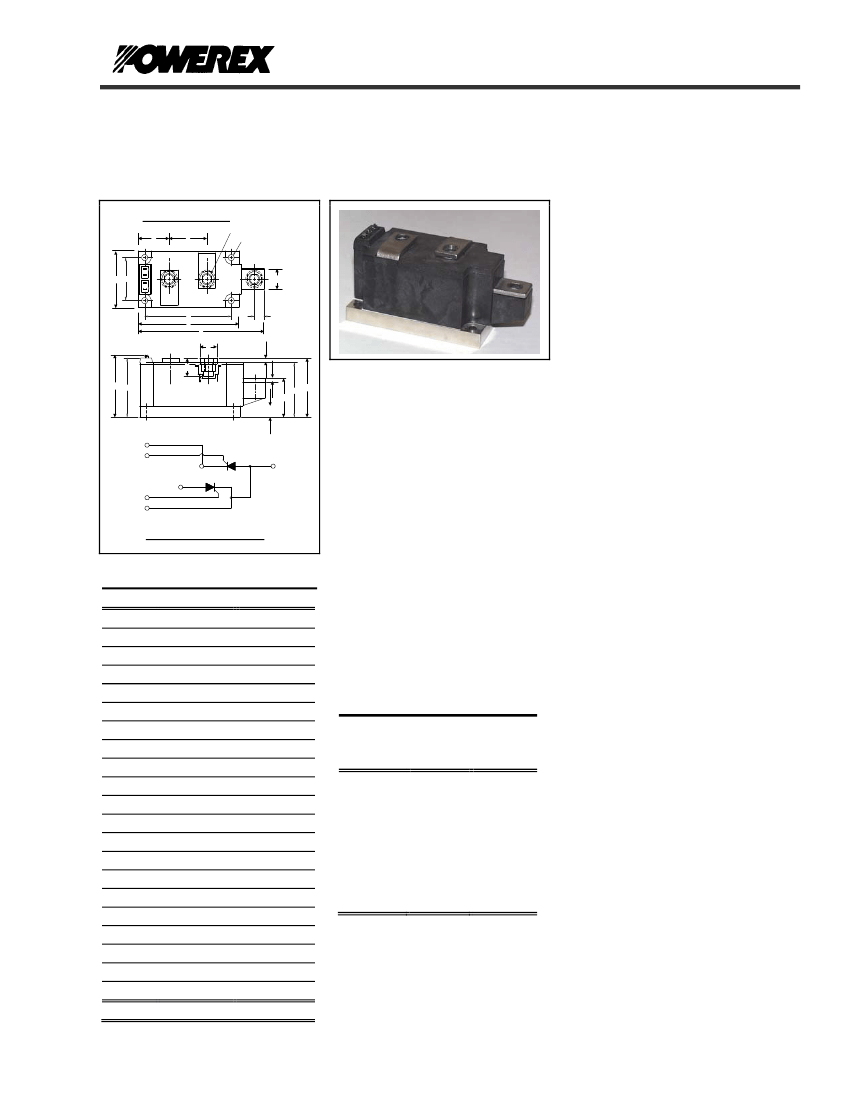

POW-R-BLOK
TM
Dual SCR Isolated Module
210 Amperes / Up to 2000 Volts
Description:
OUTLINE DRAWING
T - M8 THD. (3 TYP.)
M
K
U - DIA. (4 TYP.)
A
G J
K1
G1
G2
K2
AK
N
K
C
B
A
V
Q
W
S
Powerex Dual SCR Modules are
designed for use in applications
requiring phase control and isolated
packaging. The modules are isolated
for easy mounting with other
components on a common heatsink.
TM
POW-R-BLOK
has been tested and
recognized by the Underwriters
Laboratories.
ND43__21
Dual SCR Isolated
POW-R-BLOK
TM
Module
210 Amperes / Up to 2000 Volts
P
D E
W
F
H
L
R
Features:
Electrically Isolated Heatsinking
Aluminum Nitride Insulator
Compression Bonded Elements
Metal Baseplate
Low Thermal Impedance
for Improved Current Capability
Quick Connect Gate Terminal
with Provision for Keyed Mating
Plug
UL Recognized
K1
G1
K
SCR 1
AK
SCR 2
A
G2
K2
CONNECTION DIAGRAM
ND43 Outline Dimensions
Dimension
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
T
U
V
W
Inches
4.57
3.66
3.15
2.17
2.06
2.07
1.97
1.90
1.50
1.38
1.26
1.122
.71
.57
.625
.394
.350
M8 Metric
.250 Dia.
.110 x .032
.12
Millimeters
116
93
80.0
55.1
52.3
52.0
50.0
48.3
38.1
35.0
32.0
28.5
18.0
14.5
15.9
10.00
8.9
M8
6.35 Dia.
2.8 x 0.8
3.0
Ordering Information:
Select the complete eight digit
module part number from the table
below.
Example: ND432021 is a 2000Volt,
210 Ampere Dual SCR Isolated
TM
POW-R-BLOK
Module
Benefits:
No Additional Insulation
Components Required
Easy Installation
No Clamping Components
Required
Reduce Engineering Time
Type
ND43
Voltage
Volts
(x100)
08
10
12
14
16
18
20
Current
Amperes
(x 10)
21
Applications:
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
Note: Dimensions are for reference only.
Revision Date: 05/17/2010

ND432021 Related Products

ND432021 ND4321 ND431821 ND431221 ND431621 ND431021 ND430821
Description POW-R-BLOK Dual SCR Isolated Module (210 Amperes / Up to 2000 Volts) POW-R-BLOK Dual SCR Isolated Module (210 Amperes / Up to 2000 Volts) POW-R-BLOK Dual SCR Isolated Module (210 Amperes / Up to 2000 Volts) POW-R-BLOK Dual SCR Isolated Module (210 Amperes / Up to 2000 Volts) POW-R-BLOK Dual SCR Isolated Module (210 Amperes / Up to 2000 Volts) POW-R-BLOK Dual SCR Isolated Module (210 Amperes / Up to 2000 Volts) POW-R-BLOK Dual SCR Isolated Module (210 Amperes / Up to 2000 Volts)
Is it lead-free? Lead free - Lead free Lead free Lead free - Lead free
Is it Rohs certified? conform to - conform to conform to conform to - conform to
Maker POWEREX - POWEREX POWEREX POWEREX POWEREX POWEREX
package instruction FLANGE MOUNT, R-XUFM-X7 - FLANGE MOUNT, R-XUFM-X7 FLANGE MOUNT, R-XUFM-X7 FLANGE MOUNT, R-XUFM-X7 FLANGE MOUNT, R-XUFM-X7 FLANGE MOUNT, R-XUFM-X7
Contacts 7 - 7 7 7 7 7
Reach Compliance Code unknown - unknow unknow unknow unknow unknow
Other features UL RECOGNIZED - UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED
Shell connection ISOLATED - ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS - SERIES CONNECTED, CENTER TAP, 2 ELEMENTS SERIES CONNECTED, CENTER TAP, 2 ELEMENTS SERIES CONNECTED, CENTER TAP, 2 ELEMENTS SERIES CONNECTED, CENTER TAP, 2 ELEMENTS SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current 150 mA - 150 mA 150 mA 150 mA 150 mA 150 mA
Maximum DC gate trigger voltage 3 V - 3 V 3 V 3 V 3 V 3 V
Quick connection description 2G-2K - 2G-2K 2G-2K 2G-2K 2G-2K 2G-2K
Description of screw terminals A-K-AK - A-K-AK A-K-AK A-K-AK A-K-AK A-K-AK
JESD-30 code R-XUFM-X7 - R-XUFM-X7 R-XUFM-X7 R-XUFM-X7 R-XUFM-X7 R-XUFM-X7
Maximum leakage current 50 mA - 50 mA 50 mA 50 mA 50 mA 50 mA
On-state non-repetitive peak current 11190 A - 11190 A 11190 A 11190 A 11190 A 11190 A
Number of components 2 - 2 2 2 2 2
Number of terminals 7 - 7 7 7 7 7
Maximum on-state current 210000 A - 210000 A 210000 A 210000 A 210000 A 210000 A
Maximum operating temperature 130 °C - 130 °C 130 °C 130 °C 130 °C 130 °C
Minimum operating temperature -40 °C - -40 °C -40 °C -40 °C -40 °C -40 °C
Package body material UNSPECIFIED - UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT - FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 330 A - 330 A 330 A 330 A 330 A 330 A
Off-state repetitive peak voltage 2000 V - 1800 V 1200 V 1600 V 1000 V 800 V
Repeated peak reverse voltage 2000 V - 1800 V 1200 V 1600 V 1000 V 800 V
surface mount NO - NO NO NO NO NO
Terminal form UNSPECIFIED - UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Terminal location UPPER - UPPER UPPER UPPER UPPER UPPER
Maximum time at peak reflow temperature NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
Trigger device type SCR - SCR SCR SCR SCR SCR
