502352-0500

Description
Headers u0026 Wire Housings WTB Hdr Singl Row RA 2Ckt Natural Tin
CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

502352-0500 Online Shopping

Suppliers Part Number Price MOQ In stock
502352-0500 - - View Buy Now

502352-0500 Overview

Headers u0026 Wire Housings WTB Hdr Singl Row RA 2Ckt Natural Tin

502352-0500 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Board mount optionsFITTING NAIL
body width0.252 inch
subject depth0.37 inch
body length0.551 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability30 Cycles
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialPOLYAMIDE
Plug contact pitch0.079 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.0066 mm
Termination typeSURFACE MOUNT
Total number of contacts5
Base Number Matches1
This document was generated on 10/23/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5023520500
Active
DuraClik™ Connector System
DuraClik™ Wire-to-Board Header, Single Row, Right Angle, 5 Circuits, Tin (Sn) Plating,
Natural
Documents:
3D Model
Drawing (PDF)
Product Specification PS-502351-001-001 (PDF)
General
Product Family
Series
Application
Comments
Packaging Specification PK-502352-002-JP-001
(PDF)
Packaging Specification SPK-502352-001-001 (PDF)
RoHS Certificate of Compliance (PDF)

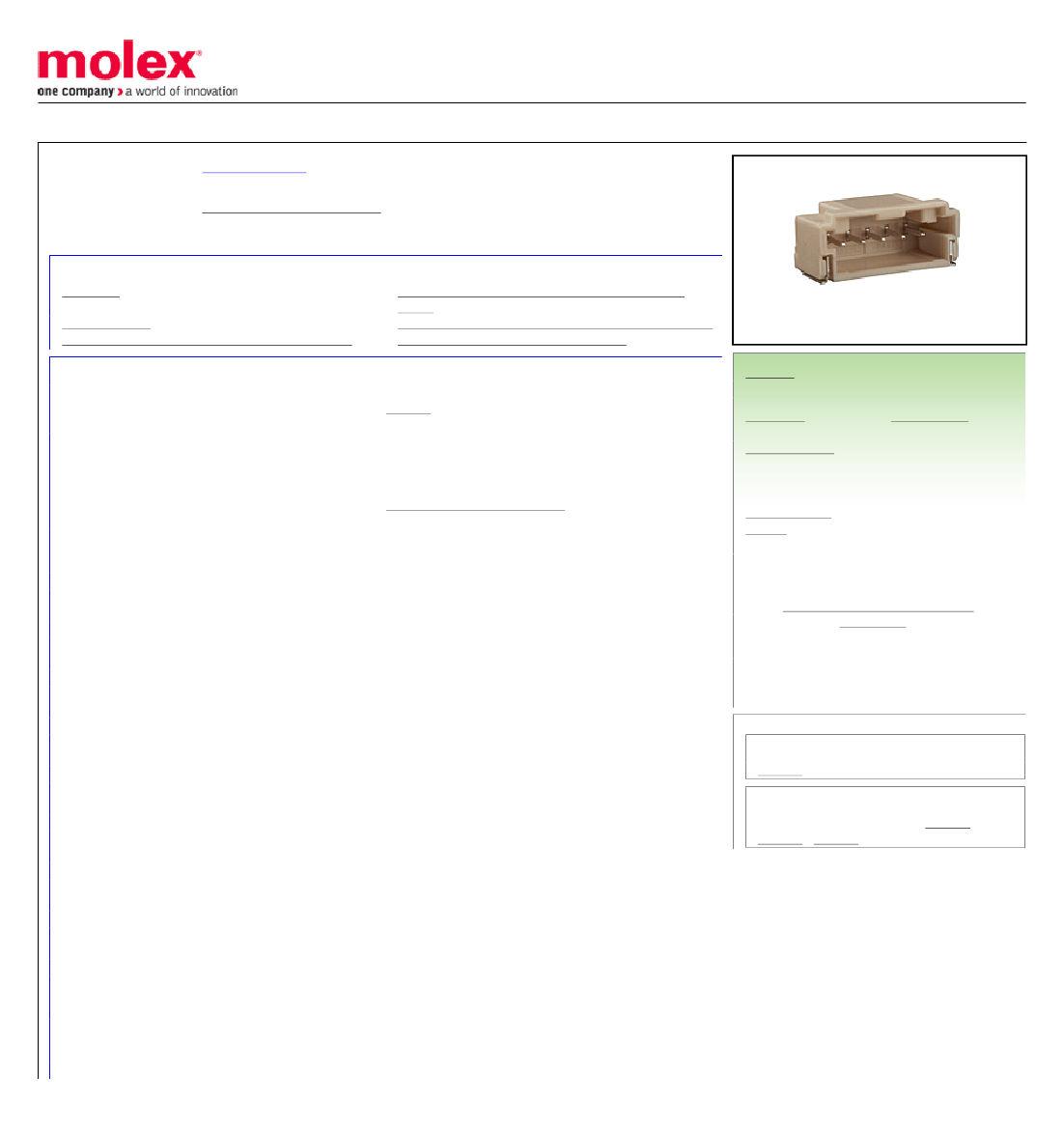

Series image - Reference only
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Compliant
Not Contained
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Solder Process Data
Duration at Max. Process Temperature (seconds)
PCB Headers
502352
Signal, Wire-to-Board
The Operating Temperature Range when used with
DuraClik series 502351 is -40°C to +105°C. It is -40°C
to 125°C when used with DuraClik ISL series 560123 or
TPA series 505151.
DuraClik™ Connector System
DuraClik
884982861855
No
5
5
Natural
30
No
No
Yes
Yes
6.40mm
Copper Alloy
Tin over Nickel
Polyamide
0.664/g
1
Right Angle
No
Yes
Embossed Tape on Reel
2.00mm
Yes
Yes
No
-40°C to +105°C
Surface Mount
3.0A
125V
004
Search Parts in this Series
502352 Series
Mates With
DuraClik™ Crimp Housings 502351 ,
560123 , 505151
