5646560-1

Description
HEADER CONNECTOR,PCB MNT,220 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING
CategoryThe connector    The connector
File Size265KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

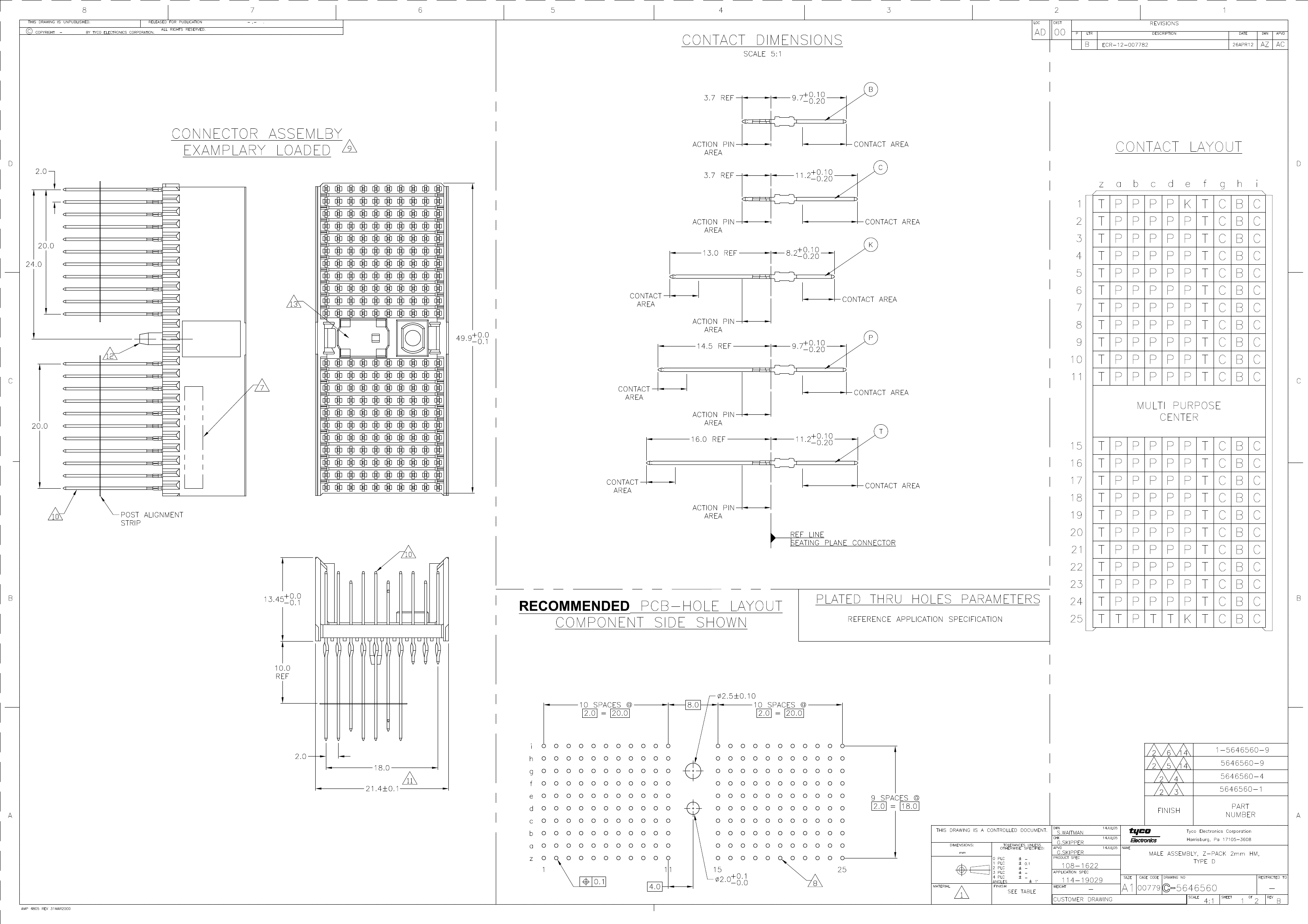

5646560-1 Overview

HEADER CONNECTOR,PCB MNT,220 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING

5646560-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Board mount optionsPEG
body width0.843 inch
subject depth0.53 inch
body length1.965 inch
Connector typeBOARD CONNECTOR
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage750VAC V
Durability250 Cycles
maximum insertion force.7506 N
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number5646560
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number10
Number of rows loaded10
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts220
Evacuation force-minimum value.139 N
Base Number Matches1
