Printed-circuit board connector - MSTB 2,5/ 5-GF-5,08 GYBN - 1815413
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Number of positions: 5, Pitch: 5.08 mm, Color: grey brown, Contact surface:
Tin, Mounting: Wave soldering

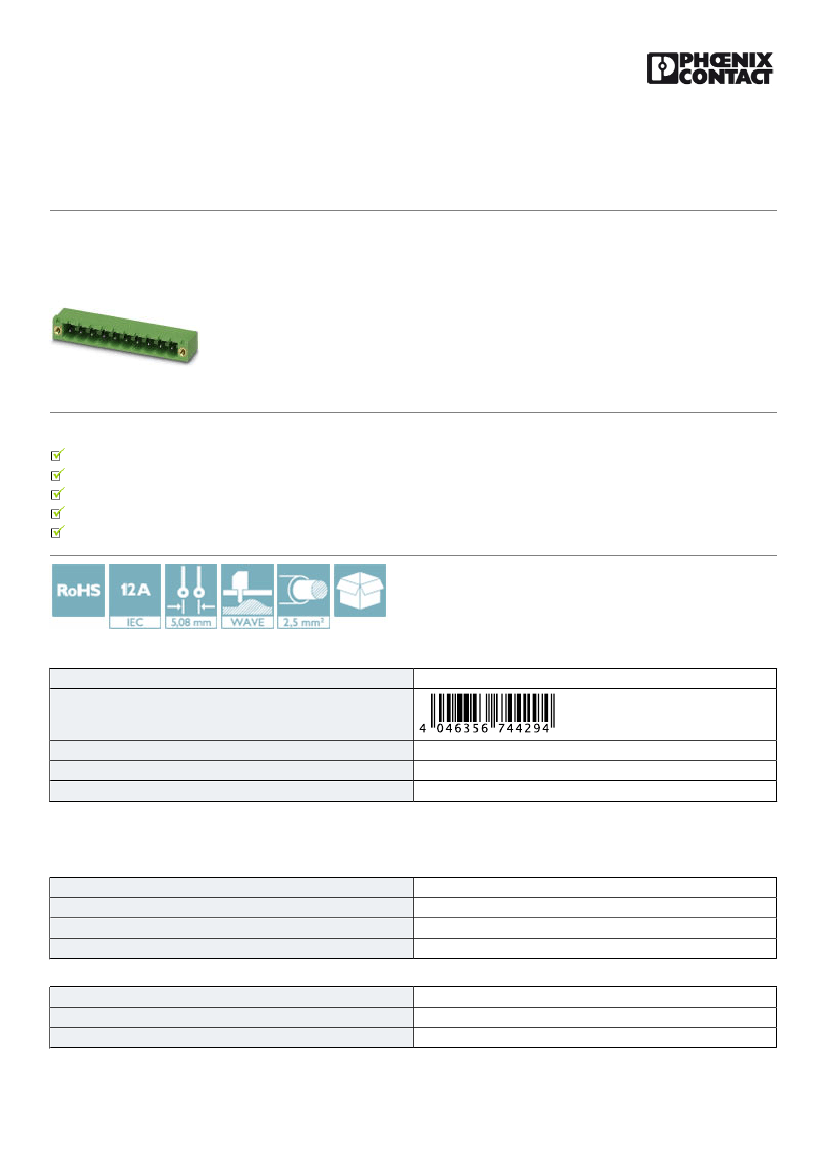

The figure shows a 10-pos. version
of the product in green
Why buy this product
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Easy PCB replacement thanks to plug-in modules
Well-known mounting principle allows worldwide use
Plug-in direction parallel to the PCB
Screwable flange for superior mechanical stability
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356744294
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Pitch
Dimension a
Constructional height
Length of the solder pin
5.08 mm
20.32 mm
9 mm
3.5 mm
General
Range of articles
Rated voltage (III/3)
Connection in acc. with standard
MSTB 2,5/..-GF
250 V
EN-VDE
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1815413
Printed-circuit board connector - MSTB 2,5/ 5-GF-5,08 GYBN - 1815413
Technical data
General
Nominal current I
N
Color
Number of positions
12 A
grey brown
5
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
CSA / GL / RS / cULus Recognized / EAC
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
15 A
300 V
D
10 A
300 V
Nominal current IN
Nominal voltage UN
GL http://www.gl-group.com/newbuilding/approvals/index.html 5032089 HH
RS http://www.rs-head.spb.ru/en/index.php 10.04059.250
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931011
Nominal current IN
Nominal voltage UN
B
15 A
300 V
D
15 A
150 V
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1815413
Printed-circuit board connector - MSTB 2,5/ 5-GF-5,08 GYBN - 1815413
Approvals
EAC B.01742
