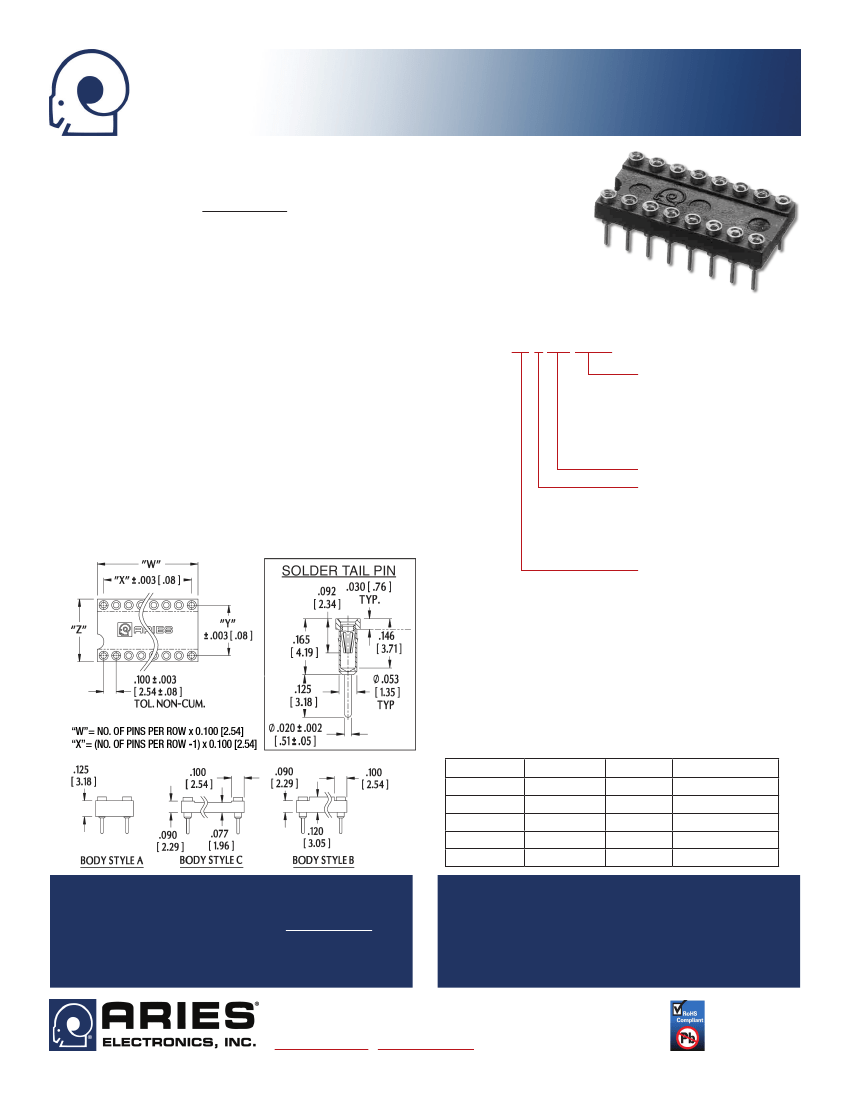

Series 513 Lo-PRO file Socket
w/Collet Contacts & Solder Pin Tails
®
FEATURES
• Available with Solder Pin Tails
• Choose from Several Sizes and Plating Options
• For Wire Wrap Pins, see Data Sheet 12012
GENERAL SPECIFICATIONS
•
BODY MATERIAL: Black UL 94V-0 glass-filled 4/6 Nylon
•
SHELL MATERIAL: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
•
SHELL PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM
B545
–OR– 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-
N-290B
ORDERING INFORMATION
•
4-FINGER COLLET MATERIAL: BeCu per UNS C17200 ASTM B194-08
XX-X 513-XXXX
• COLLET CONTACT
PLATING: 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 –OR–
200µ [5.08µ] min. Sn per ASTM B545 Type 1 –OR– 10µ [0.25µ] Au per MIL-G-45204
Collet/Shell Plating Options
over 50µ [1.27µ] min. [1.27µ] Ni per SAE AMS-QQ-N-290 heavy 30µ [0.76µ]
10 = Au Collet/Sn Shell
•
CONTACT CURRENT RATING: 3 amps
10H = 30µ" Au Collet/Sn Shell
10T = Sn Collet/Sn Shell
•
INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
10TL = Sn/Pb Collet and Shell
•
WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
11 = Au Collet/Au Shell
•
NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
11H = 30µ" Au Collet/AuShell
•
OPERATING TEMPERATURE: 221°F [105°C] Sn & Sn/Pb plating; 257°F [125°C] Au
Series
plating
Row-to-Row Spacing
(Dim. “Y”)
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.100-0.146 [2.54-3.71] long
2
3
4
6
9
= 0.200 [5.08]
= 0.300 [7.62]
= 0.400 [10.16]
= 0.600 [15.24]
= 0.900 [22.86]
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.030 ±0.002 [0.76 ±0.05] dia.
No. of Pins
(See Table)
Centers “Y”
0.200 [5.08]
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
0.900 [22.86]
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR COLLET SOCKETS WITH WIRE WRAP PINS, SEE DATA SHEETS 12012
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Dim. “Z”
0.300 [7.62]
0.400 [10.16]
0.500 [12.70]
0.700 [17.78]
1.000 [25.40]
Body Style
A
C, B
C
C, B
B
Available Sizes
2 thru 10
2 thru 20, 22 thru 40
2 thru 22
2 thru 40, 42 thru 48
2 thru 64
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12011
Rev. 8.3
1 of 1
