3846: DescriptionRF Connectors / Coaxial Connectors SMP Straight Plug PCB Limited Detent; CategoryThe connector The connector; File Size23KB，1 Pages; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

3846 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3846	-	-	View	Buy Now

3846 Overview

RF Connectors / Coaxial Connectors SMP Straight Plug PCB Limited Detent

3846 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Adapter type	BNC-BNC
Other features	SHIELDED
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Base Number Matches	1

Preview

Download Datasheet

View All

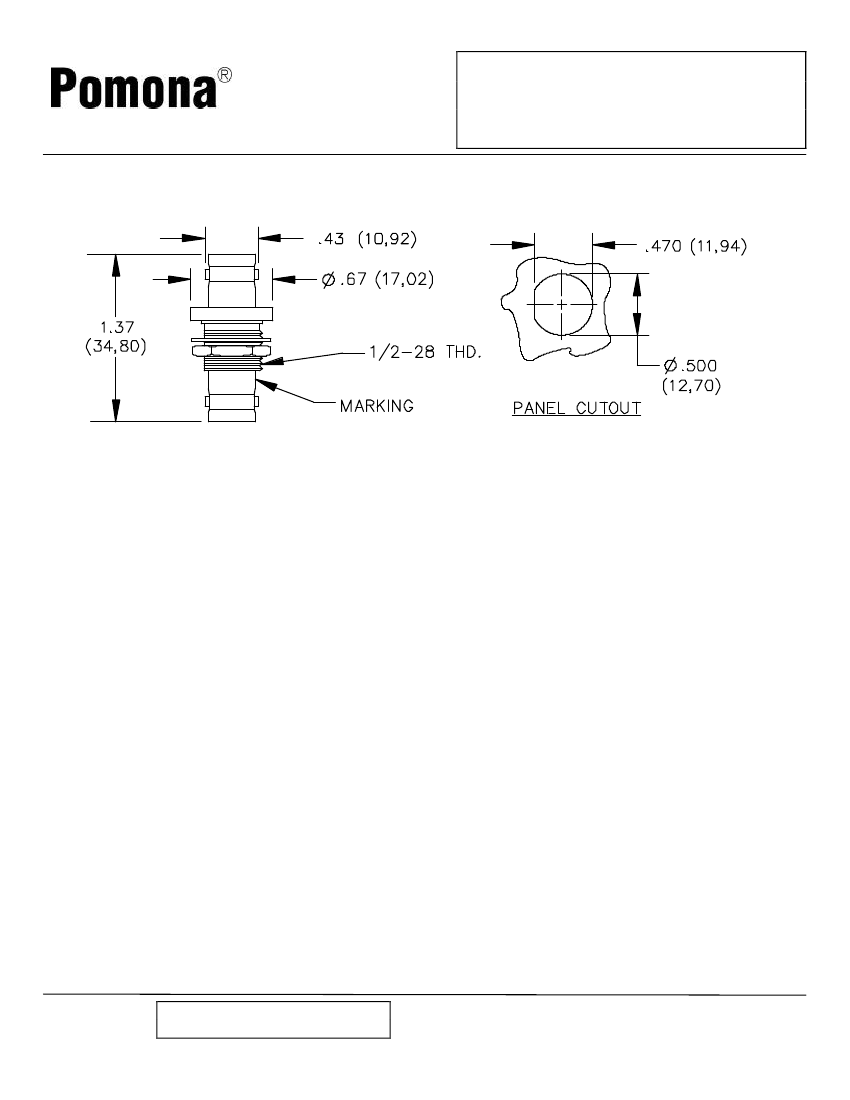

Model 3846

Adapter, Isolated Ground BNC

Female To Female

FEATURES:

•

Mounts in panels up to .175 (4,45) thick.

•

BNC shell body isolated from threaded flange.

MATERIALS:

Body – Brass, Tarnish Resistant Plating, Center Contact: Gold Plated Beryllium Copper

Dielectric: PTFE

Center Contact – Gold Plated

Marking: “Pomona 3846”

RATINGS:

Operating Voltage: Inner Conductor/Shield: 500VRMS Max.

Operating Temperature: -65ºC to +165ºC

Nominal Impedance: 50 Ohms

ORDERING INFORMATION:

Model 3846

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

5/30/02 SY/EH/LS

Last saved by PN

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90215

(800) 444-6785 or (425) 466-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1

S:\Engineering\Release\DataSheets\FlukeDataSheet \d3846_1_02.doc
