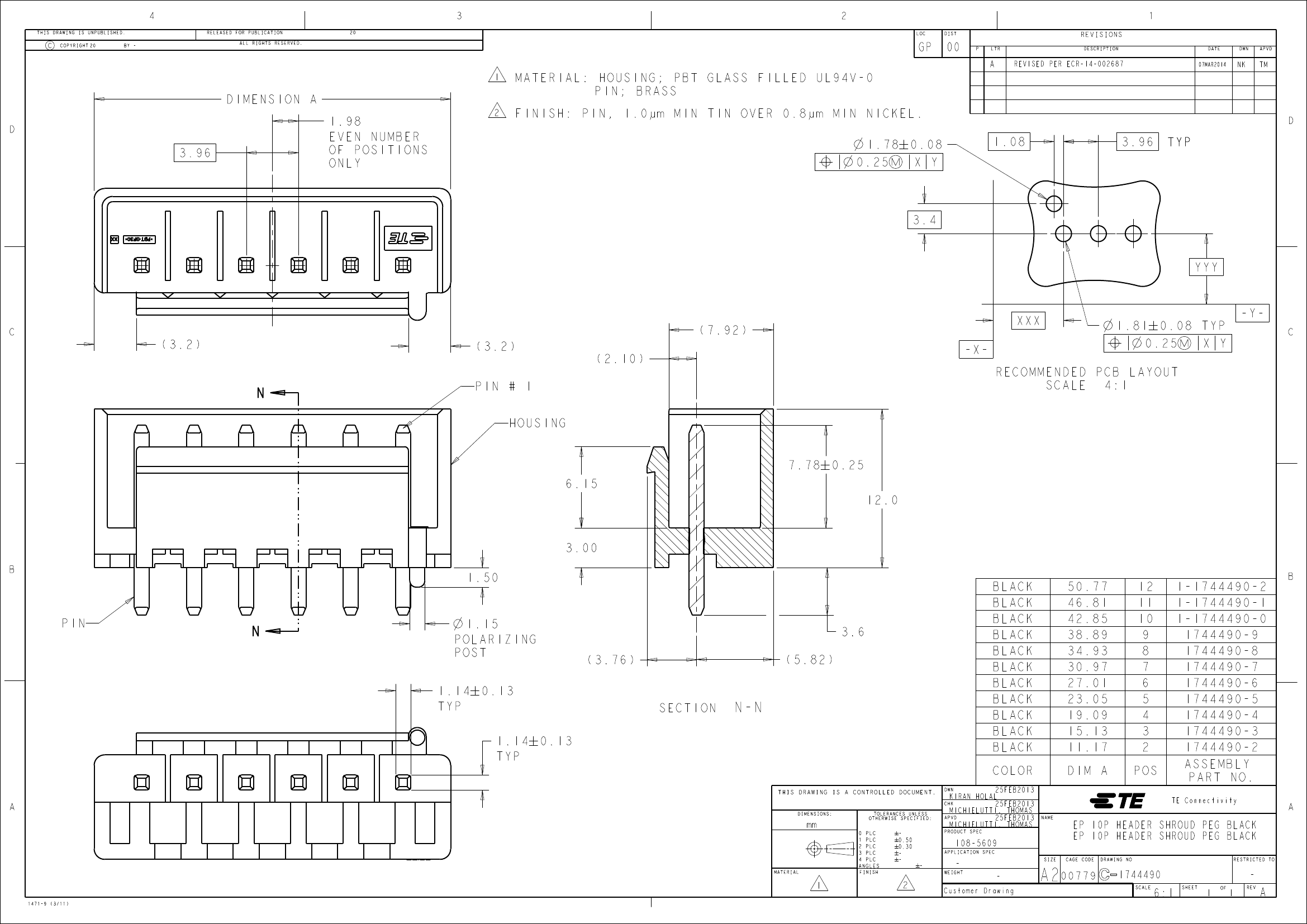

10P EP SHRD HDR ASMY, BLACK
| Parameter Name | Attribute value |
| Connector type | with hood |
| Housing type | plug |
| Connector System | wire to board |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Terminal type | Public end |
| Number of Positions | 10 |
| PCB mounting direction | vertical |
| Number of power supply locations | 10 |
| Rows | 1 |
| Backwall/Post Interruptions | Without |
| Operating voltage (VAC) | 250 |
| Operating voltage (VDC) | 250 |
| Terminal base material | brass |
| Contact Current Rating (Max) (A) | 8 |
| Terminal retention | Without |
| Terminal termination area plating material | tin |
| Terminal contact plating material | tin |
| Plating thickness of terminal contact parts | 39.36 µm [ 1 µin ] |
| Plating thickness of terminal termination area | 1 µm [ 39.37 µin ] |
| Terminal layout | Direct plug-in |
| PCB Termination Methods | Through Hole - Solder |
| Termination post and tail length | 3.6 mm [ .1417 in ] |
| PCB installation and fixation | Without |
| PCB mounting alignment | Without |
| Connector mounting type | board mounting |
| PCB Mount Alignment Type | lugs |
| joint alignment | Without |
| stress relief | Without |
| joint fixation | with |
| Joint fixation type | latch |
| Centerline (Pitch) | 3.96 mm [ .156 in ] |
| UL fire rating | UL 94V-0 |
| Shell color | black |
| Shell material | PBT GF |
| length | 42.85 mm [ 1.687 in ] |
| high | 3.7 mm [ .1457 in ] |
| Joint post length | 7.8 mm [ .307 in ] |
| PCB thickness (recommended) | .063 mm [ 1.6 in ] |
| Working group temperature range | -25 – 105 °C [ -13 – 221 °F ] |
| Circuit Application | Power |
| Glow Wire Ratings | Standard parts - non-glow wire |
| Encapsulation method | bag |
| Applicable to | Female components |
