Preview

540-44-028-24-000000: DescriptionIC u0026 Component Sockets 28 POS. TIN PLATED through-hole; CategoryThe connector socket; File Size389KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

540-44-028-24-000000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	540-44-028-24-000000	-	-	View	Buy Now

540-44-028-24-000000 Overview

IC u0026 Component Sockets 28 POS. TIN PLATED through-hole

540-44-028-24-000000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Contact to complete cooperation	MATTE TIN (150) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	PLCC28
JESD-609 code	e3
Manufacturer's serial number	540
Number of contacts	28
Base Number Matches	1

Preview

Download Datasheet

View All

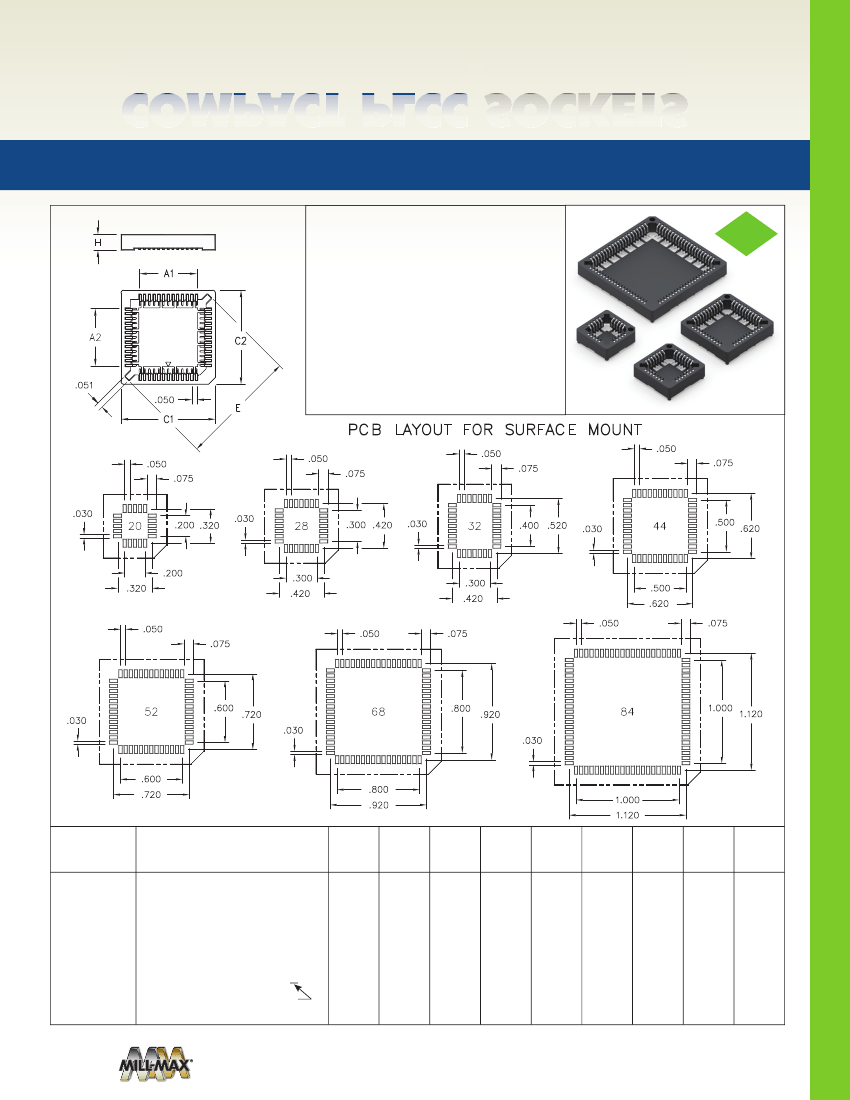

COMPACT PLCC

SOCKETS

SERIES 540 • SURFACE MOUNT

•

Note: Not end stackable

•

Designed for JEDEC type devices

•

Open frame design in solder area improves

results of IR soldering and facilitates visual

inspection of solder pads

2011/65/EU

RoHS - 2

•

Contacts are plated with 150

µ”

tin

•

The insulator is molded PPS (Ryton R-4)

.051

.050

•

For Electrical, Mechanical and Environmental

Data, see page 141 for details

PCB LAYOUT FOR SURFACE MOUNT

.050

.075

.050

.075

.050

.075

.050

.075

.030

.200 .320

.030

.300 .420

.030

.400 .520

.030

.500

.620

.200

.320

.300

.420

.300

.420

.050

.500

.620

.075

.050

.075

.050

.075

.600

.030

.720

.030

.800

.920

.030

1.000

1.120

.600

.720

.800

.920

1.120

RECTANGULAR

*

Number of

Contacts

20

28

32

*

44

52

68

84

Ordering Information

540-44-020-17-40000X

540-44-028-17-40000X

540-44-032-17-40000X

*

540-44-044-17-40000X

540-44-052-17-40000X

540-44-068-17-40000X

540-44-084-17-40000X

Packaging Codes:

X = 0 (Tubes)

X = 4 (Tape & Reel)

- A1 - - A2 - - C1 - - C2 -

0.200

0.300

0.500

0.600

0.800

1.000

0.200

0.300

0.400

0.500

0.600

0.800

1.000

0.585

0.685

0.670

0.885

1.000

1.202

1.400

0.585

0.685

0.770

0.885

1.000

1.202

1.400

-E-

0.657

0.799

0.885

1.082

1.224

1.507

1.791

-H-

0.180

0.148

0.180

Qty.

per

Tube

34

29

26

22

20

16

14

Tape

Width

mm

24

32

44

56

Qty.

per

Reel

490

400

250

220

200

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 145 | IC SOCKETS / TO SOCKETS

1.000

540-44-028-24-000000 Related Products

	540-44-028-24-000000	540-99-084-24-000000	BLU1210P-2084-DT101W	BLU2512P-1723-CT15Q	540-99-044-24-000000
Description	IC u0026 Component Sockets 28 POS. TIN PLATED through-hole	IC u0026 Component Sockets 84 POS. TIN PLATED	Fixed Resistor, Thin Film, 0.33W, 2080000ohm, 150V, 0.5% +/-Tol, 100ppm/Cel, 1210,	Fixed Resistor, Thin Film, 1W, 172000ohm, 200V, 0.25% +/-Tol, 15ppm/Cel, 2512,	IC u0026 Component Sockets 44 POS. TIN PLATED
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	incompatible
Reach Compliance Code	compliant	unknown	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e3	e0	e3	e0	e0
Maker	Mill-Max	Mill-Max	-	-	Mill-Max
Other features	POLARIZED	POLARIZED	-	-	POLARIZED
Contact to complete cooperation	MATTE TIN (150) OVER NICKEL (100)	TIN LEAD (150)	-	-	TIN LEAD (150)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	-	-	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Device slot type	IC SOCKET	IC SOCKET	-	-	IC SOCKET
Type of equipment used	PLCC28	PLCC84	-	-	PLCC44
Manufacturer's serial number	540	540	-	-	540
Number of contacts	28	84	-	-	44
