PCI EXP 2.3L 164 POS WHT 15u"
| Parameter Name | Attribute value |
| Connector System | cable to board |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | card edge |
| Number of Positions | 164 |
| PCB mounting direction | vertical |
| Catapult | Without |
| Number of cantilevers | 2 |
| Voltage (VAC) | 50 |
| Operating voltage (VAC) | 50 |
| Rated current (A) | 1.1 |
| weight | 8.8 g [ .31 oz ] |
| Cantilever material | plastic |
| Terminal base material | Phosphor bronze |
| PCB terminal termination area plating materials | tin |
| Solder tail terminal plating material surface coating | matte |
| Terminal Contact Plating Thickness (µin) | 15 |
| Contact Current Rating (Max) (A) | 1.1 |
| Terminal contact plating material | gold |
| Solder tail terminal plating thickness (µm) | 2.54 |
| Termination cylinder length | 2.3 mm [ .091 in ] |
| PCB installation method | Through hole |
| Connector mounting type | board mounting |
| Centerline (Pitch) | 1 mm [ .039 in ] |
| Shell color | White |
| Shell material | PA 46 |
| PCB thickness (accepted) | 1.57 mm [ .062 in ] |
| high | 10 mm [ .394 in ] |
| width | 8.8 mm [ .346 in ] |
| PCB thickness (recommended) | 1.6 mm [ .063 in ] |
| length | 89 mm [ 3.504 in ] |
| Working group temperature range | -40 – 85 °C [ -40 – 185 °F ] |
| pick and place cover | Without |
| Bus type | PCI Express |
| PCI generation | II |

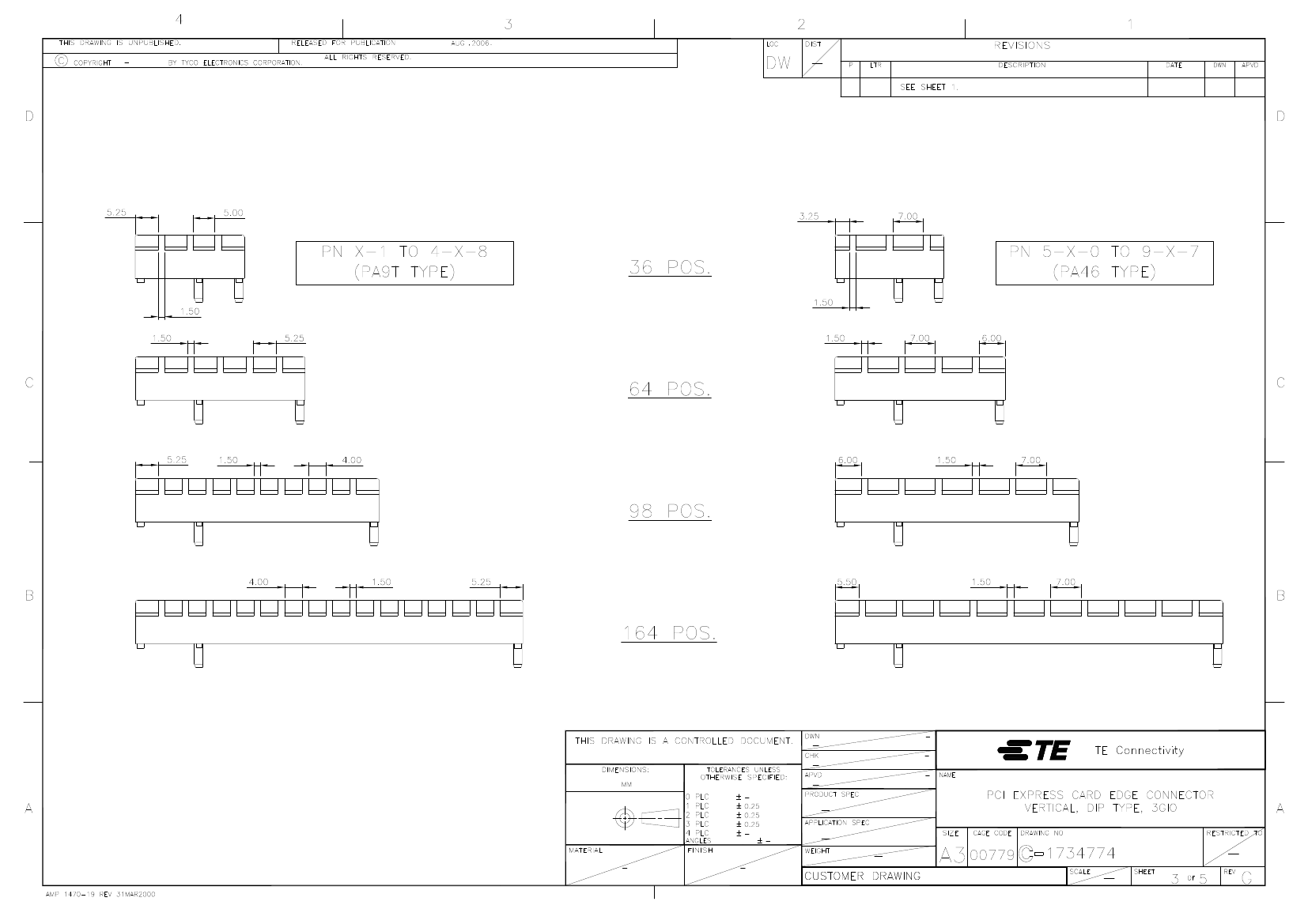

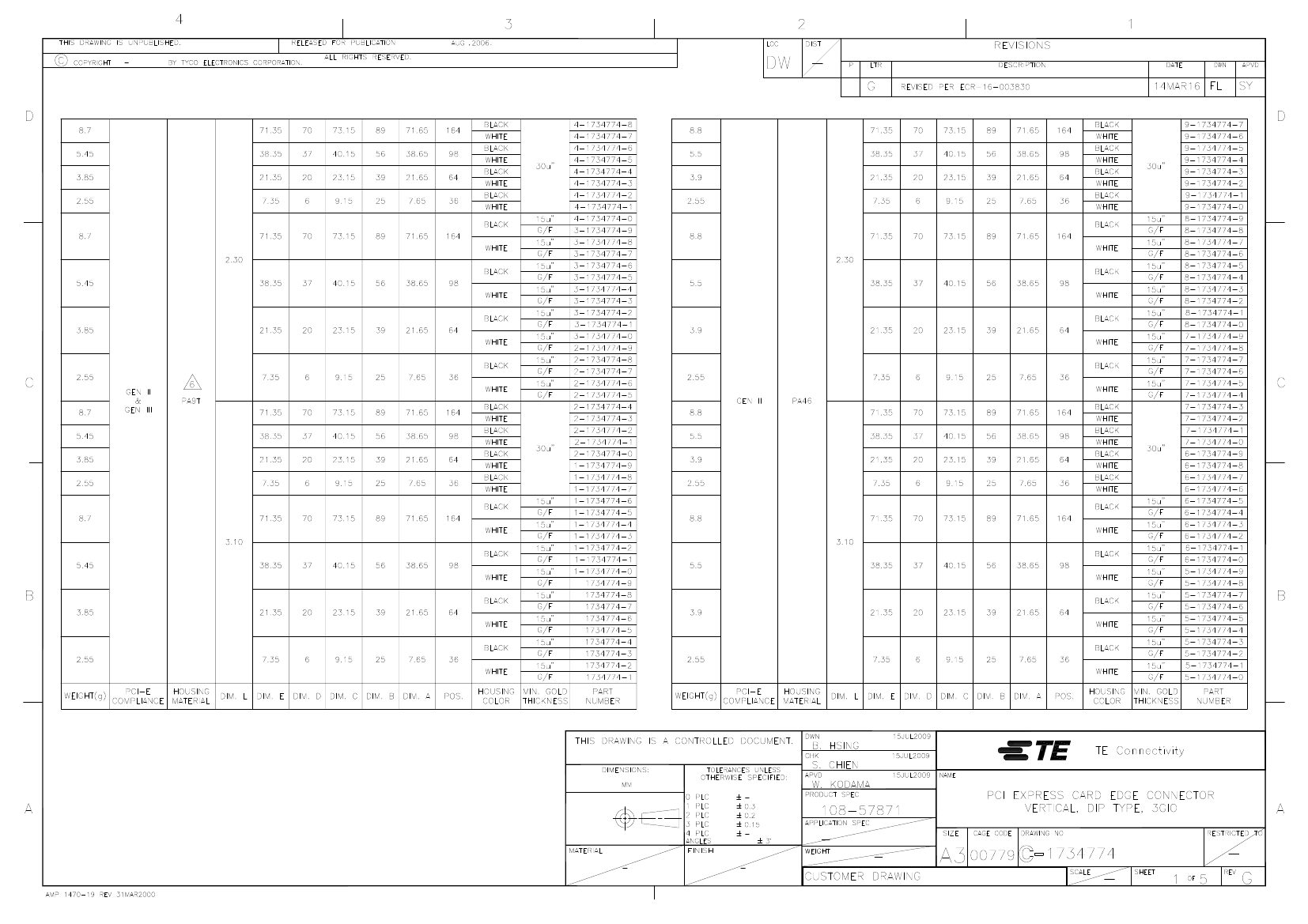

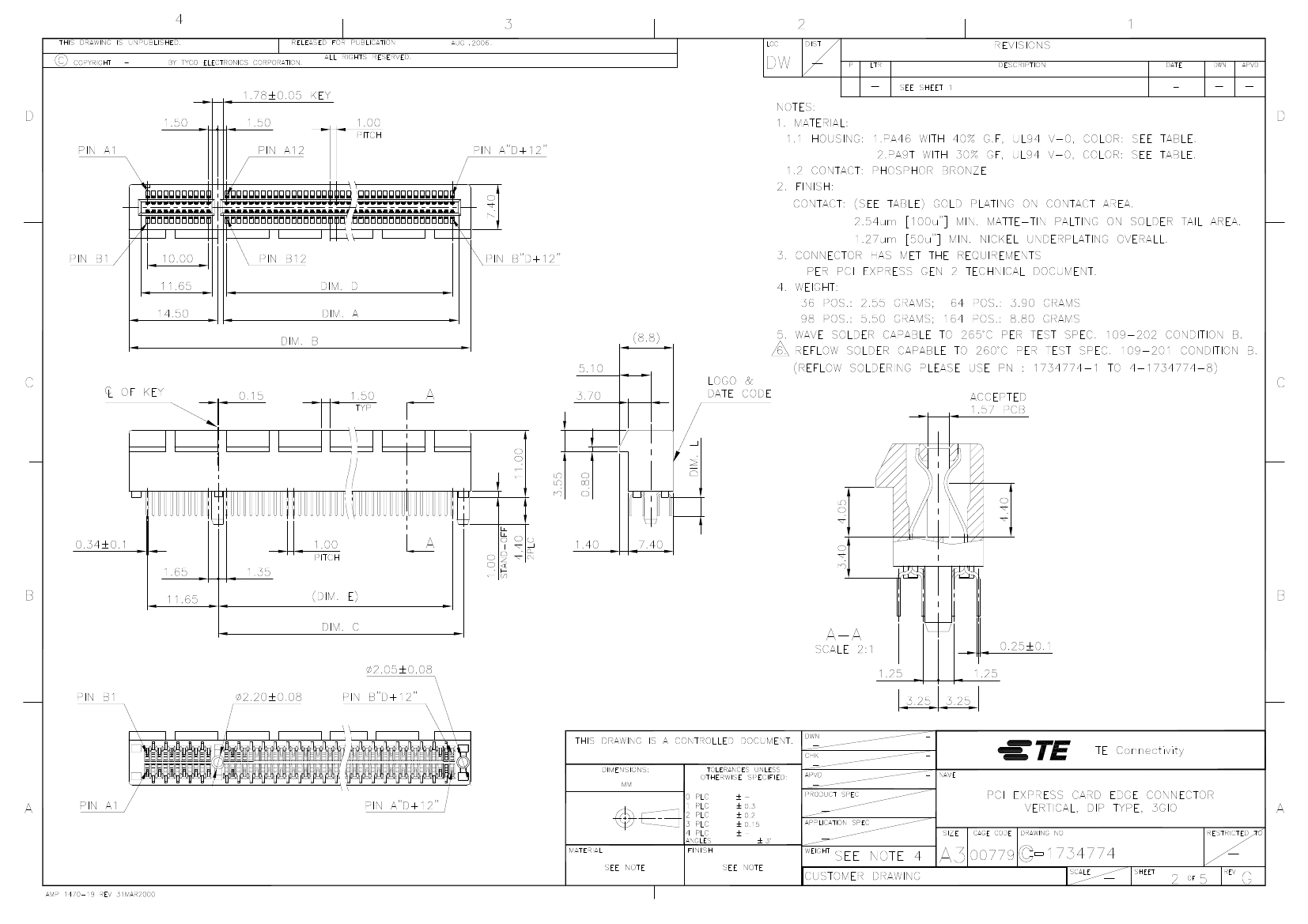

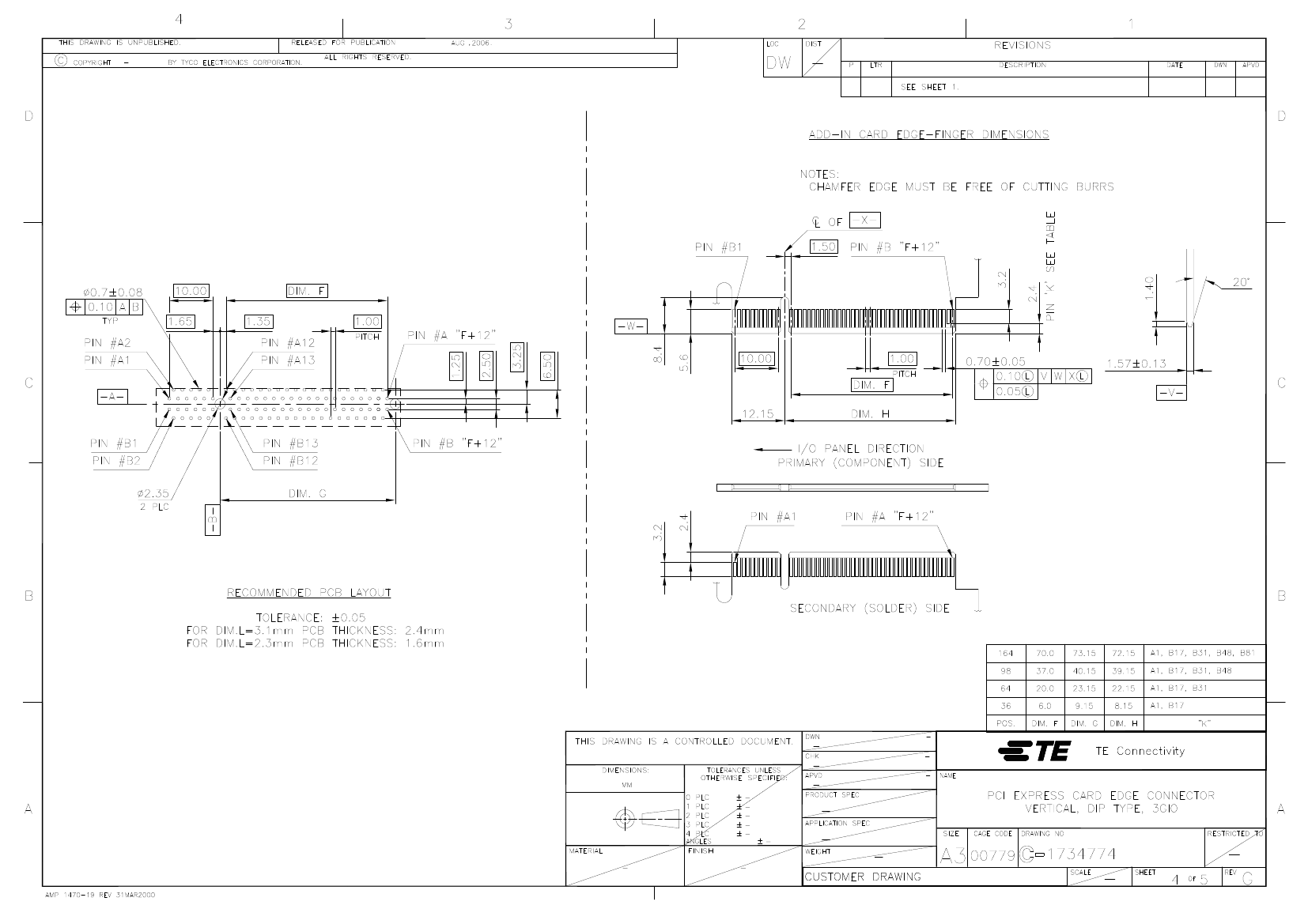

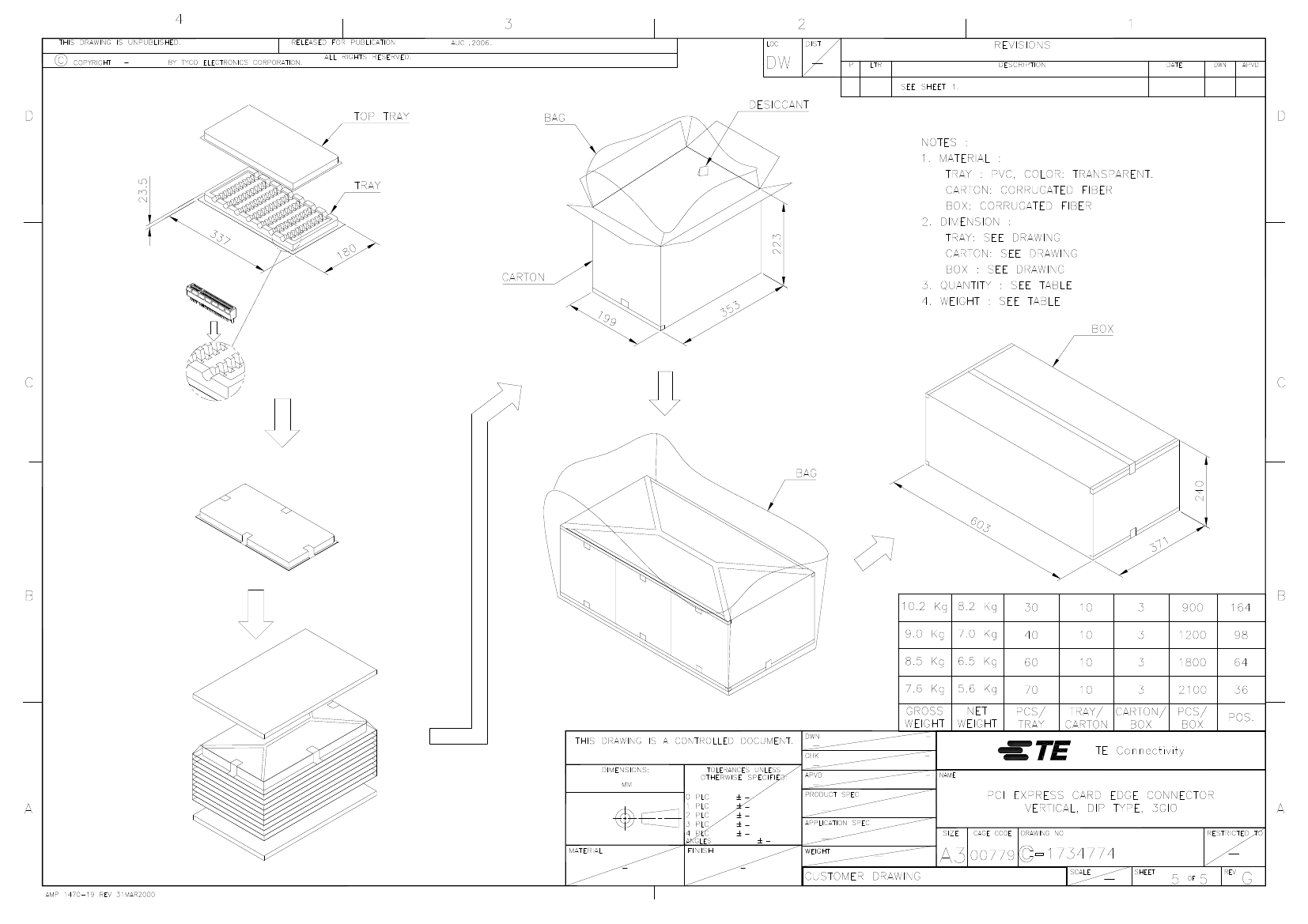

| Encapsulation method | Pallets, boxes and pallets |
| Package quantity | 30 |
