T2010102201-000 datasheet, PDF

Datasheet> All Categories > The connector> T2010102201-000

T2010102201-000: DescriptionHA-010-F; CategoryThe connector; File Size1MB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

T2010102201-000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T2010102201-000	-	-	View	Buy Now

T2010102201-000 Overview

HA-010-F

T2010102201-000 Parametric

Parameter Name	Attribute value
Sealable	no
Number of Positions	10
Terminal type	screws
Electrode configuration	10+PE
Contact Current Rating (Max) (A)	16
Circuit Application	Power and Signal

Preview

Download Datasheet

View All

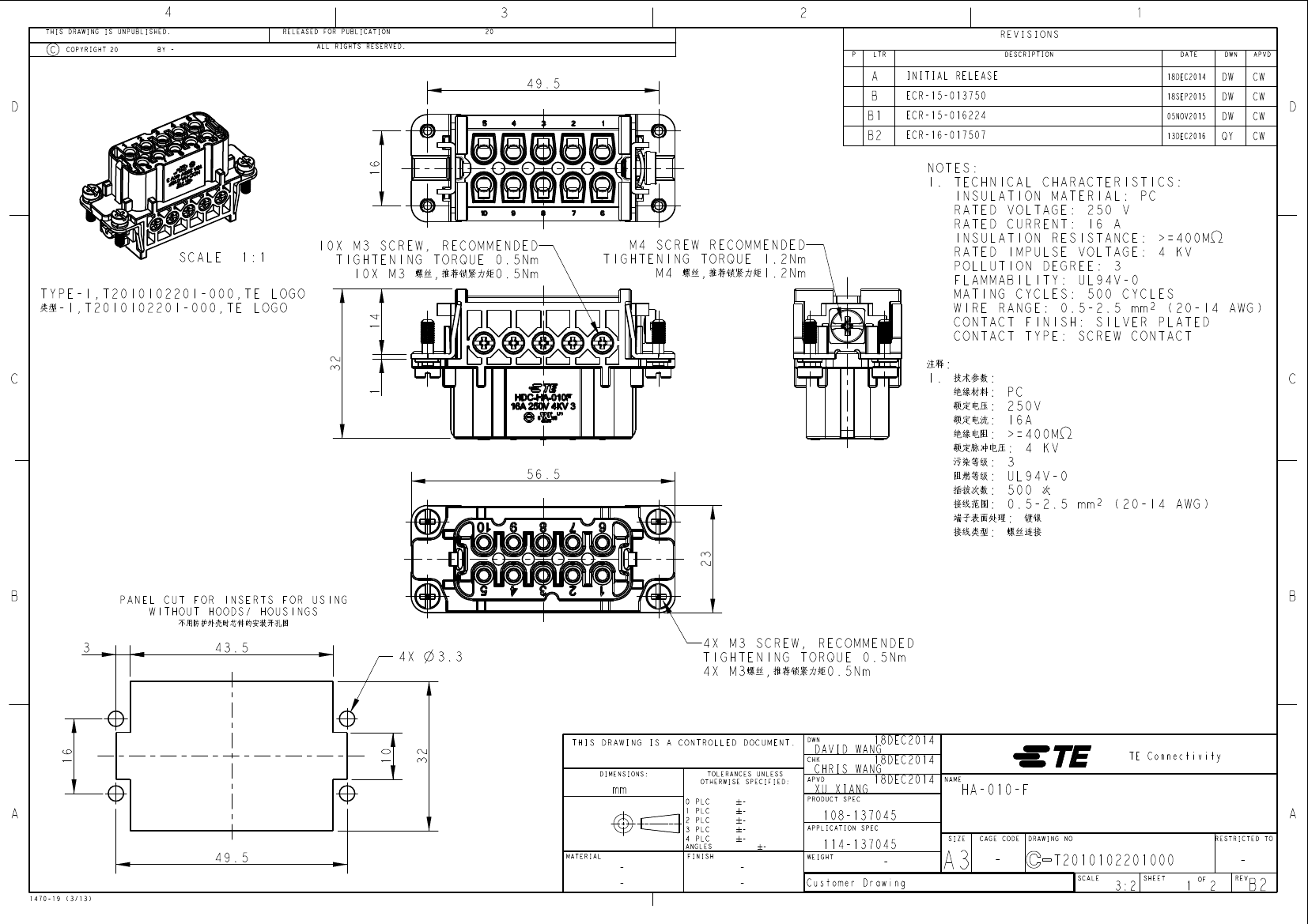

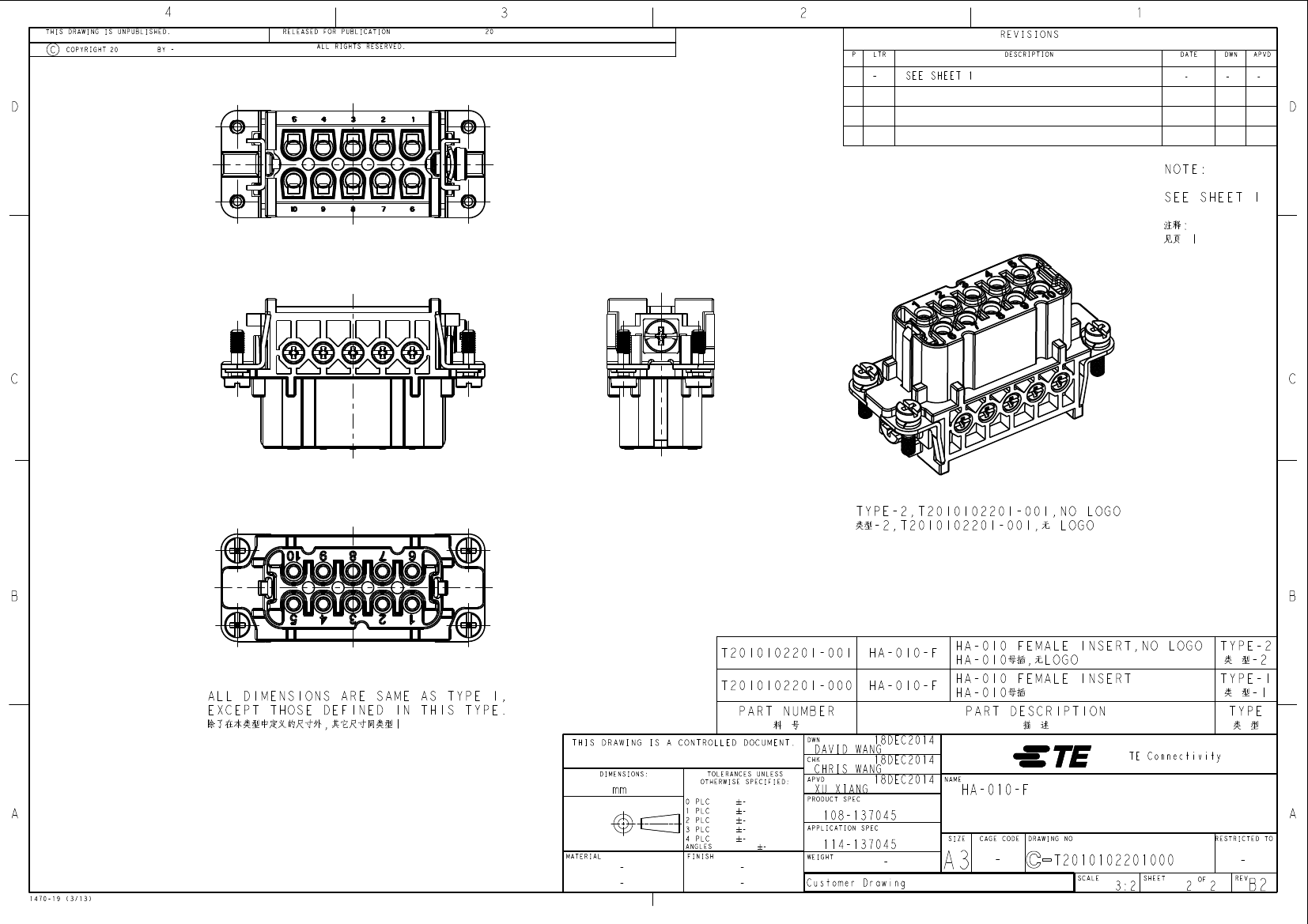

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

49.5

INITIAL RELEASE

ECR-15-013750

ECR-15-016224

ECR-16-017507

18DEC2014

18SEP2015

05NOV2015

13DEC2016

SCALE

1:1

TYPE-1,T2010102201-000,TE LOGO

-1,T2010102201-000,TE LOGO

10X M3 SCREW, RECOMMENDED

TIGHTENING TORQUE 0.5Nm

10X M3

0.5Nm

M4 SCREW RECOMMENDED

TIGHTENING TORQUE 1.2Nm

1.2Nm

NOTES:

1. TECHNICAL CHARACTERISTICS:

INSULATION MATERIAL: PC

RATED VOLTAGE: 250 V

RATED CURRENT: 16 A

INSULATION RESISTANCE: >=400M ^

RATED IMPULSE VOLTAGE: 4 KV

POLLUTION DEGREE: 3

FLAMMABILITY: UL94V-0

MATING CYCLES: 500 CYCLES

WIRE RANGE: 0.5-2.5 mm² (20-14 AWG)

CONTACT FINISH: SILVER PLATED

CONTACT TYPE: SCREW CONTACT

56.5

250V

16A

>=400M ^

: 4 KV

UL94V-0

500

0.5-2.5 mm² (20-14 AWG)

PANEL CUT FOR INSERTS FOR USING

WITHOUT HOODS/ HOUSINGS

4X M3 SCREW, RECOMMENDED

TIGHTENING TORQUE 0.5Nm

4X M3 ,

0.5Nm

43.5

3.3

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DAVID WANG

CHRIS WANG

18DEC2014

NAME

TE Connectivity

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

49.5

1470-19 (3/13)

MATERIAL

ANGLES

PLC

PRODUCT SPEC

XU XIANG

HA-010-F

CAGE CODE

DRAWING NO

RESTRICTED TO

APPLICATION SPEC

108-137045

FINISH

114-137045

WEIGHT

Customer Drawing

SIZE

T2010102201000

SCALE

3:2

SHEET

REV
