52892-1795 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52892-1795

52892-1795: DescriptionFFC u0026 FPC Connectors 0.5 FFC/FPC ZIF Hsg Assy 17Ckt EmbsTpPkg; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52892-1795 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52892-1795	-	-	View	Buy Now

52892-1795 Overview

FFC u0026 FPC Connectors 0.5 FFC/FPC ZIF Hsg Assy 17Ckt EmbsTpPkg

52892-1795 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	FFC & FPC Connectors 0.5 FFC/FPC ZIF Hsg Assy 17Ckt EmbsTpPkg
Other features	ZIF
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.179 inch
body length	0.516 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	17
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

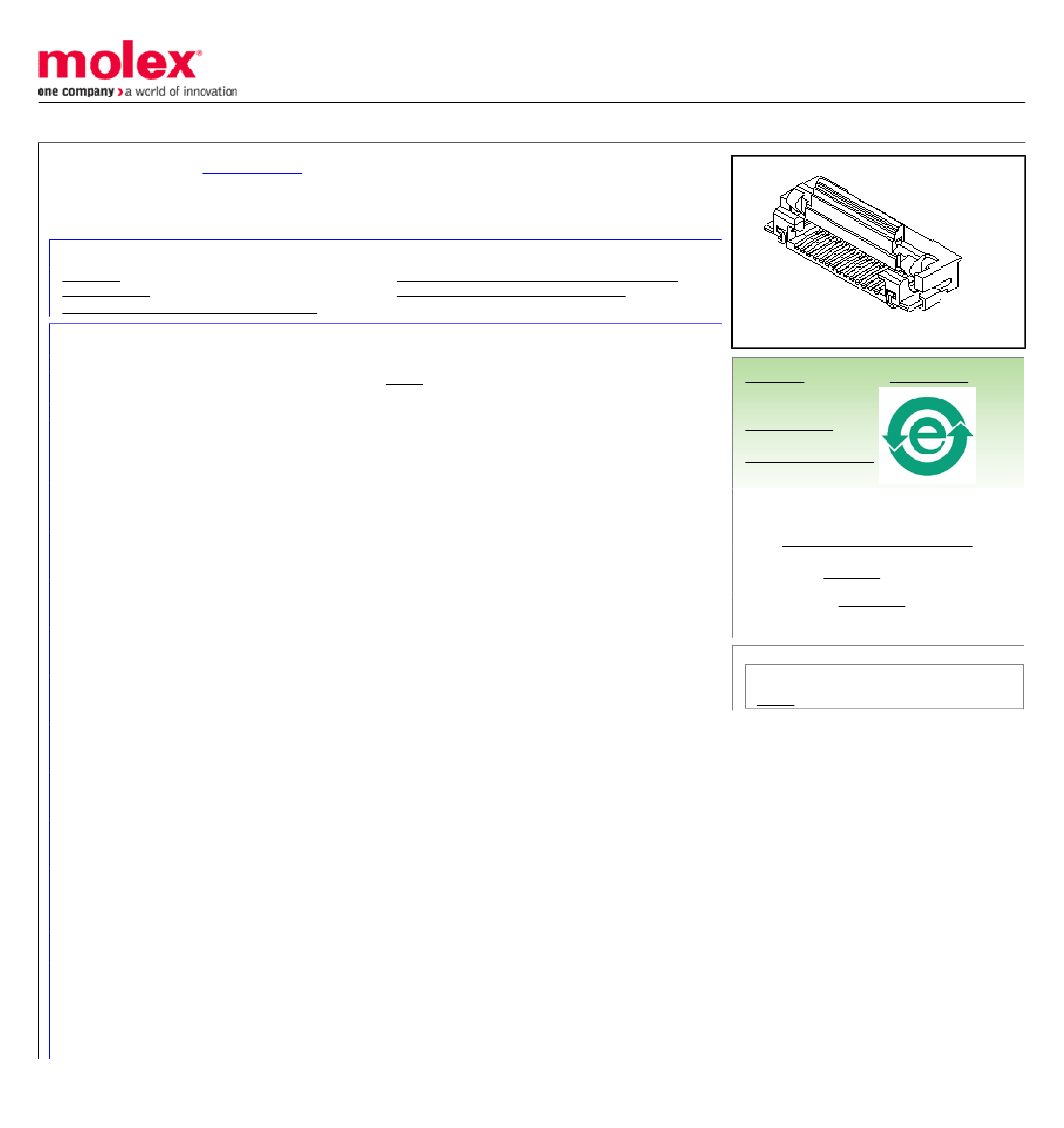

Preview

Download Datasheet

View All

This document was generated on 03/08/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

52892-1795

Active

0.50mm Pitch Easy-On™ Type FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom

Contact Style, Cable Retention Guide, 17 Circuits, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52892-038 (PDF)

Packaging Specification SPK-52892-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Comments

Product Name

UPC

FFC/FPC Connectors

52892

Hinge, Cable Guide

Easy-On™

822348116461

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Natural

Bottom

90° Angle

2.00mm

Phosphor Bronze

Tin-Bismuth

High Temperature Thermoplastic

196.828/mg

Right Angle

Yes

Embossed Tape on Reel

0.50mm

1.016µm

N/A

-25°C to +85°C

Surface Mount

FFC/FPC

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

52892Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A

50V

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

SPK-52892-001

PS-52892-038, RPS-52892-036, RPS-52892-039,

RPS-52892-045, RPS-52892-049, RPS-52892-052

SD-52892-040, SD-52892-041
