RB = 30μ” [0.76μm] Gold with Matte Tin Tails (App. E1 & C1 Apply)
Blank or UB = 30μ” [0.76μm] Gold with Tin Lead Tails (App. E3 & C2
Apply)
Latch/Ejector System
0 = No Latch/Ejector Installed
2 = Short, Roll Pin Latch/Ejectors
3 = Long, Roll Pin Latch/Ejectors
TS-0773-F
Sheet 3 of 4
3M Part Number
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

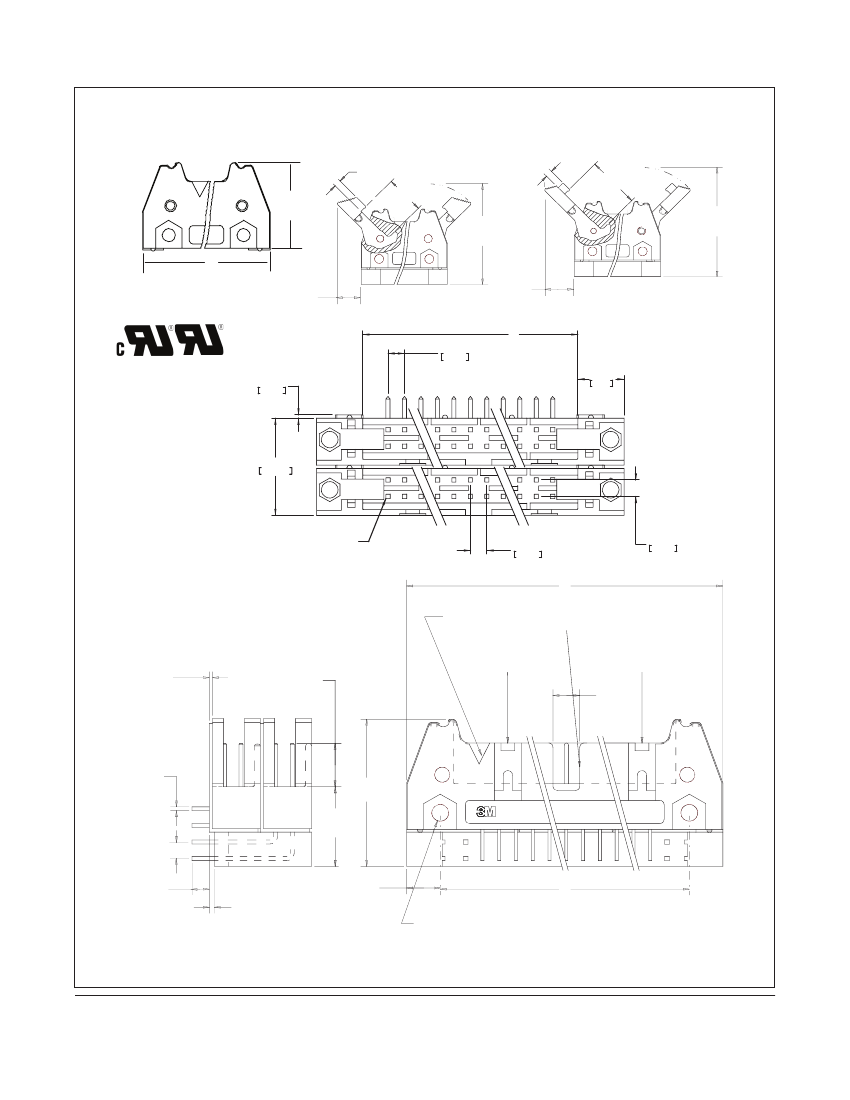

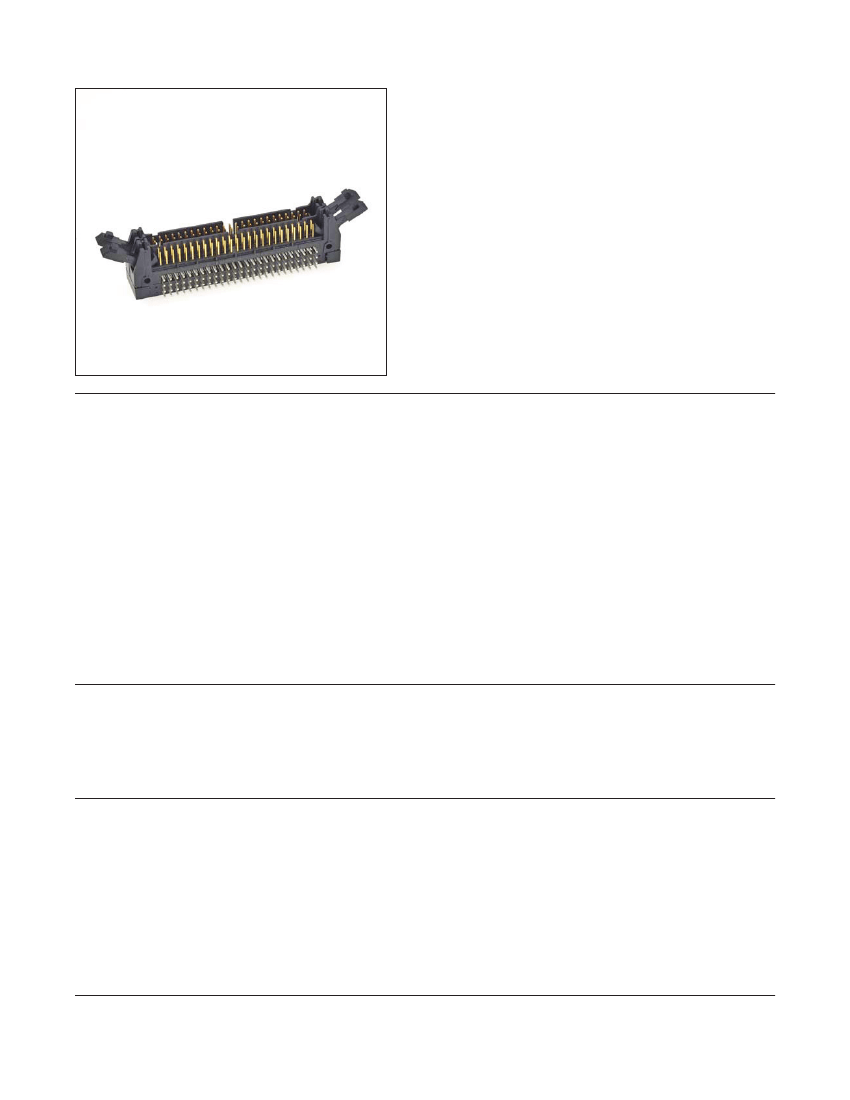

Three-Wall Condo Header
.100 × .100 Right Angle
3000 Series
Polarizing Post
.321
[8.15]
.100 Dia
[2.54]
Note: Insert Post into one mounting hardware hole on
bottom of header. Set post to protrude .115” [2.92]
3 2 0 1 -3
3 2 0 1 -4
PBT
LCP
G ra y
B la c k
Polarizing Keys
Dim A
N3518
3518
LCP
PBT
Black
Gray
.02
.02
Breakaway Tab
.34 Ref
[8.6]
.15
[3.8]
A
.09
[2.3]
Note: #2216 B/A Scotchweld can be used to adhere keys.

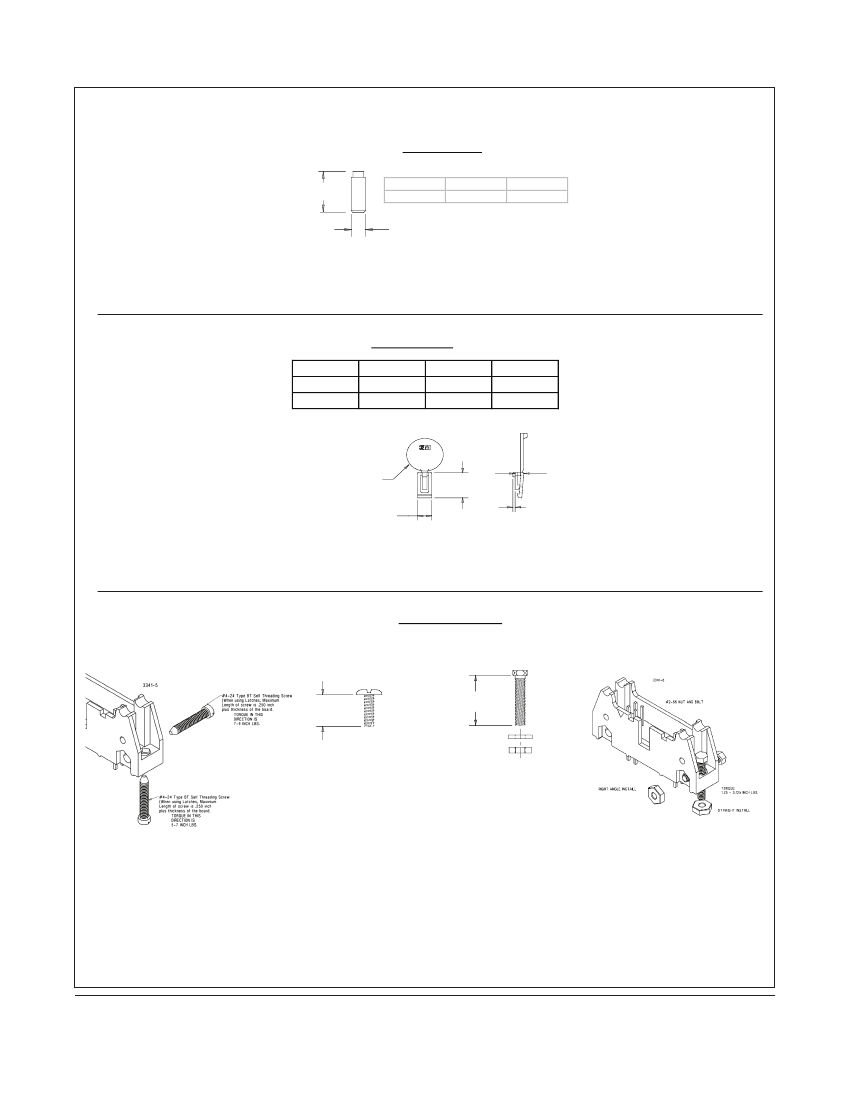

Mounting Hardware
3341-5
(Installed from bottom of board)
3341-6
(Must be inserted prior to latch on
vertical headers)
.31
[7.9]
.50
[12.7]
Panhead Thread Cutting Screw:
#4-24 X 5/16”
Type: USA Std BT, Federal BG
Hex Head Bolt, Nut and Washer
Bolt - #2-56 X 1/2”
3341-5 & 6
Material - Stainless Steel
TS-0773-F
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
